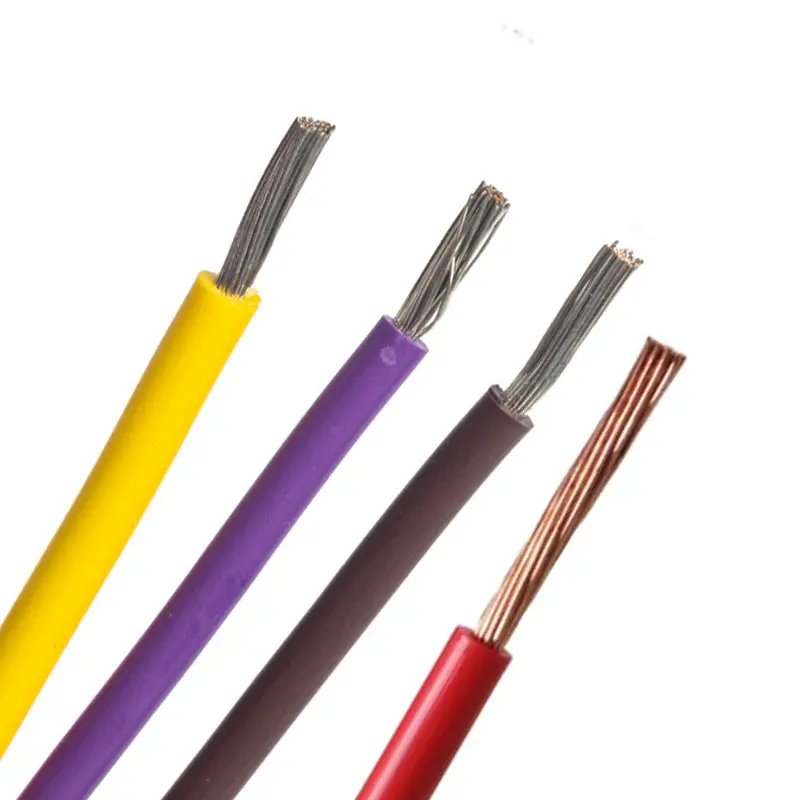

UL 1061 SR-PVC Insulated Hook-up Wire (80°C / 300V)

The Professional Choice for High-Density and Automated Wiring

CableApex’s UL 1061 wire is specifically engineered for internal wiring of electrical and electronic equipment where space is at a premium. Unlike standard PVC, our Semi-Rigid PVC (SR-PVC) insulation allows for a thinner wall while maintaining exceptional resistance to mechanical damage and heat during soldering. Built with 99.99% high-purity oxygen-free tinned copper, UL 1061 ensures optimal signal integrity and long-term reliability in precision instruments and automated systems.

Technical Specifications (UL File E333030)

Style: UL 1061
Insulation: Semi-Rigid Polyvinyl Chloride (SR-PVC)
Temperature Rating: 80°C (176°F)
Voltage Rating: 300V AC
Flame Test: Passes UL VW-1 and CSA FT1 vertical flame tests.
Key Feature: Thinner insulation (approx. 9 mils) compared to UL 1007, saving space and weight.

UL 1061 Technical Parameter Table

Gauge (AWG)	Conductor Stranding (No./mm)	Insulation Thickness (mm)	Approx. Outer Diameter (mm)	Max Resistance at 20°C (Ω/km)
28 AWG	7/0.127	0.25	0.90	239.0
26 AWG	7/0.16	0.25	1.00	150.0
24 AWG	11/0.16	0.25	1.15	94.2
22 AWG	17/0.16	0.25	1.30	59.4

Why Partner with CableApex?

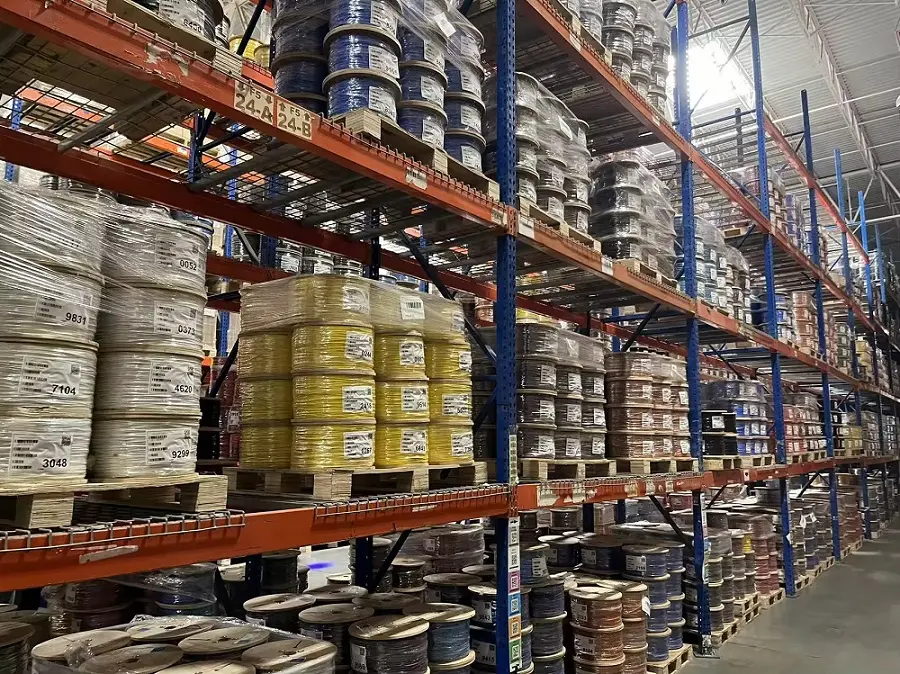

15-Year Industrial Heritage: Leveraging decades of manufacturing expertise and our 20-acre production base to ensure consistent quality for every order.
Premium Conductor Purity: We strictly utilize 99.99% pure OFC copper. Our UL 1061 wire guarantees low resistance and high-speed processing compatibility.

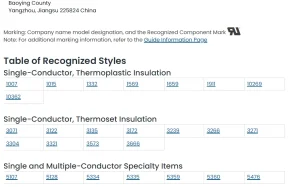

Traceable Compliance: Every meter of our cable is verifiable under UL File E333030, supporting your product’s international safety certifications.
Direct Factory Value: Benefit from our streamlined supply chain with competitive pricing and technical support directly from our Yangzhou facility.
