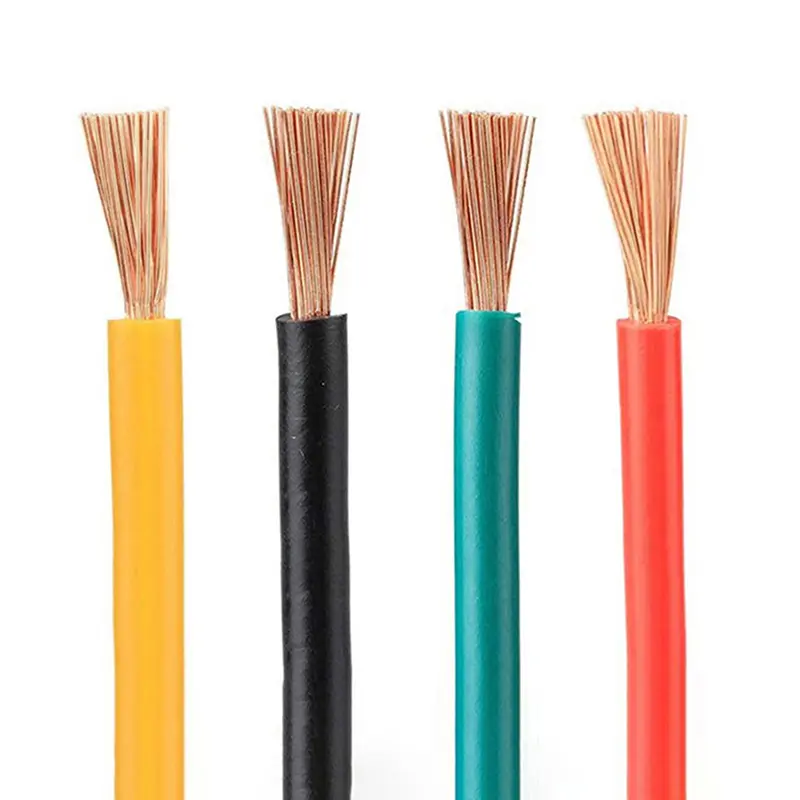

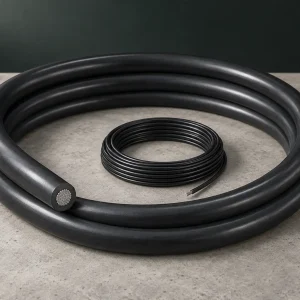

UL 1015 600V PVC Insulated Flexible Electrical Cable for Heavy-Duty Industrial Wiring

Engineered for High-Voltage Reliability and Thermal Stability

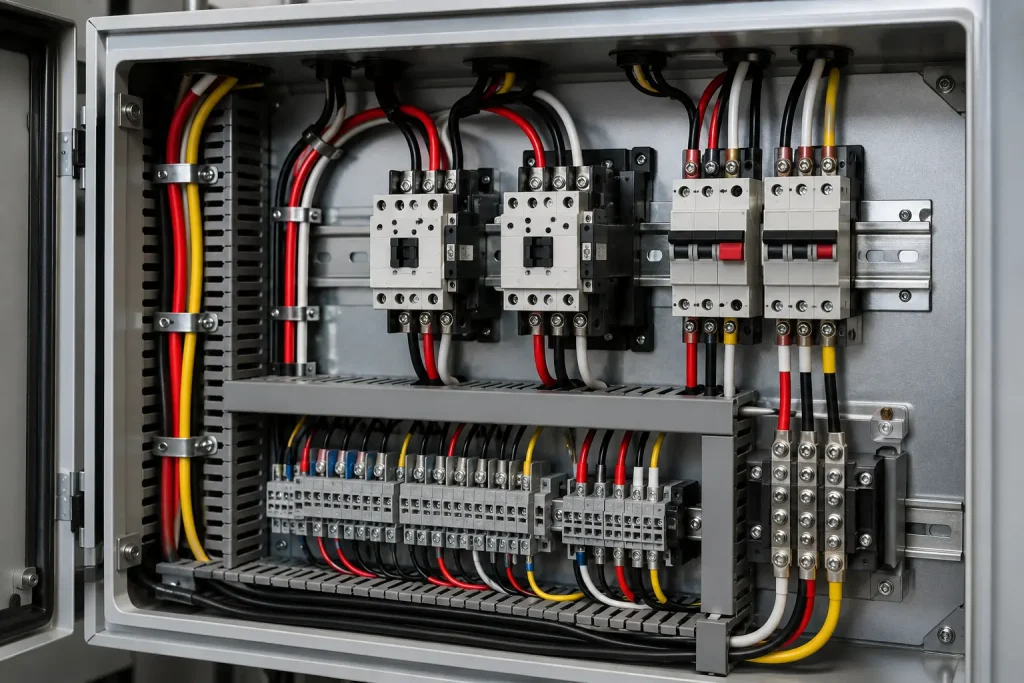

For industrial applications where electrical integrity and heat resistance are critical, CableApex’s UL 1015 600V flexible cable stands as the professional benchmark. Unlike standard 300V wires, the UL 1015 style is constructed with a reinforced thick-wall PVC insulation that safely manages up to 600V AC. Utilizing 99.99% high-purity oxygen-free tinned copper (OFC), it guarantees maximum conductivity while preventing corrosion in high-humidity or chemically active environments. This cable is the preferred choice for internal wiring of switchgear, power transformers, and control panels operating at temperatures up to 105°C.

Technical Specifications (UL File E333030)

AWM Style: UL 1015
Insulation Material: High-Dielectric Strength PVC (RoHS Compliant)
Temperature Rating: 105°C (221°F)
Voltage Rating: 600V AC
Flame Retardancy: Passed UL VW-1 and CSA FT1 vertical flame tests.

Physical Strength: Exceptional abrasion resistance and mechanical toughness for industrial maintenance.

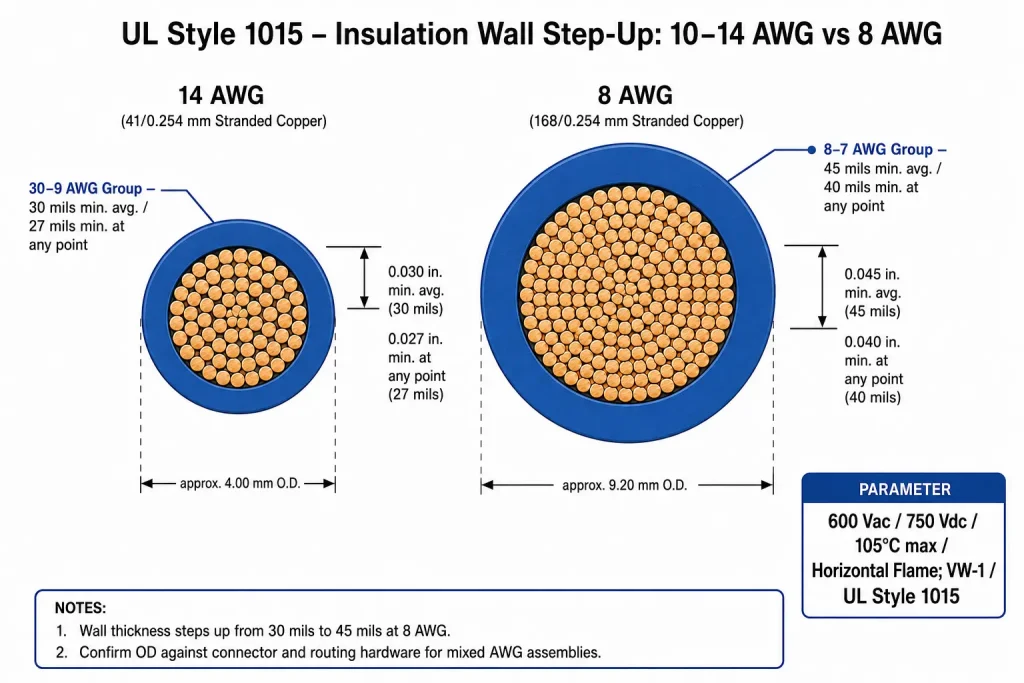

UL 1015 Technical Parameter Table

Gauge (AWG)	Stranding (No./mm)	Insulation Thickness (mm)	Approx. Outer Diameter (mm)	Max Resistance (20°C Ω/km)
14 AWG	41/0.254	0.80	3.50	8.96
12 AWG	65/0.254	0.80	4.00	5.64
10 AWG	105/0.254	0.80	4.80	3.54
8 AWG	168/0.254	1.14	6.20	2.23

Why Partner with CableApex?

15-Year Industrial Expertise: We leverage over a decade of high-standard manufacturing experience and our 20-acre production base in Yangzhou to ensure every order meets global specifications.
99.99% Pure Copper Guarantee: We exclusively use premium oxygen-free tinned copper, ensuring your equipment operates with minimal power loss and maximum safety.
Certified Traceability: All our UL 1015 cables are fully traceable under UL File E333030, providing transparent compliance for the North American and international markets.
Factory-Direct Scalability: From custom prototypes to container-load bulk orders, we provide competitive factory-direct pricing to keep your projects on budget and on schedule.
