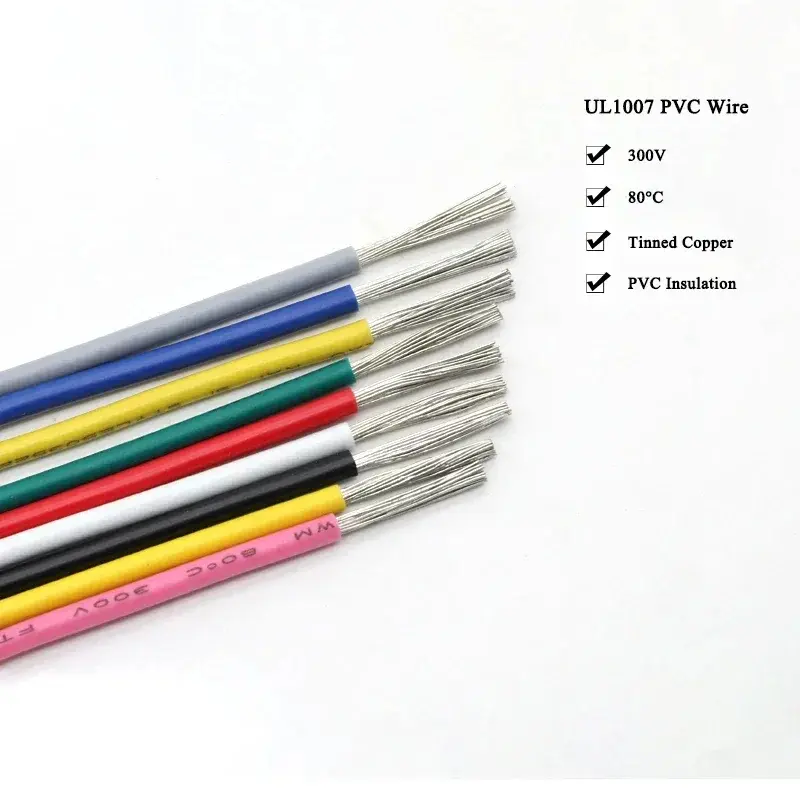

UL AWM Style 1007 / 18 AWG — Stranded Tinned Copper PVC Wire for Appliance Internal Wiring
This page covers the 18 AWG stranded tinned copper construction of UL AWM Style 1007, rated at 80°C maximum and 300 Vac, for the protected internal wiring of appliances and electronic equipment. A general UL 1007 Style overview covering the full 32–16 AWG range is available on the UL AWM 1007 product page. This page is intended for buyers procuring 18 AWG stranded tinned copper specifically, with confirmed construction data and procurement details for this size. CableApex supplies UL AWM Style 1007 18 AWG wire from factory production. UL AWM Style 1007 documentation is available for confirmed constructions on request.

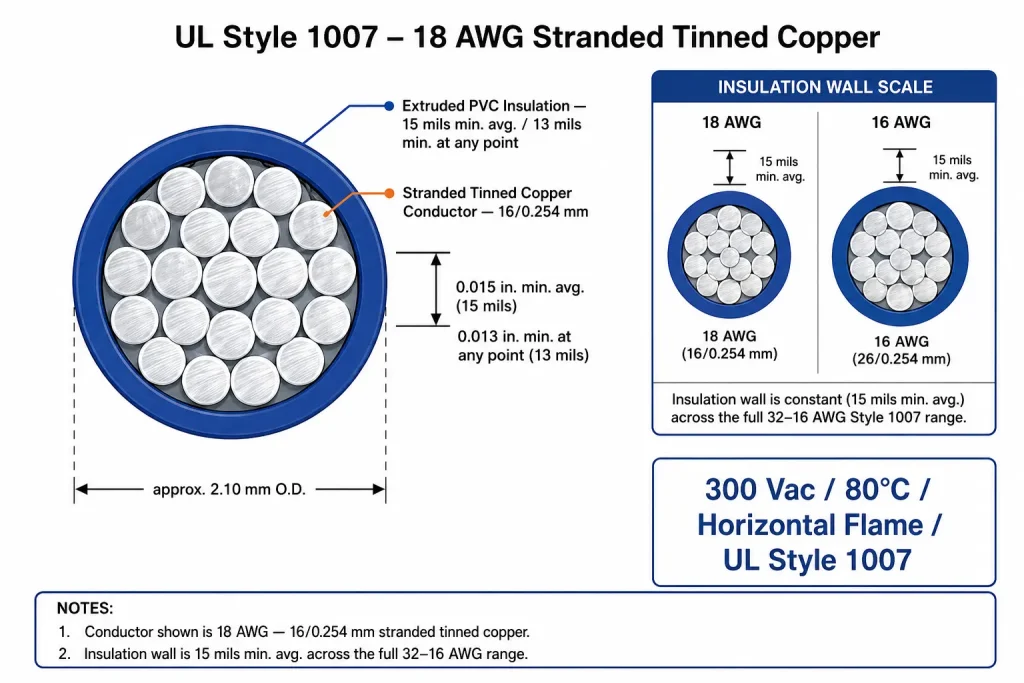

18 AWG Construction Data — Confirmed Factory Specification
The table below shows the confirmed typical factory construction for 18 AWG stranded tinned copper UL AWM Style 1007 wire. These values represent a specific factory construction and are not universal UL Style 1007 requirements. Final conductor stranding, outer diameter, resistance, insulation dimensions, colour, marking, spool length, and documentation depend on the confirmed order specification.
| Parameter | Confirmed Factory Construction Value |
|---|---|
| UL AWM Style | 1007 |
| UL Subject / Section | 758, Section 1 |
| Conductor Gauge | 18 AWG |

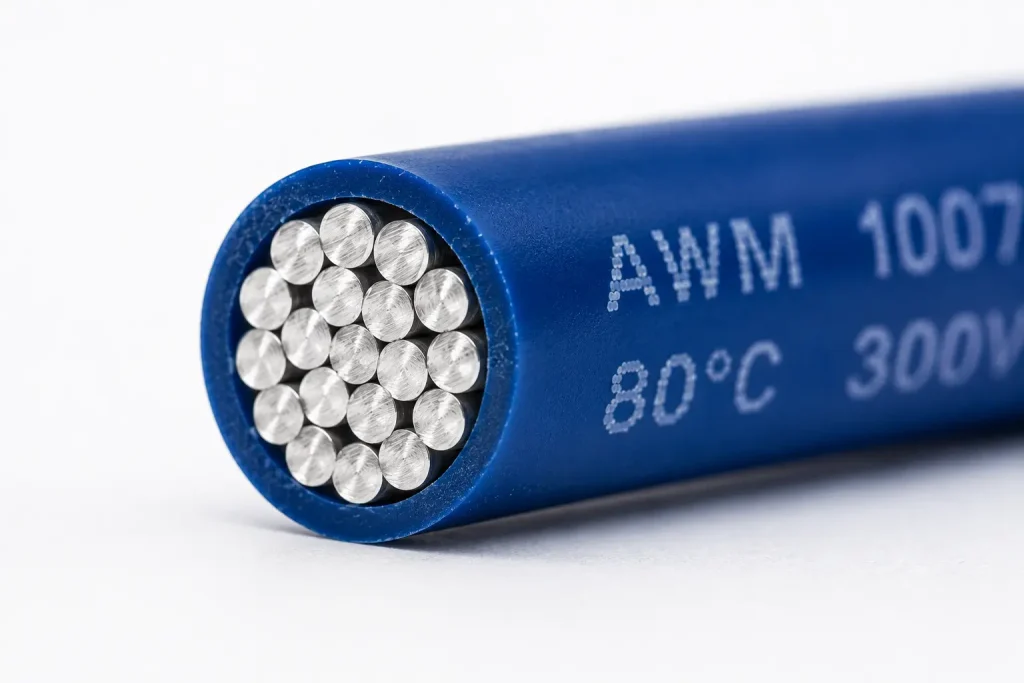

| Conductor Construction | Stranded tinned copper — 16/0.254 mm (typical factory construction; confirm at order) |
| Temperature Rating | 80°C maximum |
| Voltage Rating | 300 Vac |
| Insulation Material | Extruded PVC |
| Min Avg Insulation Thickness (UL Style file) | 15 mils (0.38 mm) |
| Min Insulation at Any Point (UL Style file) | 13 mils (0.33 mm) |
| Typical Insulation Thickness | ~0.41 mm (factory construction value) |
| Approx. Outer Diameter | ~2.10 mm (factory construction value) |
| Max Conductor Resistance at 20°C | 23.2 Ω/km (factory construction value) |
| Flame Rating (UL Style file) | Horizontal flame |
| Vertical Flame Testing | Available by confirmed construction and order requirement — not a default UL Style file parameter |
| Optional Oil Resistance | 60°C or 80°C oil-resistant grade — optional, confirm at order |
| UL Recognition | UL Recognized Component — file on record |
| Permitted Use (per UL Style file) | Internal wiring of appliances; tags may indicate 600V peak — for electronic use only |
| Colour Options | Red, black, white, yellow, blue, green, brown, grey; custom on request |
| RoHS / REACH | Documentation available on request, where applicable |

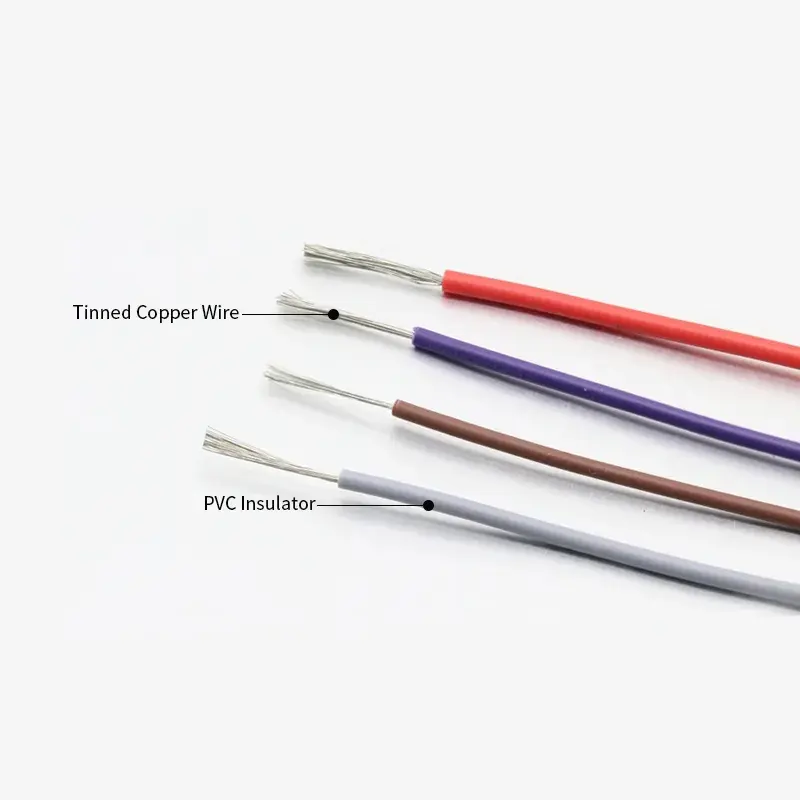

Tinned Copper at 18 AWG — Termination and Assembly Notes
The tinned copper conductor construction of this 18 AWG product supports soldering, crimping, and automated stripping processes where the conductor construction, insulation dimensions, and processing equipment settings are confirmed to be compatible. Tin plating on the conductor surface provides stable solderability over the service life of the wire under normal storage and assembly conditions, and reduces surface oxidation at the copper-insulation interface compared to bare copper. These properties make this construction a commonly specified choice for appliance and electronic equipment internal hook-up wiring where tinned conductors are preferred for the termination method used in the assembly process.
Automated stripping performance depends on the insulation dimensions, PVC compound hardness, and stripper blade settings calibrated to the actual ordered construction. Confirm the insulation OD and compound characteristics at the enquiry stage if automated stripping is a production requirement.

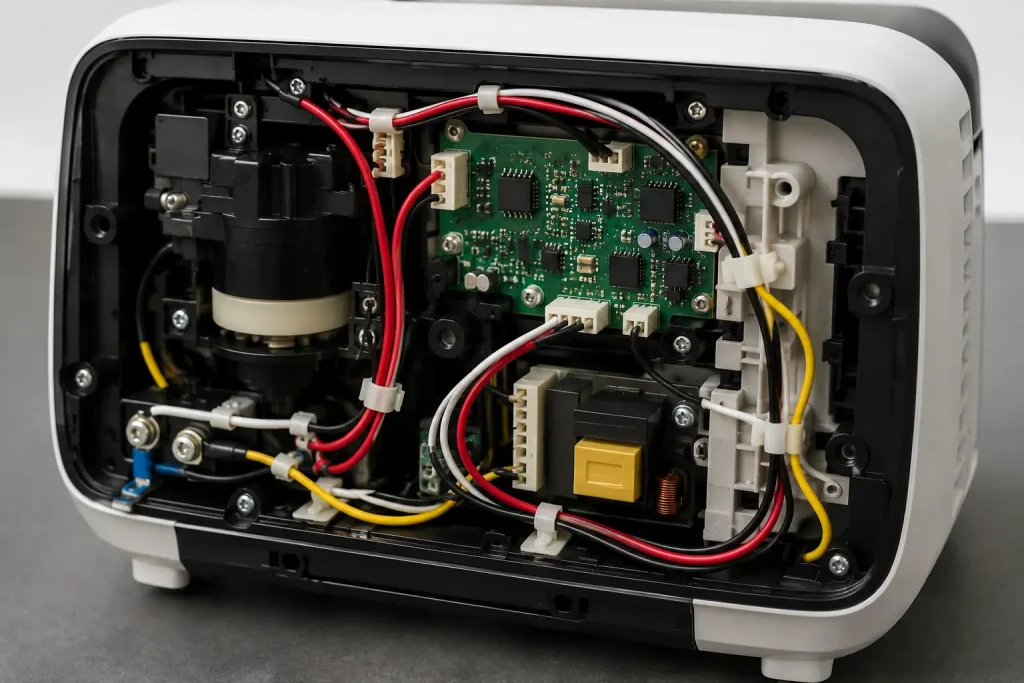

Applications — Protected Internal Wiring of Appliances and Electronic Equipment
At 18 AWG, 80°C maximum, and 300 Vac, this UL AWM Style 1007 tinned copper construction is typically evaluated for stationary protected internal wiring inside enclosed appliance and electronic equipment assemblies. Application categories include:
- Internal lead wire connections inside consumer appliance assemblies where 18 AWG stranded tinned copper is specified for the termination method used
- Power supply unit internal hook-up wiring inside enclosed assemblies at 300V class where the 80°C temperature rating and 18 AWG cross-section meet the equipment design requirements
- Electronic equipment internal wiring at 18 AWG where tinned copper supports the soldering or crimping process used in the production assembly line
- OEM internal wiring where a fixed 18 AWG stranded tinned copper specification is confirmed and repeated across production runs
UL AWM Style 1007 is not designated for field wiring, building installation wiring, external cabling, or use outside protected internal equipment wiring. Where 600 Vac internal wiring is required, UL AWM Style 1015 PVC Hook-up Wire (105°C / 600V) is the appropriate higher-voltage PVC alternative.
Factory Supply — 18 AWG Stranded Tinned Copper UL 1007
- Stable 18 AWG production: This 18 AWG stranded tinned copper construction is a standard production item supplied through CableApex for B2B export orders. Stable production capability supports repeat procurement at fixed construction specification.

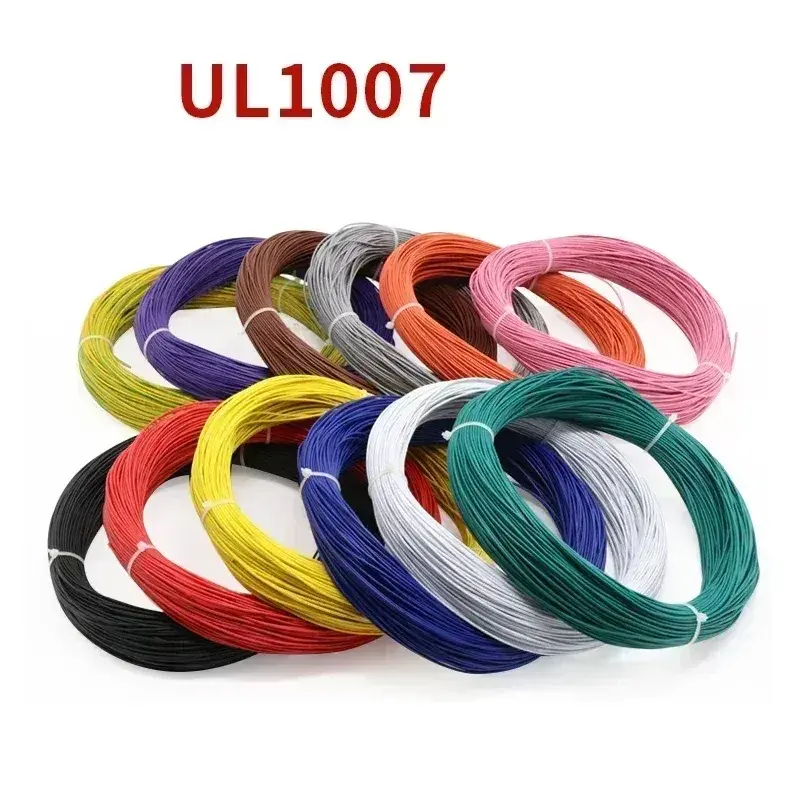

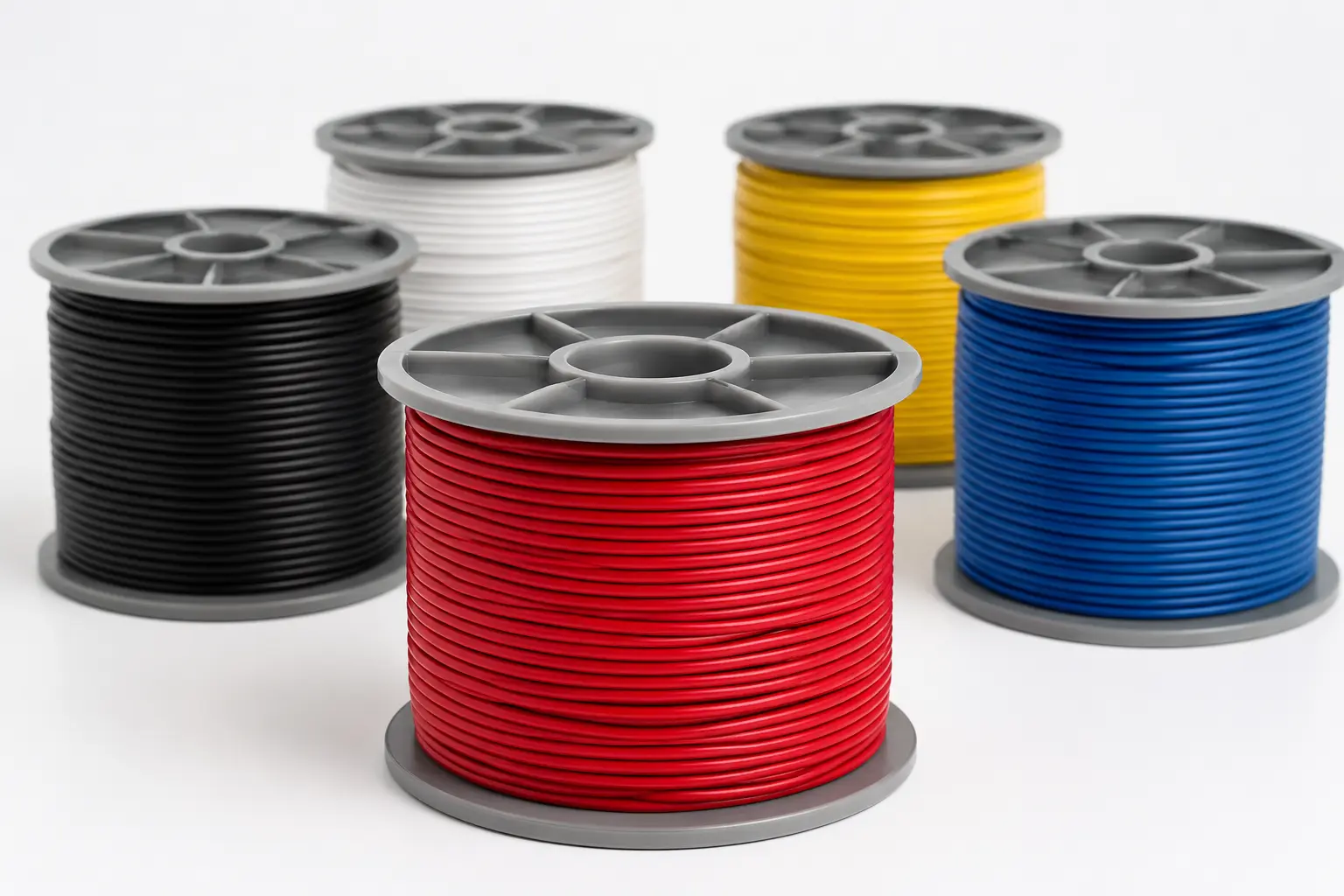

- Custom colour and spool length: PVC jacket colour and spool length produced to buyer specification. Standard colours: red, black, white, yellow, blue, green, brown, grey. Custom colours on request. MOQ 100m per colour.
- Cutting and packaging support: Fixed-length cutting and custom reel or coil packaging available on request. Confirm format requirements at the enquiry stage.
- Flame test capability: Horizontal flame is the UL Style 1007 file requirement. Vertical flame testing can be provided according to the confirmed construction and order requirement.
- Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading provided as standard. UL AWM Style 1007 documentation available for confirmed construction on request. RoHS and REACH documentation available on request where applicable. HS Code: 8544.49.
Related UL AWM Styles
Buyers procuring UL AWM Style 1007 18 AWG may also consider: the UL AWM 1007 general product page covering the full 32–16 AWG Style range for multi-AWG procurement enquiries; UL AWM 1015 PVC Hook-up Wire (105°C / 600V) (600 Vac / 750 Vdc, extruded PVC, 30 AWG–2000 kcmil — higher-voltage higher-temperature class PVC alternative where 300V is insufficient); and UL AWM 1569 (80–105°C / 300 Vac, extruded PVC, 30–2 AWG — 300V class PVC alternative with 105°C temperature option and a wider AWG range extending below 16 AWG).
