High Voltage Wire

High voltage AWM wire covers internal wiring applications where the circuit voltage is higher than common 300V or 600V AWM hook-up wire — from gas appliance ignition circuits at 10,000V AC to high voltage DC equipment internal wiring. The insulation systems in this group are constructed for high voltage dielectric performance: silicone rubber constructions for the ignition wire styles (UL 3304, UL 3573), a high voltage DC construction for UL 3239, and a high voltage DC ignition construction for UL 1911. Voltage, temperature, insulation material, and construction depend on the selected UL style.

CableApex supplies high voltage AWM wire as a UL Recognized Component — file on record — covering four styles across AC and DC voltage ratings. RoHS and REACH documentation is available on request.

UL Style	Voltage	Temperature	Insulation	Primary application

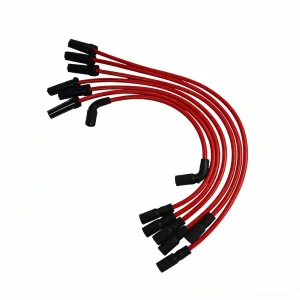

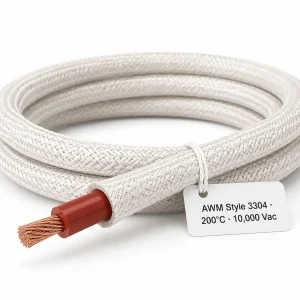

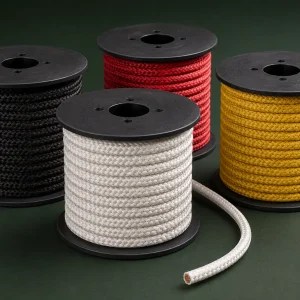

UL 3304	10,000V AC	200°C	Silicone rubber + fiberglass braid	Gas range and burner ignition leads, where protected from damage
UL 3573	10,000V AC	200°C	Silicone + fiberglass braid + outer layer	Ignition leads in gas range and burner systems, sealed outer construction

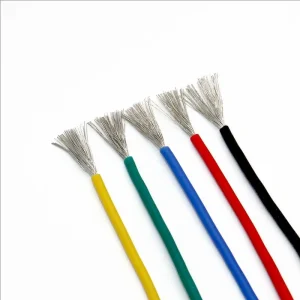

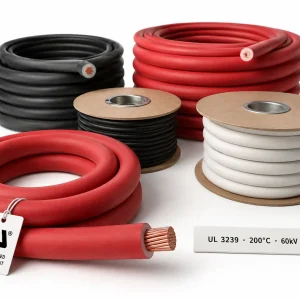

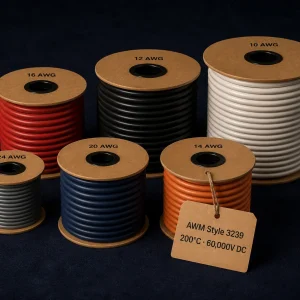

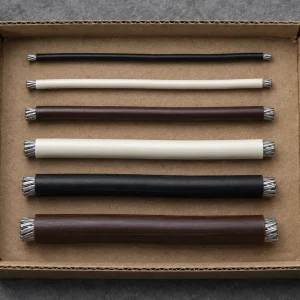

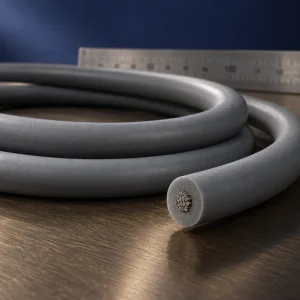

UL 3239	Up to 60,000V DC	200°C max	Per style listing (see construction)	High voltage DC internal wiring and power supply leads

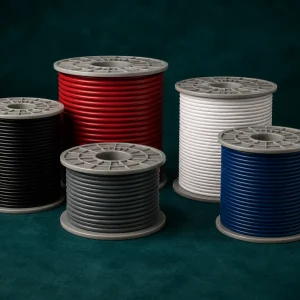

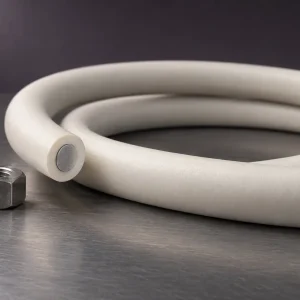

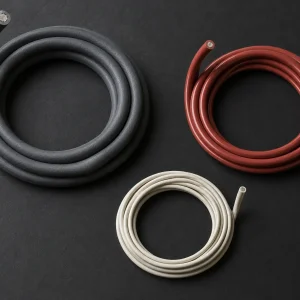

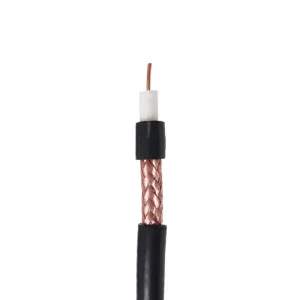

UL 1911	Up to 50,000V DC	250°C	Per style listing (see construction)	High voltage DC internal wiring of electronic gas ignitor systems

UL 3304 and UL 3573 are both 10,000V AC silicone ignition constructions: UL 3304 uses a thicker single silicone wall with a fiberglass braid, while UL 3573 uses a silicone inner layer, a fiberglass braid, and a sealed outer insulation layer. UL 3239 and UL 1911 are high voltage DC constructions, with conductor size, insulation material, and dielectric construction defined per each style’s listing. Confirm the specific construction against the application voltage and routing conditions.

To request a quotation, send the UL style number, voltage, conductor size, insulation material, temperature requirement, colour, quantity, and a brief description of the application. Quotations are returned within 24 hours, and mixed-style or mixed-AWG orders are accepted on a single shipment.
