UL 1911 High Voltage Wire for UAE and Saudi Arabia

This is the regional procurement page for UL AWM Style 1911 high voltage wire for buyers in the UAE and Saudi Arabia. It is written for equipment OEM buyers, sourcing teams and distributors whose drawing, BOM or electronic gas ignitor system specification calls for Style 1911.

The Style record describes Style 1911 as a high voltage wire rated 250°C with a maximum of 50000 Vdc and a Horizontal Flame designation, and refers to a facing page for the individual ratings that apply to a given construction. The conductor range is 24 AWG–10 AWG, solid or stranded round, and the insulation entry reads “Any material”, with details likewise belonging to the confirmed construction.

Because the Style fixes the ceiling and leaves the material open, a Style 1911 requirement is the starting point of a specification rather than a complete one. The ordered wire is confirmed against the customer’s drawing, BOM, equipment specification, required marking and documentation.

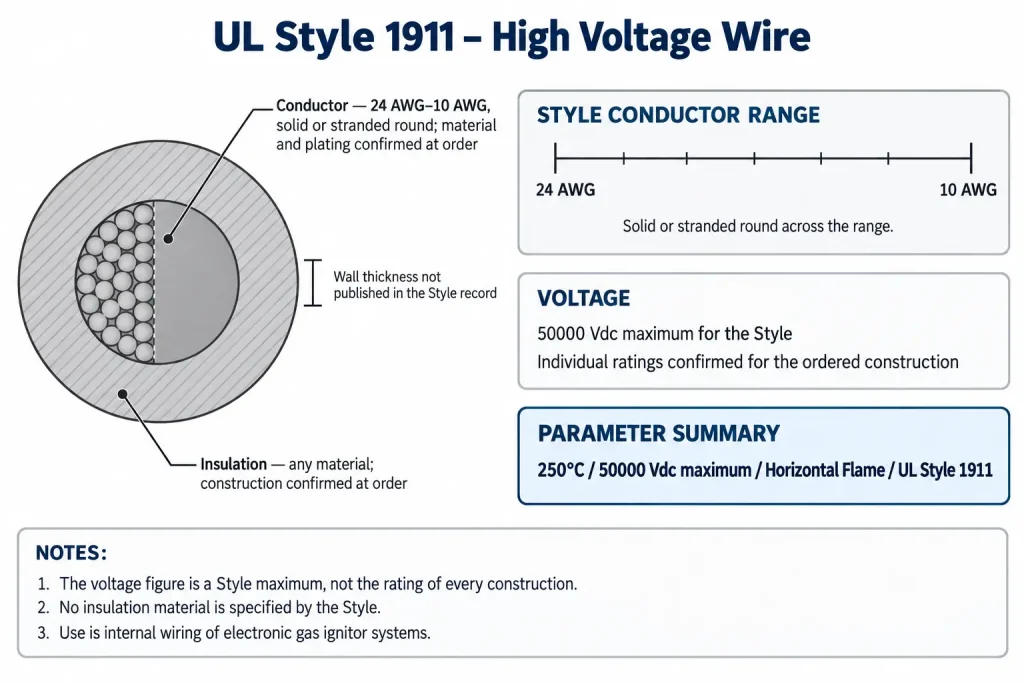

Confirmed UL Style 1911 Construction and Ratings

Nine points to clarify about the table above:

1. 50000 Vdc is a maximum for the Style. It is not the rating of an unspecified Style 1911 wire, and no higher figure belongs to this Style.
2. The record publishes no voltage-grade list, so no ladder of standard kV grades appears here.
3. The voltage rating is DC and is not restated as an AC rating.
4. 250°C is the temperature rating stated in the record, without a duty qualifier, and the record refers to individual ratings for a given construction.
5. The conductor range is 24 AWG–10 AWG. Sizes outside that range are outside the Style.
6. The conductor is specified as round, solid or stranded. Conductor material and plating are not defined by the Style.
7. “Any material” describes the insulation entry as recorded. It does not establish PVC, silicone, XLPE or any other named compound as the Style construction.
8. Insulation thickness, finished OD, OD tolerance, conductor resistance and ampacity are not published in this Style record and require a specific drawing or order document.
9. The Use names one application category, and it is reproduced here without extension.

Reading the 50000 Vdc Maximum Correctly

A maximum is a ceiling on the Style, not a property every construction carries. A Style 1911 wire holds the voltage rating confirmed for it, which may be well below 50000 Vdc, so an enquiry stating only “UL 1911” leaves the actual requirement open.

Two consequences follow for procurement. First, published grade ladders such as 15 kV, 20 kV, 30 kV, 40 kV and 50 kV are not Style values; individual grades come from an order drawing or a product sheet for a specific construction. Second, figures above the ceiling, such as 60 kV or 100 kV, do not belong to Style 1911 at all, and an enquiry that quotes one has moved outside the Style without saying so.

The voltage rating is also not derived from insulation material or wall thickness on this page. The record publishes neither a thickness table nor a relationship between wall and rating, so any such relationship for a given product comes from that product’s own documentation.

Insulation: “Any Material” and What It Means for an Enquiry

The insulation entry in the Style record is open: any material, with details referred to the applicable record page. That is unusual, and it changes how the wire should be specified.

It means the Style designation alone does not tell a buyer what the wire is insulated with. Style 1911 is therefore not described here as a PVC high voltage wire, a silicone high voltage wire or any other named material, because that would state something the Style record does not contain. Where the buyer’s design depends on a particular insulation material, temperature behaviour of that material, or chemical or environmental resistance, the material is named in the RFQ and confirmed for the ordered construction.

It also means that two wires can both be qualified Style 1911 constructions and differ substantially in material, dimension and handling. Comparing a quotation against an existing installed wire therefore needs the construction detail, not just the Style number.

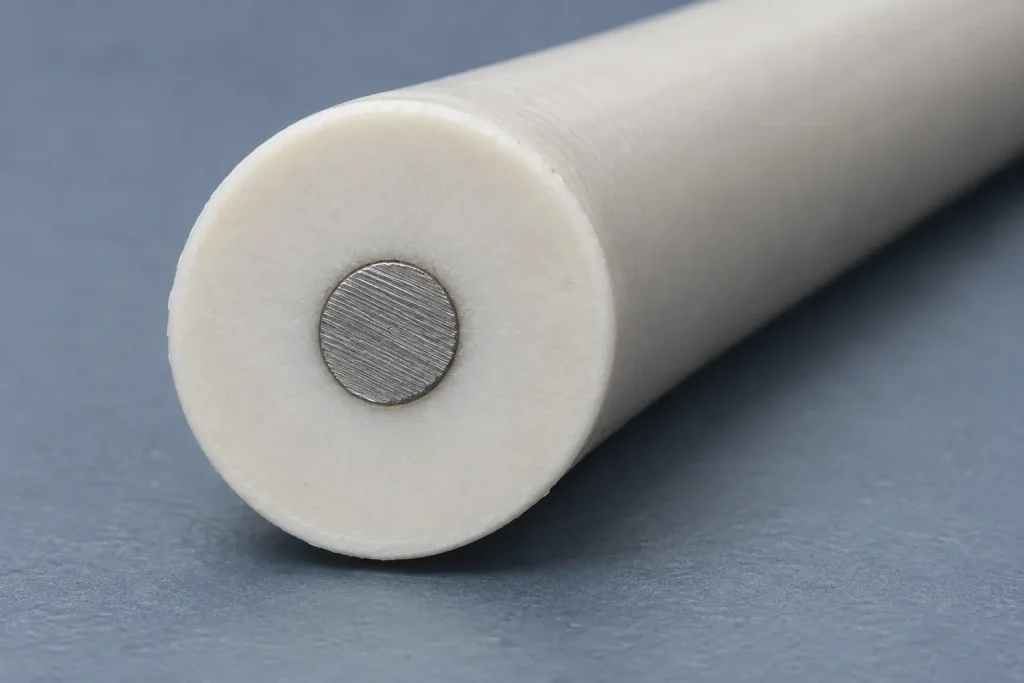

Conductor Range and Form

The Style covers 24 AWG through 10 AWG, solid or stranded round. Listings that show a wider span describe sizes the Style does not cover, and an enquiry built on such a listing will not match a qualified Style 1911 construction.

The Style does not define conductor material or finish, so copper, tinned copper, bare copper, nickel-plated copper and silver-plated copper are constructions a buyer may specify rather than properties this page can assert. Strand count, strand diameter, lay construction and any maximum conductor resistance are RFQ fields.

Conductor size carries no circuit function and no current capacity here. The record gives no ampacity, and none is inferred from conductor size, the 250°C rating or the voltage maximum. Style scope is also not inventory: not every size or construction is regularly produced or held, and availability is confirmed per enquiry.

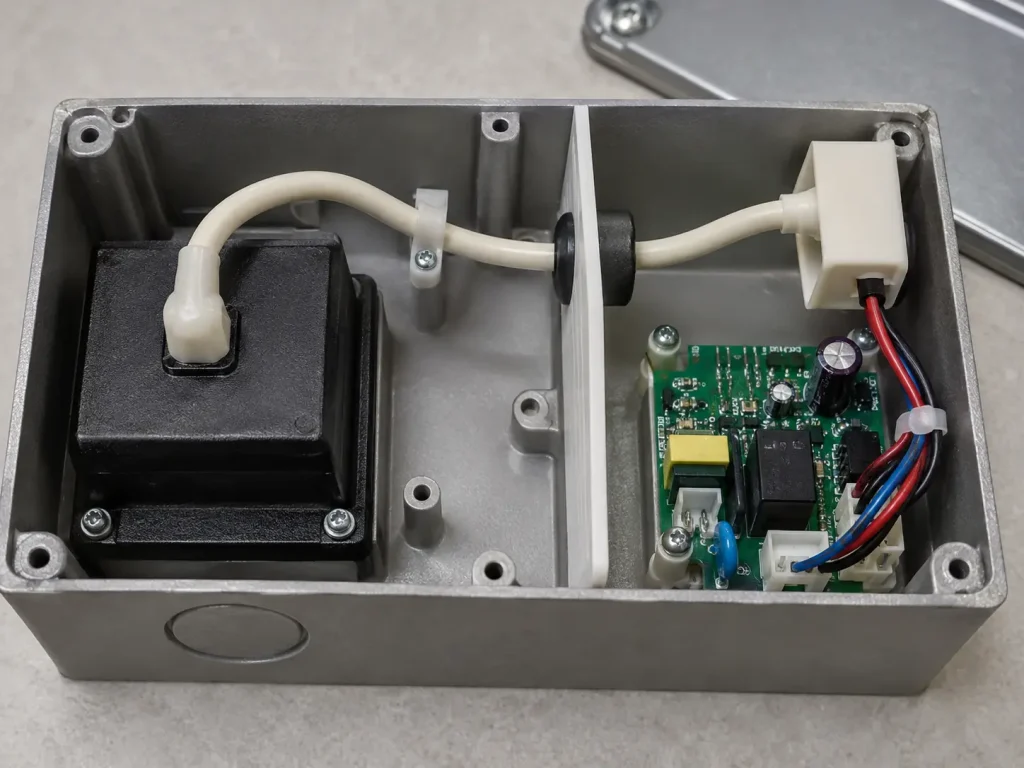

Official Use: Internal Wiring of Electronic Gas Ignitor Systems

The official Use is “Internal Wiring of electronic gas ignitor systems.” This is a narrow, specific Use, and this page keeps it as written.

Style 1911 is not presented here as a general high voltage DC wire, a high voltage power supply lead, an X-ray or laser equipment wire, an electrostatic, corona or plasma equipment wire, an inverter wire or a general high voltage assembly wire. Buyers sometimes enquire from those contexts, and an enquiry can be reviewed, but such contexts are not approved uses for this Style, and no statement is made that Style 1911 is required or standard for any of them.

The Use is also internal wiring. It is not extended to external cable, field wiring, portable cord or interconnection between separate enclosures. Compliance of a finished ignitor system or appliance is established at the equipment level and is not conferred by the Style designation of one internal wire.

Current-carrying capacity is not fixed by this page either. It is evaluated through the buyer’s equipment design and the applicable approval process, and a stated circuit requirement can be passed to engineering review rather than converted into an ampere figure here.

Style Selection Comes from the Drawing

Where a drawing specifies Style 1911, that is the Style quoted. Other high voltage AWM Styles carry their own constructions, conductor ranges, ratings and Use statements, and this page does not treat any of them as interchangeable with Style 1911 or present one as a lower-cost substitute for another. If a buyer is unsure which Style applies, the resolution is the equipment drawing, the BOM or the engineering specification.

How to Specify UL 1911 for a UAE or Saudi Arabia RFQ

A Style designation is a construction requirement, not a complete purchase specification. A workable Style 1911 enquiry states:

• the UL Style 1911 requirement
• the required voltage level, not exceeding the Style maximum
• the AWG within 24 AWG–10 AWG
• solid or stranded round conductor
• conductor material and plating, where controlled by the drawing
• the insulation material and construction required
• colour or identification, and the marking requirement
• the internal wiring location within the electronic gas ignitor system
• the applicable drawing, BOM or equipment specification
• documentation requirements, quantity and packaging preference
• the UAE or Saudi Arabia destination and the requested Incoterm

Where a maximum finished OD, an OD tolerance or a conductor resistance limit is controlled, those values are stated in the RFQ and checked against the proposed construction rather than calculated from the Style record.

UAE and Saudi Arabia Procurement Context

The UAE and Saudi Arabia are the procurement and destination context for this page. Buyers in both markets may search for Style 1911 when a drawing or BOM requires an AWM high voltage wire under this Style for electronic gas ignitor system internal wiring, whether for an equipment build, a replacement part or an export programme. Riyadh, Jeddah, Dammam, Dubai, Abu Dhabi, Jebel Ali or another city or port can be named as the destination in an enquiry.

CableApex coordinates international sales, RFQ communication, export documentation review and order confirmation for qualified AWM wire supply. No regional market demand, industry usage or named facility is claimed here, no city or port is described as certified or approved, and no conclusion is drawn about UAE or Saudi conformity, registration or import approval requirements. Where such requirements apply, the buyer should state them so the applicable documents can be reviewed for the ordered construction. Incoterm, packaging and quantity are handled per enquiry rather than published as fixed terms.

What Style 1911 Does and Does Not Define

Style 1911 defines:

• a high voltage wire product description
• a 250°C temperature rating and a 50000 Vdc maximum voltage rating
• Horizontal Flame
• conductor range 24 AWG–10 AWG, solid or stranded round
• insulation as any material, with details in the confirmed construction
• Marking: General
• Use: Internal Wiring of electronic gas ignitor systems.

Style 1911 does not universally define:

• the voltage rating of any particular construction, or a list of standard kV grades
• a named insulation compound
• insulation thickness, finished OD or OD tolerance
• conductor material, plating, strand count, strand diameter or lay length
• conductor resistance, ampacity or current rating
• bend radius, flex cycles or flex class
• power supply, X-ray, laser, inverter, electrostatic or plasma equipment suitability
• equivalence with or substitution for another high voltage Style
• colour, reel length, MOQ, stock, lead time, production capacity or shipping term

Common Procurement Errors

• Treating 50000 Vdc as the rating of any Style 1911 wire rather than the Style maximum.
• Publishing a fixed kV grade ladder the record does not contain.
• Quoting 60 kV or 100 kV figures against Style 1911.
• Describing Style 1911 as a PVC high voltage wire, or naming any other default insulation.
• Extending the conductor range beyond 24 AWG–10 AWG.
• Assuming the conductor is tinned copper, or that all Style 1911 is stranded.
• Publishing an insulation thickness or finished OD without a drawing to support it.
• Deriving a voltage rating from insulation material or wall thickness.
• Deriving ampacity from conductor size or the ratings.
• Presenting the wire as a general high voltage power supply lead, or for X-ray, laser, inverter, electrostatic or plasma equipment, as an approved use.
• Substituting another high voltage Style because its ratings appear compatible or its price is lower.
• Describing a city or port as certified, or assuming a fixed document set applies to every shipment.

RFQ Information to Confirm

Style and ratings

• UL AWM Style 1911 requirement
• Voltage requirement within the Style 1911 maximum
• Temperature requirement

Conductor and construction

• AWG within 24 AWG–10 AWG
• Solid or stranded round conductor
• Conductor material and plating requirement, if controlled by the drawing
• Insulation material and construction
• Maximum OD, OD tolerance or conductor resistance limit, if controlled

Identification and application references

• Colour or identification requirement
• Marking requirement
• Internal wiring location in the electronic gas ignitor system
• The circuit requirement for engineering review, rather than a self-derived ampacity
• Drawing, BOM or equipment specification

Commercial

• Quantity and packaging preference
• UAE or Saudi Arabia destination and requested Incoterm
• Requested UL marking and compliance documents, including any RoHS / REACH documentation requirement

UL Marking and Documentation

CableApex is an international sales and export company and does not hold a UL File for Style 1911. Supplied wire is UL-recognized component wire where supplied under a qualified manufacturing scope, with UL marking according to the confirmed ordered construction. The Style record lists Marking as General.

Applicable RoHS / REACH documentation can be confirmed according to the ordered construction. CSA, FT1, VW-1, CE, dual UL/CSA and regional conformity or registration designations are not claimed here.

Commercial, origin, compliance and transport documents are identified during quotation and confirmed according to the order. They are not supplied as a fixed package with every shipment.
