PVC Insulated Wire
PVC insulated AWM wire covers the broadest range of general-purpose internal wiring applications in the UL AWM wire family. All styles in this group use polyvinyl chloride (PVC) as the insulation material — a thermoplastic insulation that offers cost-effective electrical insulation, good flame retardance, and adequate thermal performance for the majority of standard appliance and industrial equipment internal wiring applications below 600V AC.
CableApex produces PVC insulated AWM wire under UL Follow-Up Service File No. E333030, covering four styles with different voltage ratings and wall thickness specifications to match the application’s circuit voltage, ambient temperature, and routing requirements. All styles comply with RoHS and REACH and are available in the full AWG range from 30 AWG to 4/0 AWG with tinned or bare stranded copper conductor.
| UL Style | Voltage | Temperature | Primary application |
|---|---|---|---|

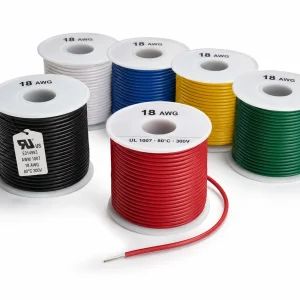

| UL 1007 | 300V AC | 80°C | General internal wiring, appliance leads, harness assemblies |
| UL 1015 | 600V AC | 105°C | Power feeds, motor leads, control panel internal wiring |
| UL 1569 | 300V AC | 105°C | Thin-wall compact routing, appliance internal wiring |

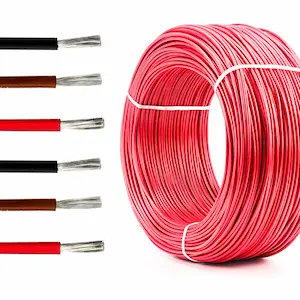

| UL 10269 | 1000V AC | 105°C | High voltage PVC internal wiring, oil-resistant applications |
Showing 1–12 of 57 results
