UL 5107 Mica Wire
UL 5107 Mica Wire — 200/450°C · 600V AC · Mica Tape or Mica Composite with Glass Braid

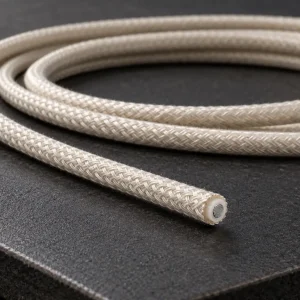

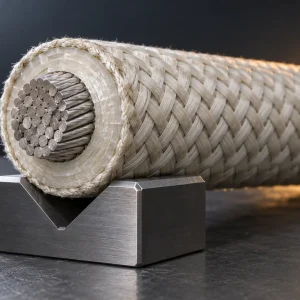

UL AWM Style 5107 is a mica tape or mica composite insulated wire with a glass braid outer covering, rated at 200°C or 450°C and 600V AC under UL Subject 758, Section 5. The insulation system uses multiple wraps of mica tape — or a mica composite construction per the facing page — with a glass braid treated with silicone varnish or TFE finish as the outer covering. Both single-conductor and multiple-conductor assemblies are covered under this style.
The permitted use is internal wiring of high-temperature equipment where the wire is not subjected to repeated flexing and is protected from mechanical abuse, and where the acceptability — including current-carrying capacity — has been determined by UL. Typical protected internal wiring applications include high-temperature industrial ovens, kilns, furnace enclosures, and thermal processing equipment where the internal routing temperature exceeds the limits of polymer insulation systems. Application suitability is subject to equipment design, routing conditions, mechanical protection, and current-carrying requirements — confirm at enquiry stage.
For 300V mica wire constructions, see UL 5128 and UL 5334. For thin-wall mica wire from 30 AWG, see UL 5359.
Technical Specifications — UL Style 5107
| Parameter | Specification |
|---|---|
| UL AWM Style | 5107 |
| UL Subject | 758, Section 5 |
| Temperature Rating | 200°C or 450°C (order-dependent) |
| Voltage Rating | 600V AC |
| AWG Range | 26 AWG – 550 kcmil (solid or stranded; sizes larger than 8 AWG stranded only) |
| Insulation | Mica tape wrap or mica composite — per facing page construction |
| Outer Covering | Glass braid treated with silicone varnish or TFE finish |
| Conductor Options | Solid or stranded copper; nickel-plated or bare; optional shield (36–30 AWG strands) |
| Assembly | Single conductor or multiple conductors cabled together (max O.D. 1.500 in); optional overall glass braid |
| Flame Rating | Horizontal flame |
| UL Recognition | UL Recognized Component — file on record |
| Permitted Use | Internal wiring of high-temperature equipment — not subjected to repeated flexing, protected from mechanical abuse; acceptability including current-carrying capacity determined by UL |
| RoHS / REACH | Documentation available on request |
Request a Quote
To receive an accurate quotation, please include the following in your enquiry: required temperature rating (200°C or 450°C), voltage rating, AWG size or conductor cross-section, conductor type (bare / nickel-plated), single or multiple conductor requirement, braid or covering requirement, colour, quantity (metres or reels), routing condition (protected internal / conduit), equipment type, and end application. Minimum order: 100 m per specification. Response within 12 hours.
