Engineering Notes — Heavy Gauge Mica Wire Selection for High-Current Applications

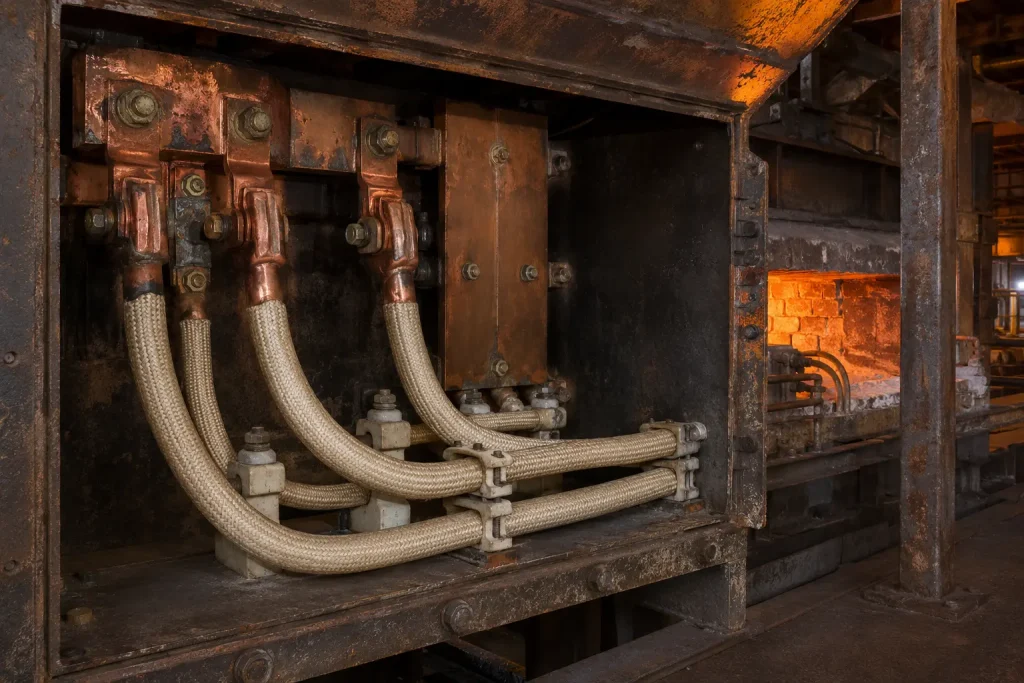

Current capacity at 4 AWG in extreme thermal environments: In standard installation conditions, 4 AWG stranded copper carries approximately 70–85 A continuous — but in high-temperature industrial equipment where the wire routing environment itself is at 200–450°C, standard ampacity tables do not apply. At elevated ambient temperatures, conductor resistance increases with temperature and insulation thermal margin decreases. For 4 AWG Style 5107 routed in a 400°C ambient environment, the effective current capacity may be reduced to 30–50% of standard open-air ampacity depending on the conductor operating temperature limit, insulation system thermal margin, and routing configuration. Always perform thermal derating calculations specific to the actual routing temperature for heavy-gauge mica wire in extreme-temperature applications — do not apply standard NEC ampacity tables to high-temperature industrial wiring without appropriate derating.

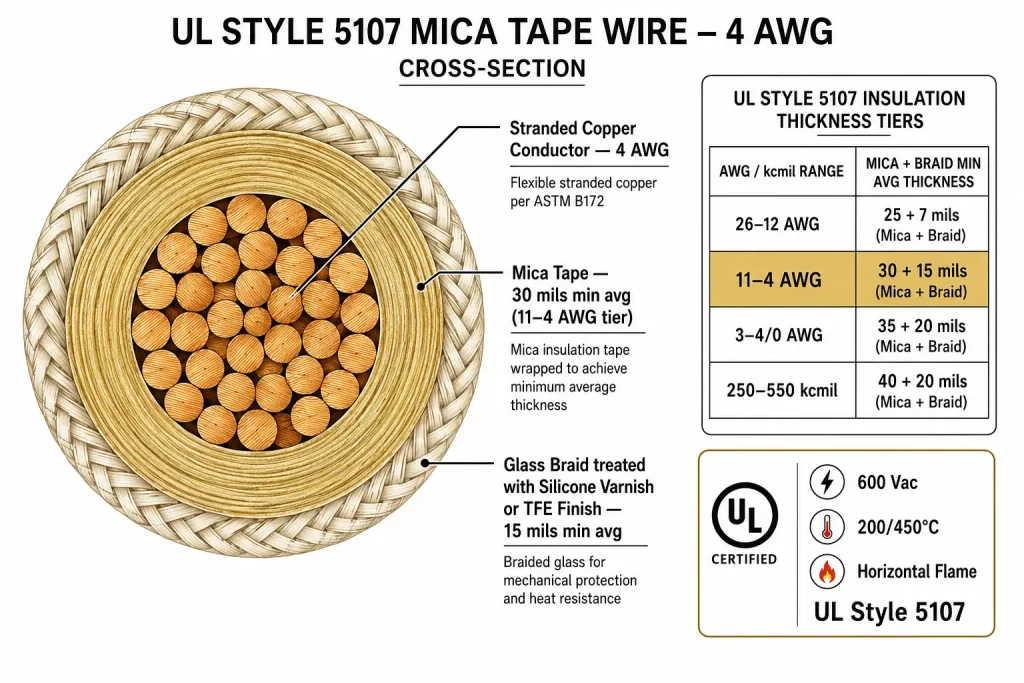

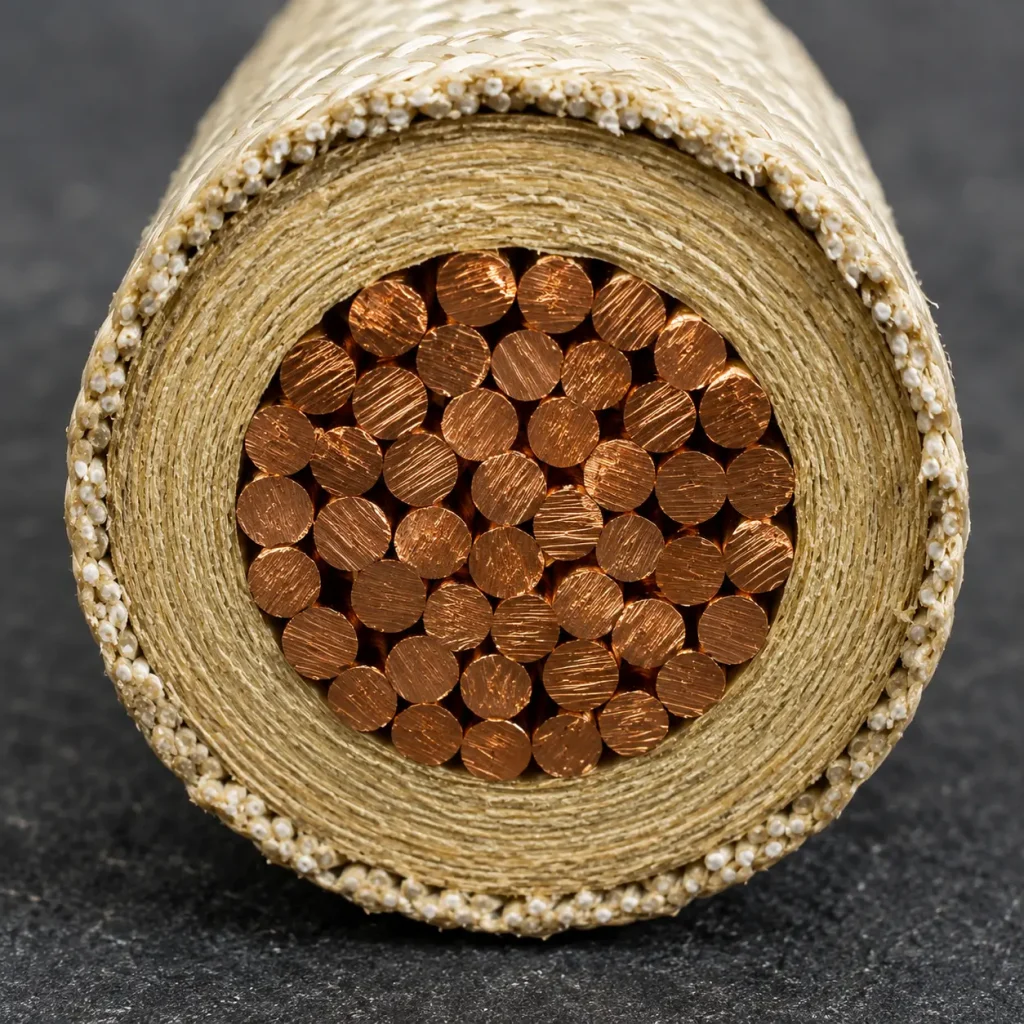

30-mil mica layer at 4 AWG — scaled insulation thickness: Moving from the 26–12 AWG tier (25-mil mica layer) to the 11–4 AWG tier (30-mil mica layer) adds 5 mils of mica tape thickness. In absolute terms this seems modest, but in mica tape construction where insulation is built up from overlapping mineral tape layers, the additional 5 mils represents an additional complete tape wrap layer — increasing both dielectric integrity at 600V and the mechanical robustness of the insulation system at the thicker conductor size. At 4 AWG where the overall wire outer diameter is substantially larger than fine-gauge mica wire, the 15-mil glass braid also provides meaningful mechanical protection for the mica layers during installation and routing in industrial furnace environments.

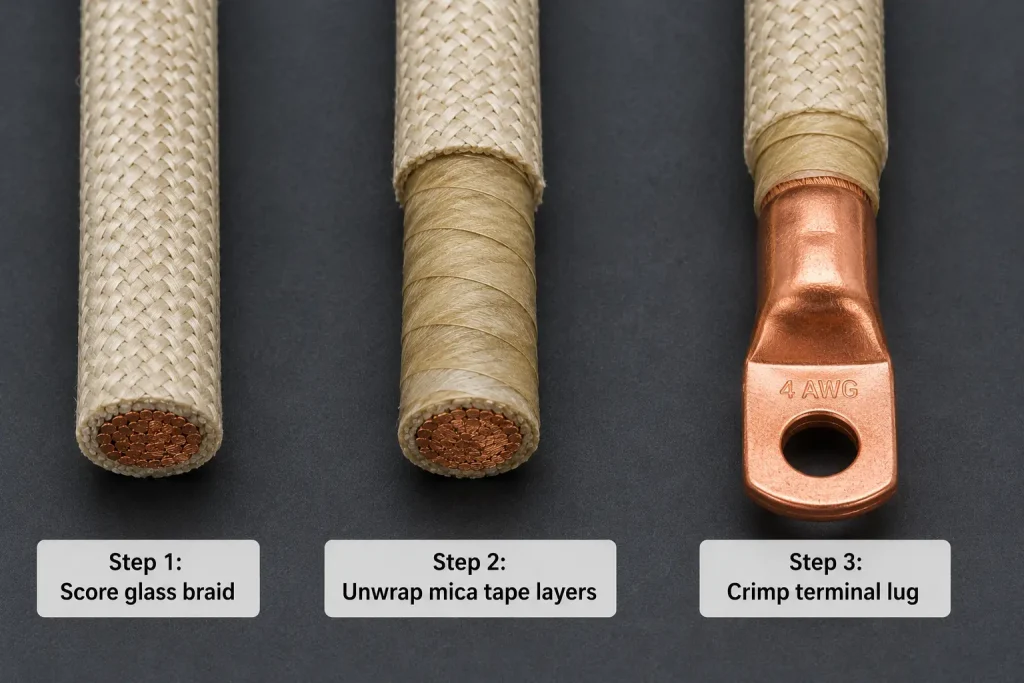

Termination techniques for mica-insulated wire at 4 AWG: Terminating 4 AWG mica tape wire requires different techniques than polymer-insulated wire. Standard insulation stripping tools designed for PVC or XLPE will crack and fragment the mica tape layers rather than cleanly removing the insulation. The correct approach is to carefully unwrap the mica tape layers by hand after scoring the outer glass braid with a sharp blade — a technique familiar to industrial furnace electricians but unfamiliar to technicians trained exclusively on polymer-insulated wire. Confirm that installation personnel have the appropriate training and experience with mica wire termination before specifying Style 5107 for new equipment designs. CableApex can provide application notes on mica wire termination practice upon request.

Export documentation for industrial equipment importers: Mexican industrial equipment importers sourcing 4 AWG mica tape wire from China for use in cement, mining, and petrochemical industrial equipment must confirm HS code classification at import — mica-insulated wire at this gauge typically classifies under HS 8544.60 (other electric conductors for a voltage exceeding 1000V) depending on the insulation system interpretation, or 8544.49 for sub-1000V rated constructions. Confirm the applicable HS code with your customs broker before shipment to avoid reclassification at the port of entry. CableApex provides HS code documentation guidance as part of the standard export package.
