UL 5107 Mica Wire Pricing — Cost Structure of 200°C 450°C Mineral-Insulated Wire for German Procurement

Why Mica Wire Pricing Behaves Differently from Polymer Wire Pricing

For German procurement managers comparing UL 5107 mica wire quotations, the most important thing to understand is that mica wire pricing follows a completely different cost structure from polymer-insulated wire. With UL 1015 PVC or UL 3271 XLPE, copper conductor cost typically represents 50-70% of finished wire price — making LME copper the dominant pricing variable. With UL 5107 mica wire, this relationship inverts.

In a typical UL 5107 production cost breakdown:

• Mica tape raw material: 25-40% of finished wire cost (varies with mica grade and AWG)
• Treated glass braid: 15-25% of cost (varies with finish type — silicone varnish vs TFE)
• Copper conductor: 15-30% of cost (significantly less dominant than in polymer wire)
• Production processing: 15-25% of cost (mica tape wrapping is slower and more labor-intensive than melt extrusion)
• Marking, packaging, QC: 5-10% of cost

The practical implication: German buyers searching UL 5107 Mica Hochtemperatur Draht Deutschland Preis cannot rely on copper price as the leading indicator for mica wire cost trends. Mica raw material pricing, glass yarn pricing, and the choice of finish (silicone varnish vs TFE) all matter more than copper movements for total cost.

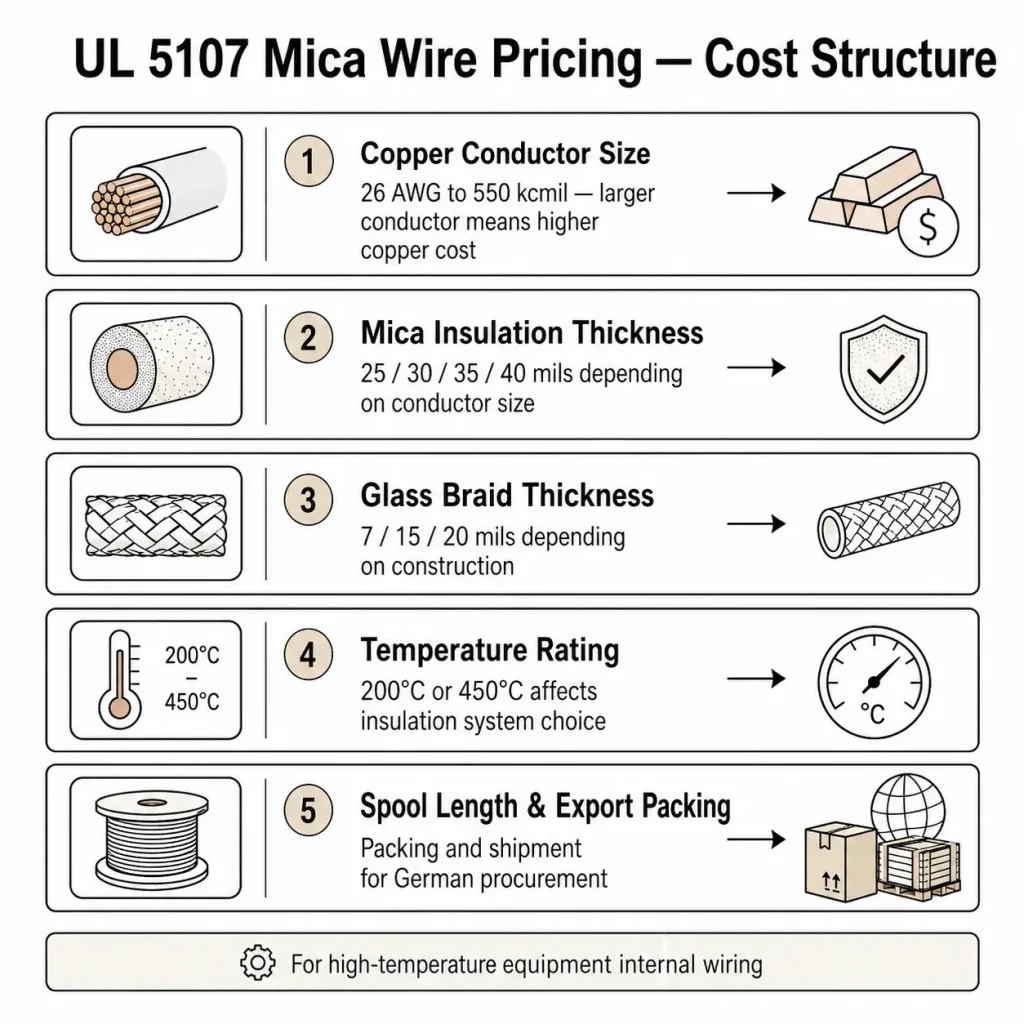

Seven Variables That Drive UL 5107 Pricing

Variable 1 — Mica Grade (Muscovite vs Phlogopite)

Phlogopite mica raw material typically commands a 15-25% premium over Muscovite at the tape supplier level, reflecting the lower global supply and higher temperature performance. At the finished wire level, this translates to roughly 8-15% price premium for Phlogopite-based UL 5107 over Muscovite-based UL 5107 for equivalent specification. For 200°C application, Muscovite is the cost-effective choice; for 450°C application, the premium for Phlogopite is application-justified when extra temperature margin matters.

Variable 2 — Glass Braid Finish (Silicone Varnish vs TFE)

The treated finish on the glass braid is the dominant cost differentiator between UL 5107’s 200°C variant and 450°C variant. Silicone varnish is a relatively low-cost coating treatment. TFE finish (polytetrafluoroethylene-based finishing) is significantly more expensive — typically 3-5x the cost of silicone varnish per meter. For UL 5107, the 450°C variant typically carries 25-40% price premium over the 200°C variant, almost entirely driven by the TFE finish cost.

Variable 3 — AWG and Mica Tape Wall Thickness

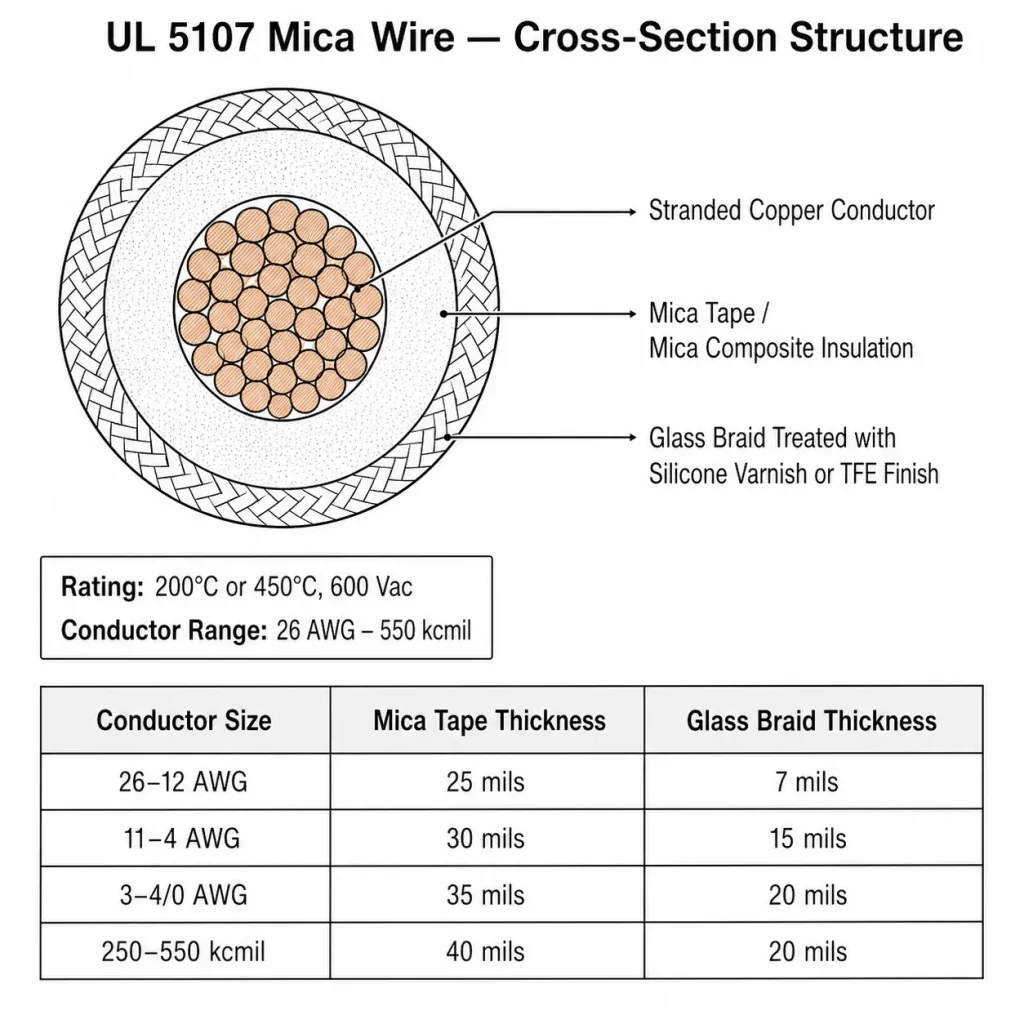

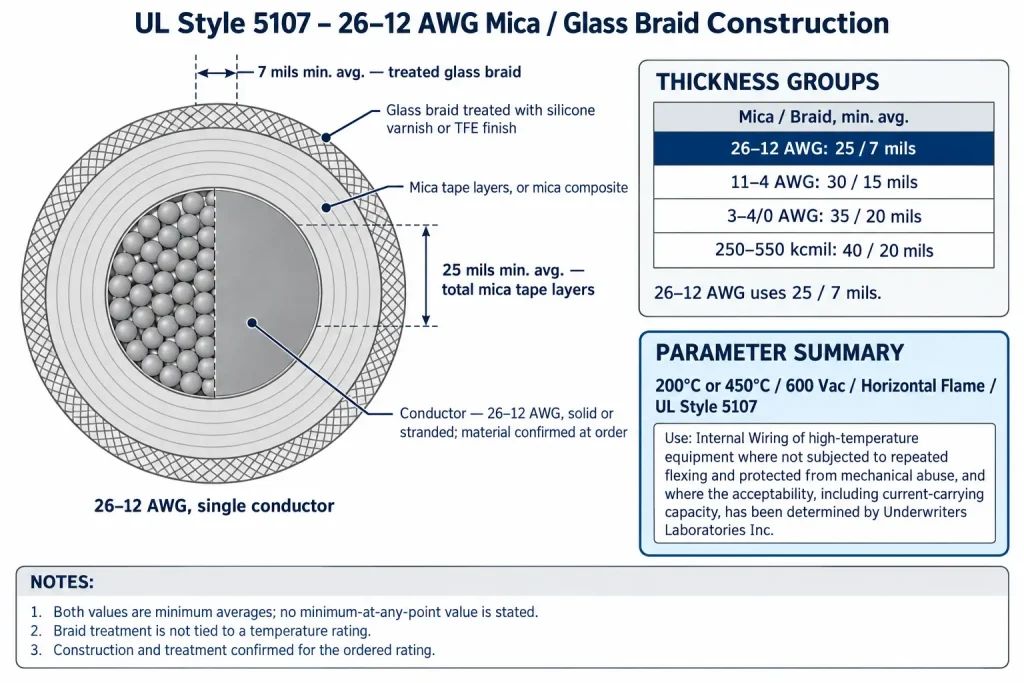

UL 5107 specifies different mica tape wall thicknesses by AWG range: 25 mils for 26-12 AWG, 30 mils for 11-4 AWG, 35 mils for 3-4/0 AWG, 40 mils for 250-550 kcmil. Larger conductors require more mica tape per meter (both because of larger circumference and thicker wall), increasing material cost roughly proportionally with conductor diameter. AWG impact on UL 5107 pricing is more pronounced than in polymer wire, where the wall thickness scales less aggressively with conductor size.

Variable 4 — Conductor Material

Bare copper vs tinned copper makes a meaningful difference. Tinned copper for mica wire is typically 5-8% more expensive than bare copper for the same conductor size — slightly higher than the 3-5% premium typical for polymer wire applications, because mica wire’s longer storage life and harder service environment make tinned conductor more often justified.

Variable 5 — Production Volume and MOQ

Mica tape wrapping production has higher setup cost per run than polymer extrusion. Setting up the wrapping machine for a specific AWG, color, and tape configuration takes longer than changing extruder parameters. This means production volume has more impact on per-meter cost than in polymer wire production. Typical breakpoints for UL 5107: orders below 1,000 m carry highest per-meter cost (setup-dominated); 1,000-5,000 m enters production-economic range; 5,000-20,000 m approaches optimal pricing; 20,000+ m gets the best per-meter economics.

Variable 6 — Optional Construction Features

UL 5107 listing includes several optional constructions that affect pricing:

• Multi-conductor cable assembly — combining 2+ insulated conductors with mica glass binder, max O.D. 1.5 inches. Adds approximately 30-50% over single-conductor pricing depending on conductor count.
• 36-30 AWG shield strands — adds approximately 10-20% over base price.
• Treated glass braid covering over assembly — adds approximately 15-25% over assembly price for cable constructions.

Variable 7 — Color, Marking, and Documentation

Standard mica wire is typically off-white (mica natural color showing through translucent braid finish). Custom colors require pigmented finish formulation and may have higher MOQ. Standard CableApex marking is included in base pricing. OEM-specific marking adds setup cost similar to polymer wire OEM marking. Standard UL documentation package is included; specialized testing certificates (e.g., flame test reports per specific standards) may add documentation cost.

200°C vs 450°C — The Single Largest Pricing Decision

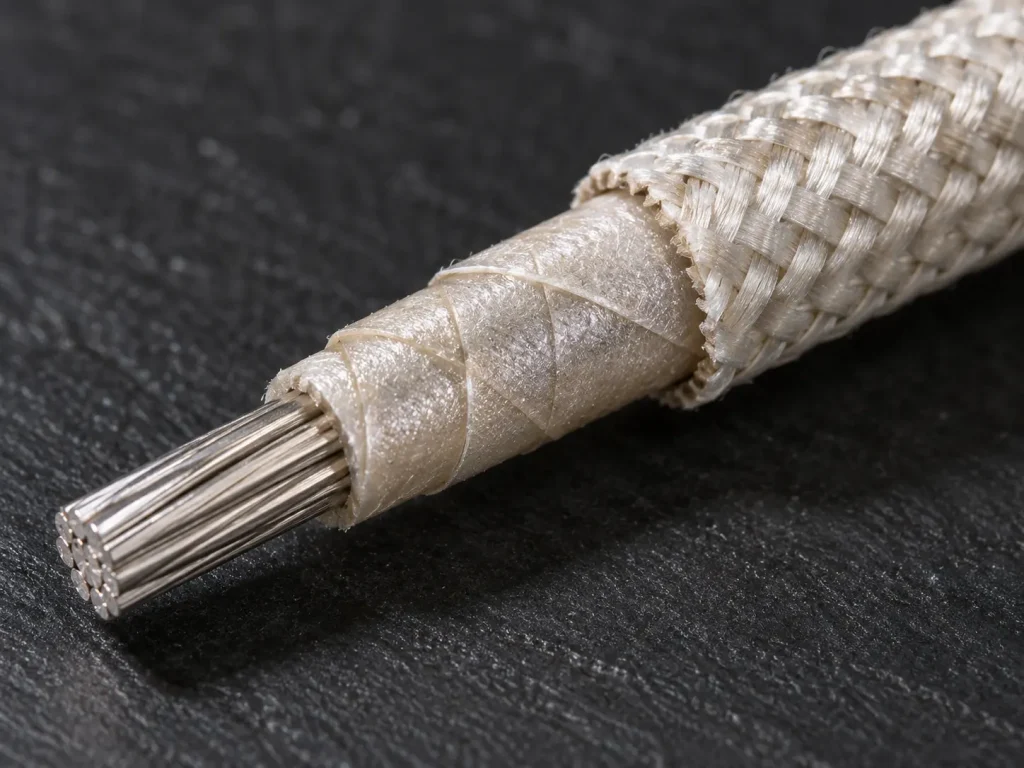

For most German UL 5107 procurement decisions, the single biggest cost lever is choosing between the 200°C variant and the 450°C variant. The construction is fundamentally the same (mica tape + glass braid), but the finish treatment differs dramatically:

The cost-effective procurement decision is to specify the 200°C variant when the application’s actual operating temperature stays within 200°C continuous, and reserve the 450°C variant for applications where temperatures genuinely exceed 200°C. Specifying the 450°C variant for a 200°C application wastes the 25-40% TFE finish premium without delivering application-relevant performance.

Total Cost of Ownership — When Mica Wire Is Cheaper Than Polymer

For applications operating at sustained 200°C continuous, German procurement managers sometimes face a counterintuitive economic comparison: UL 5107 mica wire vs UL 3071 silicone rubber wire (both rated 200°C). The per-meter price comparison usually favors silicone rubber — UL 3071 is typically 30-50% lower per-meter cost than UL 5107 at equivalent AWG.

However, total cost of ownership depends on service life:

• UL 3071 silicone rubber: Excellent at 200°C continuous, but accelerated aging at sustained service near the 200°C limit. Typical service life in 180-200°C continuous applications is 8-12 years before insulation hardens and cracks.
• UL 5107 mica wire: No thermal aging mechanism at 200°C — mica is geologically stable. Typical service life in 180-200°C applications matches the equipment’s full service lifetime, often 20-30 years.

For equipment with planned 20+ year service life and limited maintenance access, UL 5107’s higher initial cost may be justified by avoiding mid-service rewiring. For shorter service life equipment or accessible maintenance, UL 3071 silicone rubber is the cost-effective choice. For applications above 200°C, UL 3071 is not suitable regardless of TCO calculation — UL 5107 becomes the only practical choice.

UL 5107 Specifications

Engineering Notes from CableApex

Three points German procurement managers raise when first comparing UL 5107 quotations:

1. “How do I normalize quotes from different mica wire suppliers when their specifications may differ subtly?” Mica wire RFQ comparison requires more careful normalization than polymer wire because the cost-driving variables are more numerous. Before comparing per-meter prices, ensure all quotes specify: same temperature class (200°C or 450°C), same mica grade (Muscovite or Phlogopite), same finish (silicone varnish or TFE), same AWG and conductor type (bare or tinned), same optional features (single conductor, multi-conductor assembly, shield, covering). A quote that omits these specifications and just says “UL 5107” is underspecified and not directly comparable to a complete quote. CableApex quotations always specify each of these dimensions explicitly.
2. “What’s the typical price relationship between UL 5107 and UL 3071 silicone rubber for the same gauge at 200°C?” At 14 AWG comparable specification (200°C continuous, 600V), UL 3071 silicone rubber is typically 35-50% lower per-meter cost than UL 5107 mica wire. The 200°C variant of UL 5107 is the cost-competitive case (TFE finish premium not added). For applications where 200°C is sufficient and service life is moderate (5-10 years), UL 3071 is usually the cost-effective choice. For very long service life (20+ years) or applications where 200°C is the operating peak with risk of brief excursions higher, UL 5107 becomes economically attractive despite the higher initial cost.
3. “Can mica wire pricing be locked for the year, like LME copper-linked polymer wire?” Partially. The copper component of UL 5107 cost can be linked to LME copper for index-based pricing. The mica raw material and glass yarn components are less standardized — mica is not exchange-traded, and pricing is set quarterly by tape suppliers based on market conditions. CableApex offers quarterly fixed pricing for UL 5107 frame agreements, with annual review and adjustment based on raw material market movement. For 12-month fixed pricing on UL 5107, we typically build in a small risk premium to account for potential mica/glass material price increases during the period.

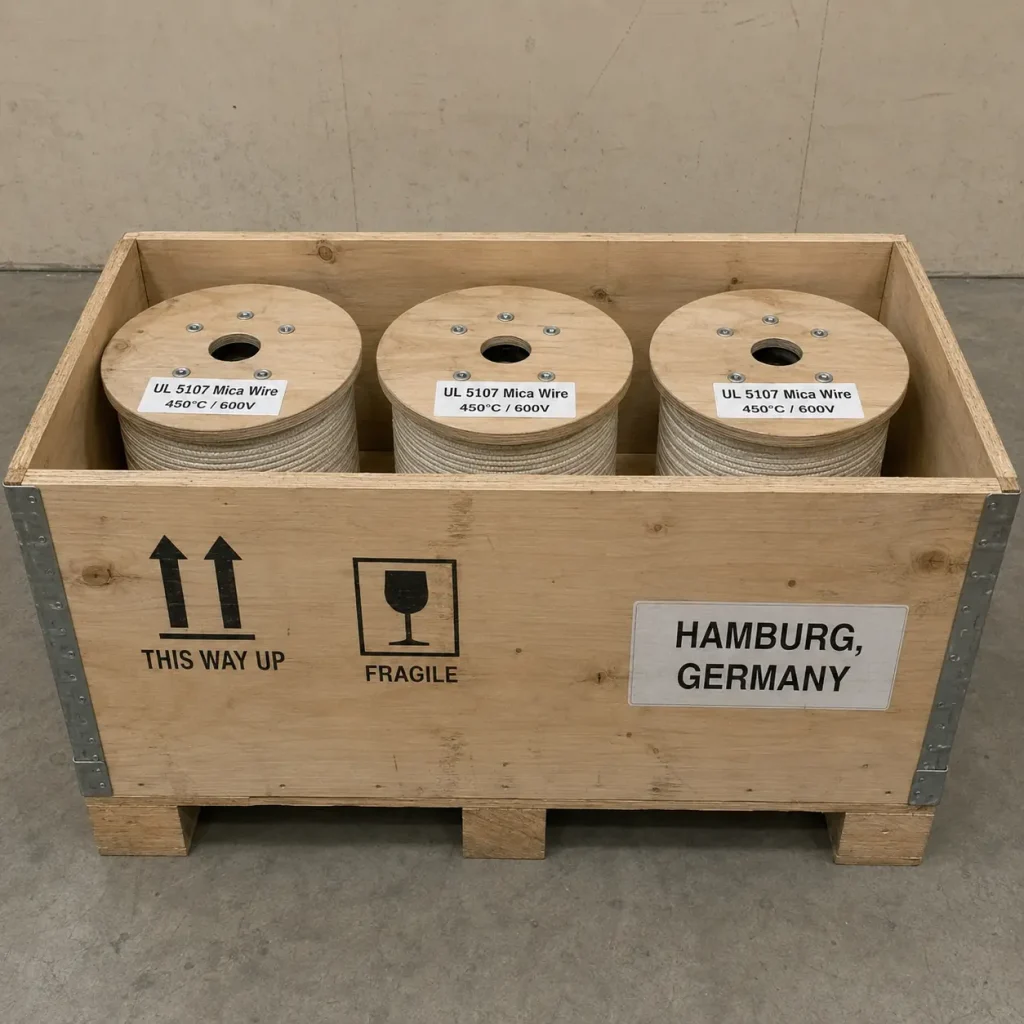

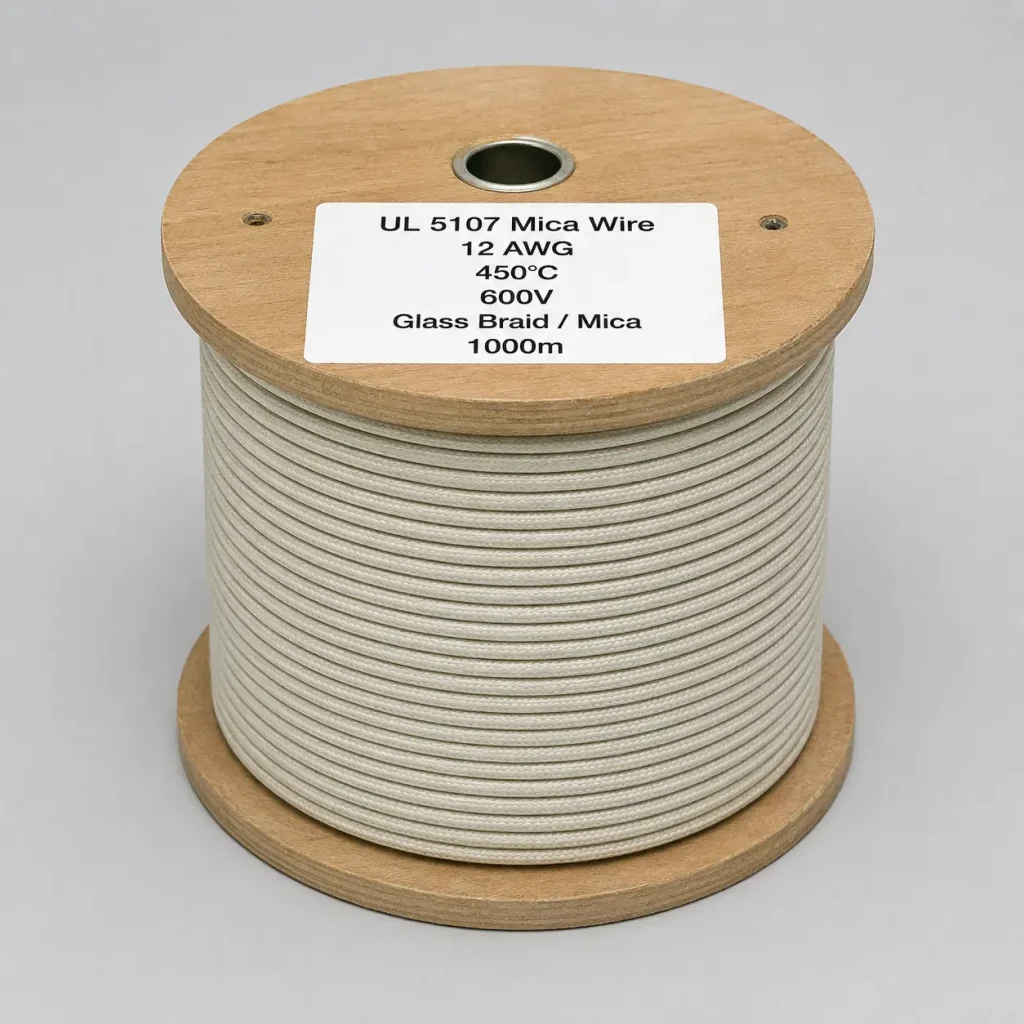

MOQ, Packaging & Shipping

MOQ varies by AWG, mica grade, finish type, conductor type, optional construction, and production schedule — contact us for current MOQ and quotation. Mica wire production has higher MOQ than polymer wire production due to specialized setup requirements. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.

Related UL Styles for Pricing Comparison

UL 5107 buyers commonly compare against: UL 3071 (200°C / 600V silicone rubber, 18-13 AWG — 35-50% lower per-meter cost when 200°C suffices and service life is moderate), UL 1659 (250°C / 600V PTFE, 26-4/0 AWG — fluoropolymer alternative typically 60-80% of UL 5107 price for 250°C application), UL 5128 (450°C / 300V mica + glass braid, 24-4 AWG — lower-voltage mica alternative at lower price for 300V applications), and UL 5335 (450°C / 600V mica + glass braid, 22-4/0 AWG — different mica construction at similar pricing tier).
