UL 1007 16 AWG Hook-Up Wire — 80°C / 300V PVC Insulation, Horizontal Flame — México
Style 1007 in 16 AWG steps up the current-carrying capacity of the most widely used appliance hook-up wire family while keeping the same 80°C / 300 Vac / horizontal flame rating and extruded PVC insulation profile certified under UL Subject 758. For Mexican appliance manufacturers and maquiladora procurement teams, this gauge covers motor connection leads, compressor control circuits, and power distribution paths inside enclosures where 18 AWG is undersized but a higher-voltage style is unnecessary.
CableApex supplies this product with the UL Recognized Component Mark printed on the wire surface and a full compliance documentation package suited for USMCA audit requirements and NOM-aligned import review at Mexican ports.
Technical Specifications — UL Style 1007 / 16 AWG
| Parameter | Value |
|---|---|
| UL Style | 1007 |
| UL Subject | 758, Section 1 |
| Temperature Rating | 80°C standard (optional: 60°C oil resistant / 80°C oil resistant) |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame |
| AWG Size | 16 AWG (certified range: 32–16 AWG) |

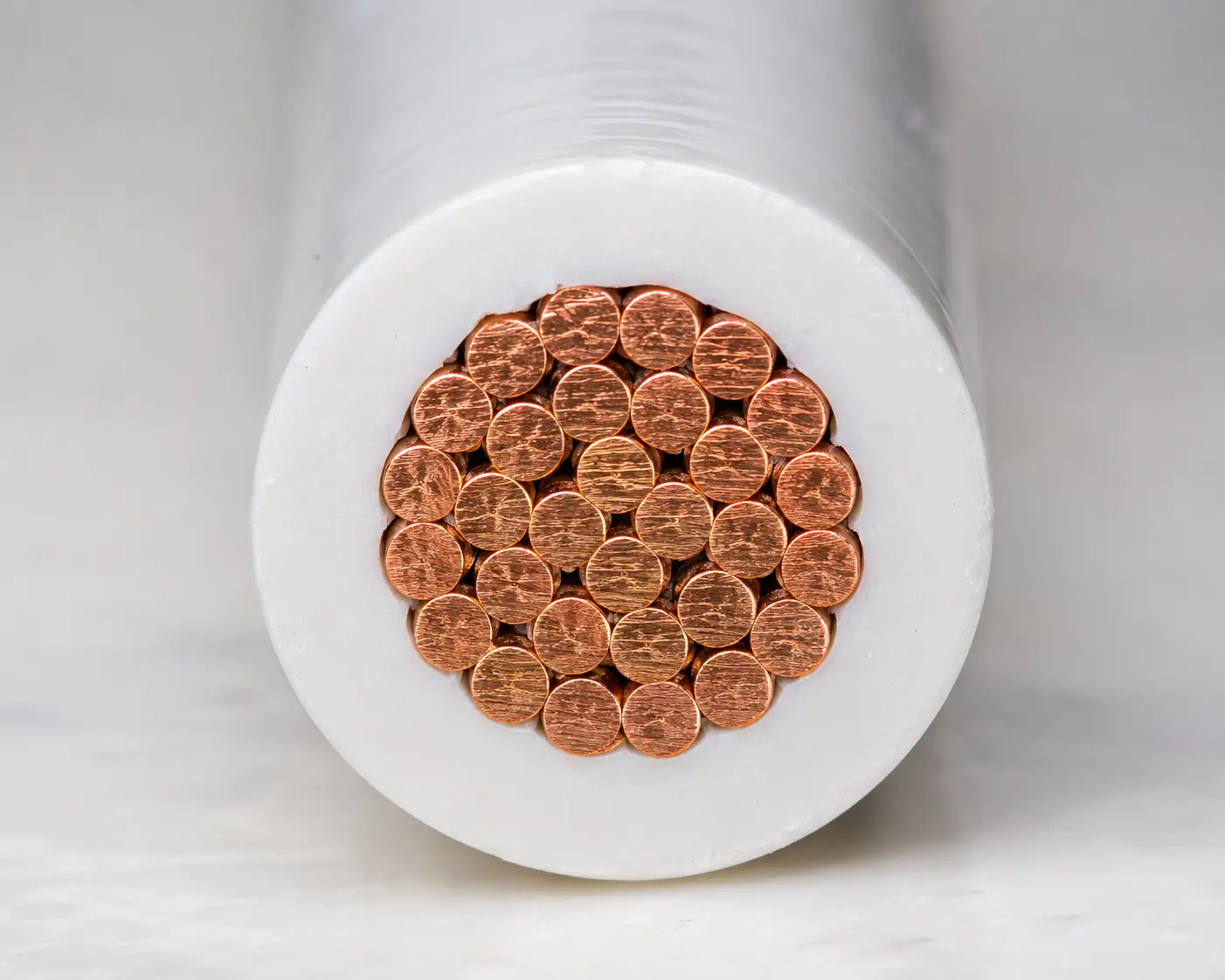

| Conductor | Solid or stranded copper |
| Insulation Material | Extruded PVC |

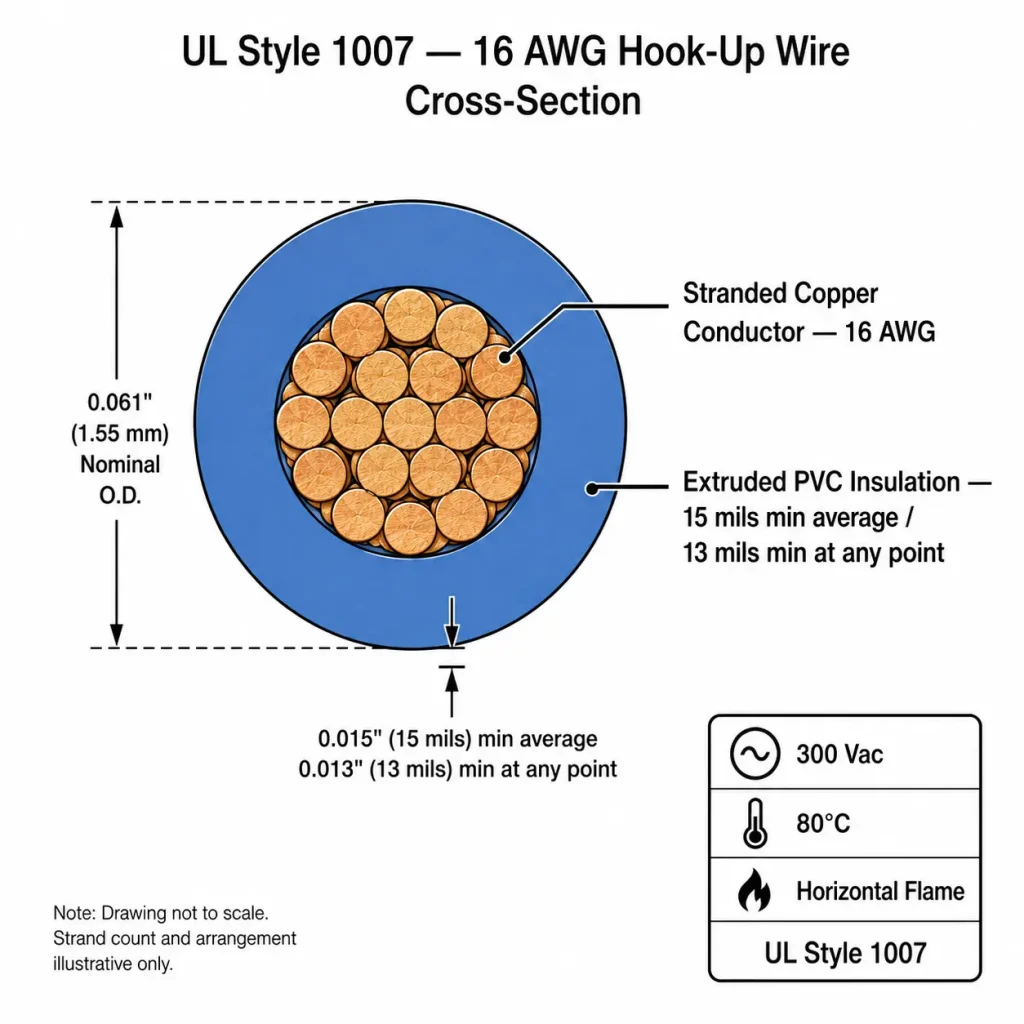

| Insulation Thickness | 15 mils min average / 13 mils min at any point |
| Typical Use | Internal wiring of appliances (cableado interno de electrodomésticos) |
| Optional Marking | 600 V Peak — For Electronic Use Only |

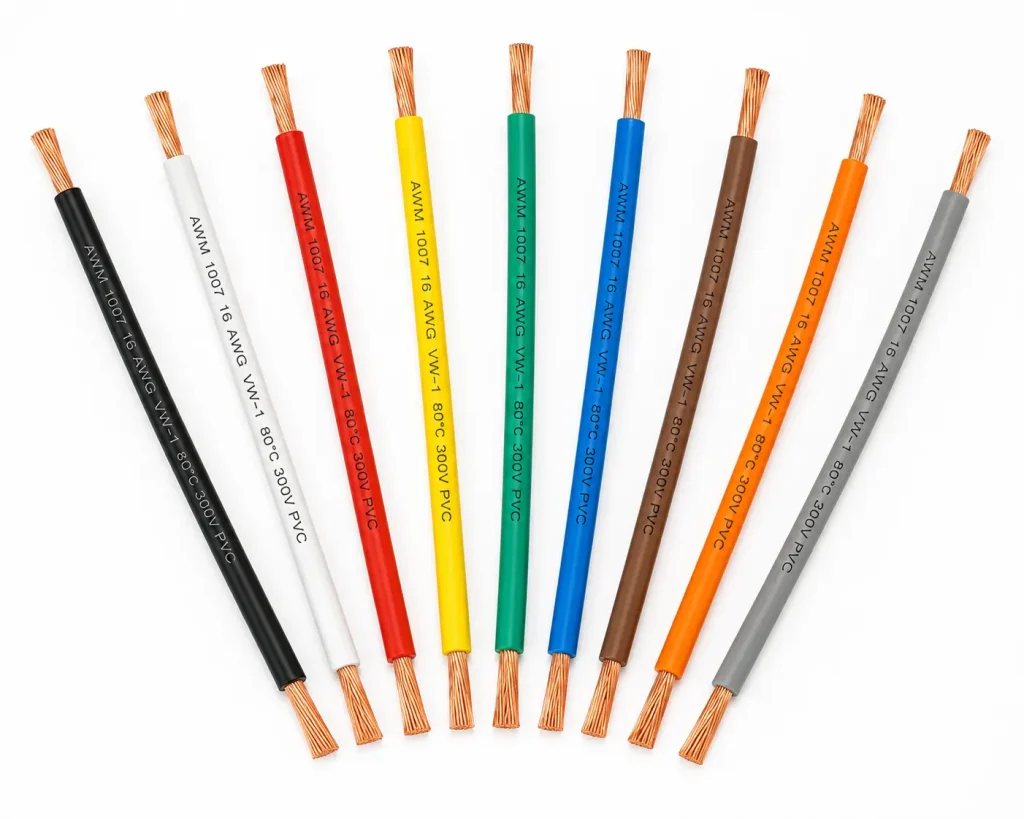

| Available Colors | Black, white, red, yellow, green, blue, brown, orange, gray (custom on request) |

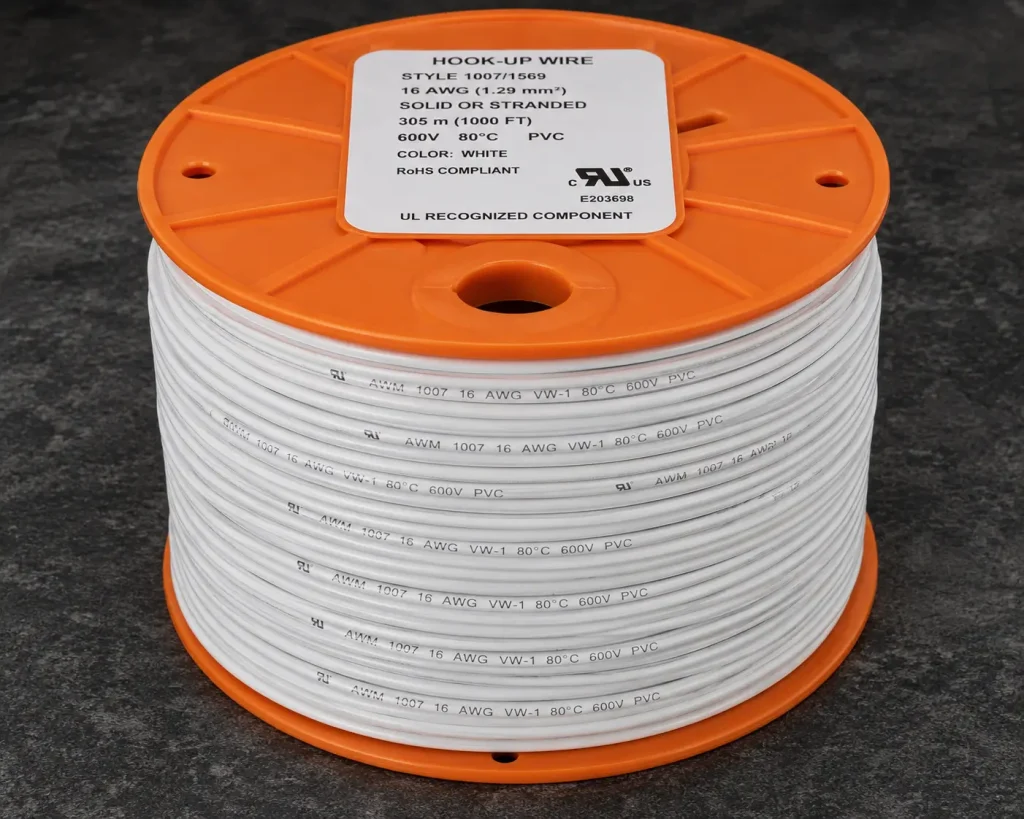

| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización |
Where 16 AWG Outperforms Lighter Gauges — Aplicaciones Clave en México
Moving from 18 AWG to 16 AWG within Style 1007 delivers a meaningful increase in current-carrying capacity under identical thermal and voltage conditions. In practice, this gauge shift enables the following applications inside Mexican-market appliances:
- Compressor control leads — small refrigeration units and window air conditioners where 16 AWG handles hermetic compressor start-winding inrush current without exceeding the 80°C insulation surface temperature under continuous operation.

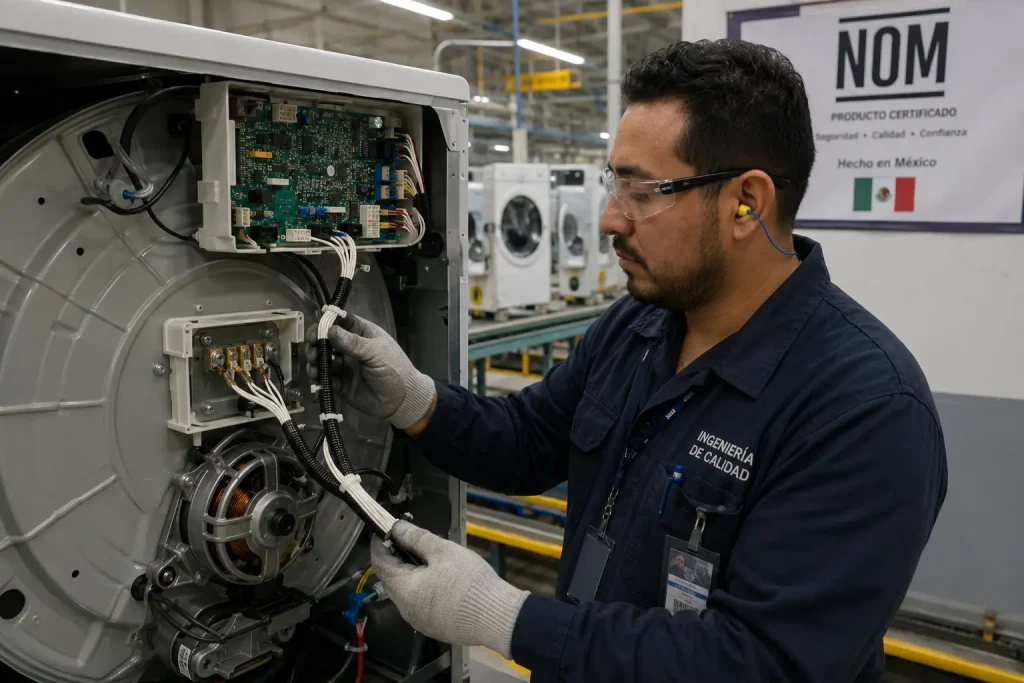

- Washing machine motor connections — drum motor and pump motor leads in front-load and top-load units assembled in Guadalajara and Monterrey for U.S. and Mexican retail markets, where start-winding and run-winding require heavier gauge than signal wiring.
- Power distribution inside sealed enclosures — commercial blenders, food processors, and industrial kitchen appliances used across Mexico City, Guadalajara, and Monterrey hotel and restaurant supply chains (industria restaurantera).
- OEM export harnesses under USMCA — maquiladoras assembling appliances for U.S. retail brands require UL-recognized wire throughout; 16 AWG 1007 satisfies the internal wiring spec and the traceability audit trail required by U.S. retail compliance programs.
Engineering Notes — 16 AWG vs. 18 AWG in Style 1007
Current capacity: At 80°C enclosure-adjusted conditions, 16 AWG stranded copper carries approximately 8–13 A continuous depending on bundling factor and installation method — meaningfully higher than 18 AWG at 7–10 A. Always verify against actual enclosure thermal modeling rather than open-air NEC ampacity tables, which do not reflect sealed appliance enclosure conditions.
Identical insulation wall: UL Style 1007 specifies 15 mils minimum average PVC wall for the entire 32–16 AWG certified range. Dielectric performance and chemical resistance are identical between 18 AWG and 16 AWG builds — only the conductor cross-section increases. No derating of insulation voltage capability when upsizing gauge.
Oil resistance in tropical deployment: Appliances deployed in humid coastal and tropical zones across southern México — Veracruz, Yucatán, Tabasco — where compressor oil mist contact is elevated, should specify the 80°C oil-resistant build explicitly. This is not assumed by default and must be noted at order stage.
Stranding for automated harness assembly: In automated cut-strip-crimp harness processing environments common in Bajío maquiladoras, specify stranded conductor with tight lay length for reliable terminal crimping. Solid conductor 16 AWG 1007 is suitable for static point-to-point runs but not recommended for high-speed automated harness processing.
Related UL Styles for Comparison
UL 1007 16 AWG buyers commonly cross-reference: UL 1015 (80–105°C / 600V PVC, same AWG range with heavier insulation wall for higher-voltage appliance circuits), UL 1007 18 AWG (same style, lighter gauge for signal and low-current control paths), UL 1569 (80–105°C / 300V PVC, thinner wall option for compact harness routing), and UL 10269 (80–105°C / 1000V PVC, for appliances requiring elevated voltage insulation rating).
Request a Quote — Solicitar Cotización
Submit your AWG, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización within 24 business hours. Wire samples available for qualification testing upon request.
