“UL Listed” vs “UL Recognized” — Important Clarification
German buyers often type UL listed 1007 18 AWG hook up wire Germany export when sourcing UL-certified appliance wiring. There is an important distinction in UL terminology that affects compliance: UL 1007, like all AWM (Appliance Wiring Material) styles under UL Subject 758, is technically UL Recognized, not UL Listed. The two marks are different.
- UL Listed applies to finished products evaluated as standalone — finished appliances, complete cable assemblies, building wire — that can be installed and used directly by end-users. The UL Listed mark looks like “UL” inside a circle.
- UL Recognized applies to components intended for use inside larger UL Listed products. AWM hook-up wire is a component, not a finished product. The UL Recognized mark is a backwards “UR” symbol.
So when a German buyer specifies “UL listed 1007 18 AWG,” what they actually need is UL Recognized AWM Style 1007 manufactured under a valid UL File Number. CableApex supplies UL 1007 under UL Follow-Up Service File No. E333030, which is the correct UL Recognized component certification for incorporation into UL 508A panels, UL 60730 appliances, and UL 62368 ITE equipment.
UL 1007 18 AWG Application Profile
Internal Appliance Wiring (Primary Use)

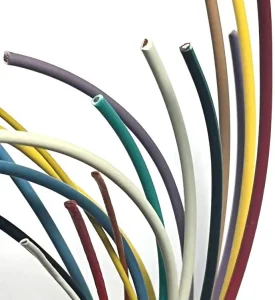

UL 1007 was originally certified in 1959 specifically for internal wiring of appliances — small kitchen appliances, motor-operated tools, electric heaters, and similar 120V residential equipment in the North American market. The 300V AC rating provides safety margin over 120V circuits, and the 80°C PVC handles the thermal environment inside compact appliance housings. 18 AWG is one of the most-specified gauges in the UL 1007 family for connections between line cord, switches, and motor terminals.
Low-Voltage Control & Signal Applications

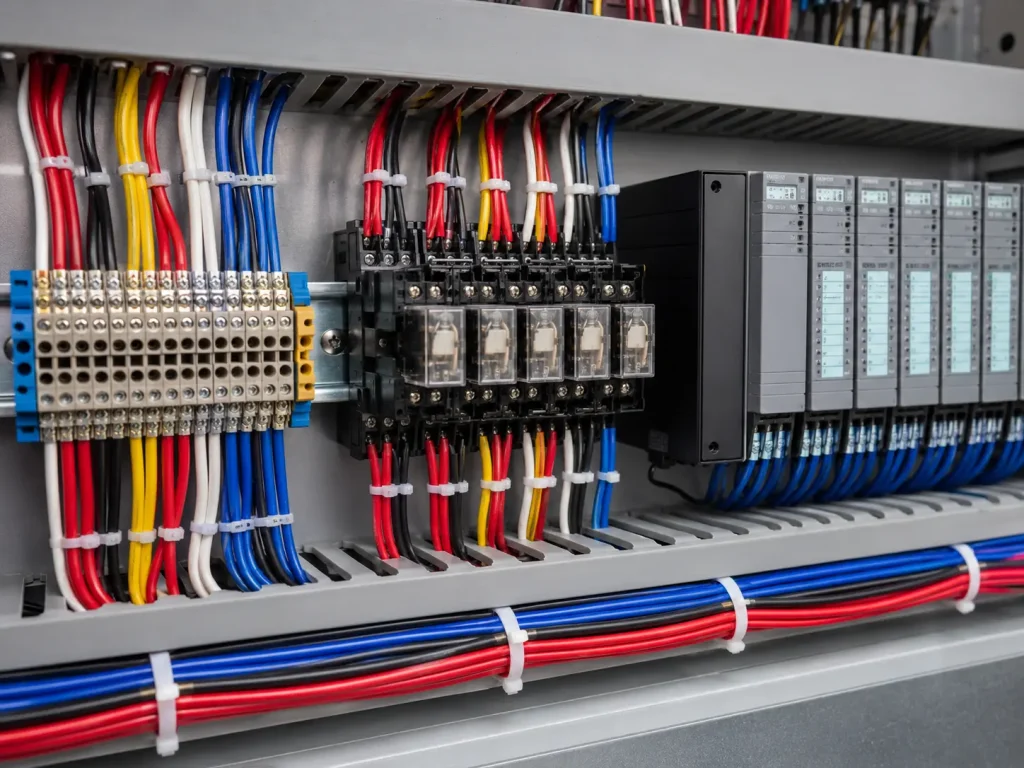

UL 1007 18 AWG is also widely used for low-voltage control circuits inside UL 508A panels where 24V DC or 120V AC control signals are routed between PLC outputs, relay coils, indicator lights, and low-current contactor coils. The “600V peak — for electronic use only” tag designation per UL Subject 758 permits use in electronic equipment where transient voltages exceed the 300V continuous rating but stay within the 600V peak envelope.
OEM Internal Hook-Up for Export-Bound Equipment

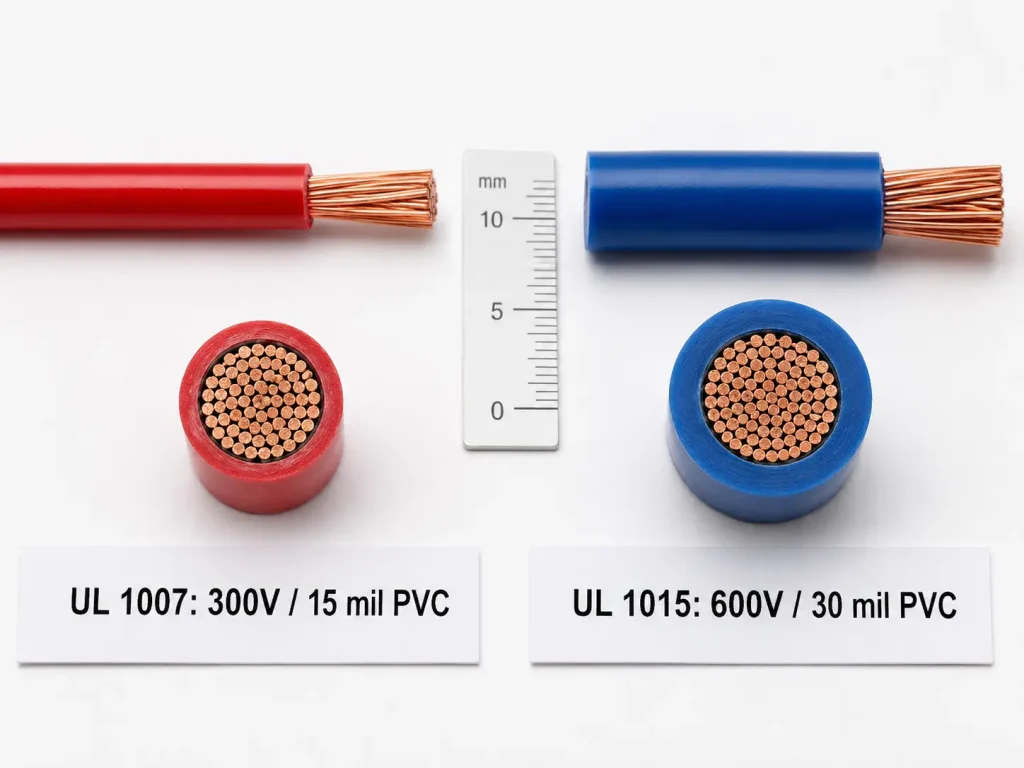

German appliance OEMs and Schaltschrankbauer producing equipment for North American distribution use UL 1007 18 AWG as the cost-effective hook-up specification when 600V isolation (UL 1015) is not required. The lower temperature rating (80°C vs. 105°C for UL 1015) and thinner PVC wall (15 mils vs. 30 mils) reduce per-meter cost, making UL 1007 the preferred choice for high-volume residential and small-commercial appliance internal wiring.
Export Documentation Package for Germany
UL 1007 export shipments from CableApex to Germany include the following documentation set, prepared at order confirmation and dispatched with the bill of lading:
- Commercial Invoice — itemized per AWG, color, and quantity
- Packing List — gross/net weight per spool, container loading details
- Certificate of Origin (CCPIT) — China Council for the Promotion of International Trade, accepted at all EU customs entry points
- Bill of Lading — issued by ocean carrier (Maersk, MSC, CMA-CGM, etc.)
- UL Recognition Reference Letter — citing File No. E333030 with the specific UL Style number recognized
- RoHS Declaration — Directive 2011/65/EU compliance statement
- REACH SVHC Declaration — Article 33 compliance statement, current SVHC list
- MSDS / Safety Data Sheet — material composition disclosure
- HS Code 8544.49 — for German customs clearance, MFN duty rate applies (China is not an EU FTA partner, so EUR.1 is not applicable)
UL 1007 18 AWG Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 1007 |
| UL Classification | UL Recognized Component (not UL Listed) |
| UL File Number | E333030 (Follow-Up Service) |
| Conductor Size | 18 AWG (~0.82 mm²) |
| Available Range | 32 AWG – 16 AWG, solid or stranded |
| Voltage Rating | 300V AC (600V peak — for electronic use only, when tag indicates) |
| Temperature Rating | 80°C |

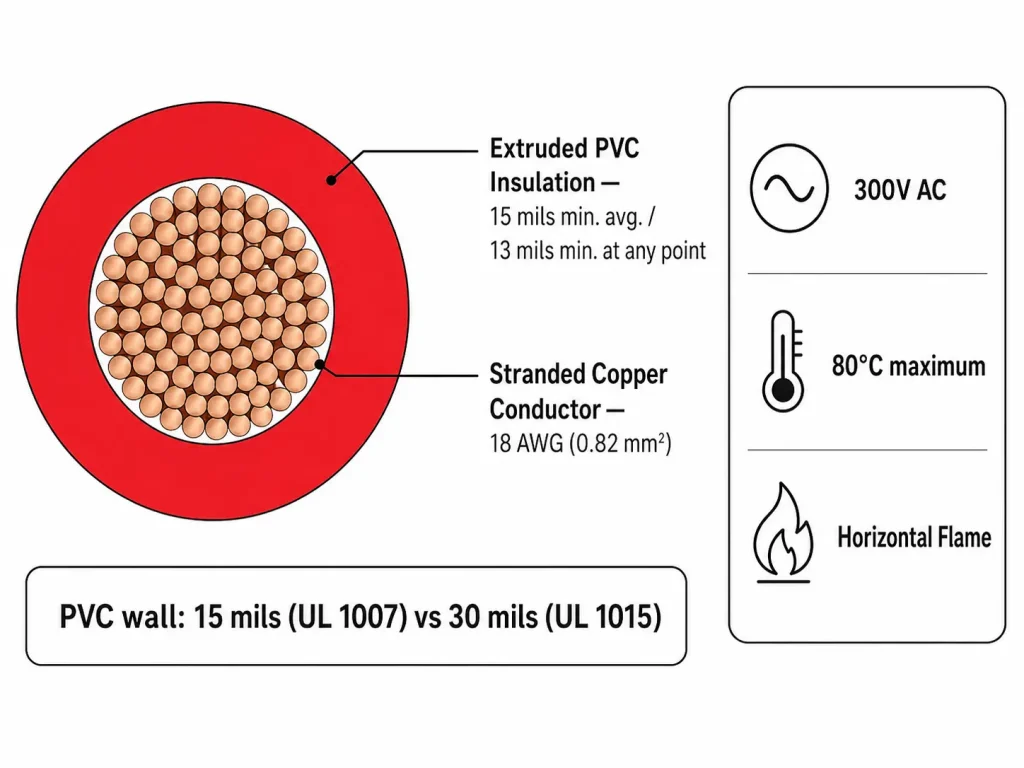

| Insulation | Extruded PVC, 15 mils (0.38 mm) min avg / 13 mils (0.33 mm) min at any point |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Oil Resistance | Optional 60°C or 80°C oil-resistant grade |
| Use | Internal wiring of appliances |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 1007 · 18 AWG · 300V · 80°C · E333030 |
Engineering Notes from CableApex
Three points German export buyers raise most often:
- UL Recognition letter format. Some German customs brokers and end-customer compliance teams request a UL Recognition reference letter on UL Solutions letterhead. CableApex provides a UL Authorization Letter at order confirmation referencing File No. E333030 and the specific Styles ordered — sufficient for 95% of customs clearances. If the end customer’s compliance department requires a direct letter from UL Solutions, that can be requested separately through the UL Customer Portal.
- UL 1007 vs UL 1015 — when does 300V suffice? If the end-equipment circuit voltage is 120V or 240V residential / light commercial, UL 1007 at 300V provides adequate safety margin and reduces per-meter cost. For 480V three-phase industrial supply or any UL 508A panel handling 480V, UL 1015 at 600V is the correct specification. Mixing UL 1007 and UL 1015 in the same panel is permitted as long as each conductor is rated for its specific circuit voltage.

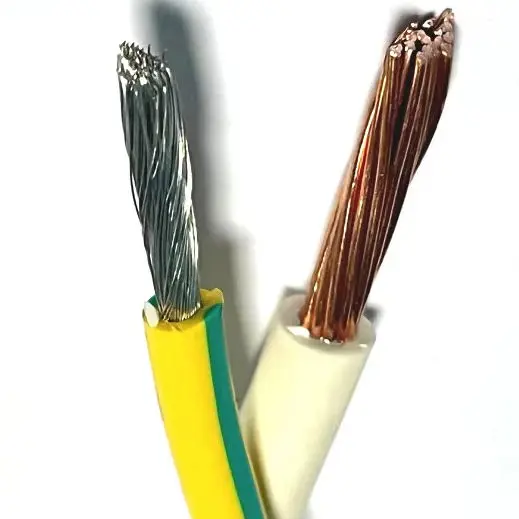

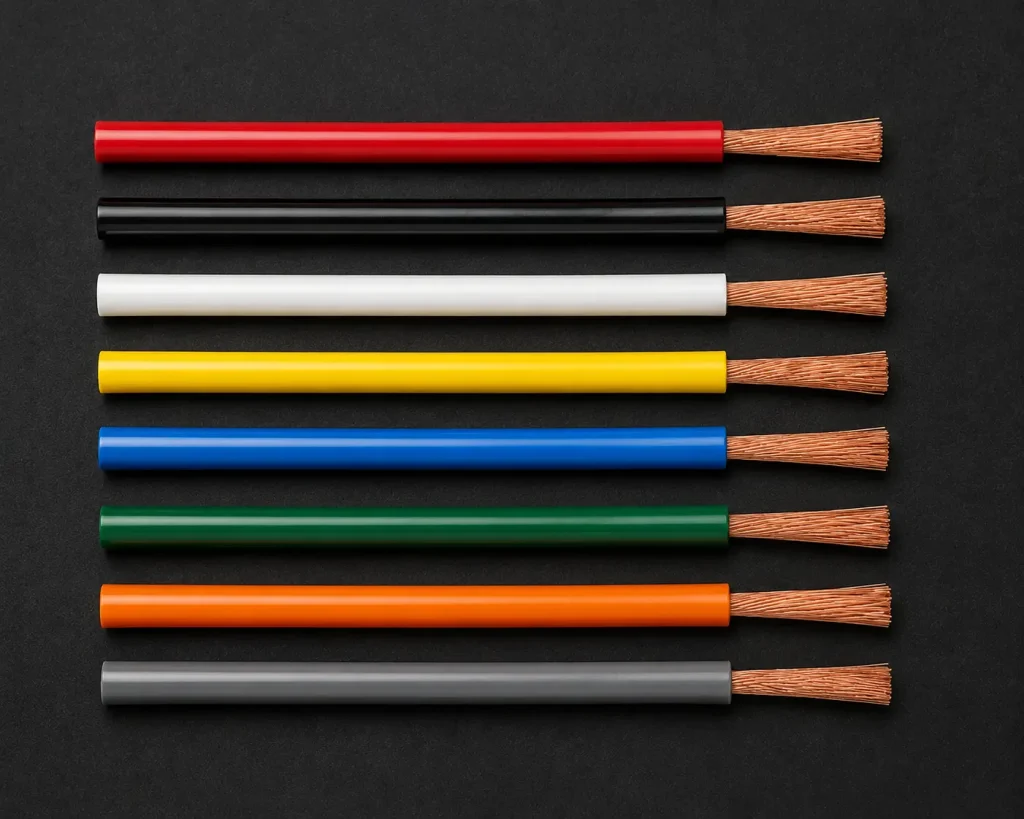

- Color identification for export. US end-customers often expect colors per NEC 200.6 (white = neutral, green = ground), while German production teams default to DIN VDE 0100-510 (blue = neutral, green-yellow = protective earth). For export-bound appliances, confirm color scheme with the US end-customer at quotation stage to avoid field commissioning issues.
MOQ, Packaging & Shipping

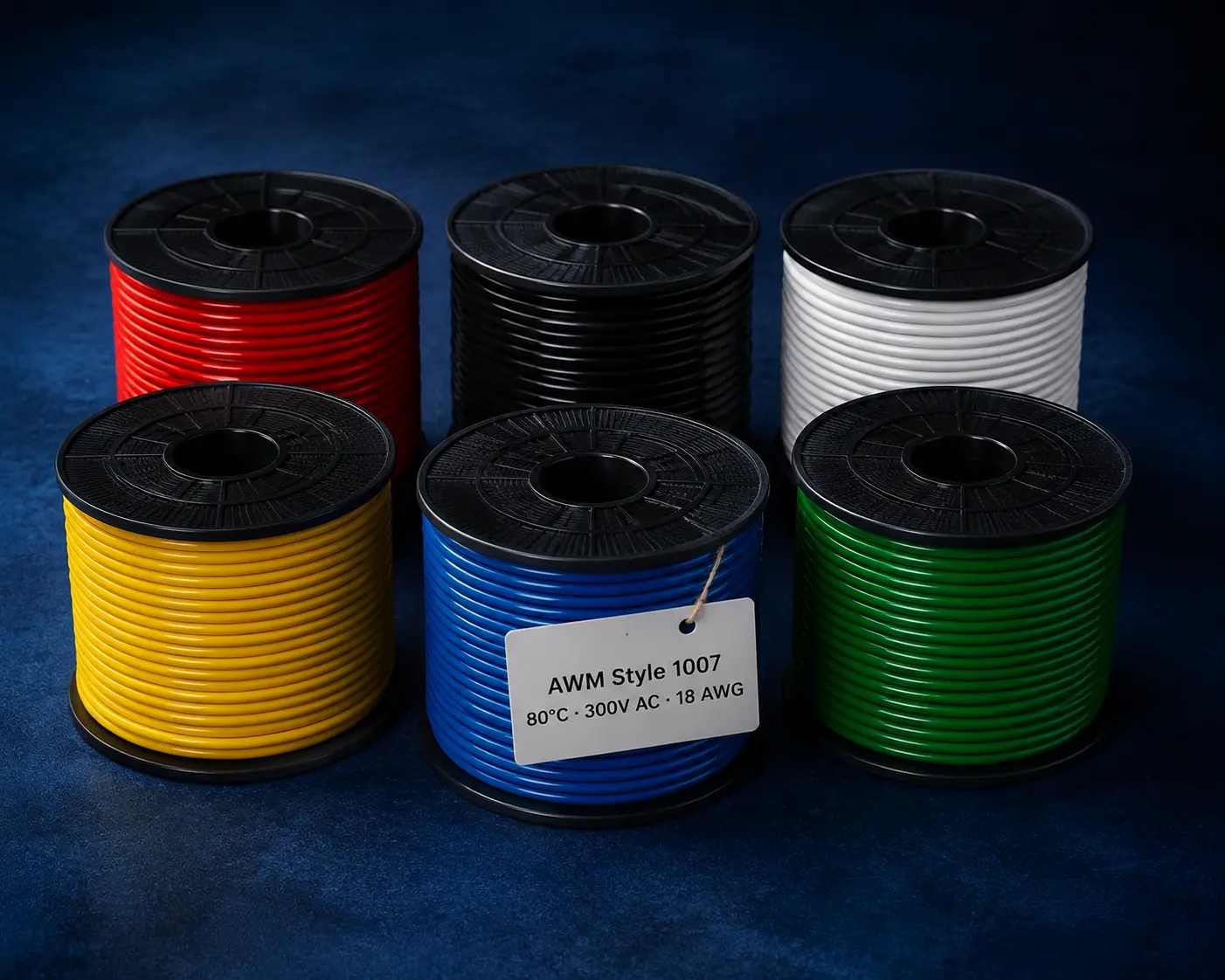

MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on UL 1007 18 AWG. Standard packaging: spools or reels per customer specification. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port. Door-to-door delivery via European trucking partner available on request.
Related UL Styles

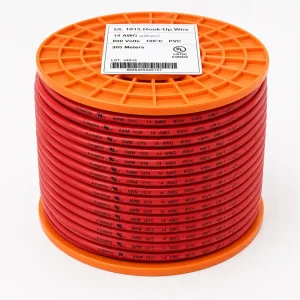

UL 1007 18 AWG buyers commonly cross-reference: UL 1015 (600V / 105°C, 30-2000 kcmil range, higher-voltage upgrade for UL 508A panels), UL 1569 (300V / 105°C, 30-2 AWG range, higher-temperature alternative at same voltage), UL 3266 (XLPE 125°C, 32-10 AWG range, thermoset upgrade), and UL 1332 (FEP 200°C, 30-10 AWG range, high-temperature replacement when PVC cannot be used).
