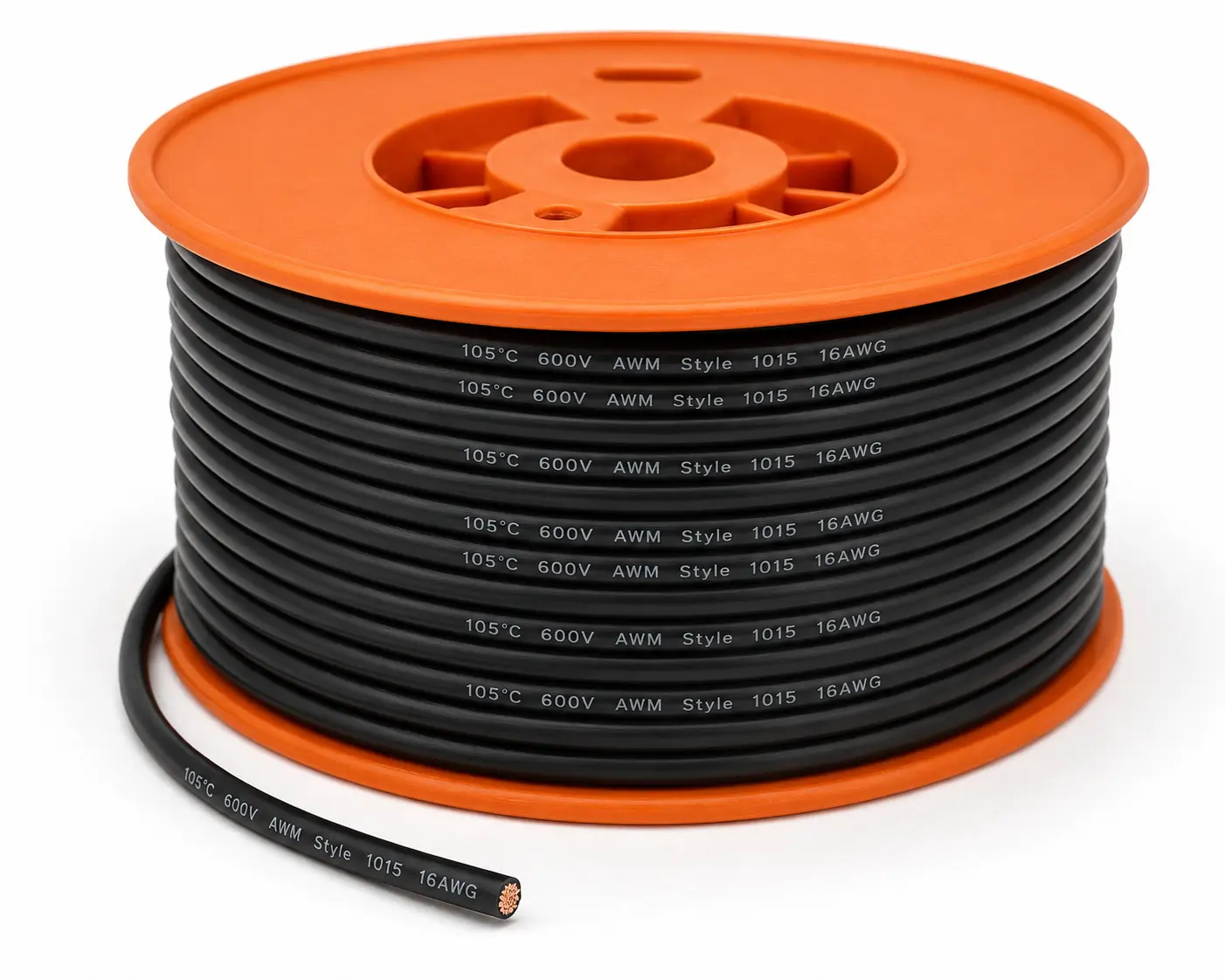

UL 1015 16 AWG 105°C 600V PVC Wire — Tinned Copper Hook-Up Wire, MOQ 100m
UL Style 1015 in 16 AWG is one of the most broadly specified single-conductor AWM wire sizes in global appliance and industrial equipment manufacturing — covering control panel internal wiring, motor terminal connections, and power distribution circuits where 600V insulation integrity and 105°C thermal rating are simultaneously required. At 16 AWG, the conductor cross-section of approximately 1.31mm² provides sufficient current-carrying capacity for the majority of single-phase 120V and 240V appliance power circuits while remaining compact enough for standard control panel wiring harness routing.
Every spool ships with the UL Recognized Component Mark printed on the wire surface and complete UL compliance documentation for appliance OEM certification audits and export market product compliance verification.
Technical Specifications — UL 1015 16 AWG
| Parameter | Value |
|---|---|
| UL Style | 1015 |
| UL Subject | 758, Section 1 |
| AWG | 16 AWG |
| Nominal Cross-Section | 1.31 mm² |
| Temperature Rating | 105°C (80°C and 90°C grades also available) |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| Conductor | Stranded tinned copper (bare copper on request) |
| Conductor Stranding | Class 2 or Class 5 flexible stranding available |
| Insulation Material | Extruded PVC |

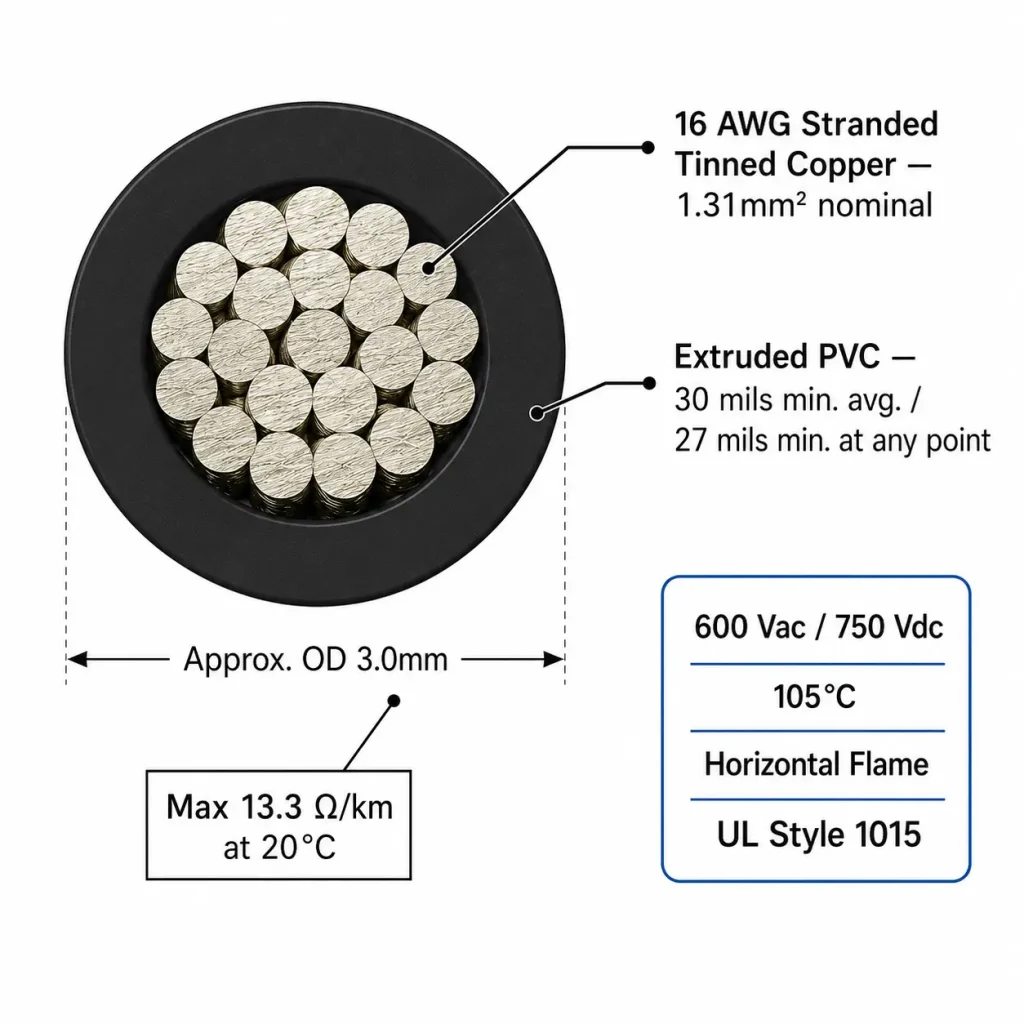

| Insulation Thickness | 30 mils min average / 27 mils min at any point |
| Approx. Overall OD | 3.0 mm |
| Max Conductor Resistance | 13.3 Ω/km at 20°C |

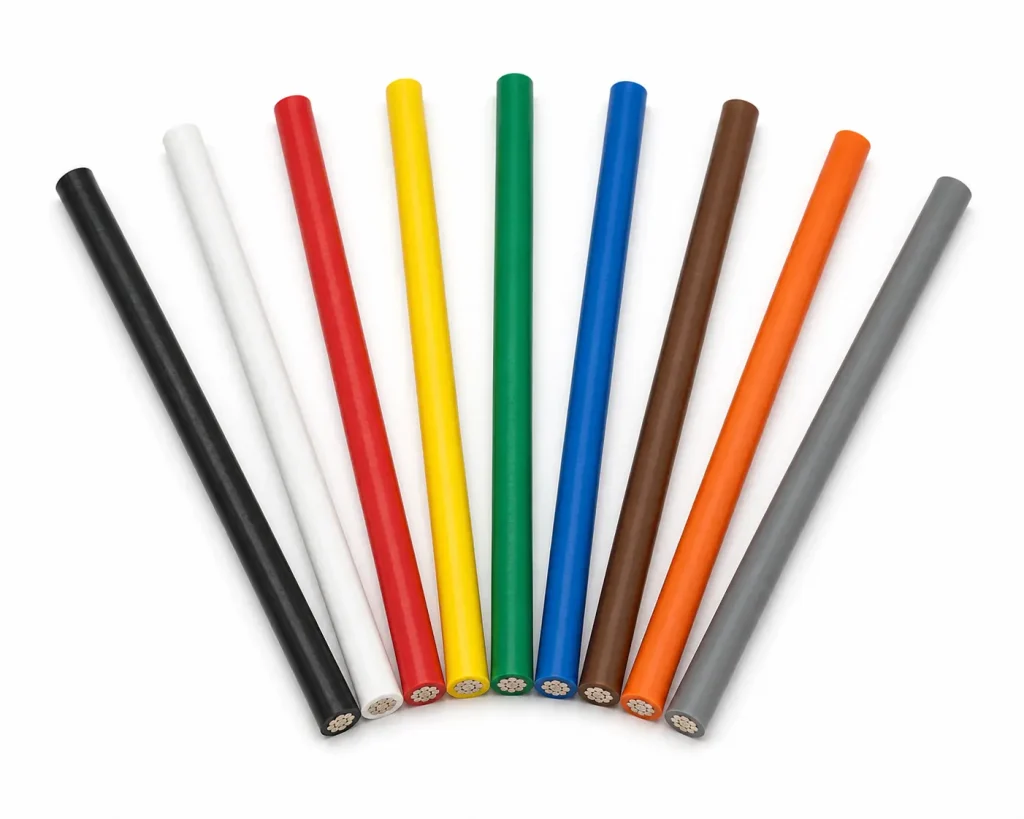

| Colors Available | Black, white, red, yellow, green, blue, brown, orange, gray |
| Standard Spool Lengths | 100m / 200m / 305m |
| MOQ | 100 meters per color |
| UL Recognition | UL Recognized Component — file on record |
| Quote Response | 12 hours |
Why 16 AWG — Current Capacity and Application Context
16 AWG stranded copper conductor at 1.31mm² nominal cross-section is the standard wire size for appliance power circuits in the 10–13A current range under typical appliance internal wiring temperature derating conditions. In control panel applications at 105°C ambient derating, 16 AWG UL 1015 covers the majority of single-phase motor starter circuits, contactor coil power feeds, and distribution wiring to individual appliance loads within a control enclosure.
The 16 AWG to 1.5mm² IEC equivalent comparison is important for engineers transitioning from IEC mm² specifications: 16 AWG at 1.31mm² is slightly smaller than the IEC 1.5mm² standard conductor — terminal connectors specified for 1.5mm² IEC wire may accept 16 AWG UL wire, but verify terminal acceptance range with the connector manufacturer before assuming direct substitution.
Typical Applications — UL 1015 16 AWG

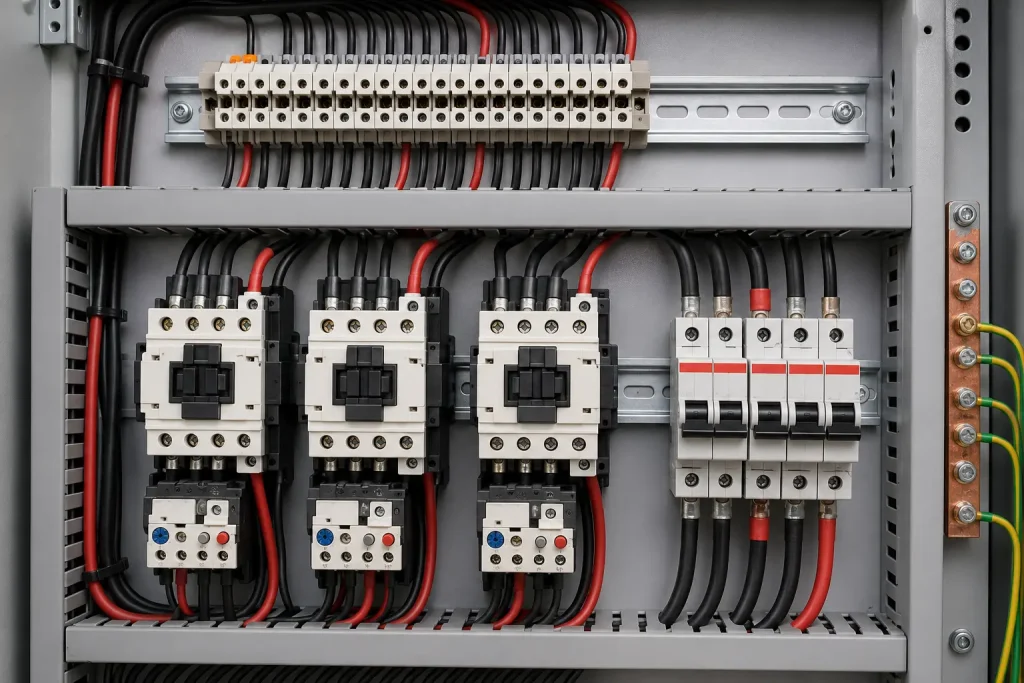

- Control panel internal power distribution — wiring from main terminal strips to contactor coil connections, relay module power feeds, and PLC power supply inputs inside motor control centers and automation equipment control panels where 16 AWG provides adequate current capacity for 10A and below control circuit loads at 600V rating.
- Appliance main power circuit internal wiring — internal supply leads from appliance main terminal block to primary switch, thermostat, and heating element distribution points in household and commercial appliances where 16 AWG at 105°C covers standard single-phase 120V and 240V appliance power circuit current requirements.
- Motor terminal connection leads — short terminal connection leads between motor control panel output terminals and motor terminal box connections in fractional and small integral horsepower motor applications where 16 AWG provides the correct current capacity for motors up to approximately 1–1.5 kW at 240V single-phase.
- LED driver and lighting equipment internal wiring — internal power feed wiring in commercial LED drivers and lighting control equipment where 16 AWG at 600V covers the primary-side input wiring in lighting equipment rated up to 10A input current.
Related AWG Sizes — UL 1015 Family

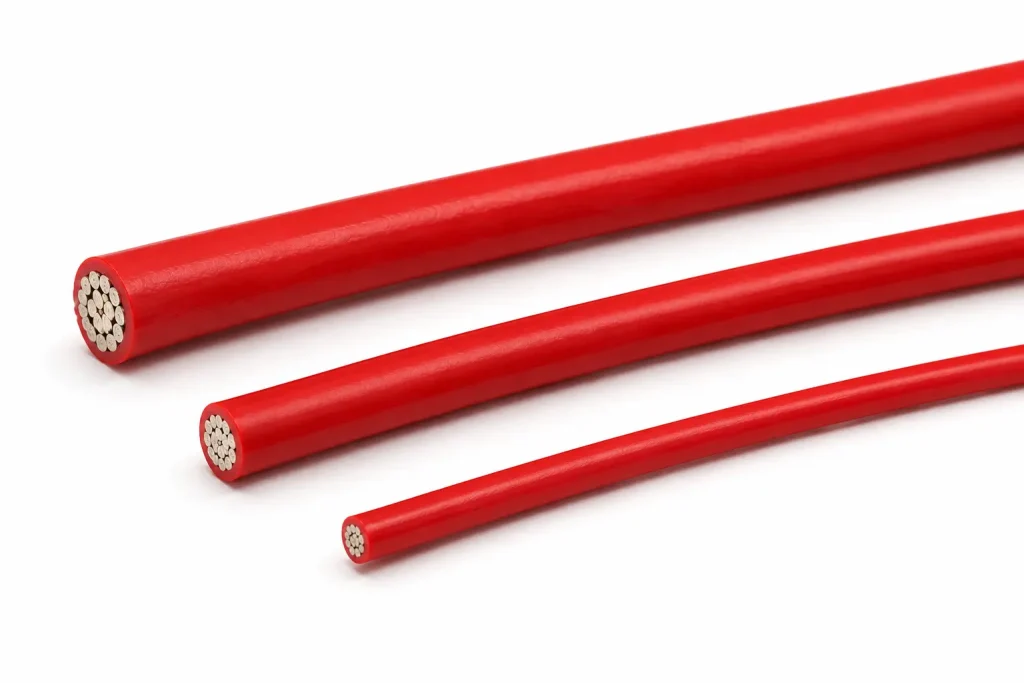

Buyers specifying UL 1015 16 AWG commonly also order: UL 1015 18 AWG (lower current capacity for control signal and lower-load power circuits), UL 1015 14 AWG (higher current capacity for 15A circuit loads), UL 1007 16 AWG (same AWG at 300V / 80°C for lower-voltage signal circuits in the same harness), and UL 3271 16 AWG (same AWG at 125°C / 600V XLPE for motor lead applications requiring higher thermal rating).
Request a Quote — UL 1015 16 AWG
Submit your color, conductor type (tinned or bare), stranding class, spool format, quantity, and destination port below. Formal quotation within 12 business hours. Free 10-meter samples available for incoming inspection before commercial order commitment.
