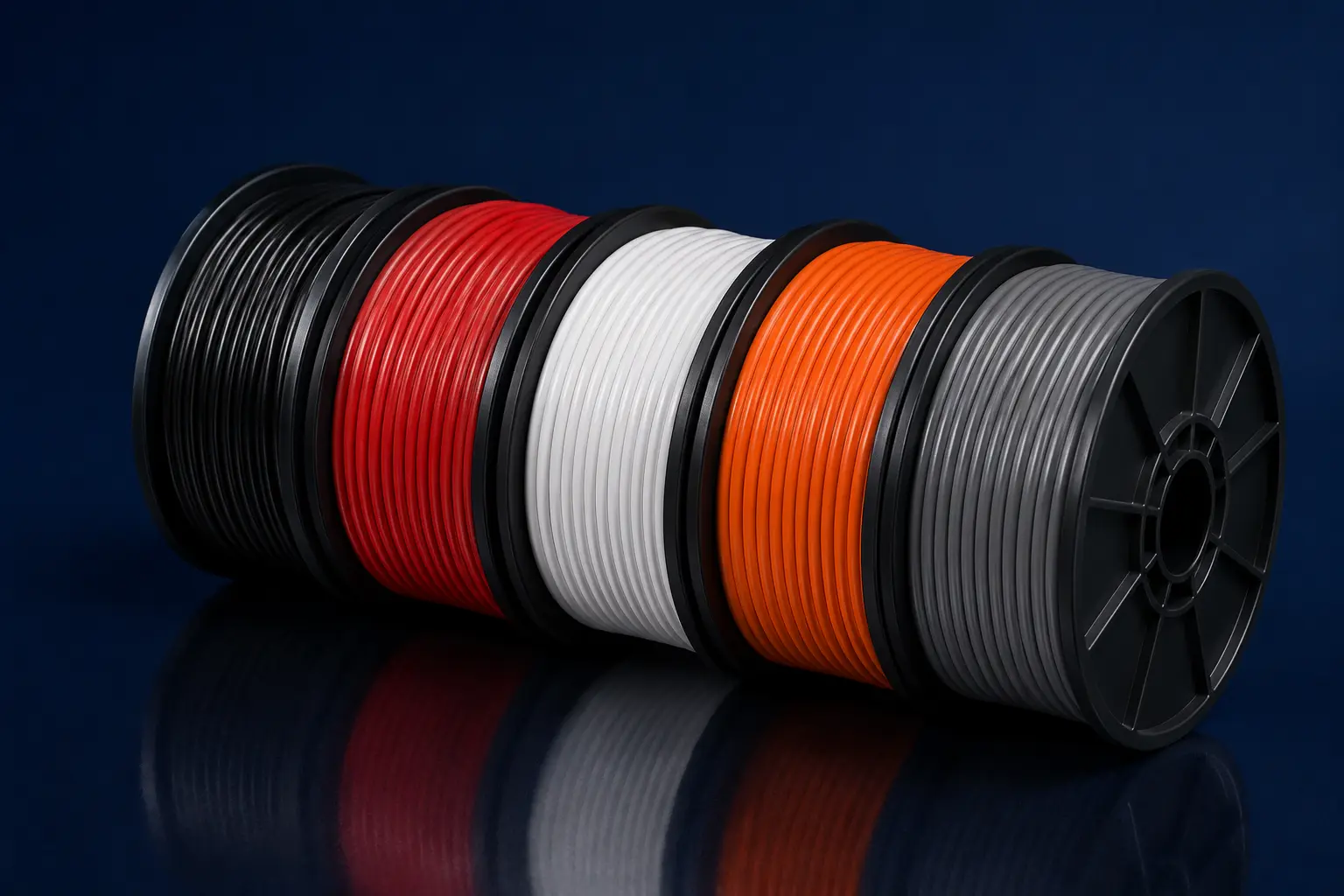

UL AWM 1032 PVC Electronic Hook-Up Wire 14 AWG — 1000 Vac / 1200 Vdc with 3500 V Peak Electronic Use Option
UL AWM 1032 in 14 AWG is a single-conductor appliance wiring material with extruded PVC insulation, rated 90°C maximum at 1000 Vac and/or 1200 Vdc. This size is selected specifically when the designer requires the optional tag marking “3500 Volts Peak For Electronic Use Only” alongside a heavier current-carrying conductor — a combination that places 14 AWG UL 1032 in internal power supply circuits, inverter sections and high-voltage capacitor bank wiring inside appliances. CableApex supplies UL AWM 1032 14 AWG as a UL Recognized Component — file on record.
Standard vs. Electronic Use Tag: Two Marking Options in One Style

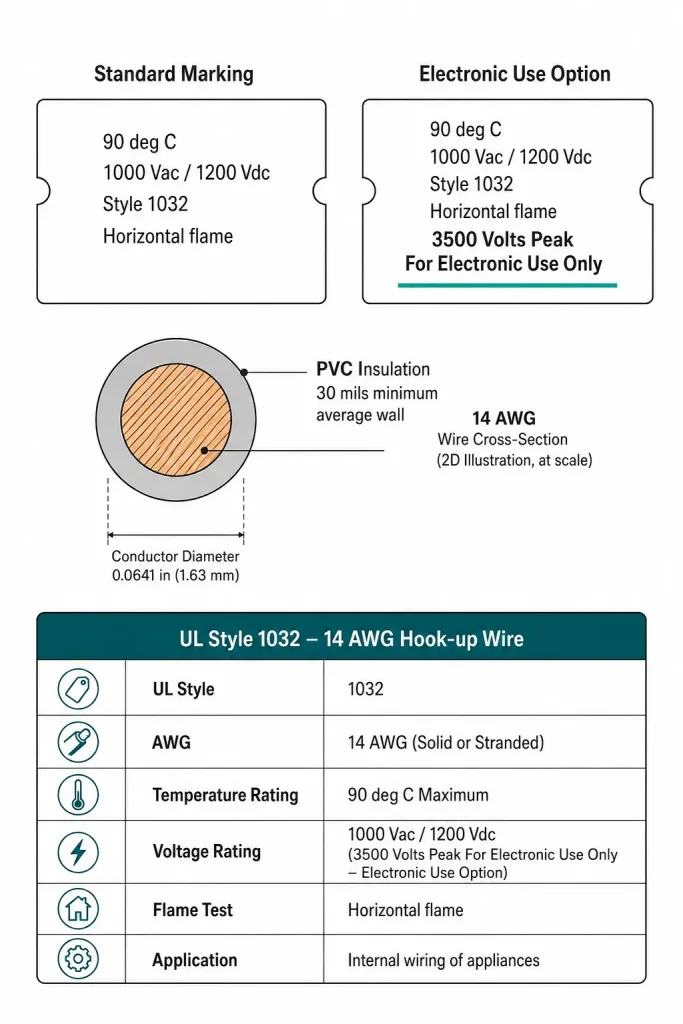

| Marking Option | Base Rating | Additional Tag | Typical Internal Circuit |
|---|---|---|---|
| Standard | 1000 Vac / 1200 Vdc, 90°C | — | General appliance internal wiring |
| Electronic use | 1000 Vac / 1200 Vdc, 90°C | 3500 V peak — for electronic use only | Power supply HV section, inverter bus, capacitor bank wiring |
UL AWM 1032 14 AWG Specifications
| Item | Specification |
|---|---|
| UL Style | 1032 — single conductor with extruded insulation |
| Temperature Rating | 90°C maximum |
| Voltage Rating | 1000 Vac and/or 1200 Vdc; optional tag: 3500 V peak — for electronic use only |
| Conductor | 14 AWG, solid or stranded (style range 30 AWG–2000 kcmil) |

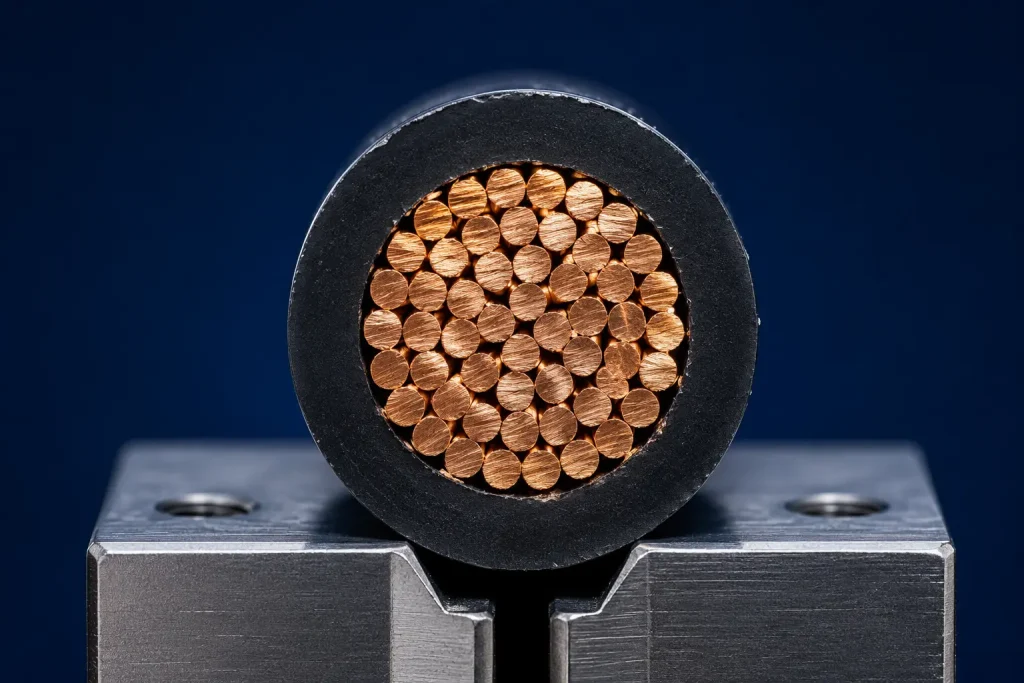

| Insulation | Extruded PVC, 30 mils minimum average thickness, 27 mils minimum at any point |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Oil Rating | Optional — 60°C or 80°C oil resistant |
| Optional Constructions | Extruded PVC covering (5 mils min at any point, 40 mils max); shield; extruded PVC jacket (30 mils min average, 23 mils min at any point) |
| UL Recognition | UL Recognized Component — file on record |
| Marking | Per UL Subject 758 marking requirements |
| Permitted Use | Internal wiring of appliances; tags may indicate 3500 V peak — for electronic use only |
| RoHS / REACH | Documentation available on request |
Applications

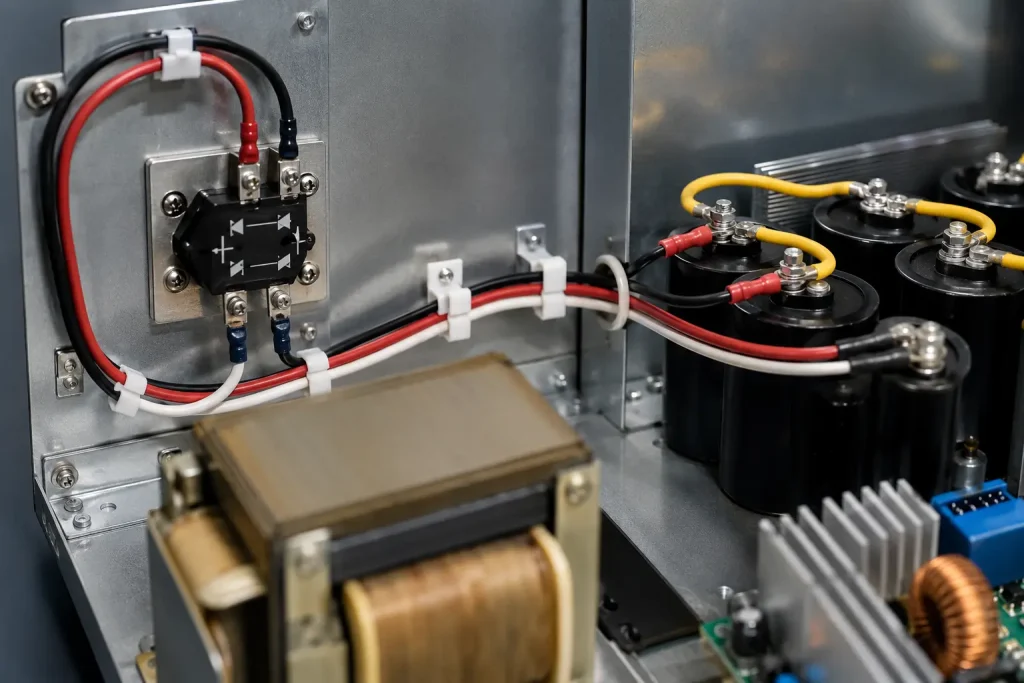

Within its permitted use — internal wiring of appliances — UL AWM 1032 14 AWG is suited to internal power supply wiring, inverter section conductors and capacitor bank connections inside appliances where the circuit operates at up to 1000 Vac or 1200 Vdc and where the 3500 V peak electronic use tag is required to satisfy the appliance manufacturer’s component specification. At 14 AWG, the conductor cross-section supports higher current capacity than the 18–22 AWG sizes while remaining within the same 30 mils PVC wall bracket. Where oil exposure occurs inside the appliance, the optional 60°C or 80°C oil rating applies. For applications outside internal appliance wiring, confirm application suitability before specifying.
Key Features
- Optional 3500 V peak tag — suits internal electronic power circuits at elevated peak voltages
- 14 AWG provides higher current capacity than fine-gauge UL 1032 sizes
- Same 30 mils PVC wall as the full 30–9 AWG range — consistent insulation class
- Solid or stranded; optional covering, shield and jacket constructions
- Horizontal flame; VW-1 vertical flame test available
- UL Recognized Component — file on record
Request a Quote
CableApex supplies UL AWM 1032 14 AWG from 100 m per color and responds to B2B inquiries within 12 hours. Specify conductor construction (solid or stranded), colors, 3500 V peak tag option if required, and any optional constructions through the form below.
