UL AWM 1032 PVC Wire 20 AWG — 90°C Appliance Wire Rated 1000 Vac and 1200 Vdc
UL AWM 1032 in 20 AWG is a single-conductor appliance wiring material with extruded PVC insulation, rated 90°C maximum at 1000 Vac and/or 1200 Vdc with a horizontal flame rating. At 20 AWG, this size occupies the fine-to-mid range of the UL 1032 conductor span and is a common choice for internal signal and light-duty power conductors in appliances where the circuit voltage exceeds the 600 Vac ceiling of UL 1015. CableApex supplies UL AWM 1032 20 AWG as a UL Recognized Component — file on record.

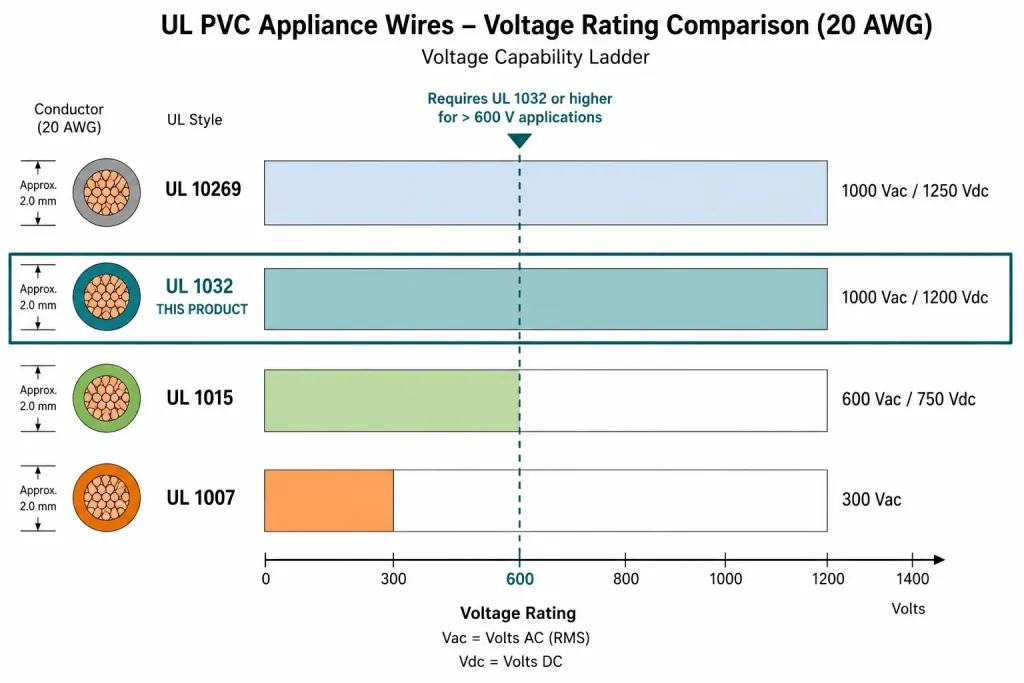

How UL 1032 Bridges the Voltage Gap in Appliance Wiring
| UL Style | Temp Rating | Voltage Rating | Insulation (20 AWG) |
|---|---|---|---|
| UL 1007 | 80°C | 300 Vac | PVC 15 mils avg |
| UL 1015 | 80–105°C | 600 Vac / 750 Vdc | PVC 30 mils avg |
| UL 1032 (this page) | 90°C | 1000 Vac / 1200 Vdc | PVC 30 mils avg |
| UL 10269 | 80–105°C | 1000 Vac / 1250 Vdc | PVC 30 mils avg |
UL AWM 1032 20 AWG Specifications
| Item | Specification |
|---|---|
| UL Style | 1032 — single conductor with extruded insulation |
| Temperature Rating | 90°C maximum |
| Voltage Rating | 1000 Vac and/or 1200 Vdc |
| Conductor | 20 AWG, solid or stranded (style range 30 AWG–2000 kcmil) |

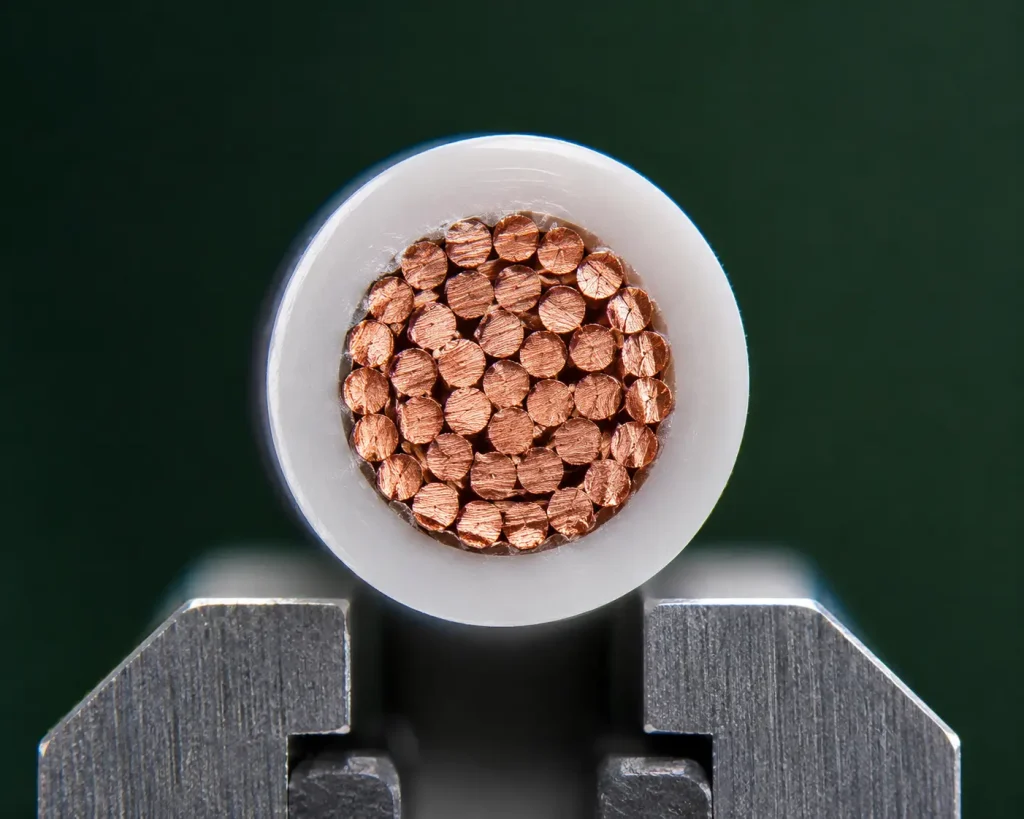

| Insulation | Extruded PVC, 30 mils minimum average thickness, 27 mils minimum at any point |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Oil Rating | Optional — 60°C or 80°C oil resistant |
| Optional Constructions | Extruded PVC covering (5 mils min at any point, 40 mils max); shield; extruded PVC jacket (30 mils min average, 23 mils min at any point) |
| UL Recognition | UL Recognized Component — file on record |
| Marking | Per UL Subject 758 marking requirements |
| Permitted Use | Internal wiring of appliances; tags may indicate 3500 V peak — for electronic use only |
| RoHS / REACH | Documentation available on request |
Applications

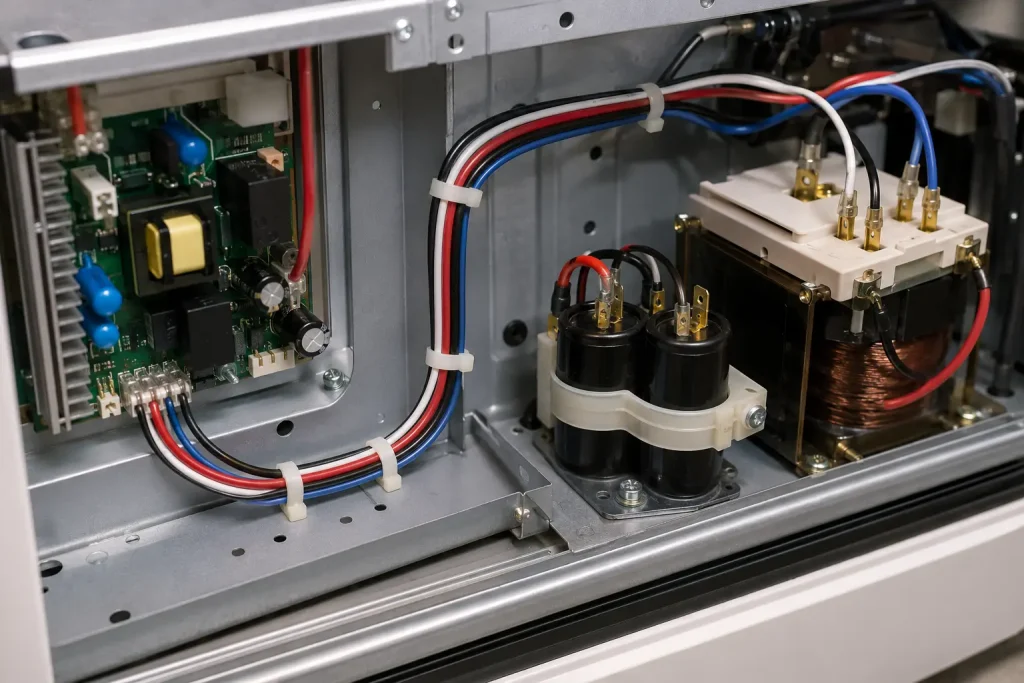

Within its permitted use — internal wiring of appliances — UL AWM 1032 20 AWG suits internal signal conductors, sensor feeds and light-duty power leads in appliances where circuit voltage runs above 600 Vac or where the 1200 Vdc rating is required for DC bus connections. Where the tag marking 3500 V peak — for electronic use only is required, this can be specified at time of order. Where oil exposure occurs inside the appliance, the optional 60°C or 80°C oil rating applies. For applications outside internal appliance wiring, confirm application suitability before specifying.
Key Features
- 1000 Vac / 1200 Vdc — steps above 600 V UL 1015 at the same insulation wall
- 90°C maximum for elevated-temperature appliance environments
- Solid or stranded conductor; style range 30 AWG–2000 kcmil
- Optional covering, shield and jacket constructions available
- Horizontal flame; VW-1 vertical flame test available
- UL Recognized Component — file on record
Request a Quote
CableApex supplies UL AWM 1032 20 AWG from 100 m per color and responds to B2B inquiries within 12 hours with pricing, lead time and packing details. Specify conductor construction (solid or stranded), colors and any optional constructions through the form below.
