UL AWM 1032 PVC Lead Wire 22 AWG — 1000 Vac / 1200 Vdc, Choosing the Right Gauge for Your Appliance Circuit
UL AWM 1032 in 22 AWG is a single-conductor appliance wiring material with extruded PVC insulation, rated 90°C maximum at 1000 Vac and/or 1200 Vdc. As a lead wire, 22 AWG covers the current range needed for sensor feeds, solenoid coil connections, relay coil wiring and similar low-to-moderate current internal circuit leads in appliances where operating voltage exceeds the 600 Vac limit of standard hook-up wire styles. CableApex supplies UL AWM 1032 22 AWG as a UL Recognized Component — file on record.

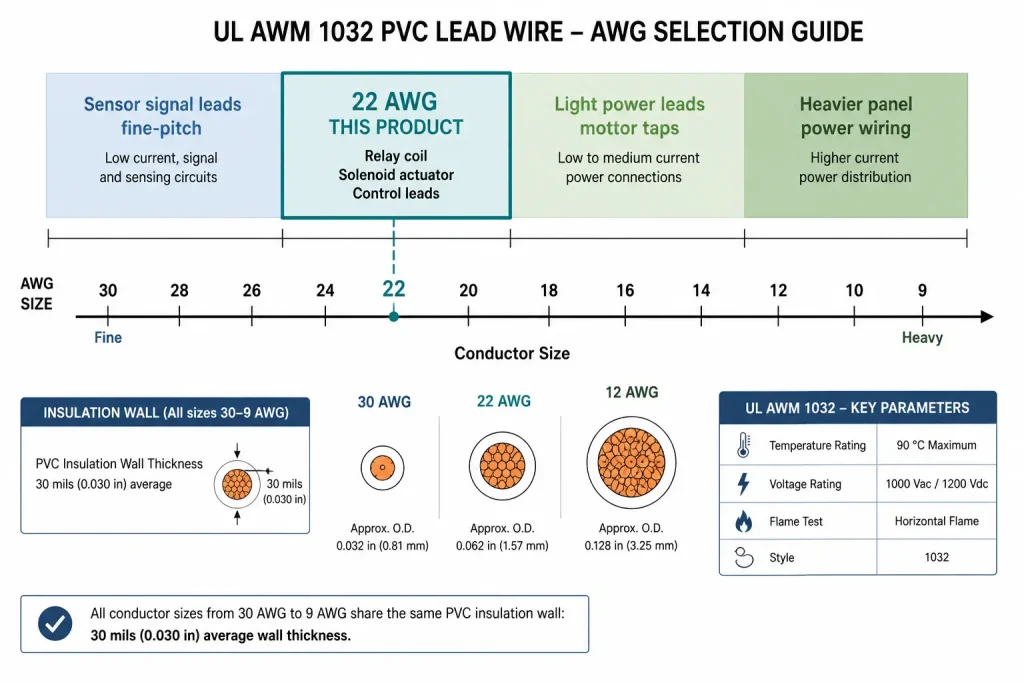

Selecting the Right AWG Within UL AWM 1032 for Lead Wire Applications
| AWG | Typical Lead Wire Use | Wall Thickness | Conductor |
|---|---|---|---|
| 30–24 AWG | Sensor signal leads, fine-pitch board connections | 30 mils avg / 27 mils min | Solid or stranded |
| 22 AWG (this page) | Relay coil leads, solenoid connections, actuator feeds | 30 mils avg / 27 mils min | Solid or stranded |
| 20–18 AWG | Light power leads, motor tap connections | 30 mils avg / 27 mils min | Solid or stranded |
| 16–12 AWG | Heavier power feeds, panel wiring | 30 mils avg / 27 mils min | Solid or stranded |
UL AWM 1032 22 AWG Specifications
| Item | Specification |
|---|---|
| UL Style | 1032 — single conductor with extruded insulation |
| Temperature Rating | 90°C maximum |
| Voltage Rating | 1000 Vac and/or 1200 Vdc |
| Conductor | 22 AWG, solid or stranded (style range 30 AWG–2000 kcmil) |

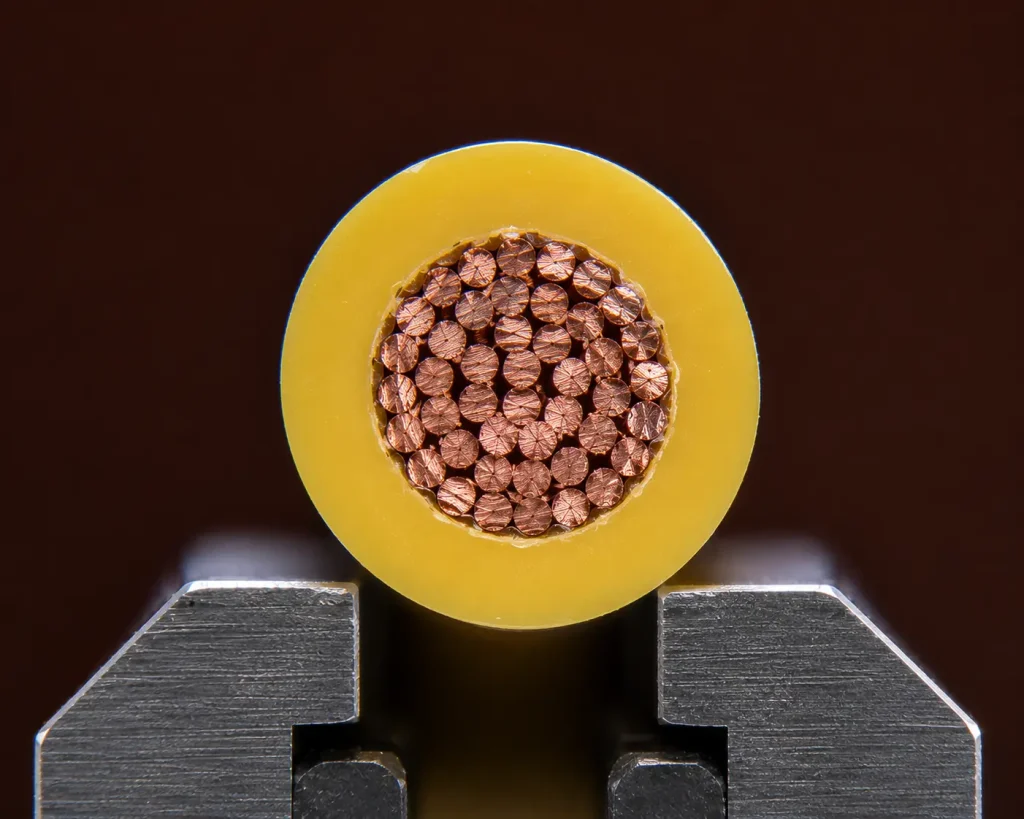

| Insulation | Extruded PVC, 30 mils minimum average thickness, 27 mils minimum at any point |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Oil Rating | Optional — 60°C or 80°C oil resistant |
| Optional Constructions | Extruded PVC covering (5 mils min at any point, 40 mils max); shield; extruded PVC jacket (30 mils min average, 23 mils min at any point) |
| UL Recognition | UL Recognized Component — file on record |
| Marking | Per UL Subject 758 marking requirements |
| Permitted Use | Internal wiring of appliances; tags may indicate 3500 V peak — for electronic use only |
| RoHS / REACH | Documentation available on request |
Applications

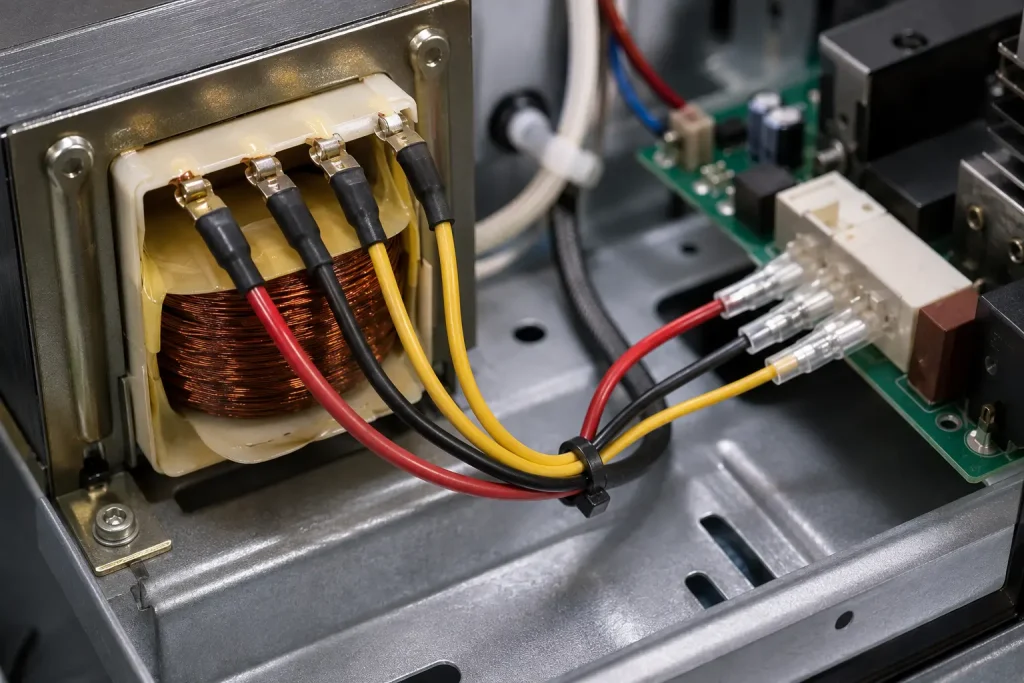

Within its permitted use — internal wiring of appliances — UL AWM 1032 22 AWG is suited to relay coil and solenoid valve lead connections, actuator feed wires and internal control circuit leads in appliances where operating voltages reach 1000 Vac or 1200 Vdc. Where the tag marking 3500 V peak — for electronic use only is needed for an internal electronic circuit at elevated peak voltage, this can be specified at order. The optional 60°C or 80°C oil rating applies where the lead wire runs through an oil-exposed zone inside the appliance. For applications outside internal appliance wiring, confirm application suitability before specifying.
Key Features
- 1000 Vac / 1200 Vdc lead wire rating at 22 AWG
- 90°C maximum for elevated-temperature appliance environments
- Solid or stranded; optional covering, shield and jacket
- Optional 3500 V peak electronic use tag marking
- Horizontal flame; VW-1 vertical flame test available
- UL Recognized Component — file on record
Request a Quote

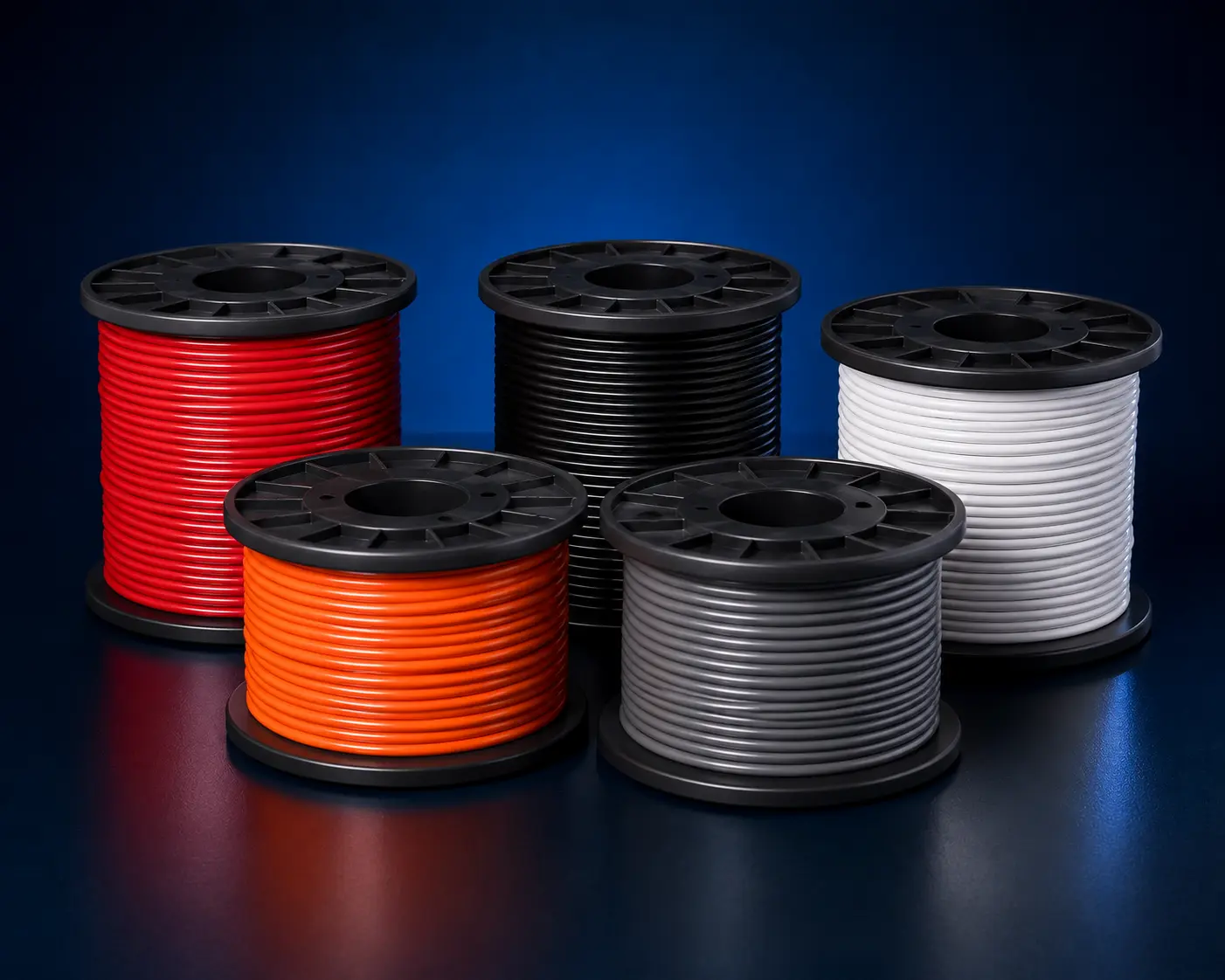

CableApex supplies UL AWM 1032 22 AWG from 100 m per color and responds to B2B inquiries within 12 hours. Specify solid or stranded, insulation color, quantity and any optional construction or tag marking requirements through the form below.
Related sizes: UL 1032 20 AWG · UL 1032 18 AWG · UL 1032 16 AWG
