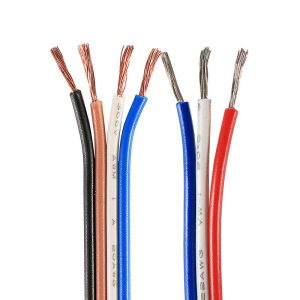

32 AWG — The Ultra-Fine End of the UL 1007 Range
32 AWG (~0.032 mm²) is the smallest conductor permitted under UL 1007 per UL Subject 758. The UL 1007 listing covers 32 AWG to 16 AWG — German engineers searching UL 1007 32 AWG stranded Draht Germany supplier are working at the precision-electronics end of this range, typically for applications where 28 AWG and 30 AWG are still mechanically oversized for the housing, terminal, or PCB header involved.

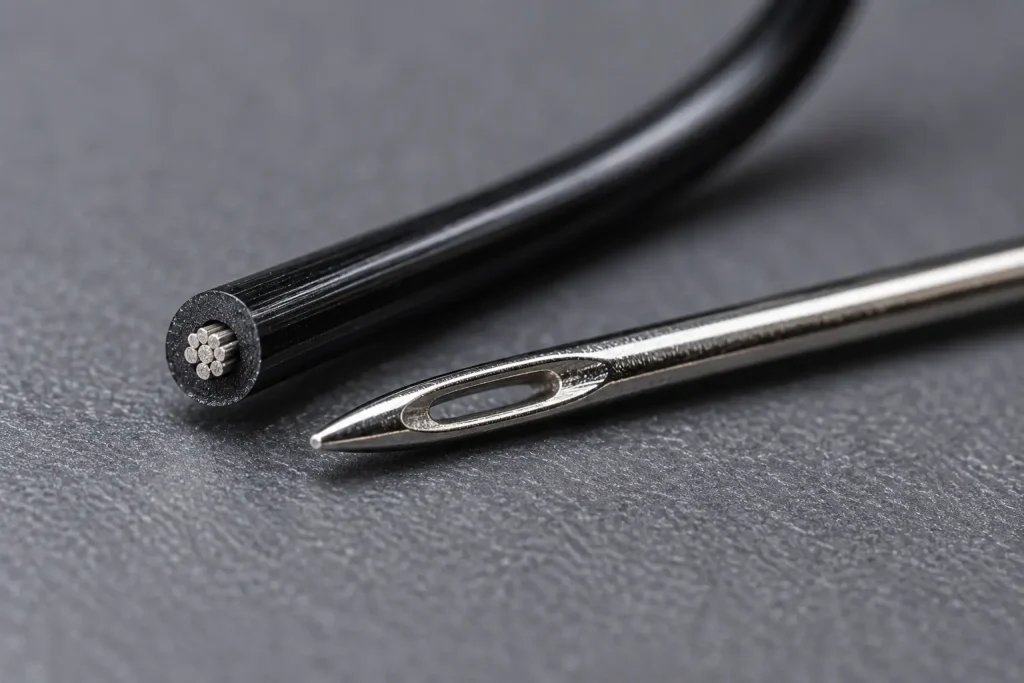

At 32 AWG, the wire is approximately 0.20 mm in conductor diameter — finer than a typical sewing thread. The PVC insulation adds another 0.76 mm of overall diameter (15 mils minimum average wall on each side, doubled across the conductor), bringing the finished wire OD to roughly 0.95 mm. This makes 32 AWG UL 1007 one of the thinnest UL Recognized AWM hook-up wires available, suitable for applications where conductor flexibility and small bend radius matter more than current-carrying capacity.
Why Stranded Construction Matters at 32 AWG

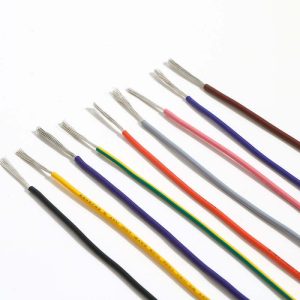

UL 1007 permits both solid and stranded constructions across its full AWG range. At 32 AWG specifically, German buyers searching for stranded Draht are making a deliberate choice — solid 32 AWG copper is fragile, prone to breaking under repeated flex, and difficult to terminate without damaging the conductor. Stranded 32 AWG (typically 7 strands of 40 AWG copper) provides:
- Flex life for applications where the wire moves during equipment operation, assembly, or service
- Termination tolerance for crimp connectors and IDC headers — solid 32 AWG often crushes under crimp force, while stranded distributes the compression across multiple strands
- Pull strength retention after stripping — stranded constructions retain mechanical integrity better than solid when the insulation is removed for termination
For 32 AWG UL 1007 specified as “stranded,” CableApex supplies the standard 7/40 AWG construction with bare or tinned copper depending on customer specification. Solid 32 AWG is also available under the same UL 1007 listing for applications where the wire is fully supported and not flexed — but stranded is the default for 95% of 32 AWG hook-up applications.
Typical 32 AWG Stranded Applications in German Electronics

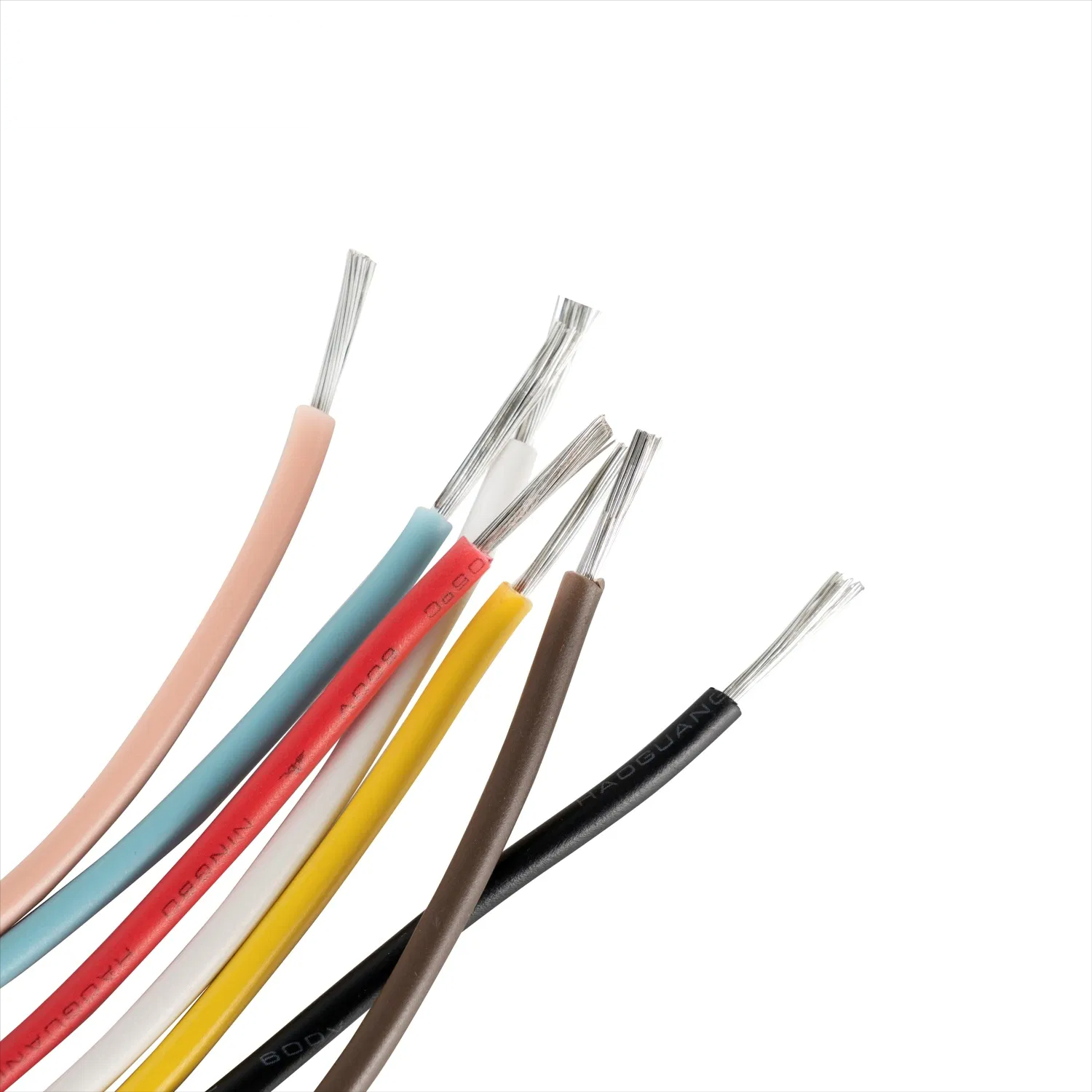

Sensor and Encoder Leads
German sensor manufacturers and encoder OEMs producing precision instruments for the US market use 32 AWG stranded UL 1007 for the internal pigtail connection between sensor element and external connector. The combination of 300V isolation rating (well above signal voltage), 80°C temperature rating (sufficient for most sensor environments), and ultra-fine flexible construction makes 32 AWG UL 1007 the standard for low-voltage sensor leads where space is tight.

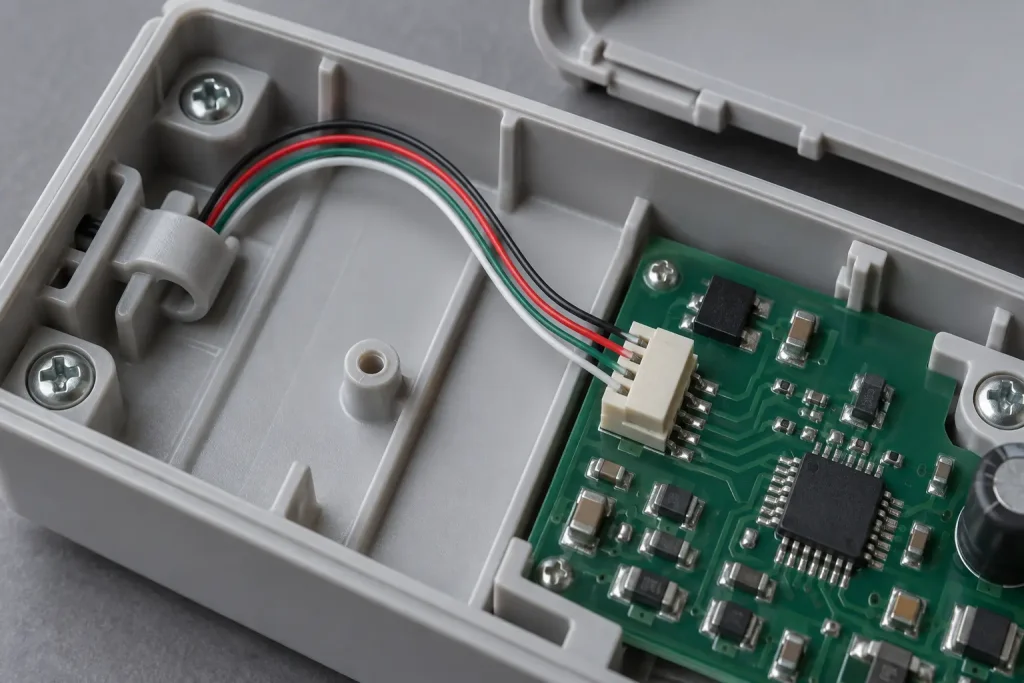

PCB Jumpers and Internal Interconnects
32 AWG stranded UL 1007 is used for short flying-lead jumpers between PCBs, between PCB and panel-mounted components, or between board-level terminal blocks where the connection must be flexible enough to survive the assembly process. The 15 mils PVC wall is thick enough to prevent damage during routing through PCB cutouts and over board edges, but thin enough to fit through standard cable management channels.
Test Equipment and Laboratory Wiring
German test and measurement equipment manufacturers — particularly those producing benchtop instruments, signal generators, and oscilloscope accessories — use 32 AWG stranded UL 1007 for internal signal routing where shielded cable would be oversized or where the signal is low-impedance and shielding is unnecessary.
Why Source 32 AWG Stranded UL 1007 from a Chinese Supplier
32 AWG UL 1007 is a low-volume specification in the European distribution channel. Most German electrical distributors stock UL 1007 only in 22, 20, and 18 AWG — the high-volume gauges. When a German engineer specifies 32 AWG, the local distributor typically responds with one of three options: special-order at premium pricing with 4–8 week lead time, substitute a different AWM Style that they do stock, or redirect the order to a specialty house. None of these match the engineer’s original BOM.
Direct factory sourcing from China solves this. CableApex produces 32 AWG UL 1007 in standard production runs — it is not a “specialty” item at the factory level, just a smaller-cross-section variant of the same UL 1007 process line. German buyers ordering 5,000 m or more of 32 AWG UL 1007 directly from CableApex receive factory-gate pricing with 25–30 day CIF delivery to Hamburg or Rotterdam, eliminating the European distribution markup entirely.
UL 1007 32 AWG Stranded Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 1007 |
| UL File Number | E333030 (Follow-Up Service) |
| Conductor Size | 32 AWG (~0.032 mm²) |
| UL 1007 Range | 32 AWG – 16 AWG (32 AWG is the smallest in family) |
| Conductor Construction | Stranded (default 7/40 AWG) — solid also permitted under listing |
| Conductor Material | Bare or tinned copper |
| Voltage Rating | 300V AC (600V peak — for electronic use only, when tag indicates) |
| Temperature Rating | 80°C |

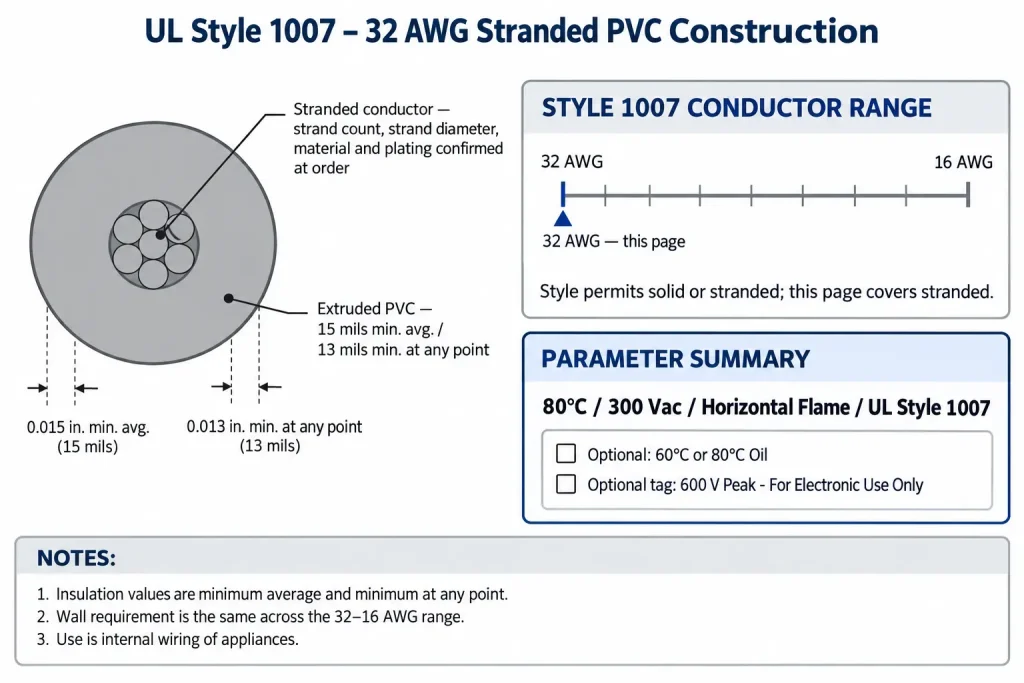

| Insulation | Extruded PVC, 15 mils (0.38 mm) min avg / 13 mils (0.33 mm) min at any point |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Oil Resistance | Optional 60°C or 80°C oil-resistant grade |
| Use | Internal wiring of appliances and electronic equipment |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 1007 · 32 AWG · 300V · 80°C · E333030 |
Engineering Notes from CableApex
Three points German engineers should know specifically about 32 AWG stranded UL 1007:
- Termination compatibility check. Many crimp connectors specified for 24 AWG and larger will not properly terminate 32 AWG — the strands may pass through the crimp barrel without making mechanical contact, or the crimp tool jaws may not close to the correct depth. Verify that your IDC headers, crimp barrels, and termination tools are rated for 32 AWG before specifying. If the existing assembly tooling tops out at 26 AWG, 26 AWG UL 1007 may be a better choice than 32 AWG for production reliability.
- Tinned copper strongly recommended. At 32 AWG, the surface area to copper mass ratio is extreme. Bare copper at this gauge oxidizes quickly during transit and storage, degrading solderability and crimp contact resistance. Tinned copper at modest premium provides significantly better long-term reliability — for 32 AWG specifically, we recommend tinned as default rather than optional.

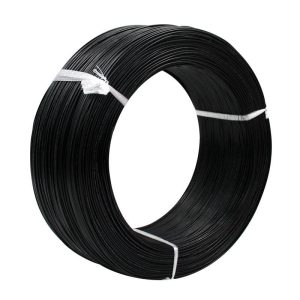

- Spool size matters. 32 AWG ships at roughly 1/40 the per-meter weight of 14 AWG, so a single 5,000 m spool of 32 AWG weighs about the same as 125 m of 14 AWG. This means buyers can consolidate large quantities of 32 AWG into very small shipments — useful for buyers who want to maintain a year of inventory in a small storage footprint.
MOQ, Packaging & Shipping

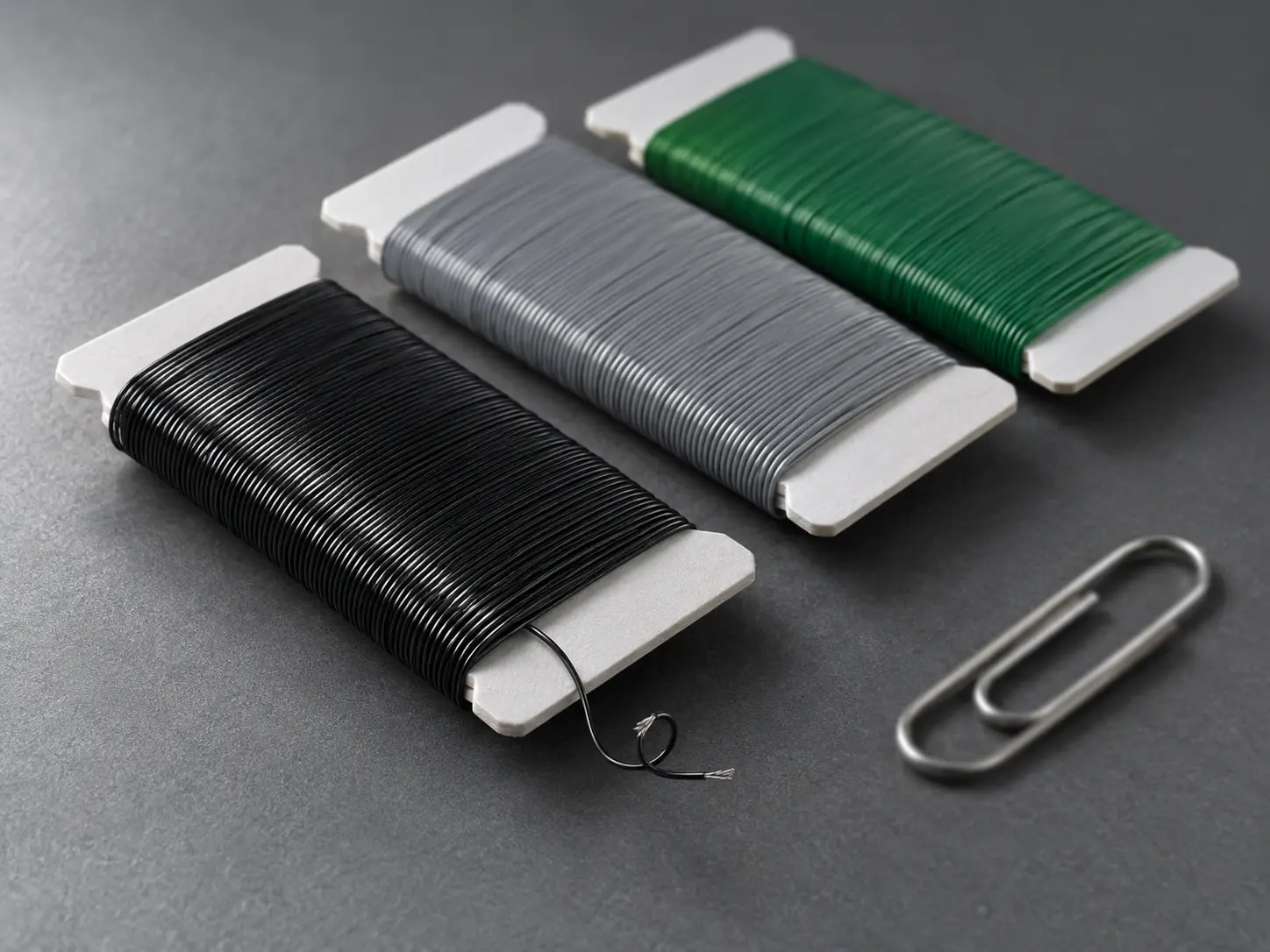

MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on 32 AWG. Standard packaging: spools sized appropriately for the ultra-fine gauge (typical 5,000 m to 10,000 m per spool). Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles
32 AWG buyers also evaluating fine-gauge alternatives often look at: UL 1015 (600V / 105°C, 30 AWG to 2000 kcmil, when 600V isolation is required at fine gauge — note UL 1015 starts at 30 AWG, not 32 AWG), UL 1569 (300V / 105°C, 30 AWG to 2 AWG, higher-temperature alternative starting at 30 AWG), UL 3266 (XLPE 125°C, 32 AWG to 10 AWG, thermoset upgrade covering the same 32 AWG fine end), and UL 1332 (FEP 200°C, 30 AWG to 10 AWG, high-temperature replacement when PVC cannot handle the application).
