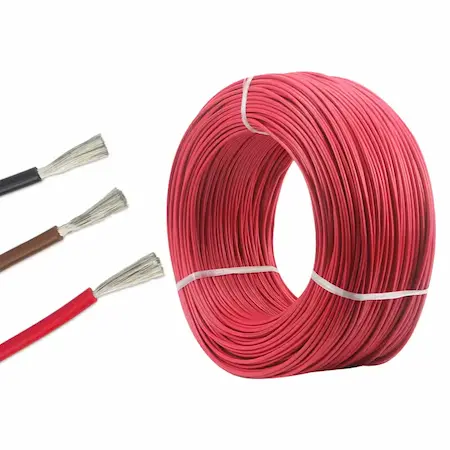

UL 1007 Bulk PVC Wire for OEM Harness Production
UL AWM Style 1007 is a single-conductor PVC insulated wire construction, supplied by CableApex as a factory-direct manufacturer for bulk OEM procurement. This page answers a specific sourcing question: how to source UL 1007 PVC wire in bulk for appliance internal harness production, across the required AWG sizes, conductor construction, colours, packaging, and documentation. “Bulk supply” is CableApex’s commercial procurement positioning for this page, not a UL rating — the underlying Style rating remains 80°C and 300 Vac across the full 32 AWG–16 AWG conductor range.
80°C / 300 Vac Style 1007 Construction
| Parameter | UL Style 1007 |
|---|---|
| UL Subject / Section | 758, Section 1 |
| Construction | Single conductor with extruded insulation |
| Conductor Range | 32 AWG – 16 AWG |
| Conductor Form | Solid or stranded |
| Insulation | Extruded PVC, 15 mil min. average / 13 mil min. at any point |
| Rated Temperature (Maximum) | 80°C |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame |
| Optional Oil Designation | 60°C or 80°C, where qualified |
| Marking | General; tags may optionally indicate 600 V Peak — For Electronic Use Only |
| Use | Internal wiring of appliances |
| RoHS / REACH | Confirmed during quotation according to ordered materials and documentation requirements |
32–16 AWG Solid or Stranded Options

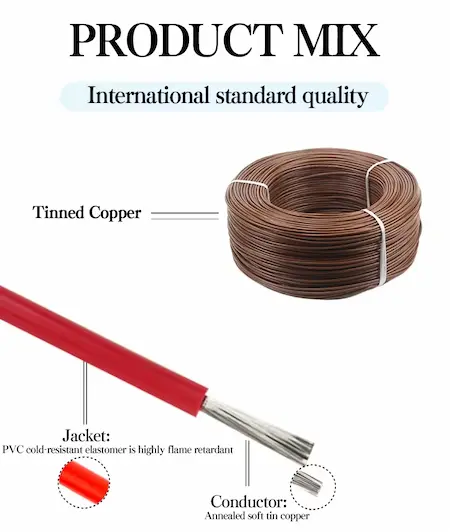

UL Style 1007 covers a conductor range of 32 AWG through 16 AWG, solid or stranded. This page is intentionally not built around one featured AWG — bulk OEM harness programs typically require multiple AWG sizes within a single project, and CableApex supports quoting across the full Style range for combined orders. Conductor material and plating are not established at the Style level; this page does not describe UL 1007 as universally tinned copper or bare copper — conductor material or plating should be specified as part of your order requirement.

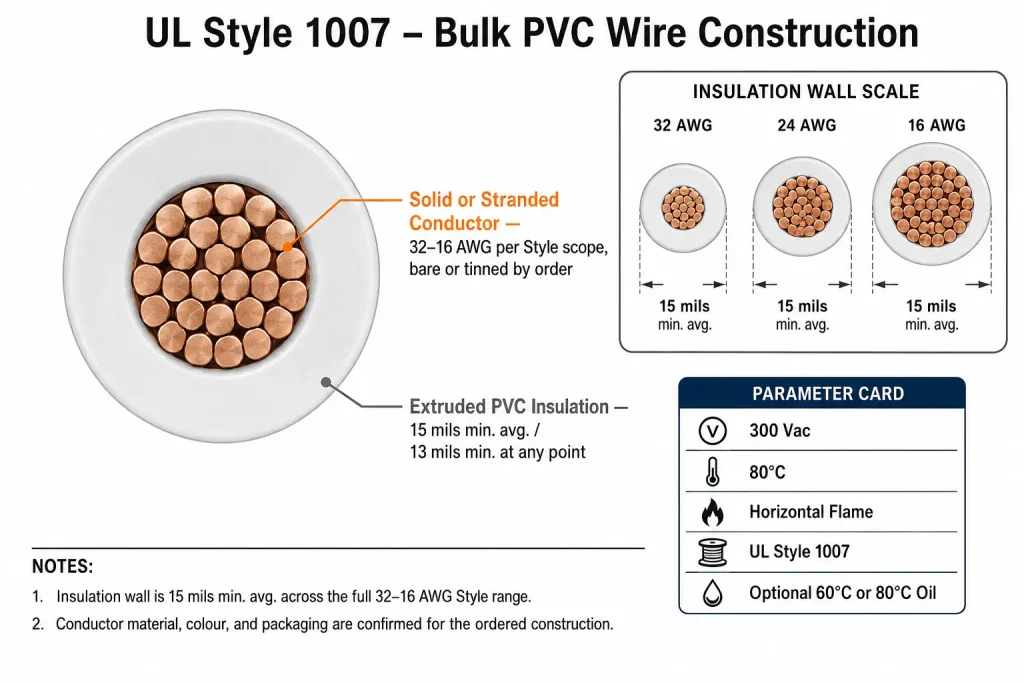

15-Mil Minimum Average PVC Insulation
The conductor is insulated with extruded PVC at a minimum average thickness of 15 mils and a minimum thickness of 13 mils at any point. This is precise UL terminology — a minimum average thickness, not a nominal production dimension. We do not calculate or publish a finished outside diameter from AWG and insulation thickness, as conductor geometry and manufacturing tolerances are not part of the confirmed technical basis for this page; if dimension is critical to your process, provide your required finished OD with your enquiry.

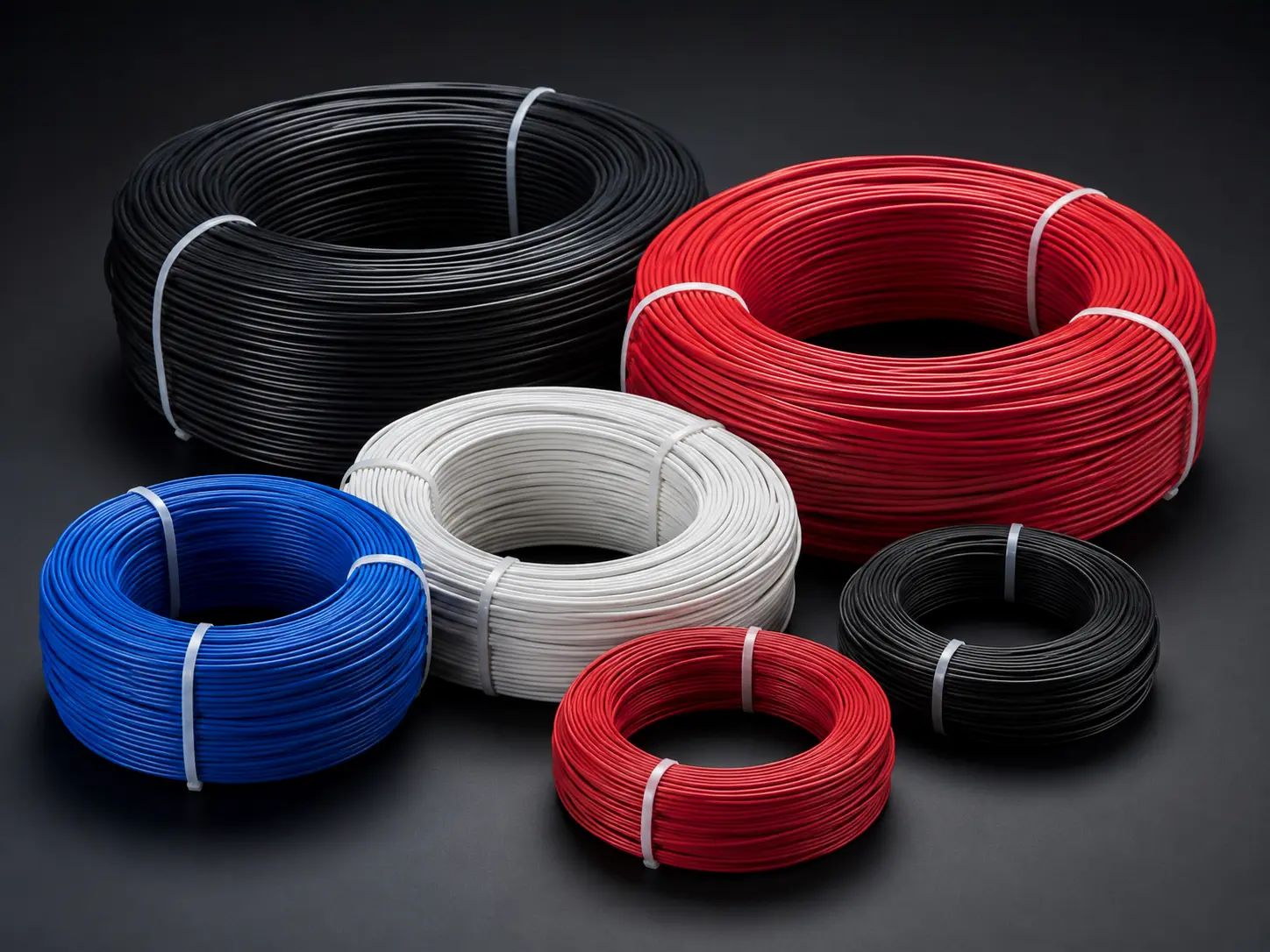

Bulk Supply for Appliance Internal Harness Programs

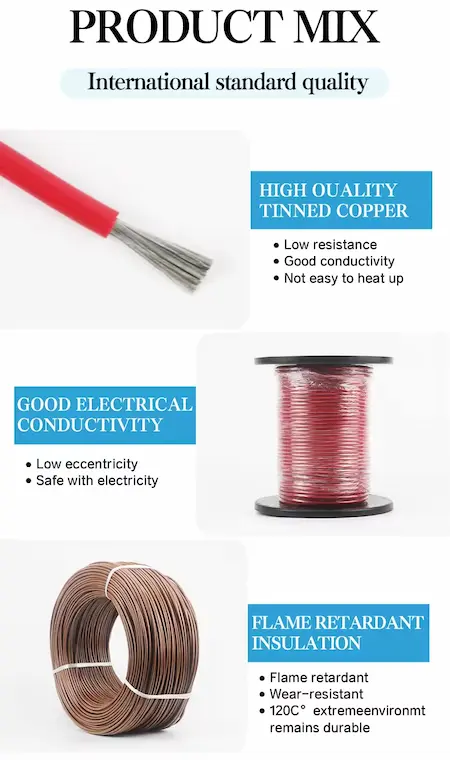

For OEM buyers running repeated harness production, useful factors beyond the Style number include colour requirements, packaging format, and consistency across production batches. We do not promise a fixed standard spool length, drum size, or cut length — reel, spool, or packaging format should be specified as part of your order requirement. Colour requirements can be discussed against an existing sample, colour reference, or BOM specification; we do not promise exact Pantone matching or zero colour deviation between batches without separately confirmed production specifications. A monthly forecast quantity is useful optional planning information for your enquiry, but we do not reserve production capacity or guarantee a fixed monthly allocation on that basis alone.

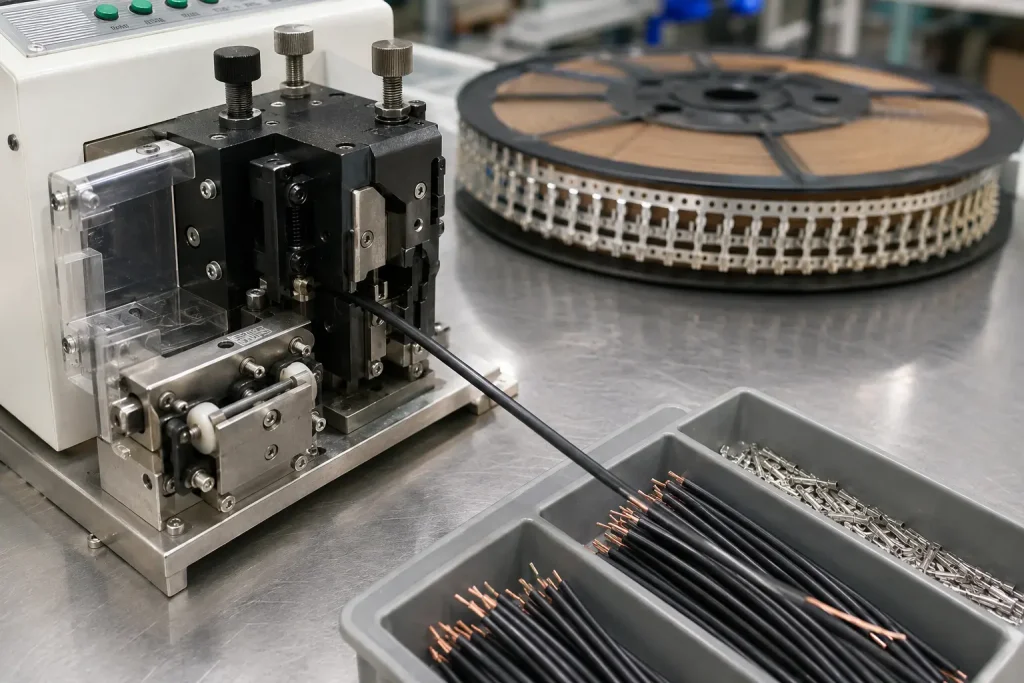

Cutting, Stripping and Termination Requirements
The UL Style 1007 record does not establish quantified strip-force performance, crimp performance, cut accuracy, terminal retention, or reject-rate figures — these depend on the actual conductor construction, finished wire dimensions, your tooling, terminal design, and process settings, not on the Style rating alone. We do not promise that the wire runs cleanly through every processing line, reduces reject rates, strips consistently on every machine, or crimps reliably with every terminal system. Buyers using automated or semi-automated processing should specify conductor construction, finished dimensions, strip length, terminal system, and any processing requirements when requesting a quotation, so the appropriate construction can be confirmed for your equipment.
UL 1007 Technical Specifications
See the specification table above for the complete confirmed ratings applicable to this Style.
Appliance Internal Wiring Applications
UL Style 1007’s confirmed use is internal wiring of appliances. Appropriate application language for this page includes appliance internal wiring, appliance wiring harness production, internal appliance lead-wire assemblies, protected component-to-component appliance wiring, and OEM appliance internal harnesses. UL 1007 applies to the component wire itself — a completed harness assembly built from qualified Style 1007 wire is not automatically described as “UL Style 1007 certified” as a finished assembly. This page does not broaden the use into building wiring, field wiring, branch circuits, external power cords, portable cords, tray cable, or conduit wiring.

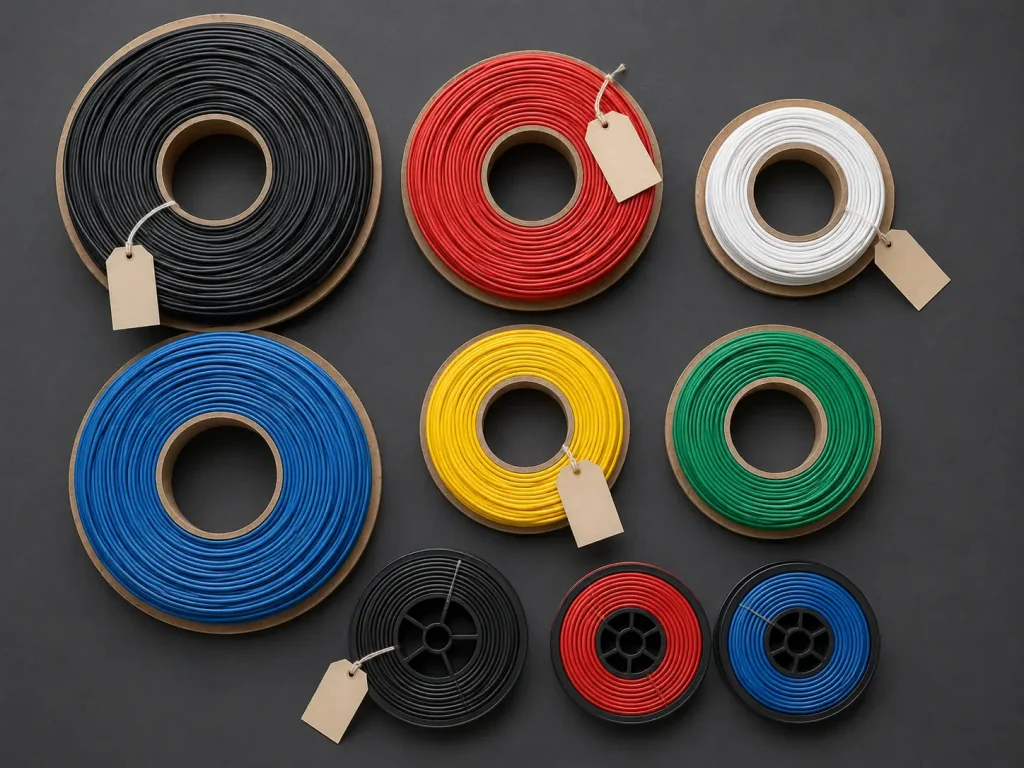

Planning Multi-AWG and Multi-Color Bulk Orders
Many OEM harness projects require several AWG sizes and several colours within the same production run. To plan this efficiently, it helps to prepare an order matrix listing AWG, colour, quantity, and packaging requirement for each line item, along with which AWG sizes are needed together for the same project. We do not invent a minimum quantity per AWG or per colour — quantities should be specified according to your actual production requirement.
What to Specify for OEM Harness Wire Supply
To provide an accurate bulk quotation for UL 1007 PVC wire, please specify:
- Required AWG or AWG matrix, with quantity by AWG
- Solid or stranded requirement
- Conductor material or plating requirement (bare or tinned copper, as required)
- Insulation colour requirements
- Optional oil designation, if required
- Required finished OD, if dimensionally critical
- Cutting / stripping process requirements
- Terminal or crimping information, if relevant
- Marking requirement
- Reel / spool / packaging requirement
- Order quantity
- Monthly forecast quantity, if applicable
- UL documentation requirement, including RoHS / REACH if needed
- Appliance or harness application
- Shipping destination
Send this information and we respond with a quotation within 12 business hours. Production lead time depends on the confirmed construction and order quantity, and shipping options and applicable Incoterms are confirmed during quotation according to destination.
UL Marking and Documentation
Qualifying UL AWM Style 1007 constructions can be supplied through the relevant qualified manufacturing scope for this Style. UL marking and documentation are confirmed according to the qualified Style 1007 construction supplied for the order and are not identical across every commercial variation. RoHS and REACH are separate regulatory frameworks from UL recognition; applicable RoHS / REACH documentation requirements can be confirmed according to the ordered construction.
Browse our UL1007 Wire category, or see our broader PVC Insulated Wire range for related constructions.
