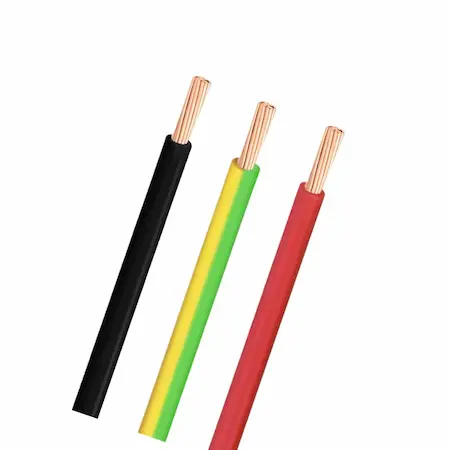

UL 1007 PVC Hook-Up Wire Overview
UL AWM Style 1007 is a single-conductor PVC insulated wire construction, supplied by CableApex as a factory-direct manufacturer. This page addresses UL 1007 PVC hook-up wire in the context of qualified power-supply and appliance internal wiring, covering the full Style 1007 conductor range of 32 AWG through 16 AWG. The wire is rated 80°C and 300 Vac, with extruded PVC insulation. This page is not an AWG-specific SKU page; buyers specify their required AWG when requesting a quotation.
80°C / 300 Vac Style 1007 Construction
| Parameter | UL Style 1007 |
|---|---|
| UL Subject / Section | 758, Section 1 |
| Construction | Single conductor with extruded insulation |
| Conductor Range | 32 AWG – 16 AWG |
| Conductor Form | Solid or stranded |
| Insulation | Extruded PVC, 15 mil min. average / 13 mil min. at any point |
| Rated Temperature (Maximum) | 80°C |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame |
| Optional Oil Designation | 60°C or 80°C, where qualified |
| Marking | General; tags may optionally indicate 600 V Peak — For Electronic Use Only |
| UL-Defined Use | Internal wiring of appliances |
| Commercial Application Context | Qualified power-supply internal wiring where the end-equipment design permits Style 1007 |
| RoHS / REACH | Confirmed during quotation according to ordered materials and documentation requirements |
32–16 AWG Solid or Stranded Conductor Options
UL Style 1007 covers a conductor range of 32 AWG through 16 AWG, solid or stranded. This page does not present one featured AWG — buyers should specify the required AWG when requesting a quotation, and CableApex has separate pages for buyers with a size-specific procurement intent. Conductor material and plating are not established at the Style level; this page does not describe UL 1007 as universally tinned copper or bare copper — conductor material or plating should be specified as part of your order requirement.

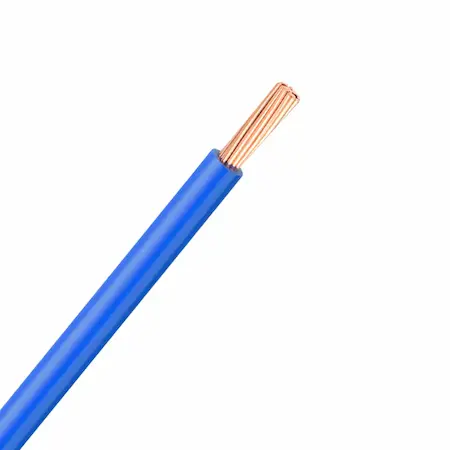

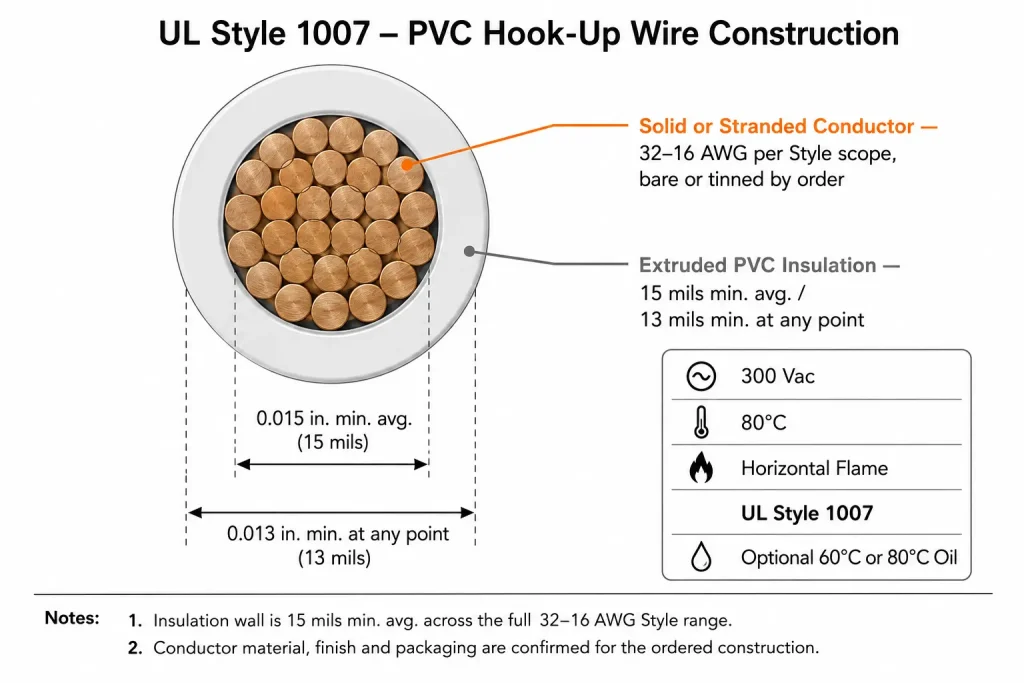

15-Mil Minimum Average PVC Insulation
The conductor is insulated with extruded PVC at a minimum average thickness of 15 mils and a minimum thickness of 13 mils at any point. This is precise UL terminology — a minimum average thickness, not a nominal production dimension. We do not calculate or publish a finished outside diameter from AWG and insulation thickness, as conductor geometry and manufacturing tolerances are not part of the confirmed technical basis for this page.

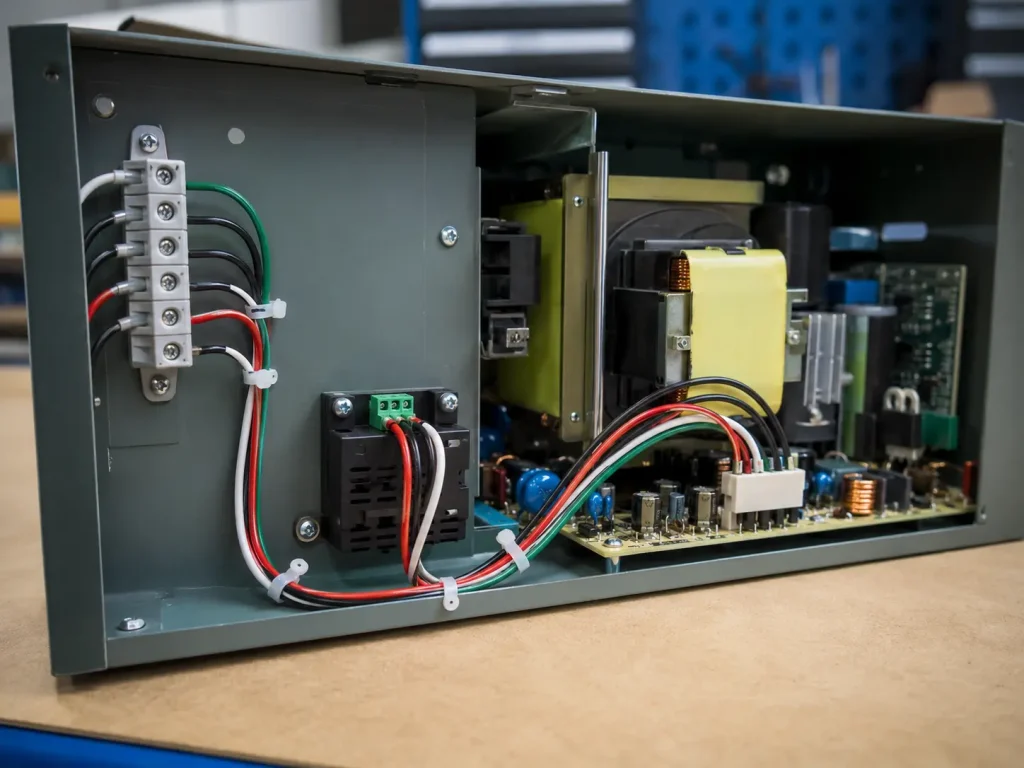

UL 1007 in Power-Supply Internal Wiring
The supplied UL Style 1007 record does not specifically state “power supply wiring” as its formal use — the UL-defined use is internal wiring of appliances. Power-supply positioning on this page is a procurement and end-equipment context, not a separate UL Use statement: UL 1007 may be specified as component wire inside power-supply assemblies where the finished equipment design and applicable requirements permit Style 1007. This page does not claim that UL 1007 is “certified for power supplies” or that every power supply automatically accepts Style 1007 wire — acceptability depends on the specific equipment design and applicable evaluation. Illustrative internal contexts, such as leads between boards, terminals, and small modules, are mentioned only as possible routing examples, not as separate UL-approved use categories.
UL 1007 Technical Specifications
See the specification table above for the complete confirmed ratings applicable to this Style.
Appliance Internal Wiring Use Boundary
UL Style 1007’s confirmed use is internal wiring of appliances. This page does not broaden that use into general electrical equipment wiring, control-panel wiring, industrial equipment wiring, field wiring, building wiring, or branch circuits, and does not describe UL 1007 using unsupported duty classifications such as “light duty,” “medium duty,” or “heavy duty” — these are not established by the Style-level record.
Cutting, Stripping and Termination Considerations
The UL Style 1007 record does not establish quantified stripping performance, crimp performance, or reject-rate figures — these depend on the actual conductor construction, finished wire dimensions, your tooling, blade settings, terminal design, and process control, not on the Style rating alone. This page does not promise that the wire strips consistently on every machine, crimps reliably with every terminal, or keeps assembly stable across every batch. Buyers using UL 1007 in harness production should confirm the conductor construction, finished dimensions, stripping requirements, and terminal system before production, so the appropriate construction can be specified for your equipment.
Optional Oil Rating and 600V Peak Tag
UL Style 1007 permits an optional 60°C or 80°C oil designation, available only where included in the qualified construction — this page does not state that every UL 1007 order is automatically oil resistant. Separately, the Style permits a tag statement indicating “600 V Peak — For Electronic Use Only.” This is not equivalent to a 600 Vac continuous rating; the primary continuous voltage rating for this page remains 300 Vac throughout.
What to Specify When Ordering UL 1007 Power Supply Wire
To provide an accurate quotation for UL 1007 PVC hook-up wire, please specify:
- Required AWG
- Solid or stranded conductor
- Conductor material or plating requirement
- Insulation colour
- Operating temperature
- Operating voltage
- Optional oil designation, if required
- Required finished OD, if dimensionally critical
- Stripping requirement, if relevant
- Terminal or crimping information, if relevant
- Marking requirement
- Order quantity
- Packaging requirement
- UL documentation requirement, including RoHS / REACH if needed
- Power-supply or appliance type
- Internal wiring location
- Shipping destination
Send this information and we respond with a quotation within 12 business hours. Production lead time depends on the confirmed construction and order quantity, and shipping options and applicable Incoterms are confirmed during quotation according to destination.
UL Marking and Documentation
Qualifying UL AWM Style 1007 constructions can be supplied through the relevant qualified manufacturing scope for this Style. UL marking and documentation are confirmed according to the qualified Style 1007 construction supplied for the order and are not identical across every commercial variation. RoHS and REACH are separate regulatory frameworks from UL recognition; applicable RoHS / REACH documentation requirements can be confirmed according to the ordered construction.
