UL 1659 PTFE internal wire for compact high temperature assemblies

Product Overview

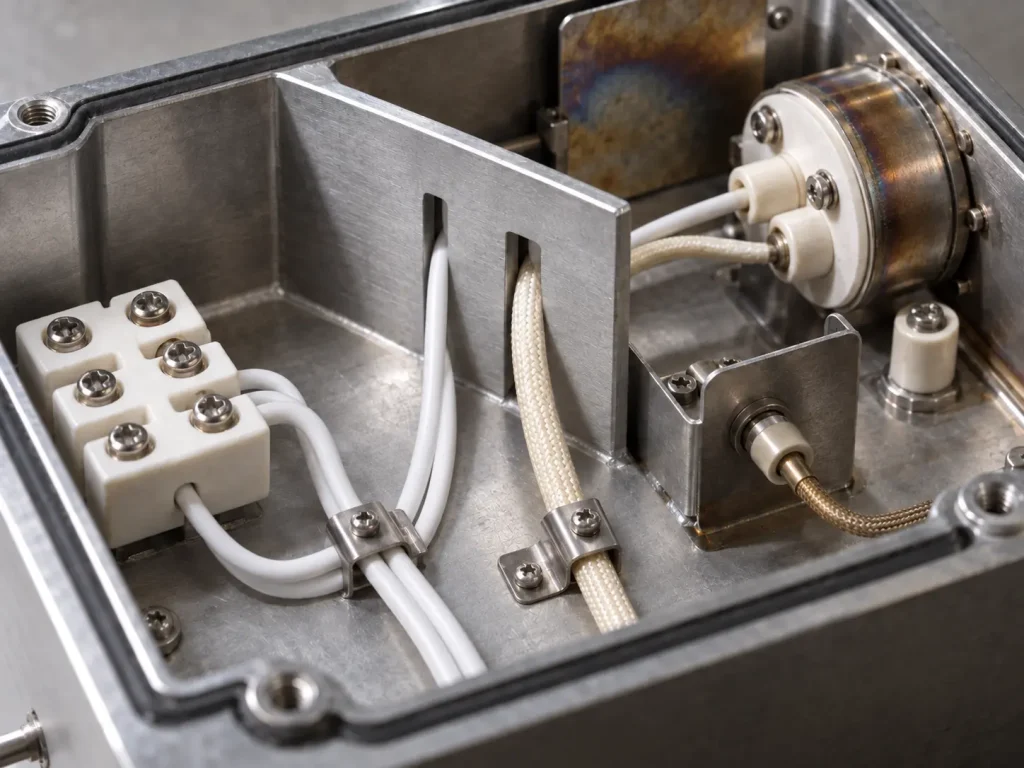

UL 1659 PTFE internal wire is especially useful in compact high temperature assemblies where the wire has to fit two conditions at once: limited routing space and a hotter operating environment. In these assemblies, a standard internal lead wire may not provide enough thermal margin, but the buyer still wants a practical internal wire rather than a much bulkier or more extreme hot-zone construction.

That is why UL1659 is often reviewed in this category. PTFE insulation allows the wire to fit a more demanding thermal environment while still serving as a manageable internal lead for compact equipment layouts.

Key Ratings

UL Style: UL 1659 (AWM, UL 758)
Temperature Rating: 250°C
Voltage Rating: 600V
Insulation: PTFE
Conductor: stranded copper, tinned copper optional
Application type: compact high temperature internal assemblies

Why Buyers Use It in Compact Assemblies

Compact assemblies leave less room for compromise. Buyers choose UL1659 when they want an internal wire that can tolerate higher temperature while still fitting an organized equipment layout. This is useful where the internal wire path is tight, the assembly is enclosed, and the operating temperature is beyond what ordinary PVC or general silicone wire would comfortably support.

For OEM production, it also helps when the wire can deliver this performance in a familiar lead-wire format without pushing the design into a completely different material family.

Typical Applications

Compact high temperature electrical assemblies
Enclosed internal lead routing
OEM products with hotter internal sections
Protected routing in space-limited equipment
PTFE internal wire for demanding compact builds

Factory-Backed Production Support

For compact assembly projects, buyers usually care about insulation consistency, conductor stability, and supply repeatability because small variations can affect routing and assembly work more quickly in a tight layout than in a larger enclosure.

Selection Notes

If the application requires PFA or FEP instead of PTFE, UL10362 or UL1332 may be more suitable. If the heat requirement is lower, another AWM family may be sufficient. UL1659 is more appropriate where the buyer wants a 250°C PTFE internal wire for compact assemblies with a clear high-temperature requirement.
