UL 3135 silicone wire 22 AWG high temperature wiring for control panels
Product Overview
UL 3135 22 AWG silicone wire is suitable for control panel internal wiring where elevated temperatures, compact layouts, or vibration may be present. Silicone insulation offers flexibility and heat resistance, supporting stable wiring performance in OEM assemblies.

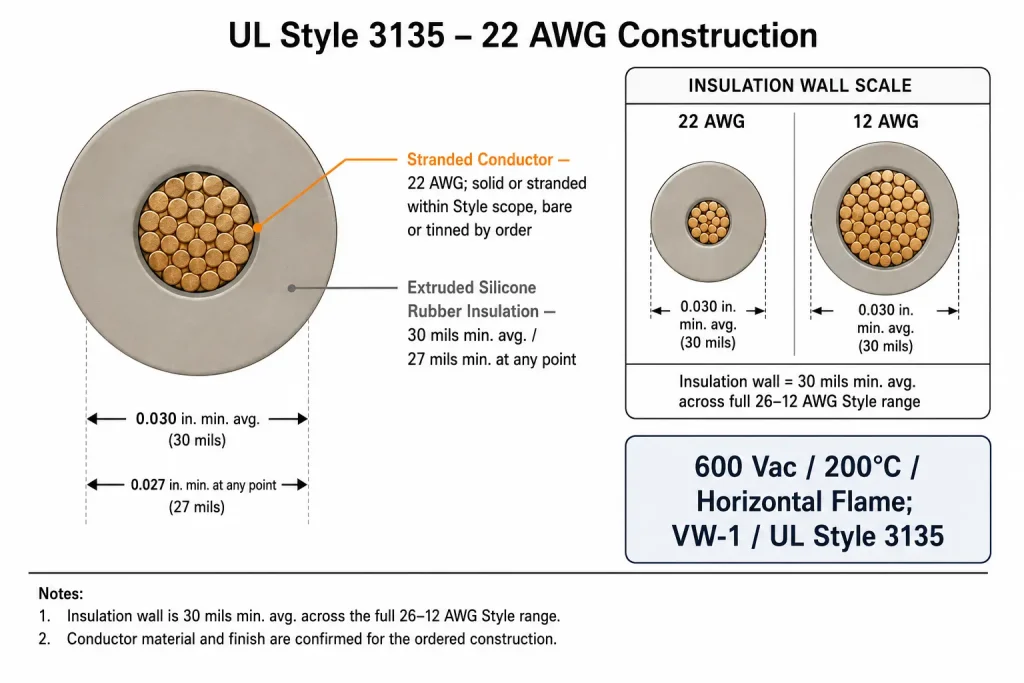

Key Ratings
-
UL Style: UL 3135 (AWM, UL 758)
-
Temperature Rating: up to 200°C
-
Voltage Rating: 600V
-

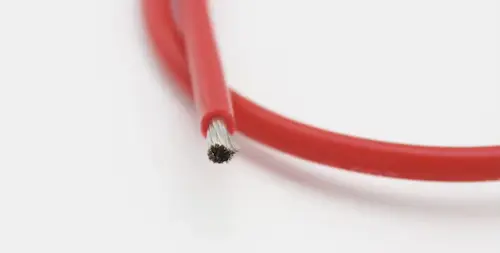

Conductor: stranded copper (tinned copper available upon request)
-
Insulation: silicone rubber
Key Features
-
Heat-resistant insulation for control cabinet and panel wiring
-
Flexible routing for compact internal layouts
-

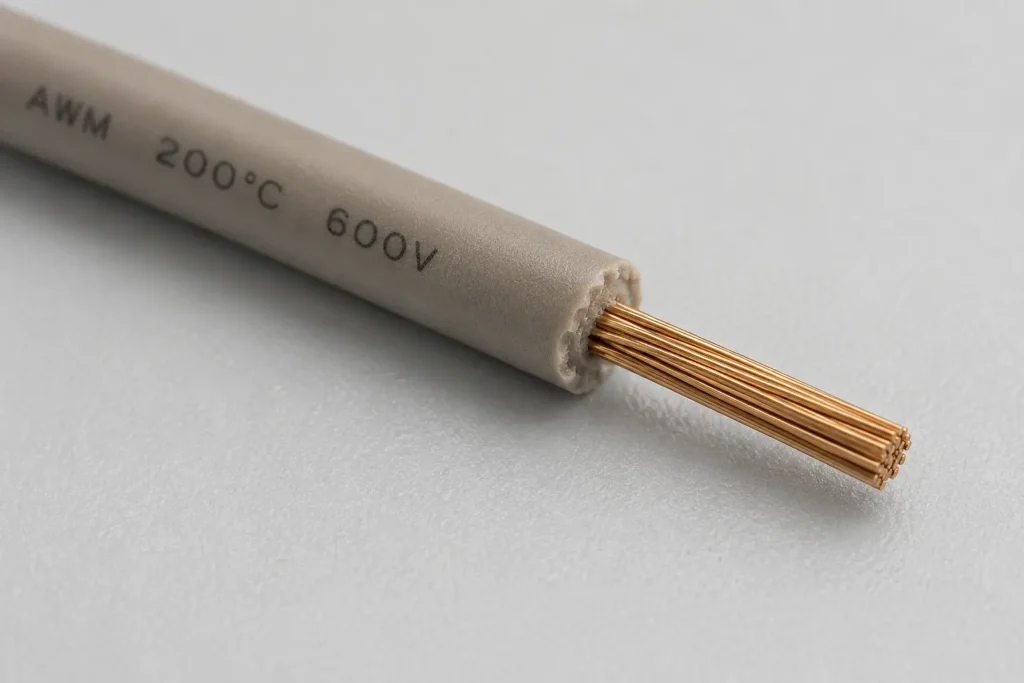

Consistent stripping and termination performance for OEM production
-
Optional tinned copper for improved soldering and oxidation resistance
Typical Applications
-

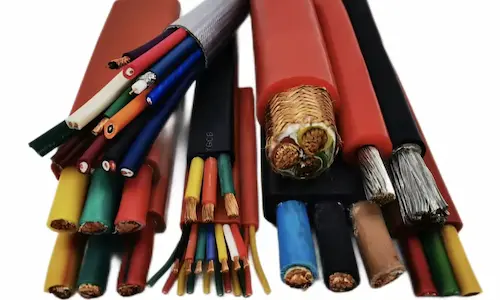

Control panel internal wiring
-

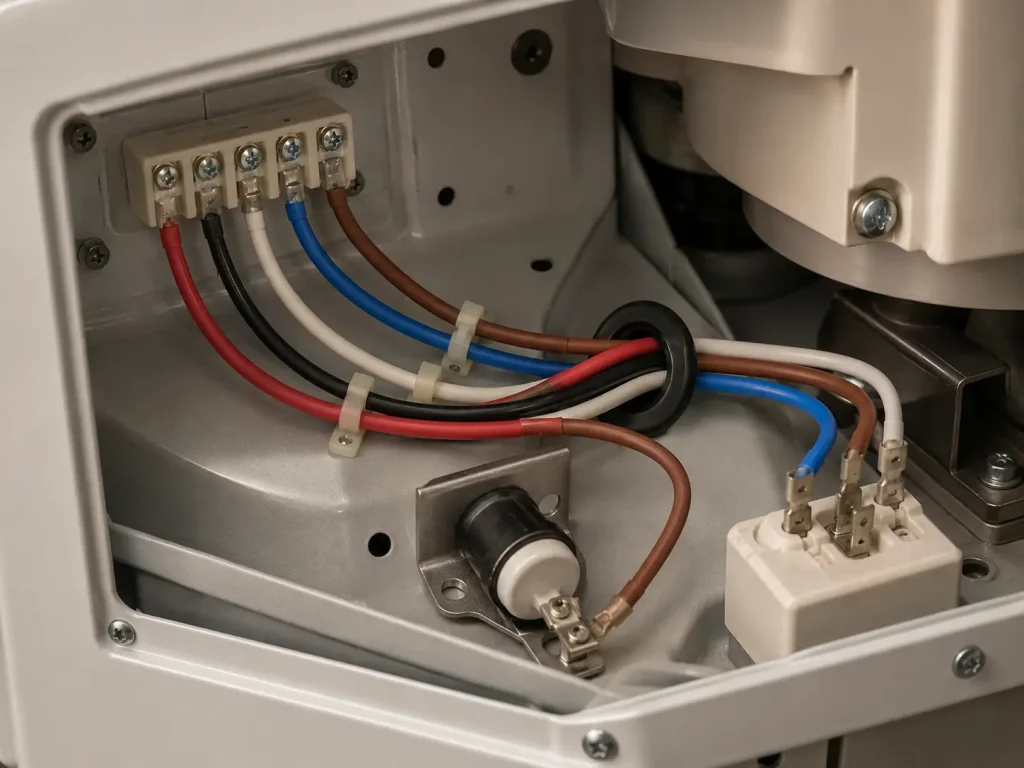

Industrial equipment internal connections
-
Power electronics wiring near heat sources
-
Harness assemblies requiring high temperature resistance
Ordering Information (Fast Quotation)
Provide AWG size, conductor type, color, packaging, quantity, and destination country.
Recommended Alternatives
For high voltage silicone requirements, UL3239 may be suitable. For fluoroplastic insulation, consider UL1332 FEP wire.
