UL 10362 PFA wire for laboratory equipment high temperature wiring

Product Overview

Laboratory equipment often has a cleaner external appearance than its internal wiring environment suggests. Inside the housing, lead wires may run near heating elements, enclosed power sections, or control components that generate more heat than ordinary equipment. In those situations, buyers usually look for a wire that offers a higher temperature margin and better long-term stability than standard internal hook-up wire.

UL 10362 PFA wire is a practical option for this kind of internal wiring. With a 250°C rating and PFA fluoroplastic insulation, it is suited to equipment where stable performance under elevated heat is more important than simply using a low-cost internal wire.

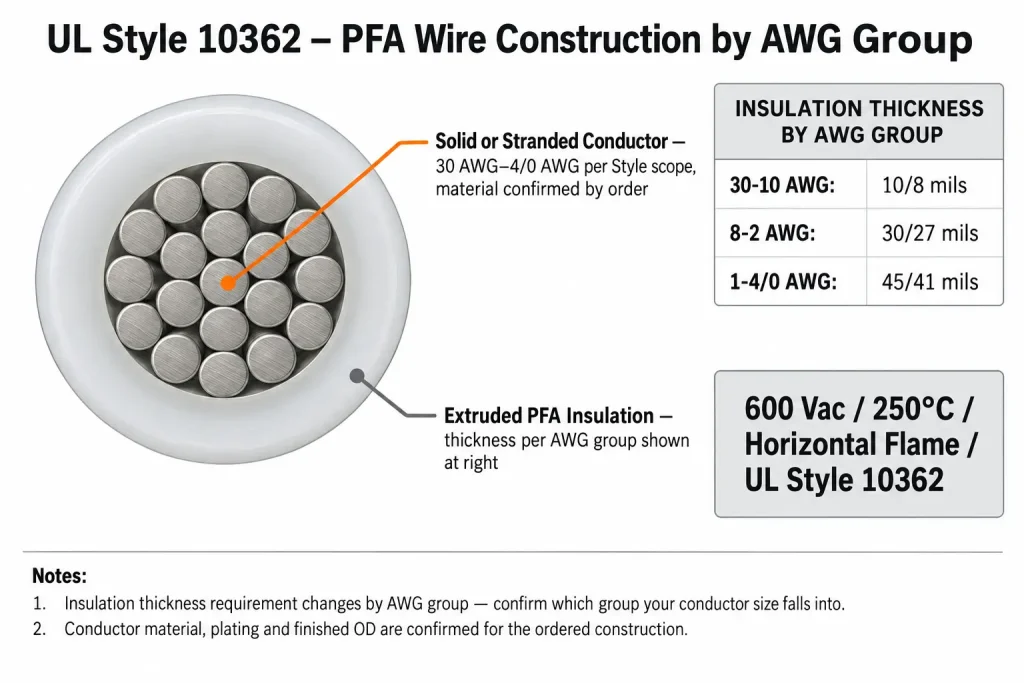

Key Ratings

UL Style: UL 10362 (AWM, UL 758)
Temperature Rating: 250°C
Voltage Rating: 600V

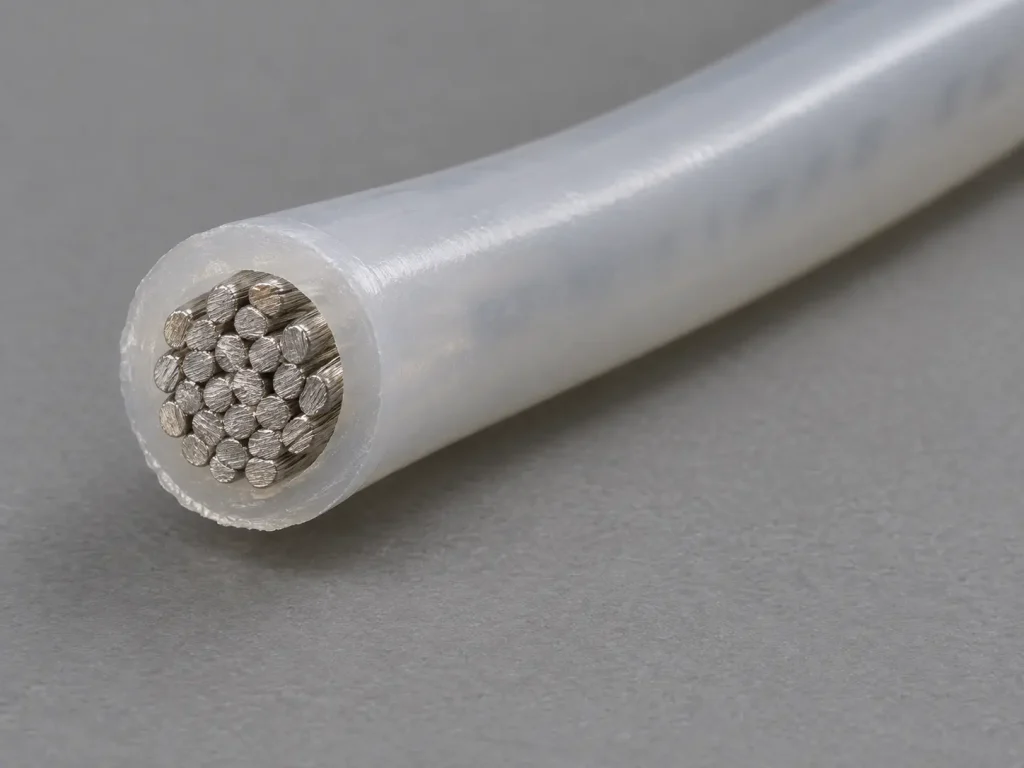

Insulation: PFA
Conductor: stranded copper, tinned copper optional

Why Buyers Use UL10362 in Laboratory Equipment

Buyers selecting wire for laboratory equipment usually care about reliability more than headline pricing. In many applications, the wire is installed once and expected to work inside a controlled but technically demanding system. If the internal section operates near heat sources, using a higher-temperature fluoroplastic wire makes more sense than trying to push a lower-grade material beyond its comfort zone.

PFA insulation also helps when the buyer wants a cleaner, more technical wire construction for precision equipment and controlled internal assemblies.

Typical Applications

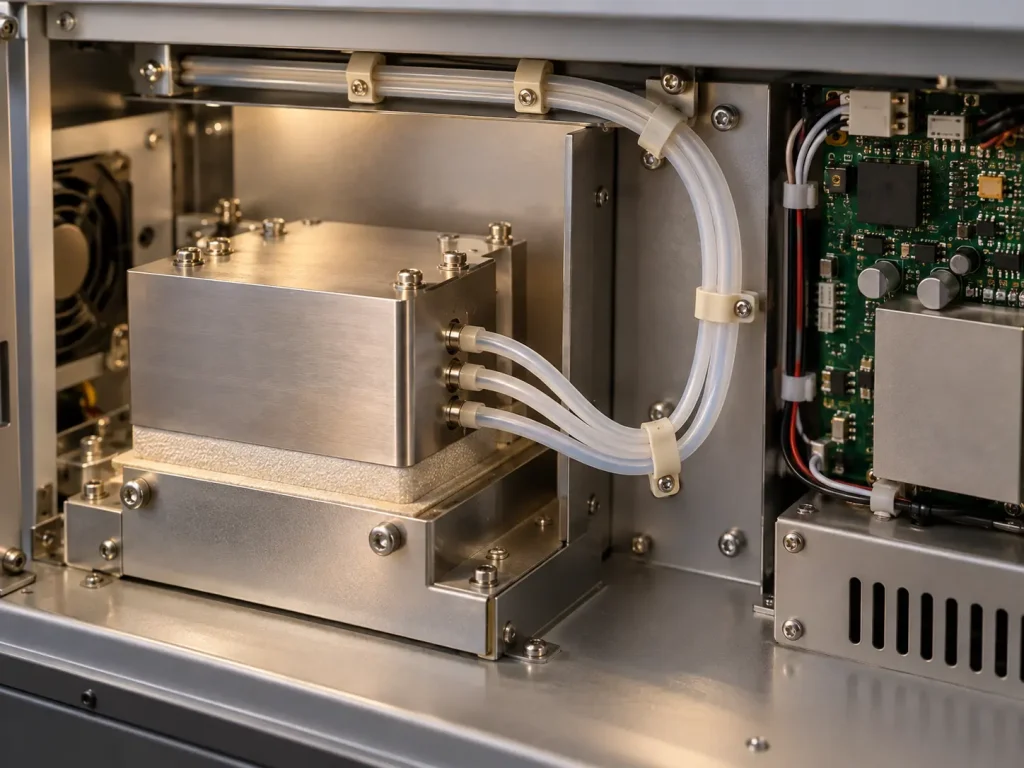

Internal wiring in laboratory equipment
Lead wiring near heaters or warm internal modules
High temperature internal connections in testing instruments
OEM assemblies for thermal and analytical equipment
Internal fluoroplastic wiring for precision electrical systems

Practical Buying Notes

For projects like this, buyers usually confirm the exact AWG size, conductor finish, color requirement, package method, and installation environment. Laboratory equipment projects also tend to require more consistent material control than ordinary consumer electrical products.

Selection Notes

If the operating temperature is lower, UL1332 may already be enough. If the application needs more flexibility than fluoroplastic wire usually offers, silicone wire may be reviewed for certain sections. UL10362 is better suited where the buyer specifically wants a 250°C fluoroplastic internal wire for a more demanding environment.
