UL 1569 105°C PVC Appliance Wire for Riyadh and Dubai — Price Per Meter
UL 1569 is a thin-wall PVC insulated appliance wire rated 105°C and 300V AC under UL AWM Style 1569 — the compact, space-saving alternative to UL 1015 for internal wiring of appliances and electronic equipment where the thicker 30-mil insulation of UL 1015 makes routing through tight harness channels unnecessarily difficult. UL 1569 uses a thinner PVC insulation wall that reduces the overall wire OD by 15–25% versus UL 1015 at the same AWG, without compromising the 105°C temperature rating or UL recognition status.
For buyers in Riyadh and Dubai purchasing online or comparing price per meter from Chinese factories, UL 1569 offers competitive pricing relative to UL 1015 — the thinner insulation wall means less PVC compound per metre, which translates directly into a lower material cost and a more competitive landed price in Saudi Arabia and the UAE. CableApex supplies UL 1569 wire factory-direct from Yangzhou with CIF Jeddah and CIF Jebel Ali pricing, full export documentation, and a published lead time of 10–15 working days from order confirmation.
Product Specifications — UL 1569
| Parameter | Specification |
|---|---|
| UL AWM style | 1569 |
| Temperature rating | 105°C continuous |
| Voltage rating | 300V AC |
| Conductor | Solid or stranded copper (tinned or bare) |
| AWG range | 30 AWG – 10 AWG |
| Insulation material | Extruded PVC (thin-wall grade) |

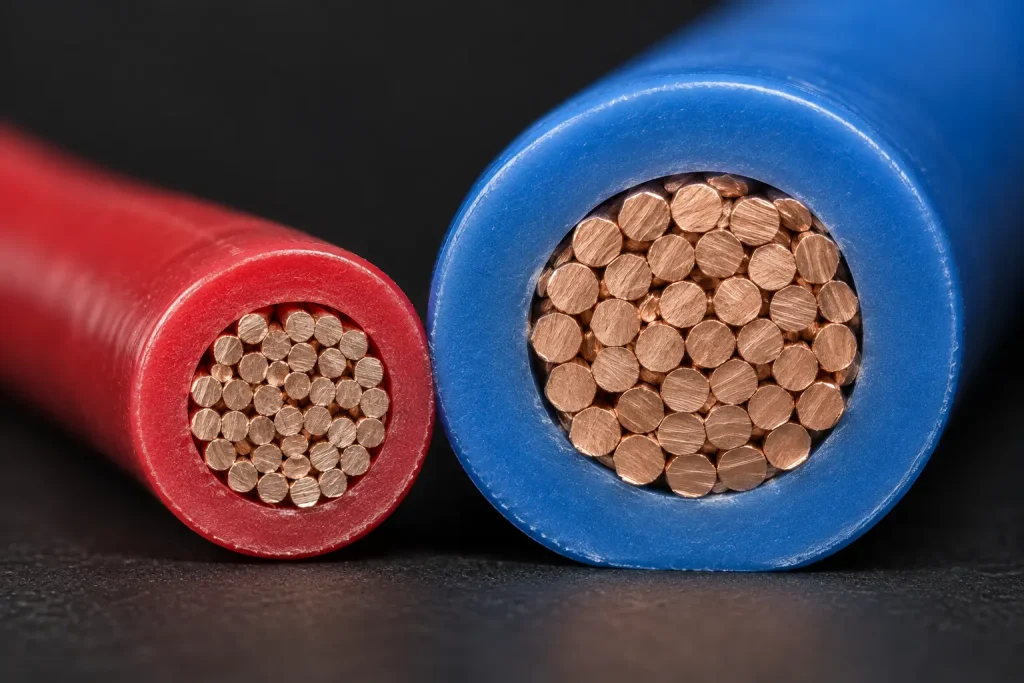

| Min avg insulation thickness (30–14 AWG) | 15 mils (0.38 mm) |
| Min insulation at any point | 13 mils (0.33 mm) |
| OD advantage vs UL 1015 | 15–25% smaller OD at equivalent AWG |
| Flame rating | Horizontal flame |
| UL file number | E333030 |

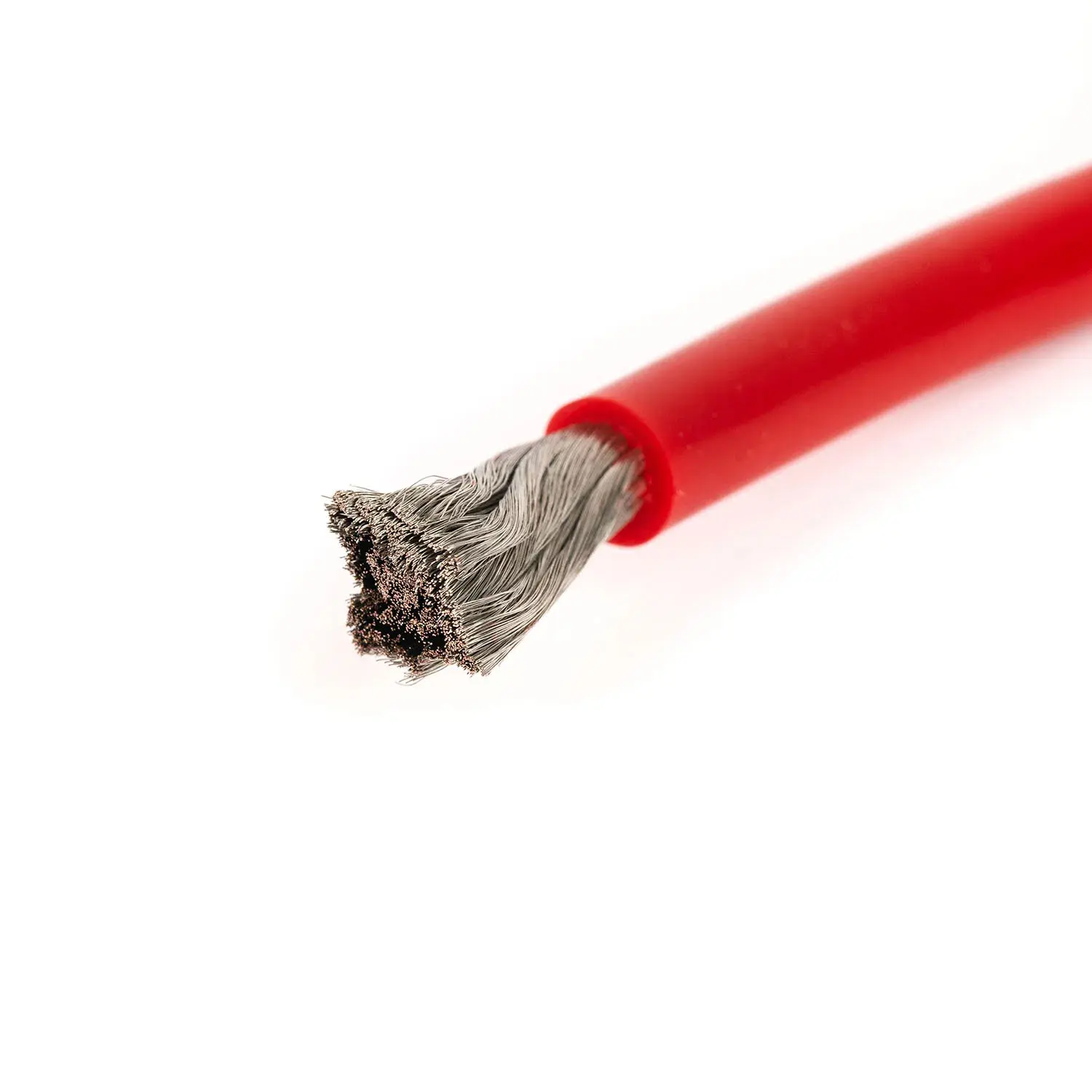

| Colour options | Red, black, white, yellow, blue, green, brown, orange, grey, violet |
| Compliance | RoHS, REACH |

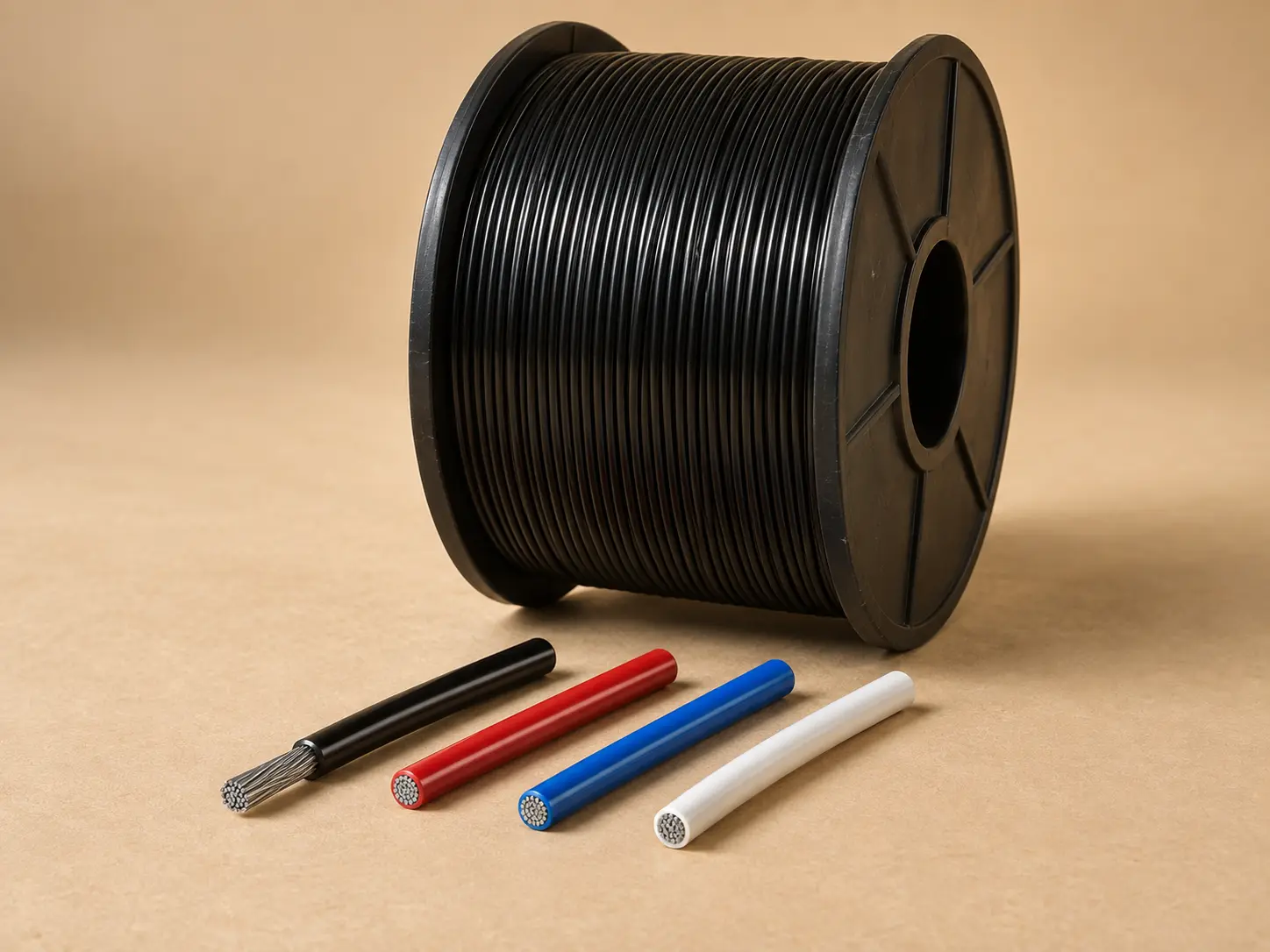

| Packaging | 100 m / 200 m / 500 m rolls |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.
UL 1569 vs UL 1015 vs UL 1007 — Which to Specify
| Property | UL 1569 (this product) | UL 1015 | UL 1007 |
|---|---|---|---|
| Temperature rating | 105°C | 105°C | 80°C |
| Voltage rating | 300V AC | 600V AC | 300V AC |
| Insulation thickness (30–14 AWG) | 15 mils avg min | 30 mils avg min | 15 mils avg min |
| OD vs UL 1015 | Smaller — thinner wall | Standard | Similar to 1569 |
| Best use | 105°C compact appliance internal wiring, 300V | 600V circuits, higher voltage panels | 80°C electronics, 300V |
| Price per metre | Lower than UL 1015 | Slightly higher | Lowest |
Price Per Meter for Riyadh and Dubai Buyers
Riyadh appliance and electronics manufacturing
Riyadh’s Second Industrial City and Sudair Industrial City host appliance assemblers and electronics manufacturers that source UL-certified wire directly from Chinese factories. UL 1569’s thinner wall OD makes it the preferred specification for high-density wiring harnesses in compact appliances — air purifiers, small kitchen appliances, and electronic control units — where the reduced diameter allows more wires through the same harness diameter, reducing harness OD and assembly time.
Dubai compact equipment assembly (JAFZA)
Jebel Ali Free Zone assemblers working on compact appliances, LED lighting modules, and electronic control equipment specify UL 1569 over UL 1015 when the primary driver is compact wiring harness OD rather than voltage rating. The 300V rating covers all standard single-phase appliance circuit voltages encountered in GCC market equipment, and the 105°C rating handles the elevated ambient temperatures common in UAE-manufactured equipment.
Export documentation
CIF Jeddah for Saudi Arabia: Certificate of Origin, Bill of Lading, Product Conformance Declaration (File E333030), RoHS Declaration. CIF Jebel Ali for UAE: same package. Arab League CoO available on request. Transit: Riyadh via Jeddah 18–22 days; Dubai via Jebel Ali 16–20 days.
Key Features
Product
- UL AWM Style 1569, 105°C, 300V AC
- File No. E333030 — UL Follow-Up Service
- Thin-wall PVC — 15 mils min avg
- Smaller OD than UL 1015 at same AWG
- Horizontal flame rated
- RoHS and REACH compliant
Supply for Riyadh and Dubai
- Factory-direct competitive price per metre
- CIF Jeddah (Saudi) / CIF Jebel Ali (UAE)
- Certificate of Origin + full export docs
- Buy online — MOQ 500 m per AWG/colour
- Sample from 10 m before bulk order
- 10–15 working day lead time
Common Applications

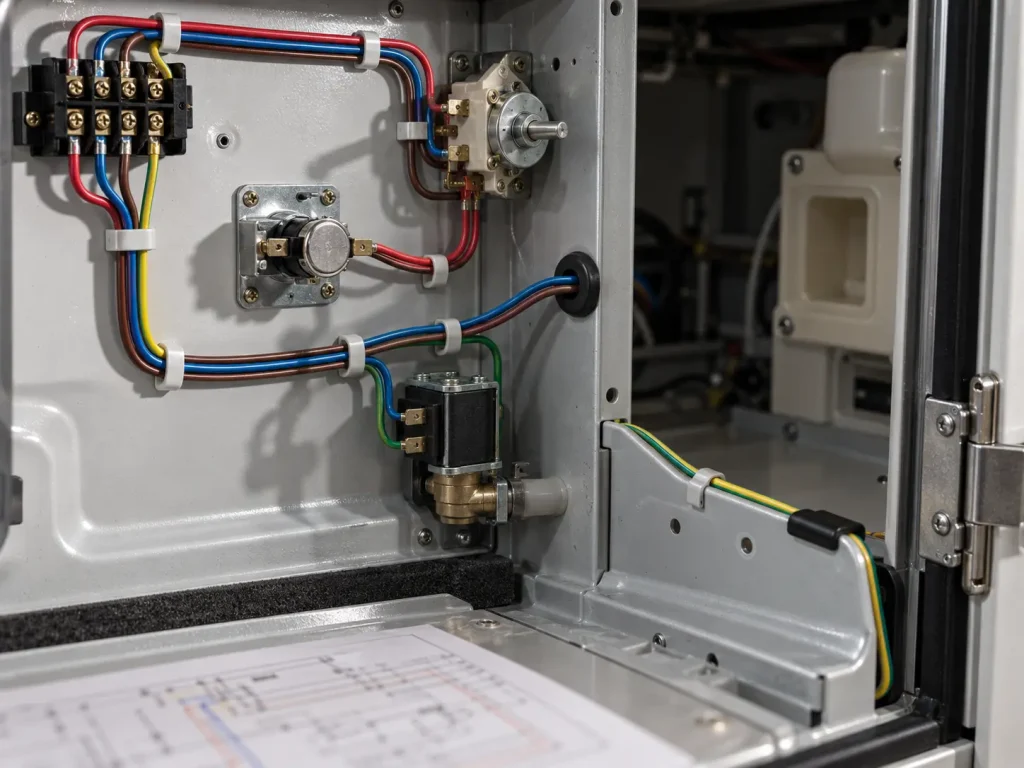

Compact appliance internal wiring harnesses
UL 1569 is specified for high-density wiring harnesses in compact appliances — small kitchen appliances, air purifiers, personal care devices — where the reduced wall thickness allows more conductors in a smaller harness OD. The 105°C rating covers the elevated ambient temperature zones near heating elements and motors in these appliances, while the 300V rating covers all standard single-phase appliance circuit voltages.
LED lighting module internal wiring
LED drivers and lighting control modules operating at 105°C ambient specify UL 1569 for the internal connections between the driver board and LED arrays, where compact OD is critical to routing through the narrow channels of slim lighting fixture housings and the 300V rating covers standard LED driver circuit voltages. See also: UL 1015 wire for 600V lighting circuits and UL 1007 wire for lower-temperature 80°C applications.
Electronic control unit wiring
Electronic control units (ECUs) and programmable logic controllers (PLCs) assembled in Riyadh and Dubai industrial zones use UL 1569 for the internal connections between power supply boards, processor boards, and I/O modules where the combination of 105°C rating and compact OD allows high-density wiring within the standard DIN-rail enclosure form factors used in GCC industrial automation systems.
Other applications
- Medical device internal wiring for Saudi and UAE healthcare equipment
- HVAC control board internal connections
- Power meter and energy monitoring device wiring
- Telecommunications equipment internal signal connections
Ordering Information
Specify AWG, insulation colour, reel length, and quantity. MOQ 500 m per AWG/colour. Sample from 10 m. UL 1569 compliance documentation and RoHS Declaration supplied with every shipment.
Request price per metre — CIF Jeddah or Jebel Ali. Provide AWG, colour, total metres, and destination port. We respond within 24 hours. Contact us.
Why CableApex for Riyadh and Dubai
CableApex manufactures UL 1569 wire under UL Follow-Up Service (File No. E333030) in Yangzhou. 100% online spark testing and continuous diameter monitoring. Direct export to Saudi Arabia (CIF Jeddah) and UAE (CIF Jebel Ali) with complete documentation. Competitive price per metre, 10–15 working day lead time. Contact us for a quotation within 24 hours.
