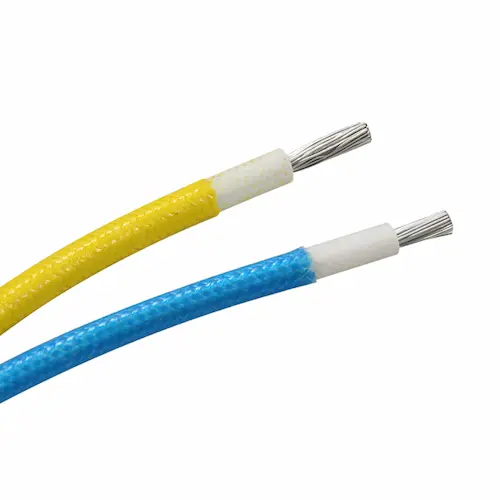

UL 3172 fiberglass braided silicone wire for furnace leads

Product Overview

UL 3172 fiberglass braided silicone wire is often reviewed for furnace leads where the internal environment is hotter and more demanding than standard equipment wiring. In furnace-related applications, internal leads usually remain fixed within the equipment, but they still need to withstand long-term heat exposure without relying on ordinary hook-up wire constructions that are not made for that kind of service.

For buyers, this style offers a more suitable lead wire structure for protected furnace sections. The silicone insulation supports high temperature use, while the fiberglass braid gives the lead additional protection in enclosed thermal environments.

Key Ratings

UL Style: UL 3172 (AWM, UL 758)
High temperature lead wire construction

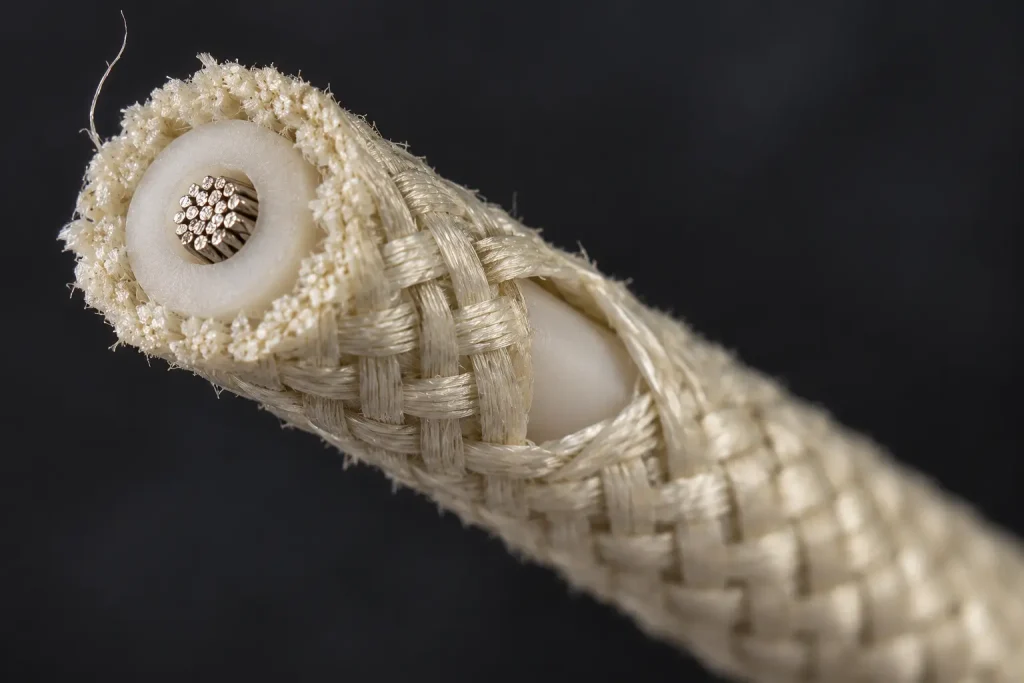

Insulation: silicone rubber with fiberglass braid
Conductor: stranded copper, tinned copper optional
Application type: furnace leads and protected thermal wiring

Why Buyers Use It for Furnace Leads

Furnace lead applications are more specialized than ordinary internal wiring. Buyers choose UL3172 when the lead is part of a thermal system where heat exposure is a normal operating condition and the wire must remain suitable over time inside the equipment.

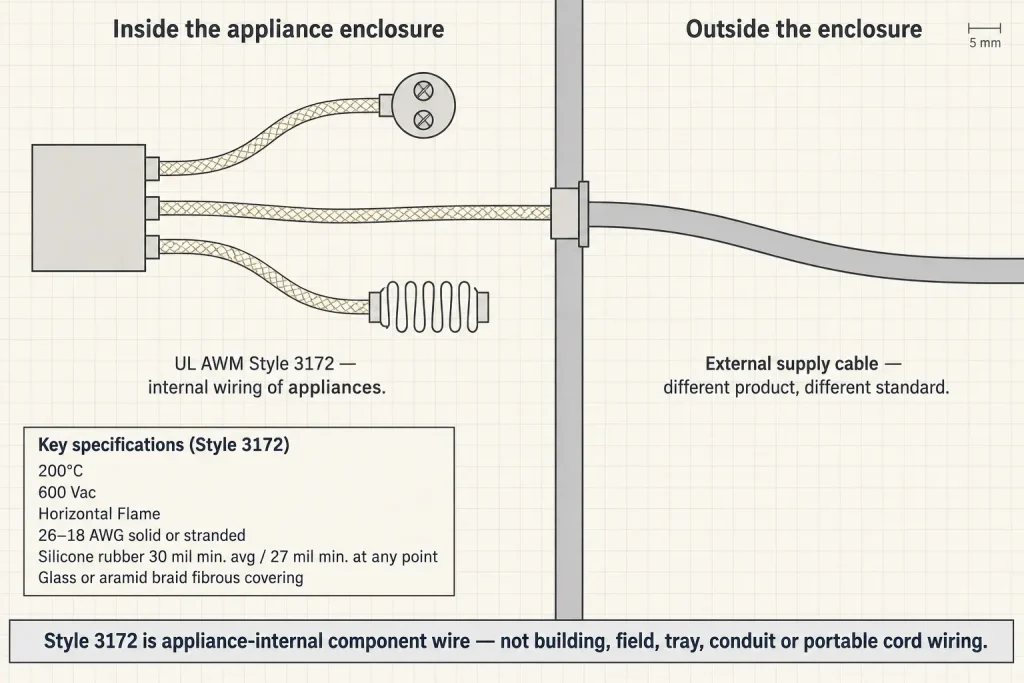

This is different from general appliance wiring because furnace leads are usually selected according to the actual thermal zone, not only by basic voltage or general product category.

Typical Applications

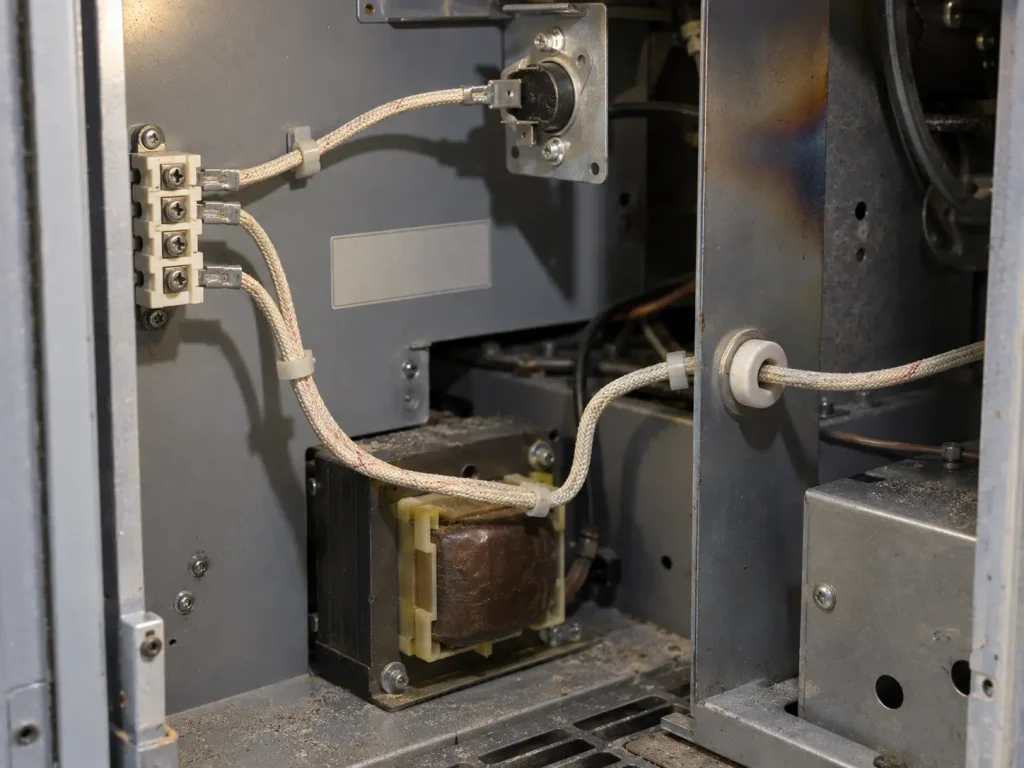

Furnace internal leads
Protected high temperature lead routing
Thermal equipment internal wiring
OEM furnace assemblies
Internal wiring in enclosed high-heat systems

Procurement Notes

For quotation, buyers usually confirm conductor size, conductor finish, braid structure preference, insulation color, package format, and the actual equipment environment. In furnace projects, it is especially important to understand whether the lead is close to the hottest section or routed through a more protected thermal area.

Selection Notes

If the application only requires general hot-zone silicone wire, UL3135 may be sufficient. If the equipment operates in a much more extreme temperature range, mica and fiberglass constructions may be more appropriate. UL3172 is more suitable where the buyer wants a fiberglass braided silicone wire for furnace leads and protected internal heat exposure.
