UL 3172 high temperature silicone fiberglass wire for thermal equipment

Product Overview

UL 3172 high temperature silicone fiberglass wire is intended for thermal equipment where internal lead wires operate in an environment that is clearly hotter than ordinary electrical products. In these applications, the wire must remain part of the equipment over time, often in enclosed sections where heat is a normal working condition rather than an occasional exception.

Buyers consider UL3172 because it gives them a practical high temperature lead wire structure for protected internal routing. The silicone insulation supports thermal performance, while the fiberglass braid helps position the wire for more demanding thermal assemblies.

Key Ratings

UL Style: UL 3172 (AWM, UL 758)
High temperature lead wire construction

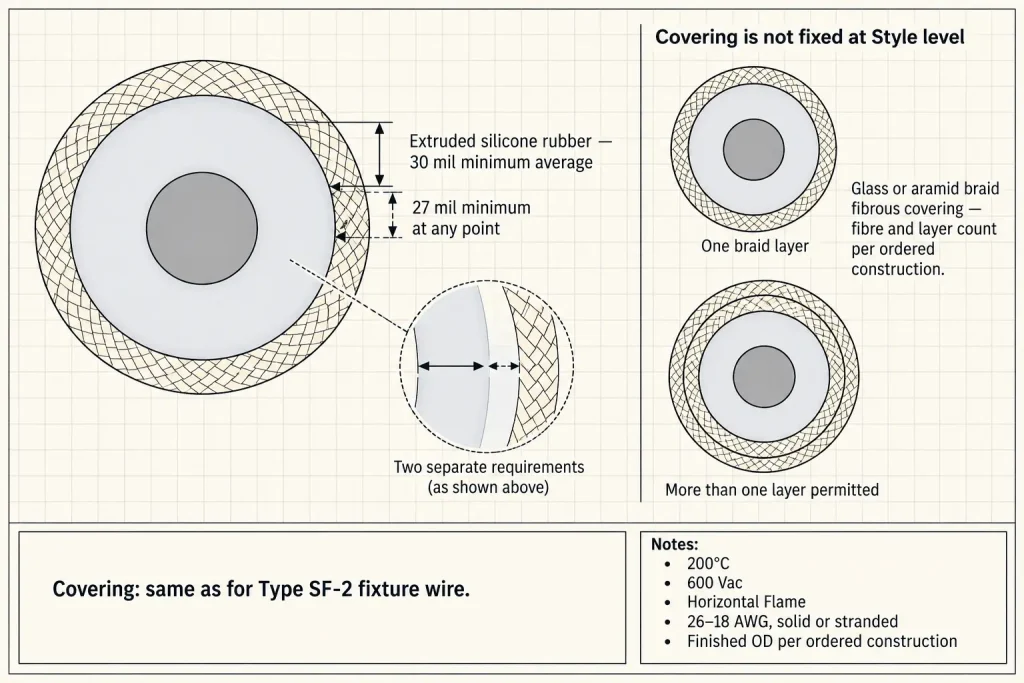

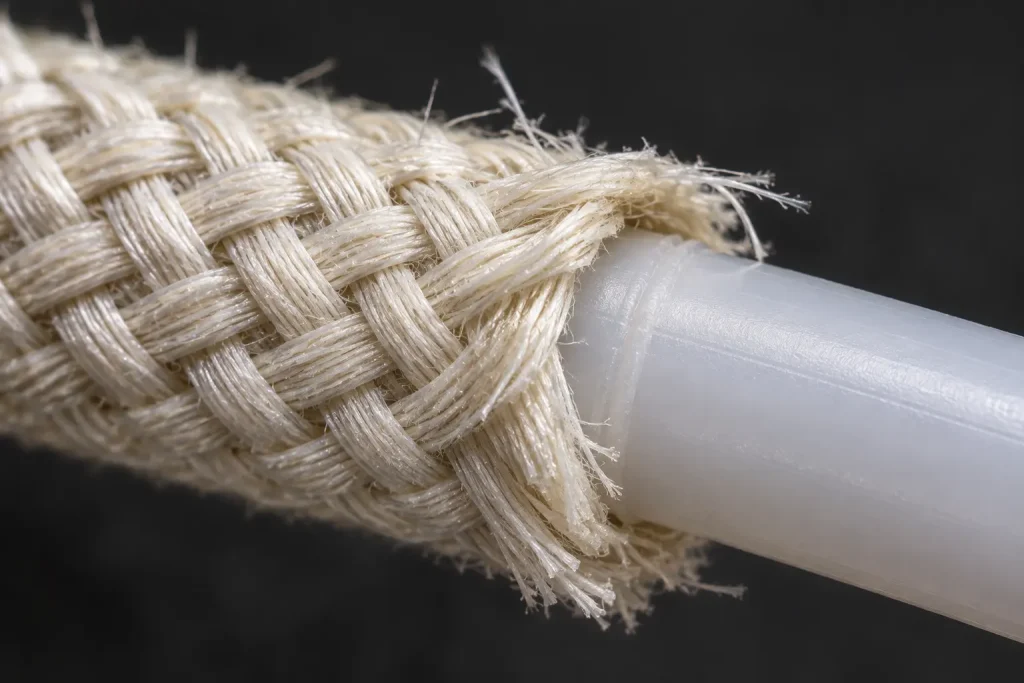

Insulation: silicone rubber with fiberglass braid
Conductor: stranded copper, tinned copper optional
Application type: protected thermal equipment wiring

Why Buyers Use UL3172 in Thermal Equipment

Thermal equipment usually requires more application-specific lead wire selection than general electrical products. Buyers choose UL3172 when the internal lead path passes through sections that are consistently hot, but still protected enough for silicone fiberglass lead construction to be an appropriate choice.

This helps the wire fit the real operating environment instead of relying on lower-grade internal wiring that may not be suitable over time.

Typical Applications

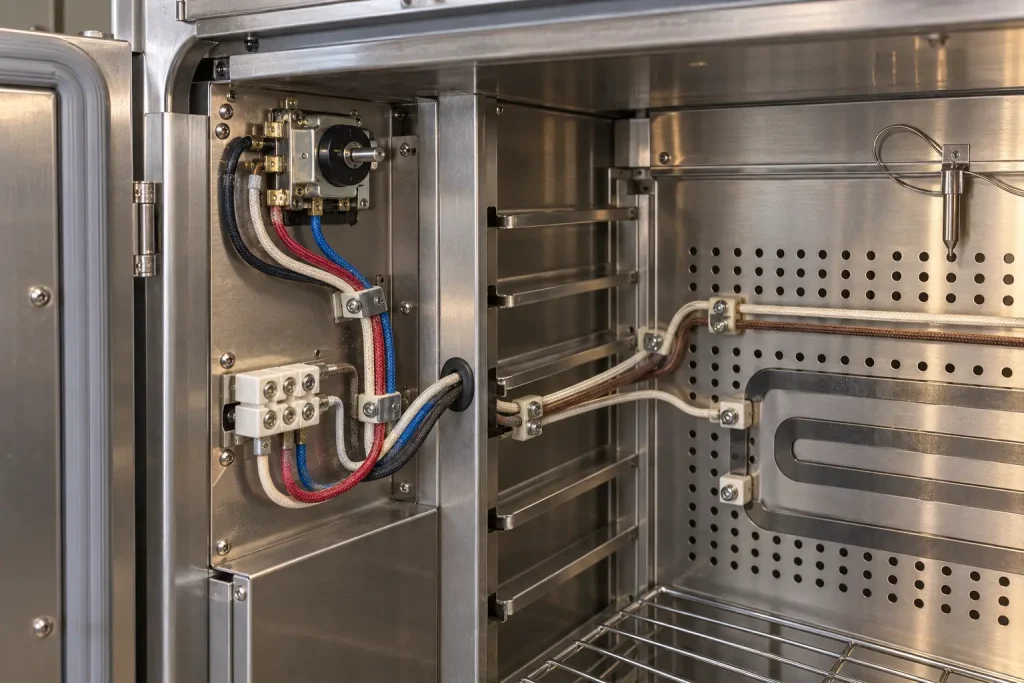

Thermal equipment internal leads
Enclosed hot-zone internal wiring
OEM heaters and furnaces
Protected routing in heat-generating equipment
Internal lead wire for higher-temperature electrical assemblies

Factory-Backed Production Support

For thermal equipment buyers, stable braid quality, conductor consistency, and repeatable production matter as much as the base style number. This is especially true in OEM projects where the same internal lead wire must remain consistent across repeated manufacturing runs.

Selection Notes

If the application is less demanding, UL3135 may be enough for general high temperature silicone wire use. If the environment becomes much more extreme, mica and fiberglass wire may be more suitable. UL3172 is more appropriate where the buyer wants a silicone fiberglass lead wire for protected thermal equipment and hot-zone internal routing.
