UL 3172 silicone fiberglass lead wire for heating equipment

Product Overview

UL 3172 silicone fiberglass lead wire is commonly reviewed for heating equipment where the internal lead has to tolerate a hot operating environment over long service periods. In this type of application, buyers are not simply looking for a wire that can survive installation. They need one that remains suitable after extended exposure to heat inside the equipment.

That is why UL3172 is often considered in heater assemblies and thermal equipment. The silicone insulation provides a high temperature base, while the fiberglass braid supports a tougher outer structure for protected internal lead routing.

Key Ratings

UL Style: UL 3172 (AWM, UL 758)
High temperature lead wire construction

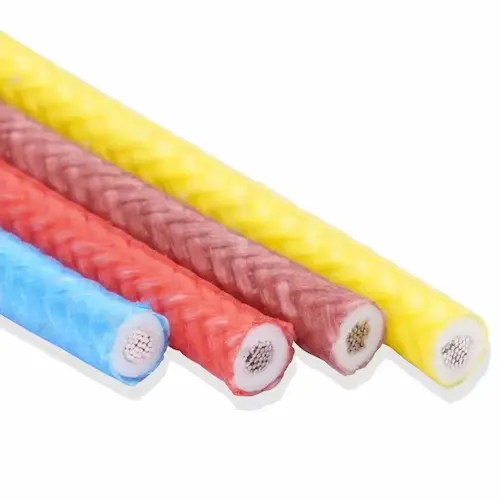

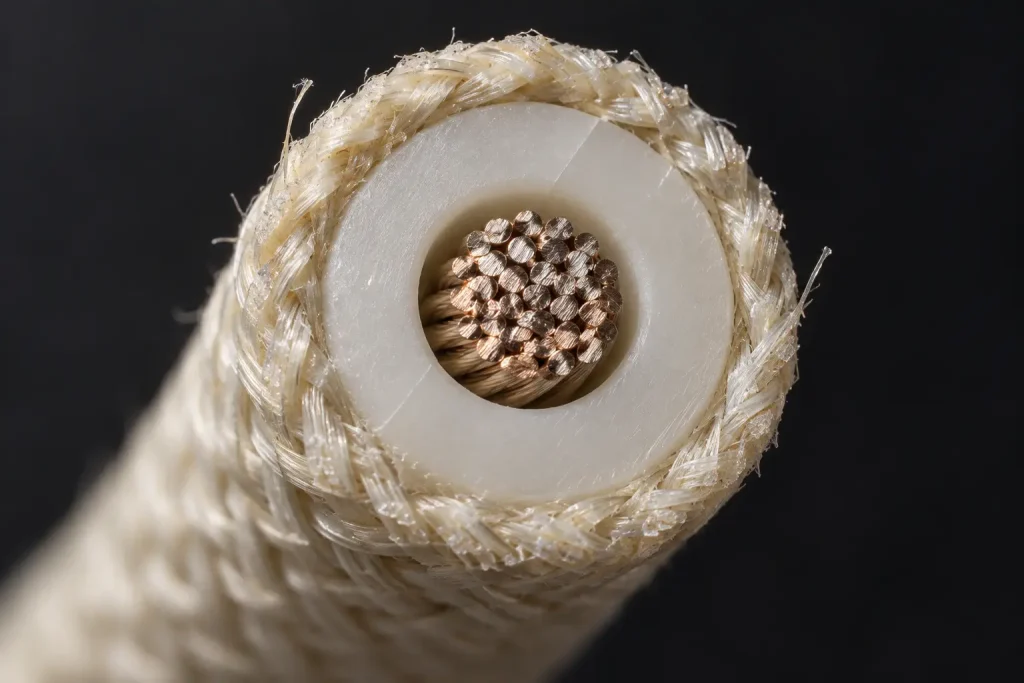

Insulation: silicone rubber with fiberglass braid
Conductor: stranded copper, tinned copper optional
Application type: internal leads for heating equipment

Why Buyers Choose It for Heating Equipment

Heating equipment usually includes sections where wire is exposed to consistent thermal stress. Buyers choose UL3172 when the lead wire needs a stronger structure than general internal silicone wire alone can offer, especially in equipment where the wire remains fixed and protected.

This style is also useful where the equipment is manufactured in repeated batches and buyers want a more stable high temperature lead profile rather than switching between lower-grade alternatives.

Typical Applications

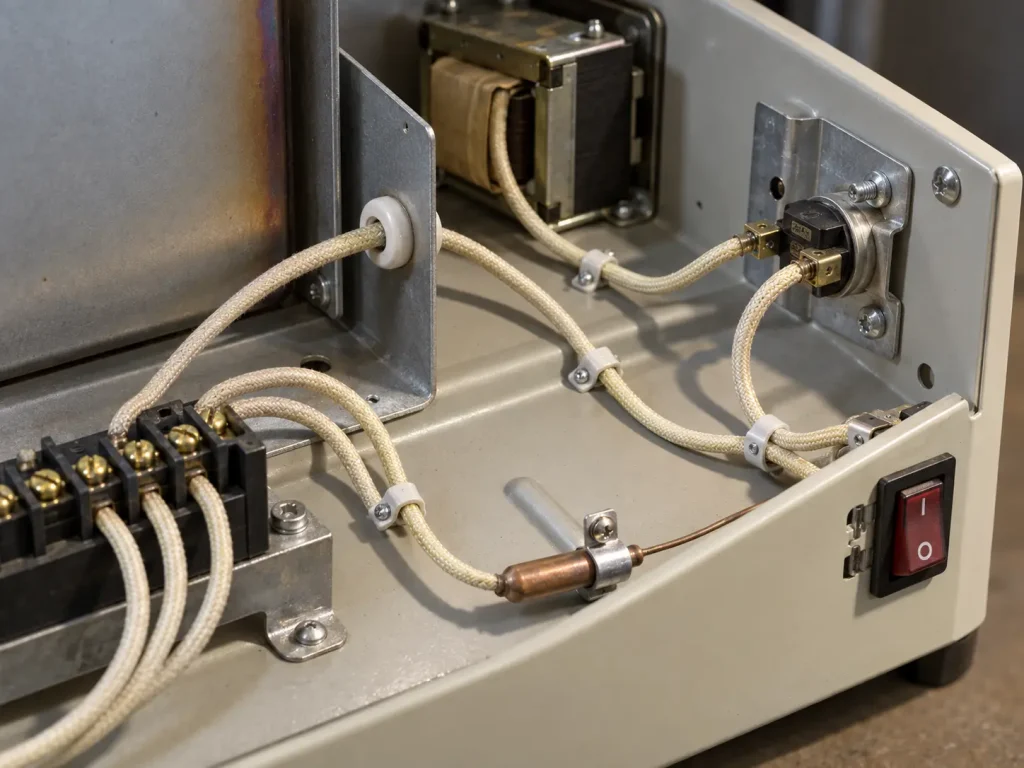

Heating equipment internal leads
Thermal device wiring
Internal lead sections near heat-generating components
OEM heater assemblies
Protected internal lead routing in hot equipment

Buyer Considerations

For quotation, buyers usually confirm conductor size, conductor finish, insulation color, package format, and actual operating environment. In heating equipment projects, the location of the lead inside the product matters because not all internal sections face the same level of thermal exposure.

Selection Notes

If the project mainly needs flexible silicone wire without fiberglass protection, UL3135 may be a simpler choice. If the thermal condition becomes much more severe, mica-based high temperature wire may be more suitable. UL3172 is more appropriate where the buyer wants a silicone fiberglass lead wire for heating equipment and long-term hot-zone internal use.
