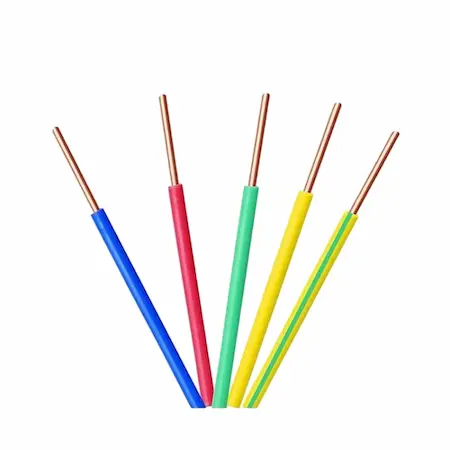

UL 3266 XLPE internal wire for control panels and electrical devices

Product Overview

UL 3266 XLPE internal wire is a useful option for control panels and electrical devices where the internal lead path needs a more durable insulation system than ordinary low-duty wire. In many electrical devices, the wire is routed through a compact enclosure, connected to multiple internal points, and expected to remain reliable over long service periods. That makes material choice more important than it may first appear.

Buyers often review UL3266 when they want a practical XLPE-insulated internal wire for equipment that does not require a higher-voltage 600V construction, but still benefits from stronger insulation and a 125°C temperature rating.

Key Ratings

UL Style: UL 3266 (AWM, UL 758)
Temperature Rating: 125°C
Voltage Rating: 300V

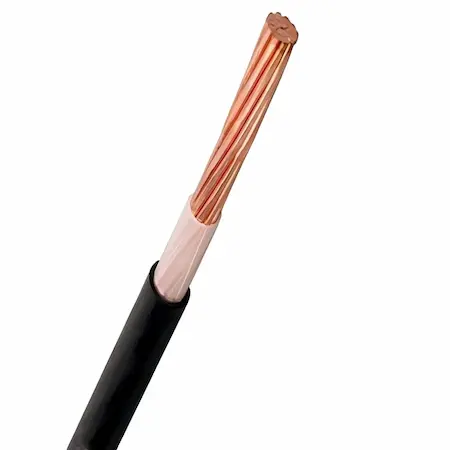

Insulation: XLPE

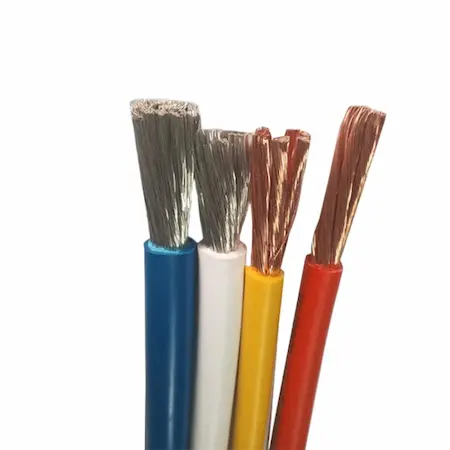

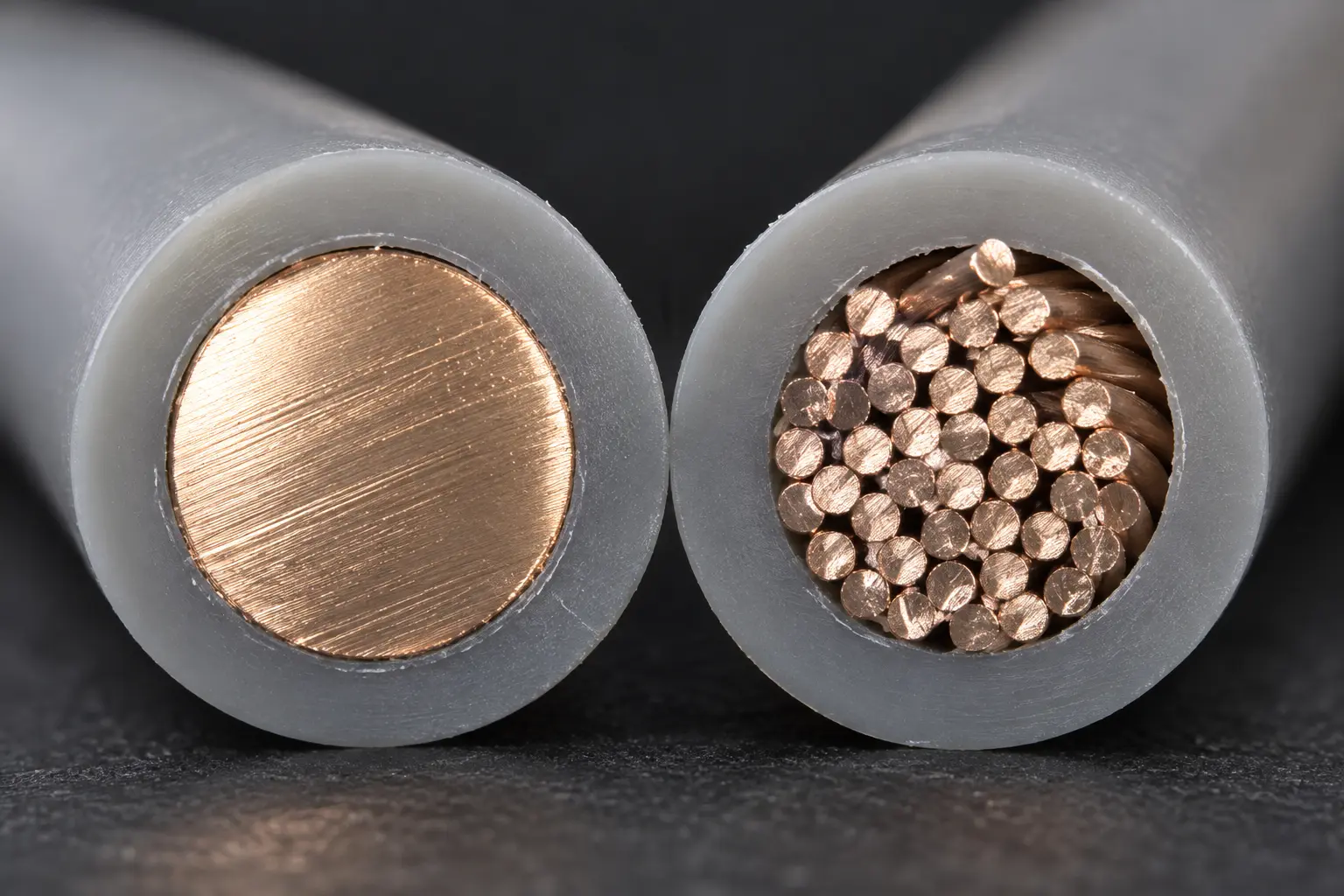

Conductor: stranded copper, tinned copper optional
Application type: internal wiring for control panels and electrical devices

Why Buyers Use UL3266 in Control Devices

Internal wiring in control panels and electrical devices often needs to fit a structured layout and maintain stable performance over time. Buyers choose UL3266 when they want an internal wire that offers a stronger profile than standard general-purpose hook-up wire, especially in assemblies where compact routing and consistent supply are both important.

This style helps bridge the gap between very basic internal wiring and the more specialized higher-voltage XLPE constructions.

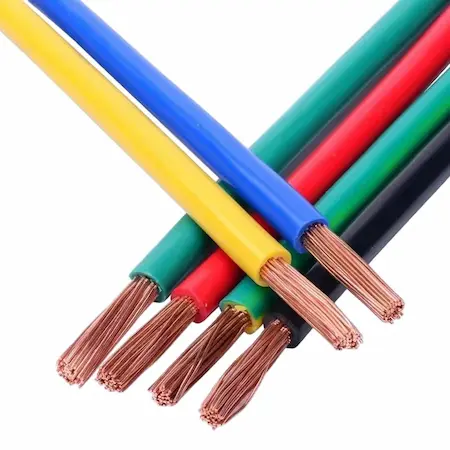

Typical Applications

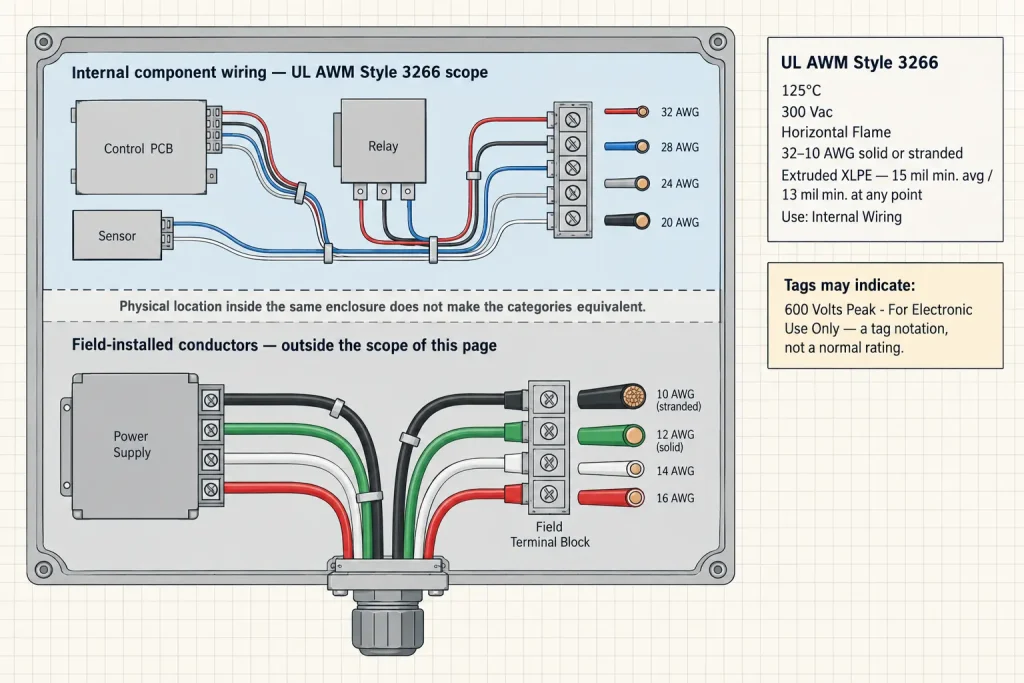

Control panel internal wiring

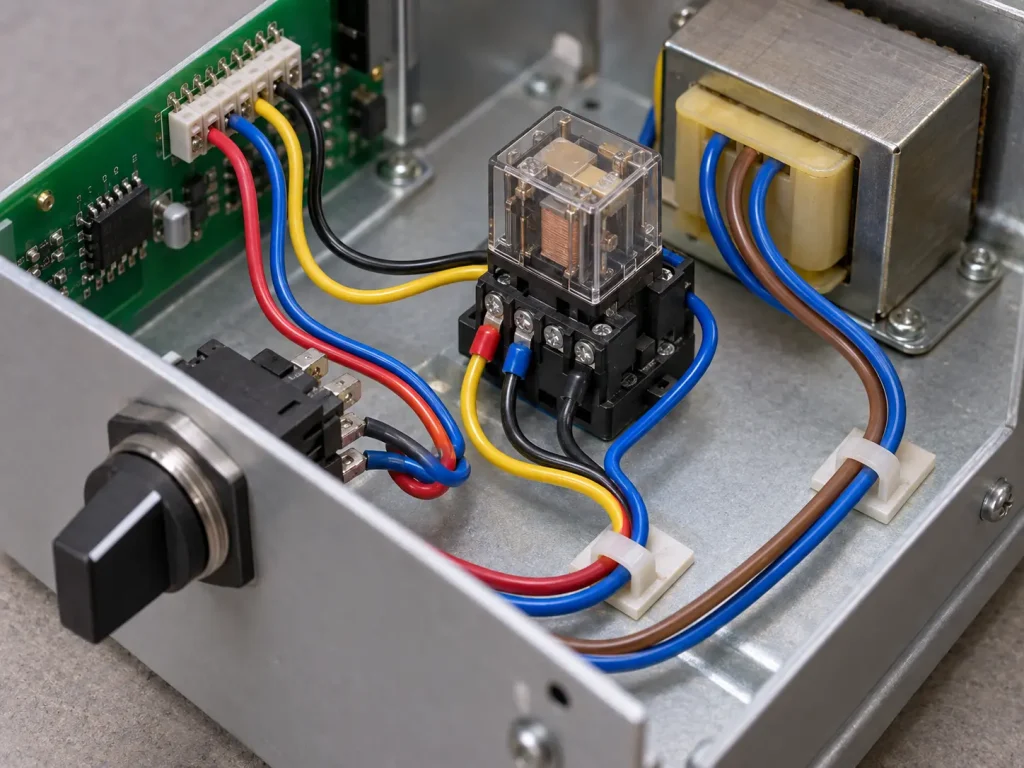

Internal leads in electrical devices
Compact enclosed electrical assemblies
OEM control and device production

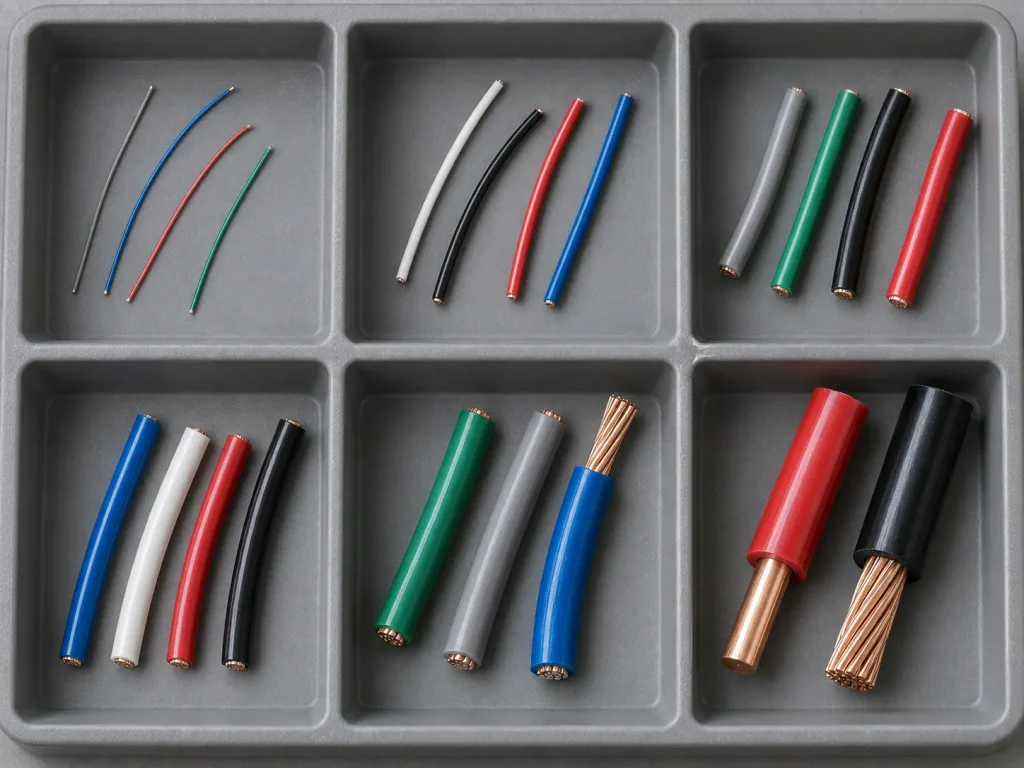

Fixed internal routing using XLPE insulated 125°C / 300V wire

Factory-Backed Production Support

In control and device assemblies, buyers often care about more than the style number. They also pay attention to conductor finish, insulation consistency, and supply stability across repeat batches. These details become especially important when the same internal wire is used in repeated OEM production.

Selection Notes

If the project needs a 600V XLPE wire, UL3271 or UL3321 may be better suited. If silicone or fluoroplastic insulation is required, UL3135, UL1332, or UL10362 may be more appropriate depending on the application. UL3266 is more suitable where the buyer needs a 125°C / 300V XLPE wire for control panels and compact electrical devices.
