UL 3271 XLPE internal wire for electrical equipment lead routing

Product Overview

UL 3271 XLPE internal wire is widely suited to electrical equipment projects where the internal lead path requires a stronger and more capable construction than ordinary low-duty wire. In many assemblies, the wire is expected to remain stable inside the equipment over long operating periods while still matching the electrical, thermal, and routing needs of the design.

This makes UL3271 a useful option for lead routing in industrial electrical equipment. Buyers often review it when they want an XLPE insulated AWM wire that fits internal assemblies more naturally than lighter-duty hook-up wire.

Key Ratings

UL Style: UL 3271 (AWM, UL 758)
Temperature Rating: 125°C
Voltage Rating: 600V AC / 750V DC
Insulation: XLPE
Conductor: stranded copper, tinned copper optional
Application type: internal wire for industrial equipment

Why Buyers Use UL3271 for Internal Lead Routing

Lead routing inside electrical equipment is often more demanding than it seems on a drawing. The wire may run through compact sections, connect to multiple components, and stay in service in a more industrial environment than ordinary consumer-grade internal wiring.

Buyers choose UL3271 when they want a stronger internal wire construction for these kinds of assemblies. It gives them an XLPE-based option with a more suitable profile for industrial lead routing and internal equipment wiring.

Typical Applications

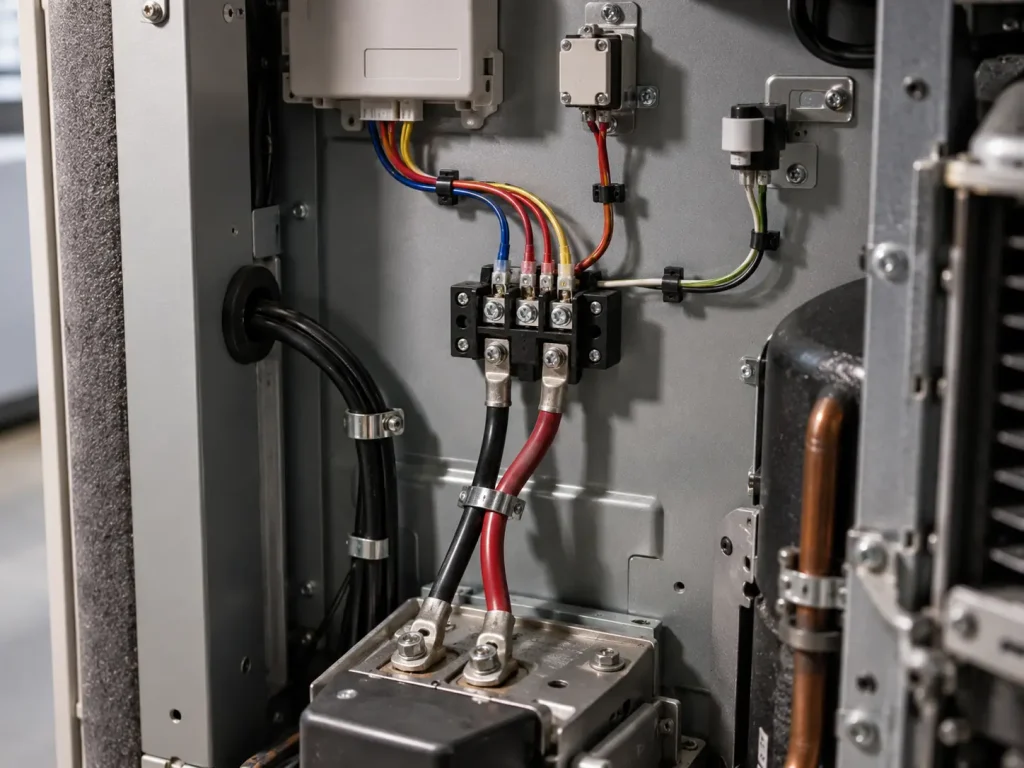

Internal lead routing in electrical equipment
Industrial equipment internal wiring
OEM electrical assemblies using XLPE insulation
Fixed internal wire paths requiring a 600V construction
Equipment sections where a more capable internal wire is preferred

Practical Buying Notes

When asking for quotation, buyers usually confirm conductor size, conductor finish, insulation color, package method, and the specific equipment application. For projects involving multiple internal wire positions, it is also helpful to indicate whether the order is intended for standard reel supply or harness-related preparation.

Selection Notes

If the project needs silicone flexibility, UL3135 may be a better fit. If the environment requires fluoroplastic insulation, UL1332 or UL10362 may be reviewed. UL3271 is more suitable where the buyer specifically wants an XLPE internal wire for electrical equipment lead routing and a stronger industrial application profile.
