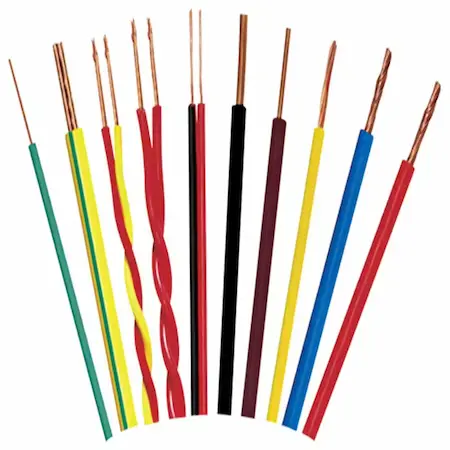

UL 1007 wire 22 AWG PVC hook-up wire for control board wiring

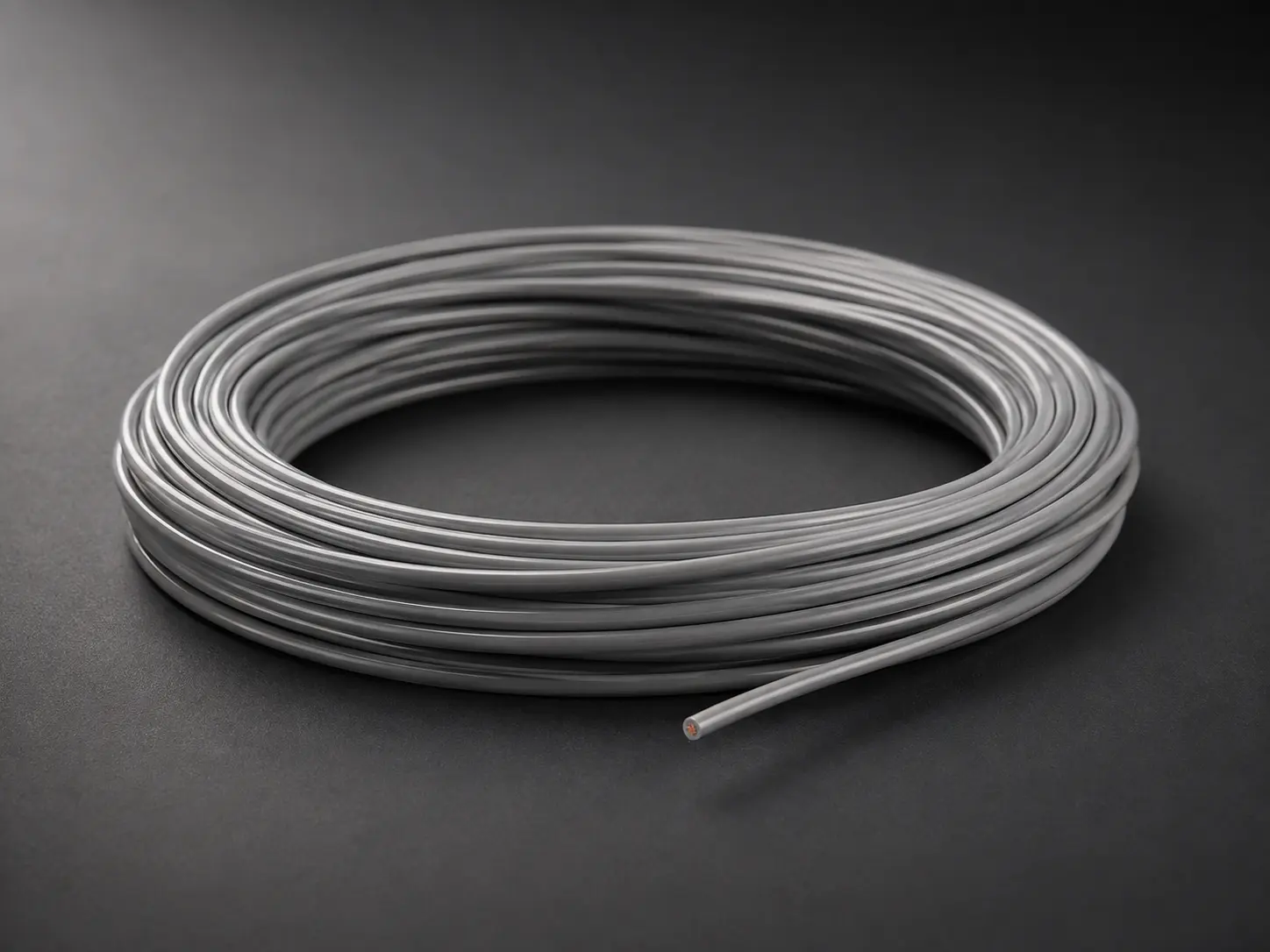

UL 1007 22 AWG PVC hook-up wire (80°C/300V) for control board wiring and OEM harness assembly. Stable processing with optional tinned copper.

Categories: ,

UL 1007 wire 22 AWG PVC hook-up wire for control board wiring

What Buyers Use This Wire For

UL 1007 22 AWG is a common choice for control board wiring because it balances flexibility with stable handling on production lines. It is widely used for internal connections in electrical and electronic equipment where 80°C / 300V is sufficient.

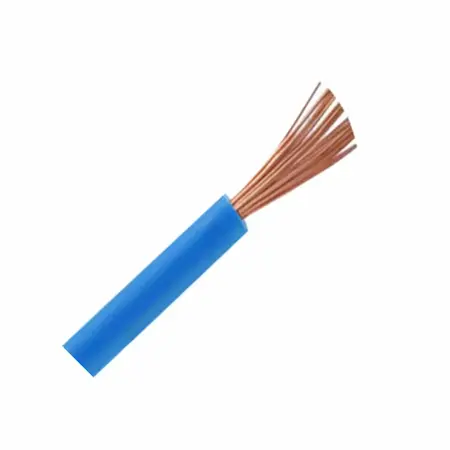

UL1007 22 AWG wire used for control board wiring harness assembly

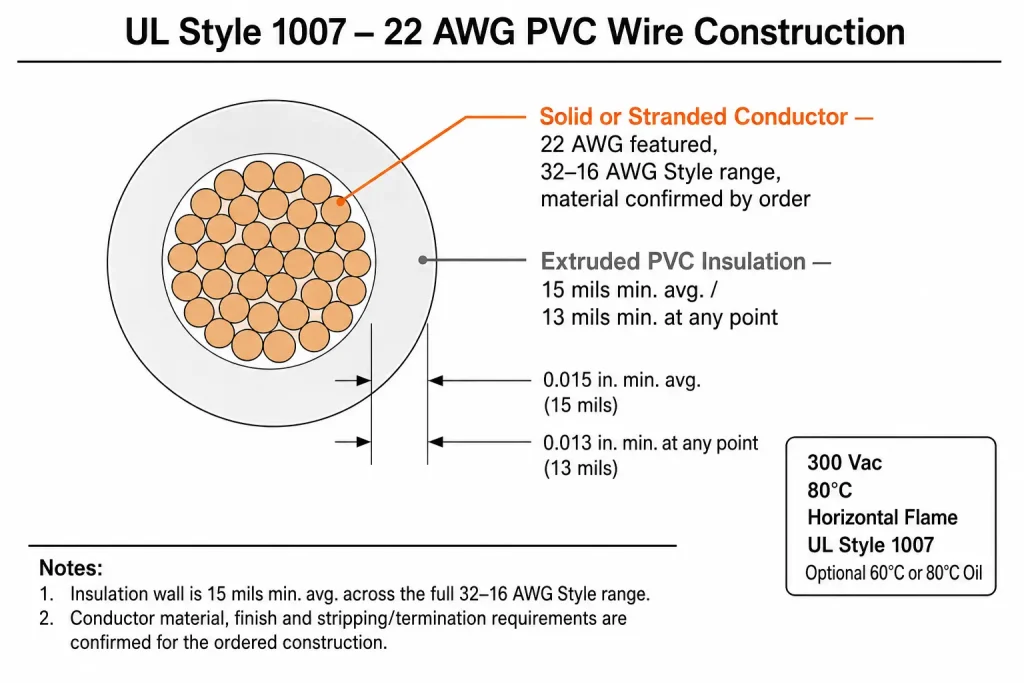

Key Ratings

  • UL Style: UL 1007 (AWM, UL 758)

  • Temperature Rating: 80°C

  • Voltage Rating: 300V

  • Insulation: PVC

  • Conductor: stranded copper (tinned copper optional)

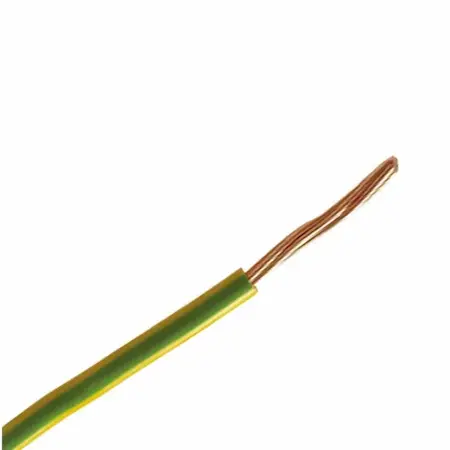

UL1007 22 AWG wire jacket marking 80C 300V for internal wiring

Why 22 AWG Is Common on Control Boards

  • Practical gauge for signal and low-to-medium current internal wiring

  • Easy routing in compact layouts

  • Consistent stripping and crimping helps reduce assembly rework

UL 1007 22 AWG PVC hook-up wire for control board wiring

Typical Applications

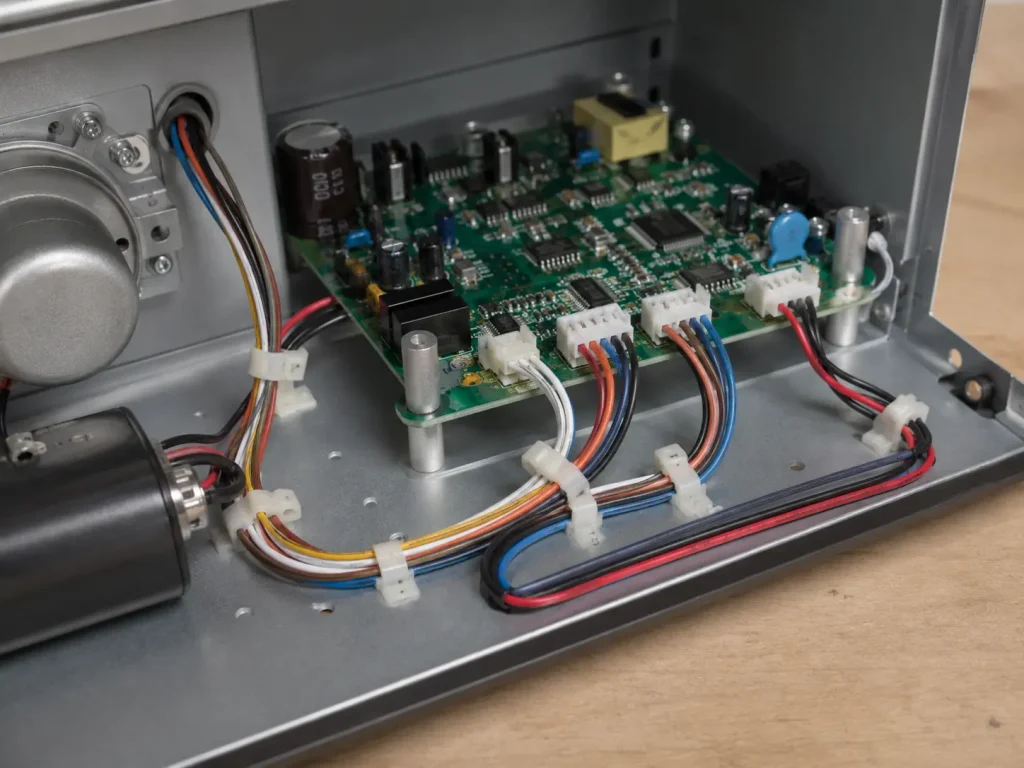

  • Control board internal wiring

  • Appliance wiring harness assemblies

  • Power supply internal lead connections

  • General equipment internal wiring

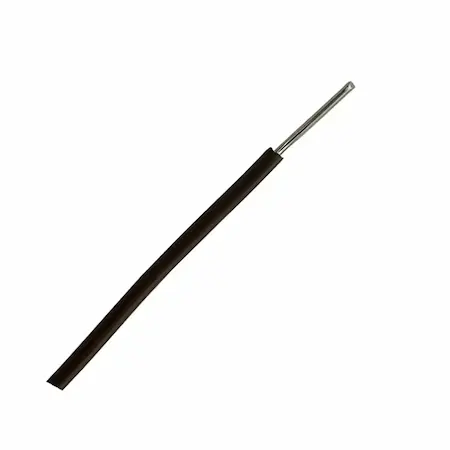

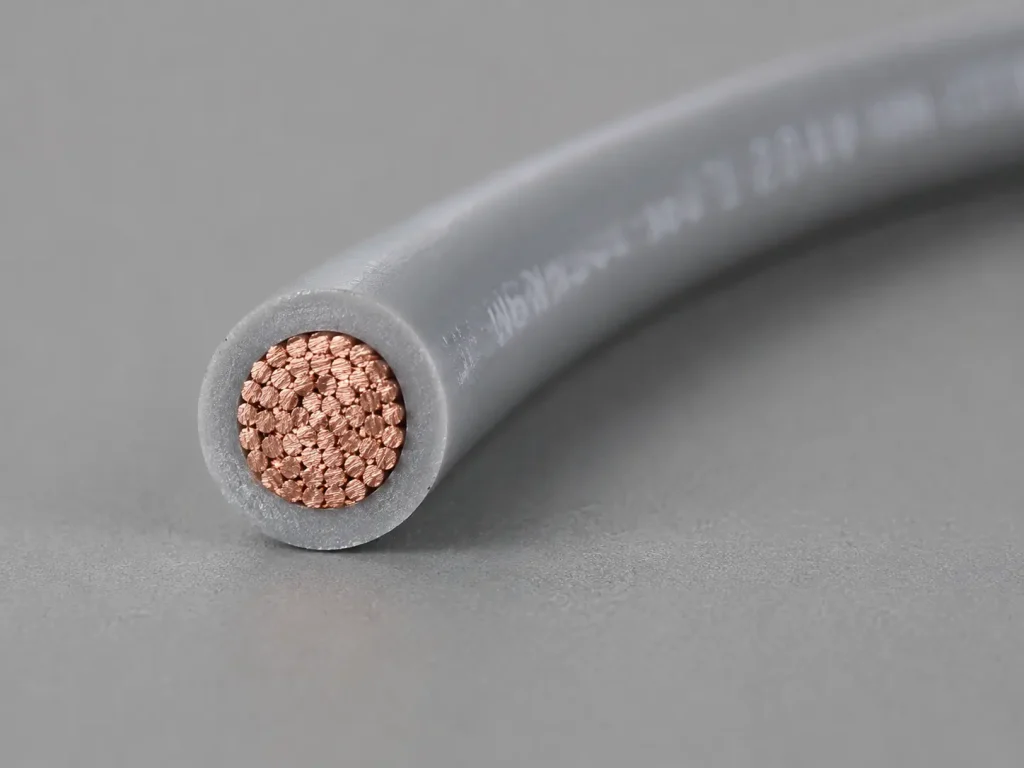

Stranded copper conductor detail of UL 1007 22 AWG hook-up wire

Buyer Checklist for Quotation

Please confirm: AWG size (22), color list, bare or tinned copper, packaging (spool/reel/cut-to-length), order quantity, and destination.
