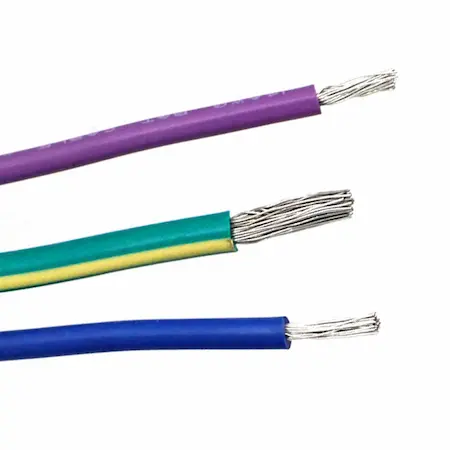

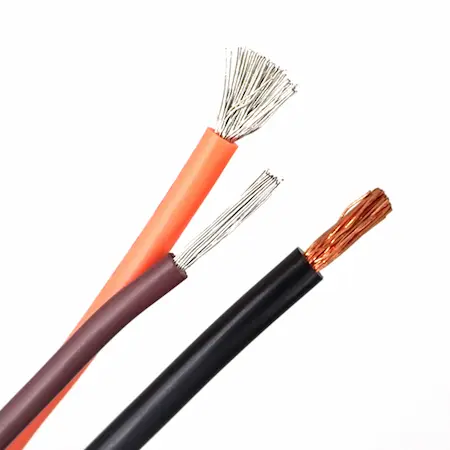

UL 3271 XLPE wire for inverter and drive internal wiring

Product Overview

UL 3271 XLPE wire is a practical choice for internal wiring in inverter and drive assemblies where the internal electrical environment is more demanding than basic equipment wiring. In these projects, buyers often need a wire that offers a stronger insulation system, a more suitable voltage profile, and a better overall match to industrial equipment use.

Inverter and drive assemblies often contain denser layouts, power sections, and internal lead paths that call for something more capable than ordinary hook-up wire. UL3271 is one of the AWM styles buyers review when they want an XLPE-based internal wire that better fits these conditions.

Key Ratings

UL Style: UL 3271 (AWM, UL 758)
Temperature Rating: 125°C
Voltage Rating: 600V AC / 750V DC
Insulation: XLPE
Conductor: stranded copper, tinned copper optional
Application type: industrial internal wiring

Why Buyers Use It in Inverter and Drive Assemblies

Internal wiring in inverters and drives is often influenced by both electrical demand and equipment layout. Buyers choose UL3271 when the wire needs to fit a more industrial internal application, especially where stronger insulation and a higher-duty wiring profile are preferred.

XLPE insulation makes this style useful in assemblies where the wire is expected to support a more demanding environment than standard control or appliance wiring.

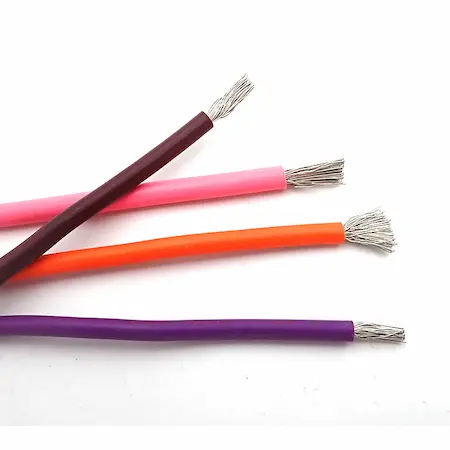

Typical Applications

Internal wiring in inverter assemblies
Drive system internal lead routing
Industrial power control equipment
OEM electrical assemblies using XLPE internal wire
Internal wiring in compact power and drive sections

Practical Buying Notes

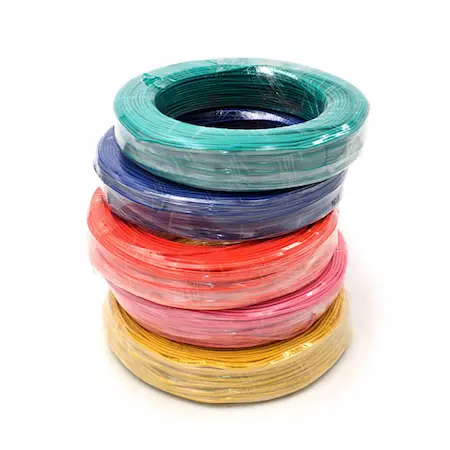

For quotation, buyers usually confirm AWG size, conductor finish, insulation color, package method, and the actual internal application. In inverter and drive projects, routing space and equipment type should also be clarified early so the wire can be matched more accurately.

Selection Notes

If the project mainly requires high voltage silicone wire, UL3239 may be reviewed. If the buyer needs fluoroplastic insulation instead of XLPE, UL1332 or UL10362 may be more relevant depending on the environment. UL3271 is more suitable where the internal wiring belongs to an industrial inverter or drive system and an XLPE construction is preferred.
