UL 1007 18 AWG Wire Supplier for Saudi Arabia — Factory Direct from China
UL 1007 18 AWG stranded wire is a single-conductor PVC insulated hook-up wire rated 80°C and 300V AC, manufactured under UL AWM Style 1007 and recognised under UL Follow-Up Service File No. E333030. As a China-based manufacturer supplying directly to Saudi Arabia and the wider GCC region, we provide factory-verified UL-recognised wire with full export documentation — including Certificate of Origin, Form E, and Product Conformance Declarations — to support procurement for Vision 2030 infrastructure projects, industrial equipment manufacturing, and appliance OEM production in Riyadh, Jeddah, and across the Kingdom.
The 18 AWG size is the most commonly specified AWG in the UL 1007 range for appliance internal wiring harnesses, control board connections, and electronic equipment power and signal leads. At 0.823 mm² nominal cross-section with 21.4 Ω/km maximum resistance, it provides the combination of current-carrying capacity, flexibility, and compact OD required for high-density wiring harness assembly — making it the default specification for appliance OEM wiring harness procurement globally, including for the rapidly expanding appliance and electronics manufacturing sector in Saudi Arabia.
Product Specifications — UL 1007 18 AWG
| Parameter | Specification |
|---|---|
| UL AWM style | 1007 |
| AWG size | 18 AWG |
| Nominal cross-section | 0.823 mm² |
| Temperature rating | 80°C continuous |
| Voltage rating | 300V AC |

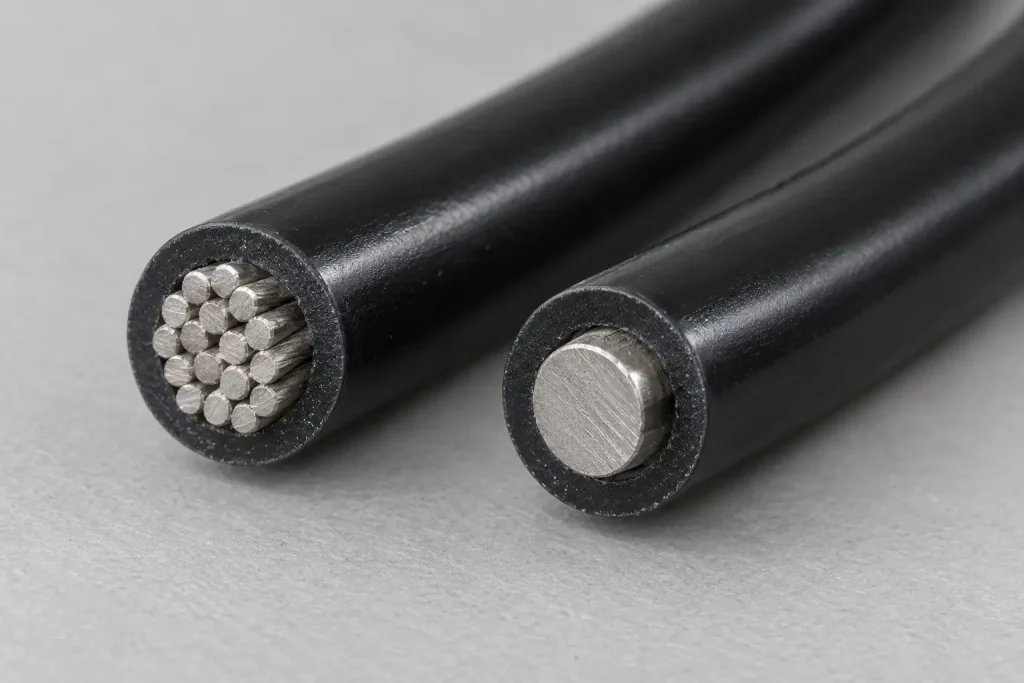

| Conductor | Stranded tinned copper (Class B or Class C) |
| Insulation material | Extruded PVC |

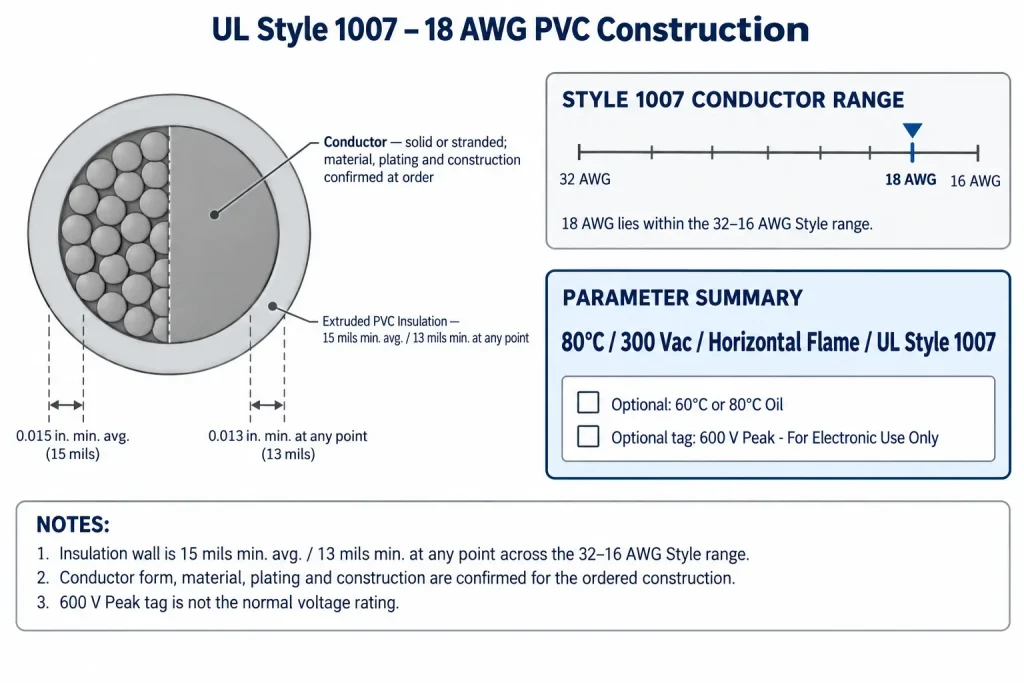

| Min avg insulation thickness | 15 mils (0.38 mm) |
| Min insulation at any point | 13 mils (0.33 mm) |
| Approx. OD | 2.5 mm |
| Max DC resistance at 20°C | 21.4 Ω/km |
| Flame rating | Horizontal flame (UL 1007) |
| UL file number | E333030 |
| Colour options | Red, black, white, yellow, blue, green, brown, orange, grey, violet |

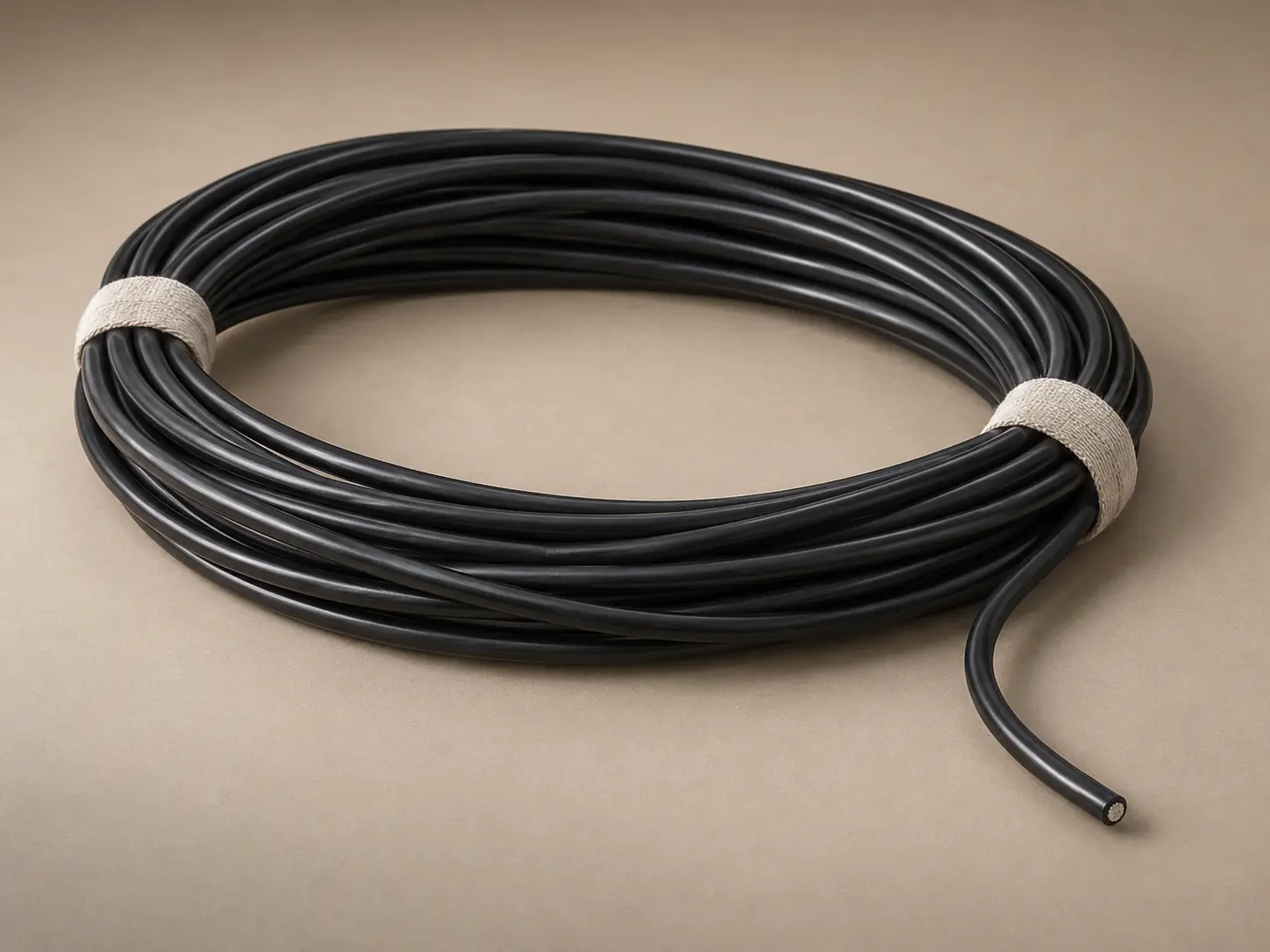

| Packaging | 100 m / 200 m / 500 m rolls; custom spool lengths |
| Compliance | UL AWM 1007, RoHS, REACH, halogen-free PVC option available |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.
Export Supply for Saudi Arabia and the GCC
Why UL 1007 wire for Saudi Arabia projects
Saudi Arabia’s Vision 2030 programme and the associated NEOM, Red Sea Project, and Diriyah Gate development programmes have created substantial demand for UL-certified electrical components from international suppliers. Appliance manufacturers, panel builders, and industrial equipment OEMs in Riyadh and Jeddah increasingly specify UL AWM wire for internal wiring — both to satisfy the requirements of international OEM customers and to meet the SASO (Saudi Standards, Metrology, and Quality Organization) requirements that align with IEC standards for electrical equipment placed on the Saudi market.
Export documentation available
Standard export package for Saudi Arabia includes: Commercial Invoice, Packing List, Certificate of Origin (China Chamber of Commerce), Bill of Lading (CIF Jeddah / King Abdullah Port), Product Conformance Declaration referencing UL File No. E333030, and Material Safety Data Sheet. Arab League Certificate of Origin available on request for GCC preferential customs treatment.
Shipping to Saudi Arabia
Standard FCL/LCL shipping from Yangzhou / Shanghai to Jeddah Islamic Port: approximately 18–22 days transit. Air freight available for urgent sample and trial orders. Standard payment terms: T/T 30% deposit, 70% against Bill of Lading copy.
Technical Specifications — Full UL 1007 AWG Range
| AWG | Cross-section | Max resistance (Ω/km) | Approx. OD (mm) | Typical application |
|---|---|---|---|---|
| 26 AWG | 0.128 mm² | 134 | 1.4 | Signal wiring, sensor leads |
| 24 AWG | 0.205 mm² | 84.2 | 1.6 | Control board internal wiring |
| 22 AWG | 0.325 mm² | 53.5 | 1.8 | Appliance control circuits |
| 20 AWG | 0.519 mm² | 33.6 | 2.1 | Low-current power leads |
| 18 AWG | 0.823 mm² | 21.4 | 2.5 | Appliance harness — most common |
| 16 AWG | 1.31 mm² | 13.3 | 3.0 | Higher-current appliance leads |
Key Features
Product
- UL AWM Style 1007, 80°C, 300V AC
- File No. E333030 — UL Follow-Up Service
- Stranded tinned copper — flexible, solderable
- 15 mils PVC insulation — verified to UL 1007
- Horizontal flame rated — self-extinguishing
- RoHS and REACH compliant
Supply for Saudi Arabia
- Factory-direct — no distributor margin
- CIF Jeddah / King Abdullah Port pricing
- Certificate of Origin + full export documentation
- MOQ 500 m per colour, standard or custom spools
- 10–15 working day lead time from order
- Air freight available for urgent sample orders
Common Applications in Saudi Arabia
Appliance manufacturing (Riyadh / Dammam Industrial Cities)

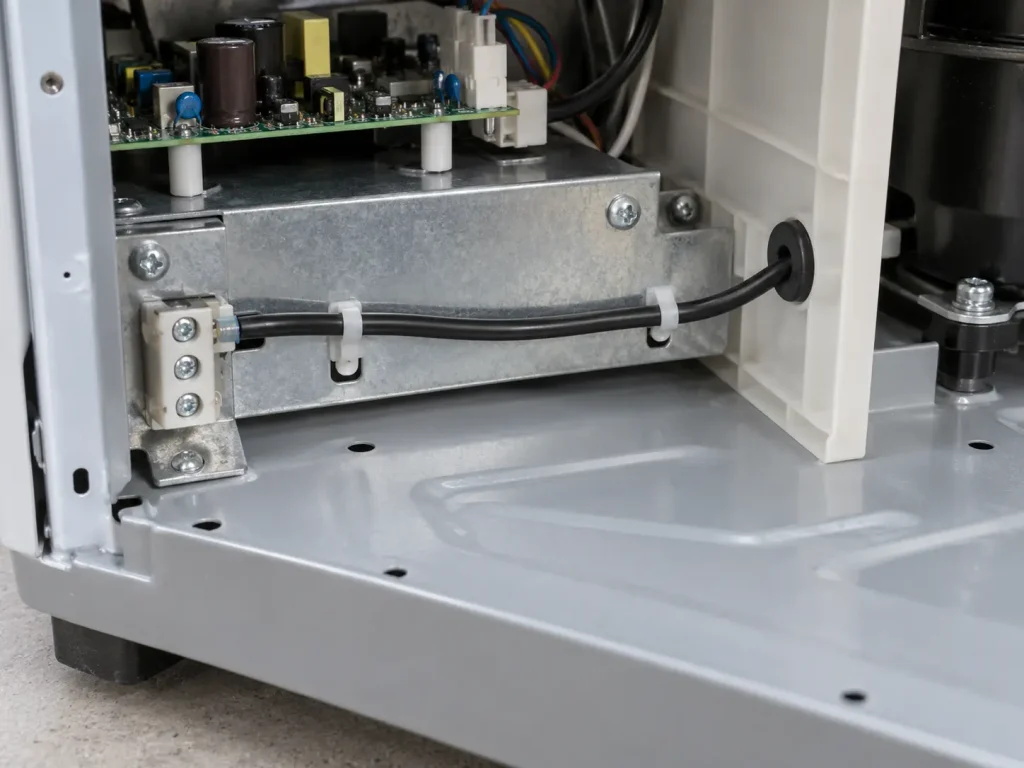

Saudi Arabia’s expanding appliance manufacturing sector — concentrated in the industrial cities of Riyadh, Dammam, and Jubail — requires UL 1007 wire for internal wiring harnesses in locally assembled household appliances, commercial kitchen equipment, and HVAC units. The 18 AWG size is the dominant specification for refrigerator, washing machine, and air conditioner harness wiring, connecting temperature sensors, motor leads, and control board connections throughout the appliance.
Industrial control panel manufacturing
Panel builders in Saudi Arabia supplying to the oil and gas, petrochemical, and industrial sectors increasingly specify UL-recognised internal wiring to satisfy the requirements of international equipment standards (UL 508A, IEC 60204) and the requirements of international EPCs and end users. UL 1007 18 AWG provides the recognised internal wiring specification for 300V control circuits within UL-listed panels.
NEOM and Vision 2030 infrastructure equipment
The NEOM development — including The Line, Sindalah, and Trojena — represents the largest concentrated infrastructure development programme in the world, driving unprecedented demand for electrical equipment from international suppliers. Equipment suppliers to NEOM projects routinely specify UL-certified internal wiring components to satisfy the project’s international standards requirements, creating sustained long-term demand for UL 1007 and related AWM wire from verified international manufacturers.
Other applications
- LED lighting fixture internal wiring for commercial and hospitality projects
- Power supply and UPS internal harness wiring
- Telecommunications equipment internal connections
- Medical device wiring harness assembly (with appropriate derating)
Ordering Information
Standard order: specify AWG (18 AWG), insulation colour(s), reel length, and required quantity. Minimum order 500 m per AWG/colour. Mixed-colour orders welcome — specify by colour and quantity on the purchase order. Sample orders from 10 m available for qualification testing.
Request a CIF Jeddah quotation. Provide your required AWG, colour specification, total quantity (metres), and destination port. We will respond within 24 hours with pricing, lead time, and shipping estimate. Contact us.
Why CableApex for Saudi Arabia
CableApex is a UL-recognised wire manufacturer (File No. E333030) based in Yangzhou, China, exporting UL AWM wire directly to Saudi Arabia, UAE, and the wider Middle East region. We offer factory-direct pricing without distributor markup, full UL-certified product documentation, and export packing and documentation optimised for GCC customs clearance. Our team has experience with Saudi Aramco, SABIC, and NEOM supply chain documentation requirements. Contact our export team for a quotation within 24 hours.
