UL 1007 Custom Color PVC Wire Overview
UL AWM Style 1007 is a single-conductor PVC insulated wire construction, supplied by CableApex as a factory-direct manufacturer, with buyer-specified insulation colors confirmed for each order. This page’s unique procurement intent is custom color sourcing for OEM appliance wiring programs — not a specific AWG SKU. The wire is rated 80°C and 300 Vac, covering the full Style 1007 conductor range of 32 AWG through 16 AWG, solid or stranded, with extruded PVC insulation.
80°C / 300 Vac UL Style 1007 Construction
| Parameter | UL Style 1007 |
|---|---|
| UL Subject / Section | 758, Section 1 |
| Construction | Single conductor with extruded insulation |
| Conductor Range | 32 AWG – 16 AWG |
| Conductor Form | Solid or stranded |
| Insulation | Extruded PVC, 15 mil min. average / 13 mil min. at any point |
| Rated Temperature (Maximum) | 80°C |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame |
| Optional Oil Designation | 60°C or 80°C, where qualified |
| Marking | General; tags may optionally indicate 600 V Peak — For Electronic Use Only |
| Use | Internal wiring of appliances |
| Colour | Buyer-specified requirement, subject to order confirmation |
| RoHS / REACH | Confirmed during quotation according to ordered materials and documentation requirements |

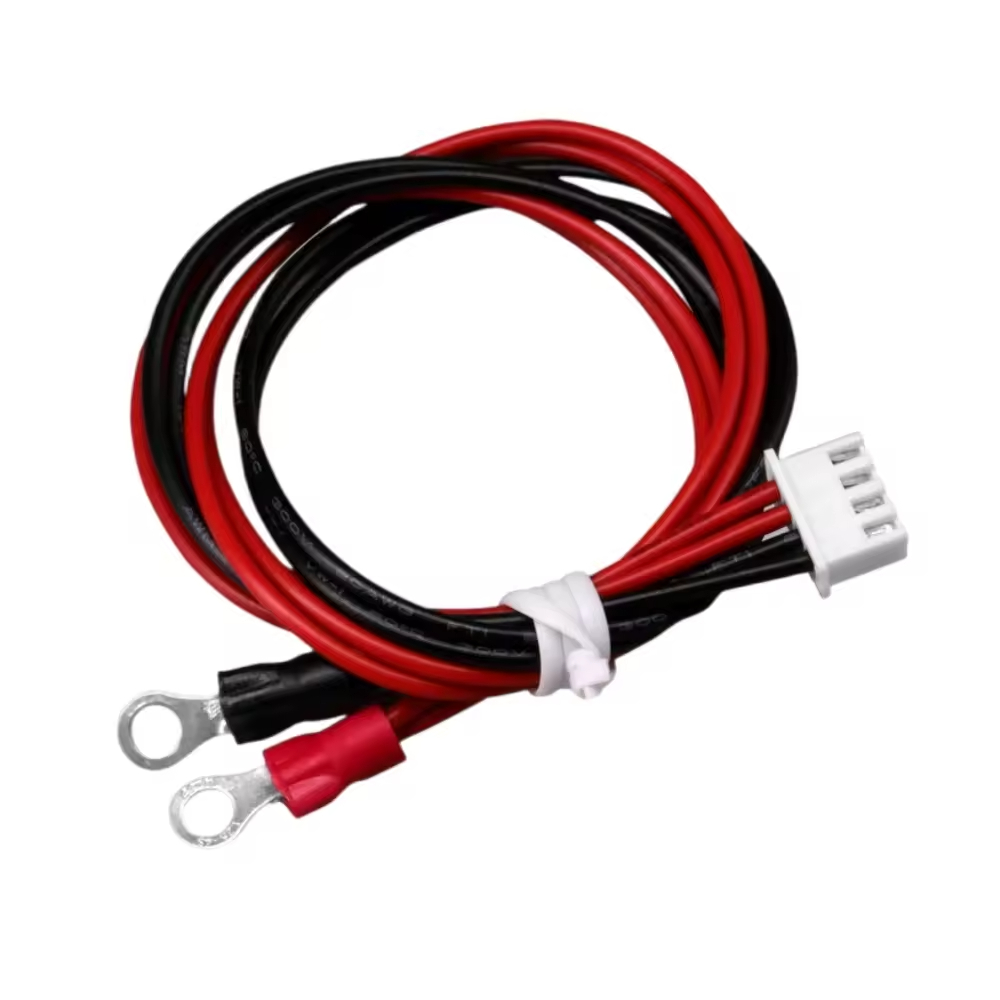

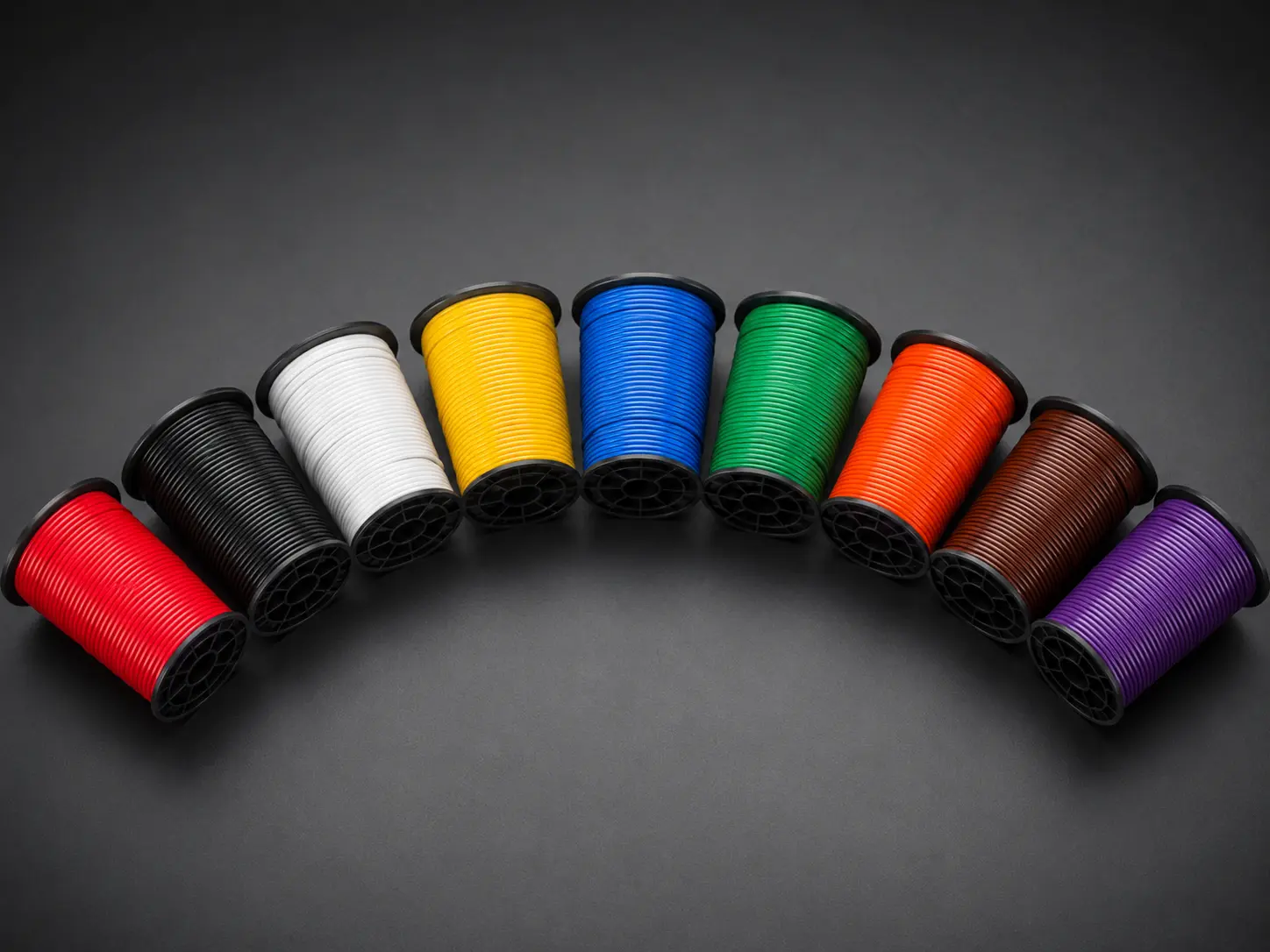

Custom Colors for Appliance Wiring Identification
UL Style 1007 itself does not define a standard color range — insulation color is a CableApex commercial procurement option confirmed against your specification, not a UL-defined Style attribute. In OEM production, buyers often manage internal assemblies through color-based identification: distinguishing circuits during assembly, reducing identification ambiguity, matching existing BOM or harness documentation, and keeping repeat production visually consistent with prior orders. We do not publish a fixed standard color list, and we do not promise unlimited colors, exact Pantone matching, or zero color variation between batches. Required colors and acceptable color references should be confirmed during quotation.
32–16 AWG Solid or Stranded Options
UL Style 1007 covers a conductor range of 32 AWG through 16 AWG, solid or stranded. This page is intentionally not built around one featured AWG — buyers may request any conductor size within the qualified Style range, subject to actual commercial availability, and different AWG sizes can be combined within a single multi-color order. Conductor material and plating are not established at the Style level; this page does not describe UL 1007 as universally tinned copper, bare copper, or oxygen-free copper — conductor material or plating should be specified when requesting a quotation.

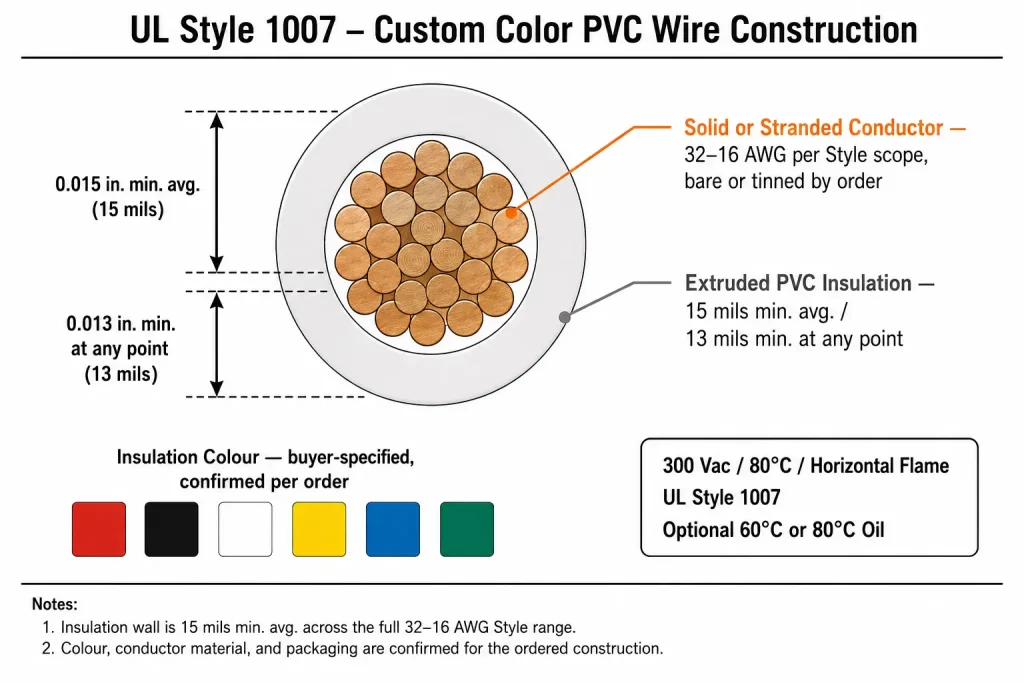

15-Mil PVC Insulation Requirement
The conductor is insulated with extruded PVC at a minimum average thickness of 15 mils and a minimum thickness of 13 mils at any point. This is precise UL terminology — a minimum average thickness, not a nominal production dimension. We do not calculate or publish a finished outside diameter from AWG and insulation thickness, as conductor geometry and manufacturing tolerances are not part of the confirmed technical basis for this page.

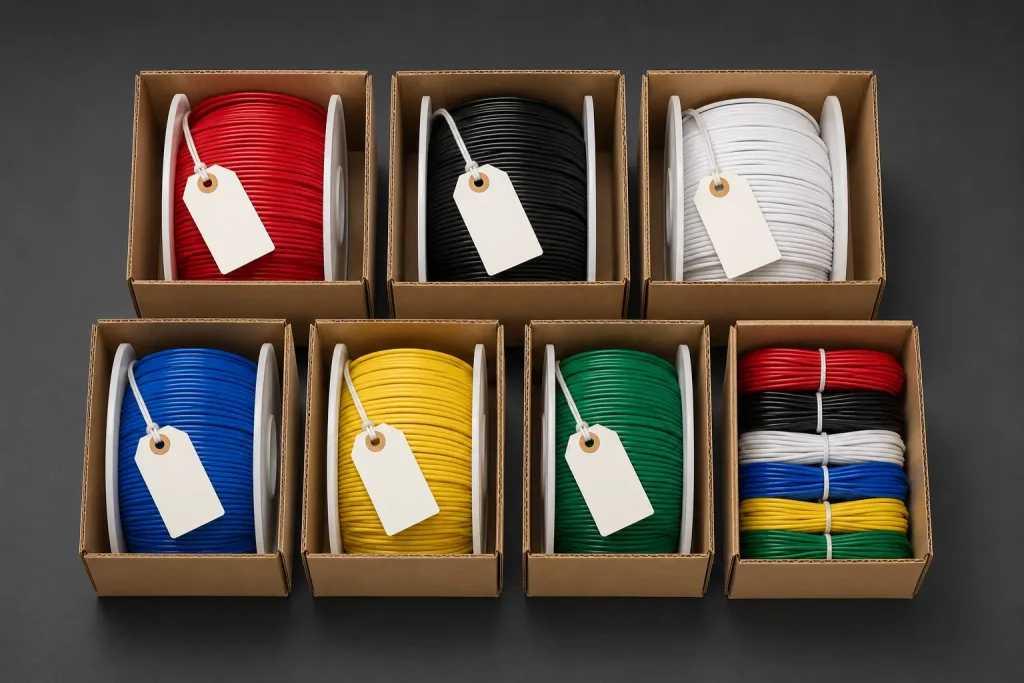

Managing Multi-Color OEM Wire Orders
Buyers with several circuit colors typically source UL 1007 custom color wire through an order matrix specifying AWG, color, quantity, packaging, and marking requirement for each line item. This structured approach is useful for repeat production runs where consistent identification across batches matters. For repeat orders, providing your previous purchase specification, an existing color sample, an approved color reference, or an internal BOM code helps confirm that the new production run matches your requirement — we do not promise identical color across every batch as an absolute guarantee, but reference materials help align the confirmed production requirement with your expectation. We do not invent a minimum quantity per color; total and per-color quantities should be specified in your enquiry.
UL 1007 Technical Specifications
See the specification table above for the complete confirmed ratings applicable to this Style.

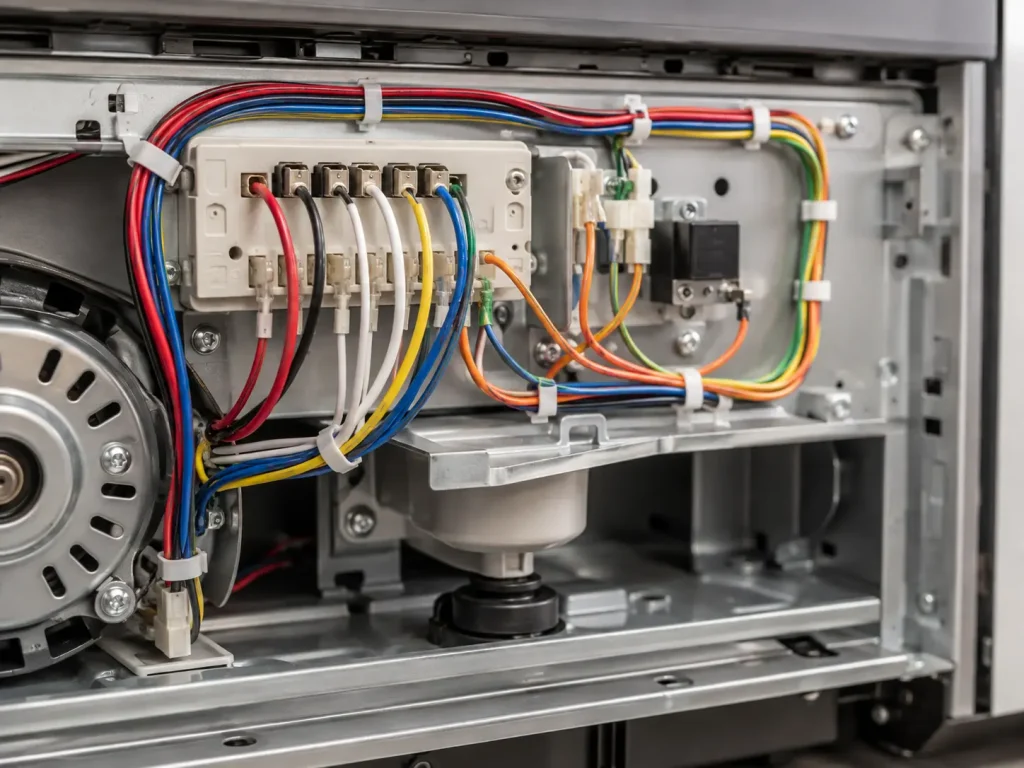

Appliance Internal Wiring and Harness Applications
UL Style 1007’s confirmed use is internal wiring of appliances. Appropriate application language for this page includes appliance internal wiring, appliance wiring assemblies, protected internal appliance connections, internal component-to-component wiring, OEM appliance wiring, and color-coded appliance internal circuits. Where wire-harness assembly is discussed, it refers to appliance internal wiring harness production using the qualified Style 1007 component wire — the UL Style applies to the component wire itself, not automatically to a complete assembled harness. This page does not broaden the use into building wiring, branch circuit wiring, field wiring, external power cords, portable cords, tray cable, or conduit wiring, and does not imply unrestricted use in every electronic equipment category beyond appliance internal wiring.
Optional Oil Rating and 600V Peak Tag
UL Style 1007 permits an optional 60°C or 80°C oil designation, available only where included in the qualified construction — this page does not state that every UL 1007 custom color order is automatically oil resistant. Separately, the Style permits a tag statement indicating “600 V Peak — For Electronic Use Only.” This is not equivalent to a 600 Vac continuous rating; the primary continuous voltage rating for this page remains 300 Vac throughout.
What to Specify for Repeat Color Orders
To provide an accurate quotation for UL 1007 custom color PVC wire, please specify:
- Required AWG for each colour (within the 32–16 AWG range)
- Colour for each AWG
- Solid or stranded requirement
- Conductor material or plating, if specified
- Optional oil rating, if required
- Required marking
- Required finished OD, if dimensionally critical
- Quantity per colour and total quantity
- Packaging method
- Approved colour sample or reference, for repeat orders
- Appliance or internal wiring application
- UL documentation requirement, including RoHS / REACH if needed
- Shipping destination
Send this information and we respond with a quotation within 12 business hours. Production lead time depends on the confirmed construction and order quantity, and shipping options and applicable Incoterms are confirmed during quotation according to destination.
UL Marking and Documentation
Qualifying UL AWM Style 1007 constructions can be supplied through the relevant qualified manufacturing scope for this Style. Custom color selection does not change the need to confirm actual qualified marking for the supplied construction — UL marking and documentation are confirmed according to the qualified Style 1007 construction supplied for the order. RoHS and REACH are separate regulatory frameworks from UL recognition; applicable RoHS / REACH documentation requirements can be confirmed according to the ordered construction.
