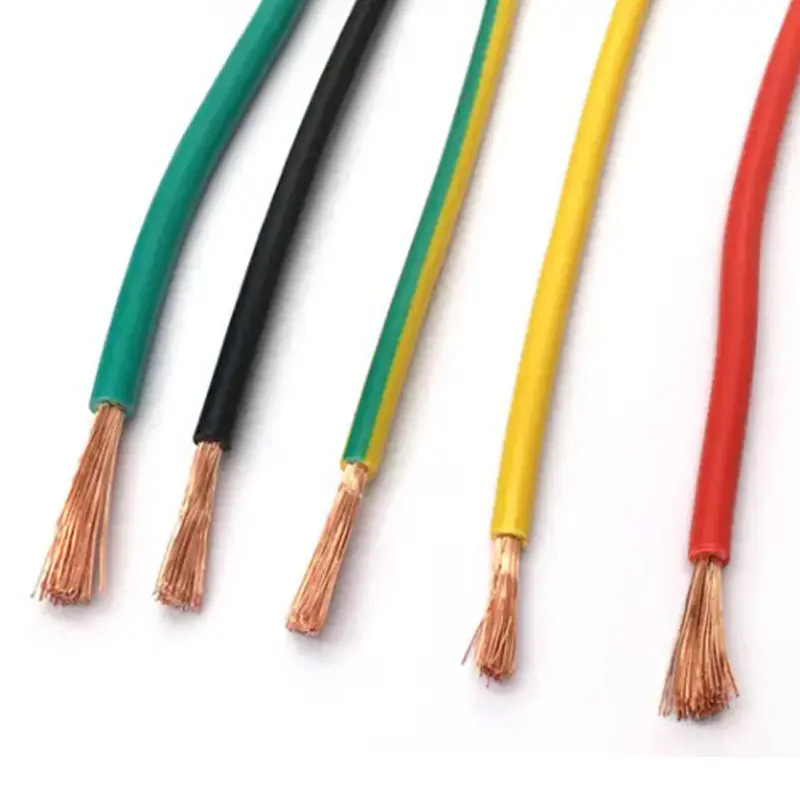

UL 1015 600V PVC Hook-up Wire Supplier for UAE — Factory Direct from China

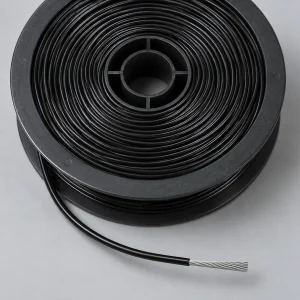

UL 1015 600V PVC hook-up wire is the higher-voltage counterpart to UL 1007 — rated 105°C and 600V AC under UL AWM Style 1015, versus UL 1007’s 80°C / 300V rating. The 600V rating makes UL 1015 the default specification for internal wiring of industrial control panels, motor leads in standard motors, and power supply internal connections where the circuit voltage exceeds the 300V limit of UL 1007. It is also rated to 105°C rather than 80°C, extending its useful life in elevated ambient temperature environments such as control cabinet hot spots and motor terminal boxes.
As a UL-recognised manufacturer in Yangzhou, China, CableApex supplies UL 1015 wire factory-direct to UAE-based distributors, panel builders, and equipment OEMs at wholesale pricing with CIF Jebel Ali delivery and full export documentation. The UAE’s position as the GCC’s primary industrial and logistics hub — combined with its rapidly expanding data centre, infrastructure, and manufacturing sectors — makes it the leading entry point for UL-certified wire destined for the broader Middle East market.
Product Specifications — UL 1015
| Parameter | Specification |
|---|---|
| UL AWM style | 1015 |
| Temperature rating | 105°C continuous (80°C and 90°C optional grades) |
| Voltage rating | 600V AC |
| Conductor | Solid or stranded copper (tinned or bare) |
| AWG / size range | 30 AWG – 2000 kcmil |
| Insulation material | Extruded PVC |

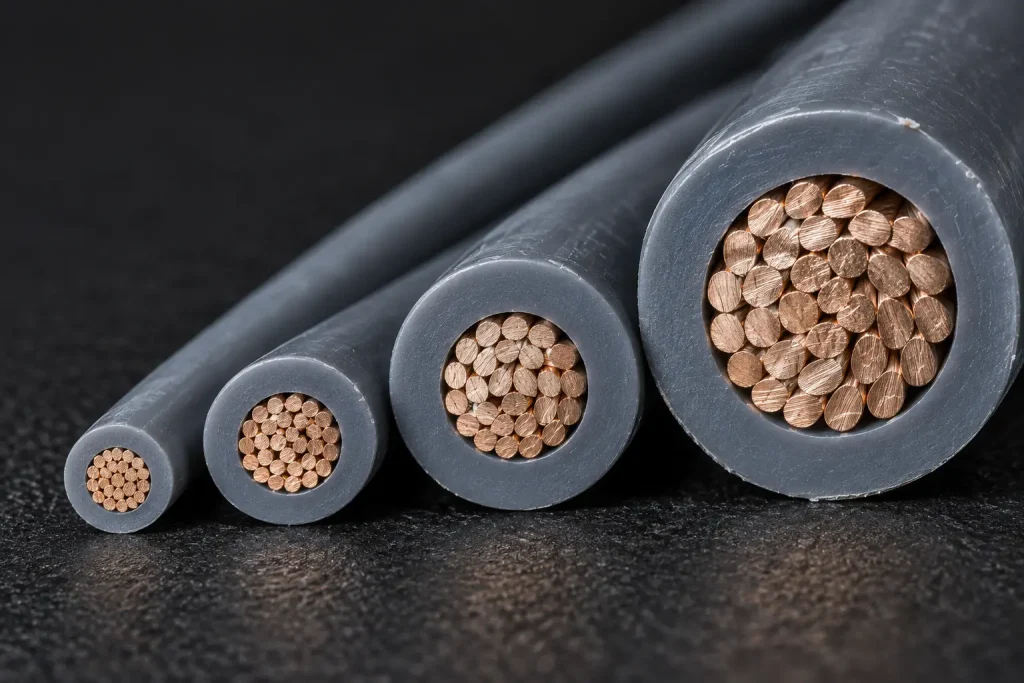

| Min avg insulation thickness (30–9 AWG) | 30 mils (0.76 mm) |
| Min insulation at any point | 27 mils (0.69 mm) |
| Flame rating | Horizontal flame, VW-1 optional |
| UL file number | E333030 |
| Colour options | Red, black, white, yellow, blue, green, brown, orange, grey, violet, custom |
| Compliance | RoHS, REACH, halogen-free PVC option |

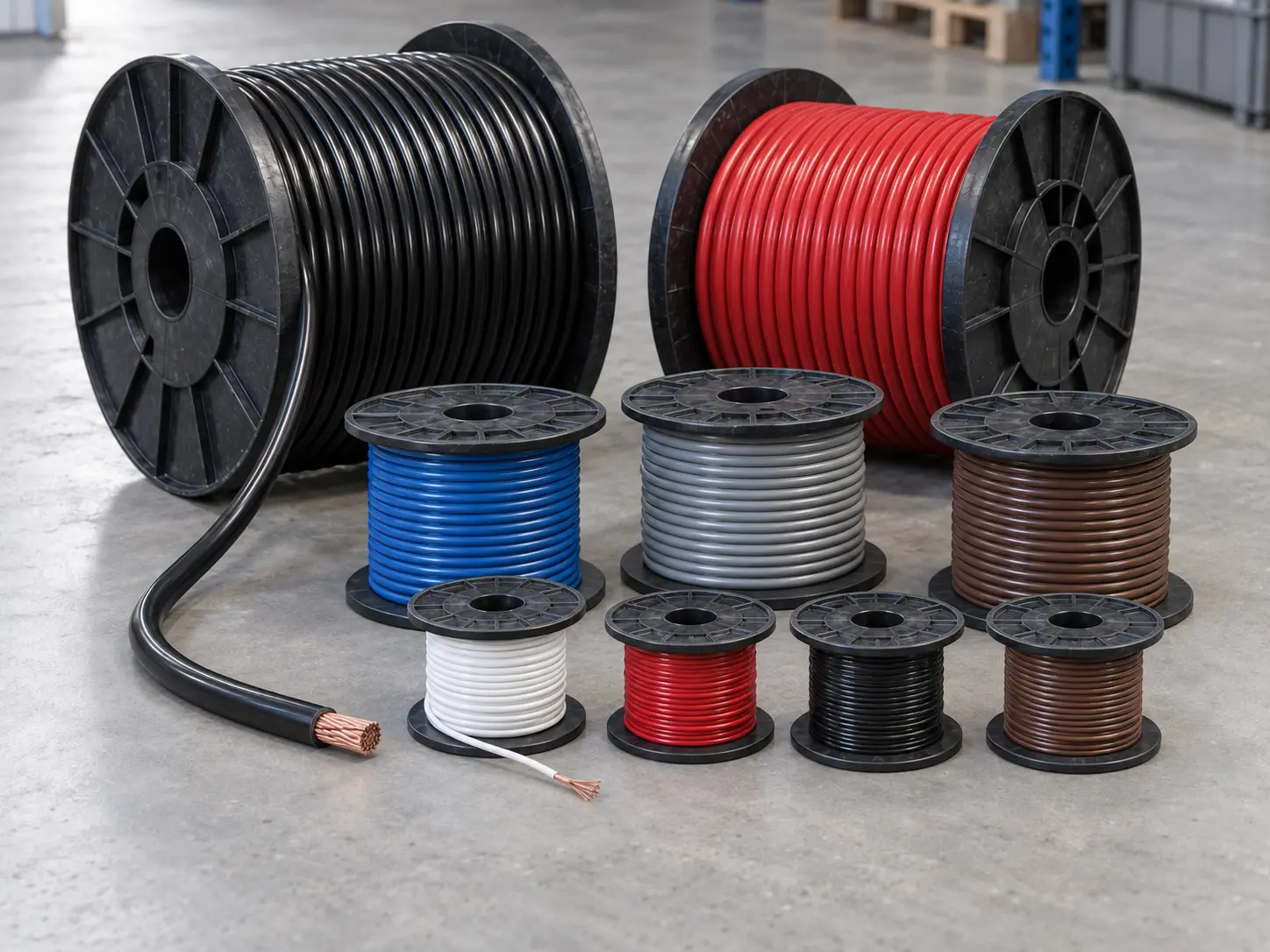

| Packaging | 100 m / 200 m / 500 m rolls; custom drum lengths |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.
UL 1015 vs UL 1007 — Choosing the Right Wire for UAE Projects
| Property | UL 1015 (this product) | UL 1007 |
|---|---|---|
| Voltage rating | 600V AC | 300V AC |
| Temperature rating | 105°C | 80°C |
| AWG range | 30 AWG – 2000 kcmil | 32 AWG – 16 AWG |
| Insulation thickness (30–9 AWG) | 30 mils avg min | 15 mils avg min |
| Typical use | Panel wiring, motor leads, 600V power circuits | Appliance and electronics internal wiring |
| Cost | Slightly higher (thicker insulation) | Lower |
Factory-Direct Supply to UAE
UAE as GCC distribution hub
Dubai and the UAE serve as the primary distribution hub for electrical components across the GCC — Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain. Distributors and trading companies based in Jebel Ali Free Zone source UL-certified wire from international manufacturers and re-distribute to end users across the region. CIF Jebel Ali pricing gives UAE-based buyers landed cost certainty, simplifying stock procurement calculations and enabling competitive regional distribution pricing.
Direct export to UAE end users
UAE panel builders, equipment OEMs, and electrical contractors can order UL 1015 wire directly from CableApex for projects in Abu Dhabi, Dubai, Sharjah, and across the Emirates. Standard AWG sizes in red, black, and white are typically available from stock, enabling 10–15 working day delivery to Jebel Ali for common specifications.
Export documentation for UAE
Standard package: Commercial Invoice, Packing List, Certificate of Origin (China Chamber of Commerce), Bill of Lading (CIF Jebel Ali), Product Conformance Declaration referencing UL File No. E333030, and MSDS. Arab League Certificate of Origin available on request. Transit time Yangzhou / Shanghai to Jebel Ali: approximately 16–20 days.
AWG Reference Table — Most Common Sizes for UAE
| AWG | Cross-section | OD (mm) | Max resistance (Ω/km) | Current capacity (A, free air) | Primary use |
|---|---|---|---|---|---|
| 18 AWG | 0.823 mm² | 3.2 | 21.4 | 10A | Control wiring, panel connections |
| 16 AWG | 1.31 mm² | 3.8 | 13.3 | 13A | Motor leads, higher-current control circuits |
| 14 AWG | 2.08 mm² | 4.5 | 8.45 | 17A | Panel power distribution, building wire equivalent |
| 12 AWG | 3.31 mm² | 5.2 | 5.21 | 23A | Higher-current circuits, power supply leads |
| 10 AWG | 5.26 mm² | 6.1 | 3.28 | 30A | High-current appliance and equipment leads |
| 8 AWG | 8.37 mm² | 7.4 | 2.06 | 40A | Power feed leads, Vision 2030 infrastructure |
Key Features
Product
- UL AWM Style 1015, 105°C, 600V AC
- File No. E333030 — UL Follow-Up Service
- 30 mils PVC insulation — twice UL 1007 thickness
- 30 AWG to 2000 kcmil — full range available
- Horizontal flame rated; VW-1 option
- RoHS and REACH compliant
Supply for UAE
- Factory-direct — no distributor margin
- CIF Jebel Ali / Dubai pricing
- Full export documentation package
- MOQ 500 m per AWG/colour
- Mixed AWG orders in one shipment
- 10–15 working day lead time
Common Applications in UAE

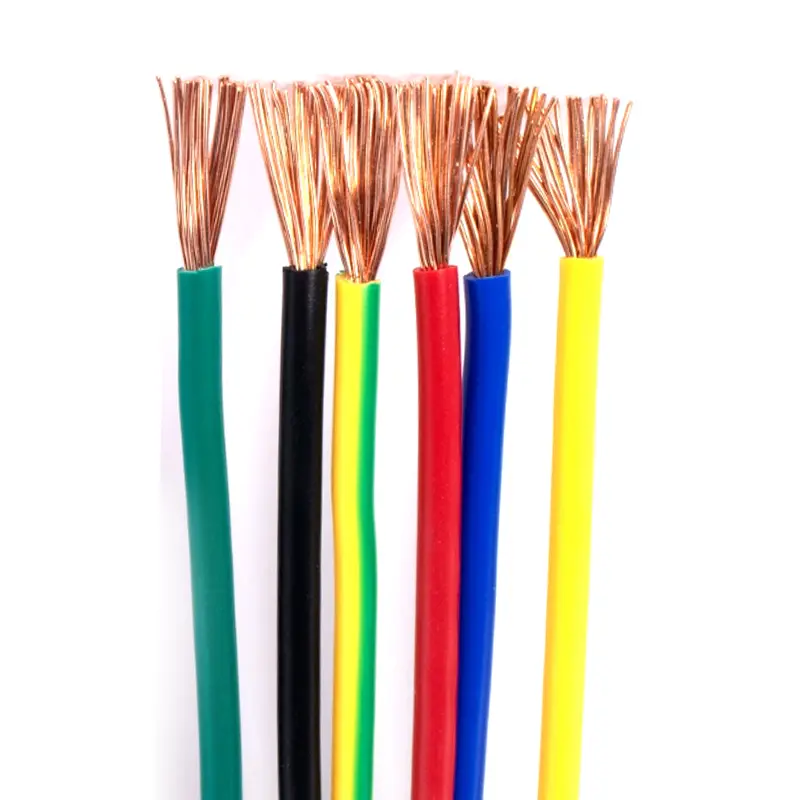

Industrial control panel manufacturing
UL 1015 600V is the standard specification for internal wiring of UL 508A industrial control panels — the 600V rating covers the full range of LV control circuit voltages, and the 105°C temperature rating handles the elevated ambient temperature inside sealed control enclosures in UAE industrial environments. Panel builders in Dubai, Abu Dhabi, and Sharjah industrial zones use UL 1015 as their standard internal wire for panels supplied to oil and gas, petrochemical, and infrastructure projects across the GCC.
Motor lead connections
UL 1015 in 14–8 AWG is the standard wire for the motor lead connection — from the motor terminal box to the starter or VFD — in standard LV induction motors. The 600V rating covers standard 3-phase 380V / 400V / 415V motor supply voltages, and the 105°C temperature rating accommodates the elevated terminal box ambient temperature of motors installed in UAE industrial environments.
Data centre and infrastructure power wiring
UAE data centres — among the most rapidly expanding in the world — require large volumes of UL-certified wire for power distribution within server rooms, electrical rooms, and generator set connections. UL 1015 10–4 AWG covers the internal power distribution wiring specifications for data centre electrical equipment from PDUs to transformer connections.
Other applications

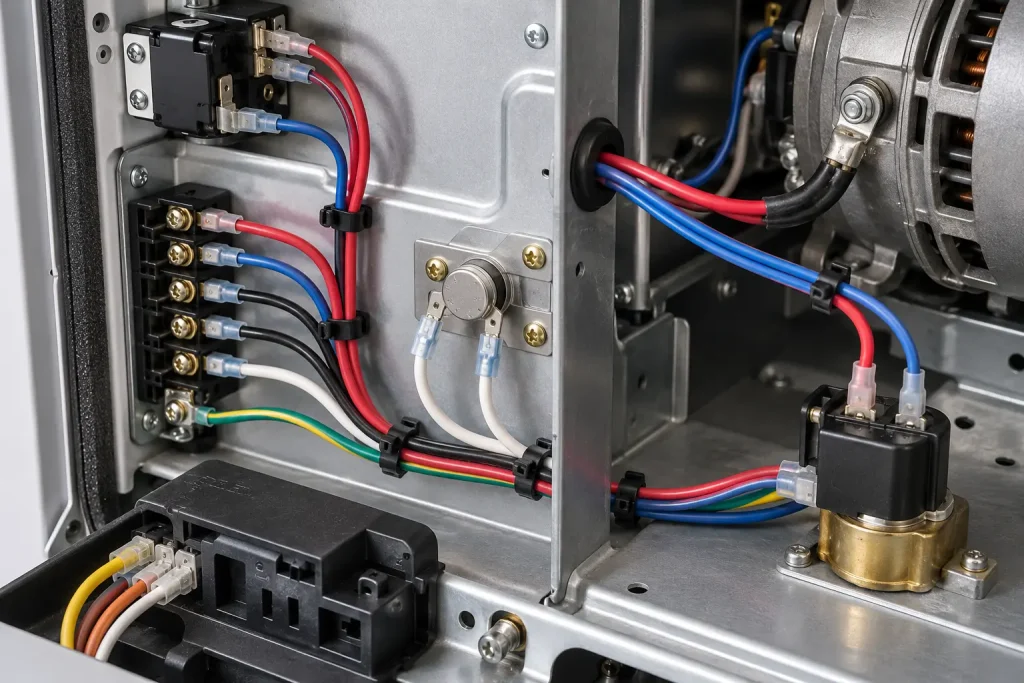

- Building services electrical equipment internal wiring
- Commercial kitchen and food service equipment leads
- Renewable energy system wiring (solar inverter internal leads)
- Marine and offshore electrical equipment connections
Ordering Information
Specify AWG, conductor type (tinned or bare copper), insulation colour, and reel length. MOQ 500 m per AWG/colour. Mixed AWG orders accepted. Full UL 1015 compliance documentation and RoHS Declaration of Conformity supplied with every shipment. Sample lengths from 10 m.
Request CIF Jebel Ali factory pricing. Provide AWG, colour specification, quantity, and delivery timeline. We respond within 24 hours. Contact us.
Why CableApex for UAE
CableApex manufactures UL 1015 under UL Follow-Up Service (File No. E333030) at our Yangzhou facility. All production runs 100% online spark testing and continuous diameter monitoring. We export directly to UAE distributors, panel builders, and equipment manufacturers across the Emirates with standard 16–20 day transit to Jebel Ali. Factory-direct pricing, consistent certified quality, and complete documentation — contact our export team for pricing within 24 hours.
