UL 3135 silicone wire for transformer lead connections, rated up to 200°C and 600V. Suitable for internal lead routing near windings and terminals where buyers need a combination of heat resistance, flexible handling, and stable OEM assembly performance.

Categories: ,

UL 3135 silicone wire for transformer lead connections 200C

Product Overview

Transformer lead wiring is one of those applications where buyers usually care about both temperature performance and assembly practicality. Lead wires may need to pass near windings, terminals, or enclosed sections where heat buildup is more concentrated than in the rest of the product. Under those conditions, a standard internal wiring option may not provide the handling or long-term stability a buyer wants.

UL 3135 silicone wire is often specified for this kind of work because the insulation remains flexible and easier to route, while still offering the high temperature performance required for many transformer-related internal assemblies. For OEM production, that combination matters: the wire must fit the design, pass through assembly without trouble, and still support the intended service environment.

UL 3135 silicone wire for transformer lead connections 200C

Key Ratings

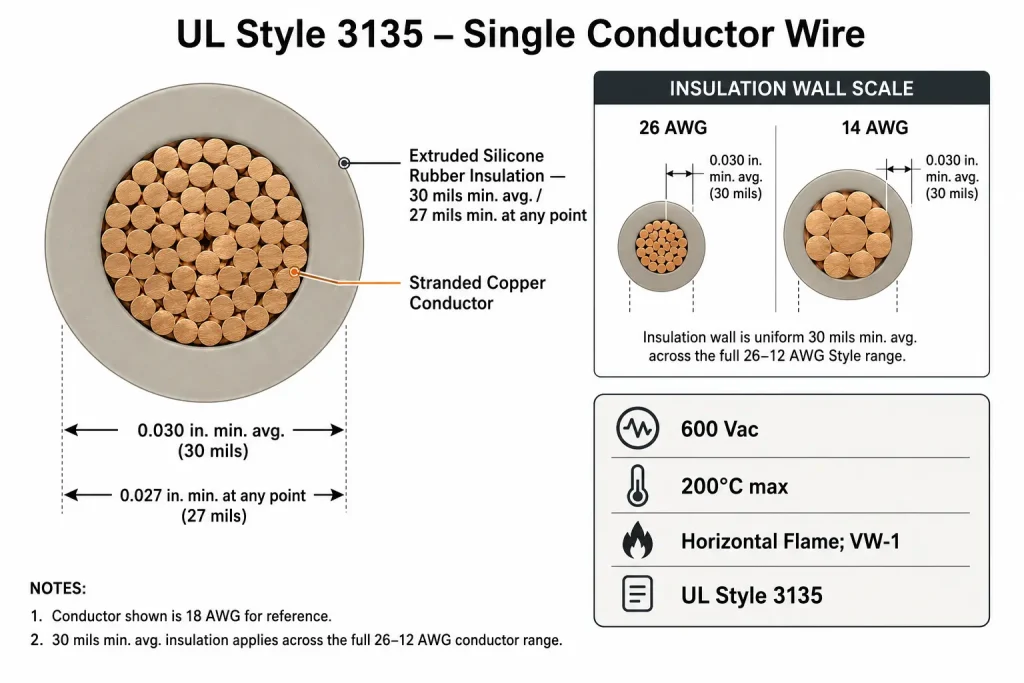

  • UL Style: UL 3135 (AWM, UL 758)

  • Temperature Rating: up to 200°C

  • Voltage Rating: 600V

  • Insulation: silicone rubber

  • Conductor: stranded copper, tinned copper optional

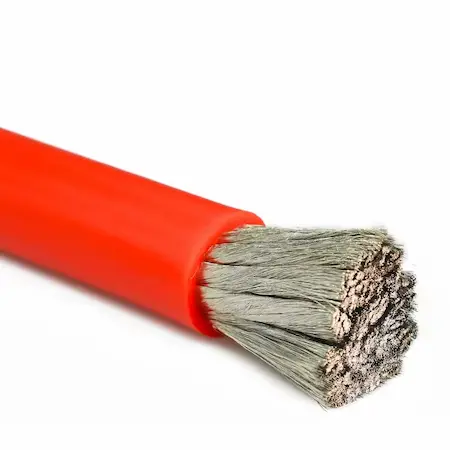

UL3135 stranded conductor detail for transformer lead terminal connection

Why Buyers Use UL3135 for Transformer Leads

Transformer assemblies often create a practical problem for internal wiring: limited space, local heat, and multiple bend points around terminals or structural parts. Buyers are not just looking for a wire that can “survive heat.” They also need one that can be routed without becoming difficult to manage during production.

That is where silicone insulation becomes useful. It allows smoother routing in tighter sections and makes the wire easier to position during lead installation, especially when assemblies are produced repeatedly across multiple batches.

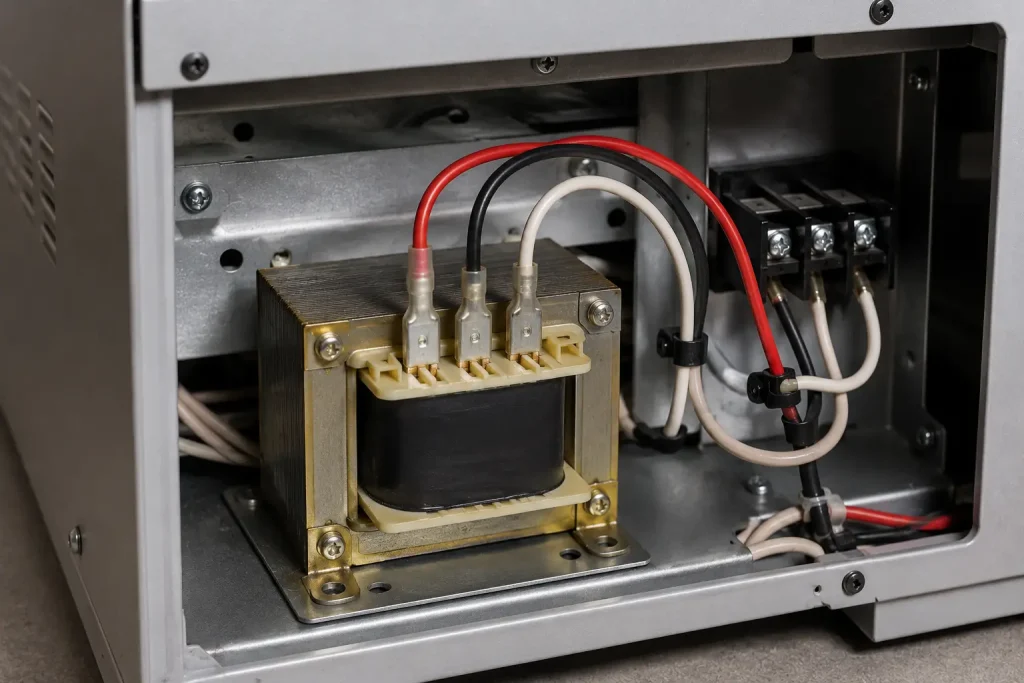

UL3135 silicone wire used for transformer internal lead connections

Typical Applications

  • Transformer lead connections

  • Internal lead routing near windings and terminals

  • Coil-related internal wiring

  • Heat-exposed interconnects inside power assemblies

  • OEM production for thermal and electrical equipment

UL3135 wire for transformer lead routing in elevated temperature areas

Common Purchasing Questions

Before placing an order, transformer-related buyers often confirm:

  • Which AWG sizes will be used for different lead positions

  • Whether stranded bare copper or tinned copper is preferred

  • Whether color identification is needed for multiple lead paths

  • How the wire will be terminated during assembly

  • Whether the routing path includes sharp bends or narrow installation space

Selection Advice

If the main concern is transformer lead routing in a high-temperature enclosure, UL 3135 is often a practical choice. If the environment includes stronger chemical exposure or requires a lower-friction insulation surface, fluoroplastic styles may be more suitable. If voltage demands are significantly higher, another wire style should be selected based on the actual electrical requirement rather than just insulation type.

Quotation Information

For faster quotation, send:

  • Required AWG size

  • Conductor finish: bare or tinned copper

  • Color requirement

  • Packaging method

  • Quantity and shipping destination
