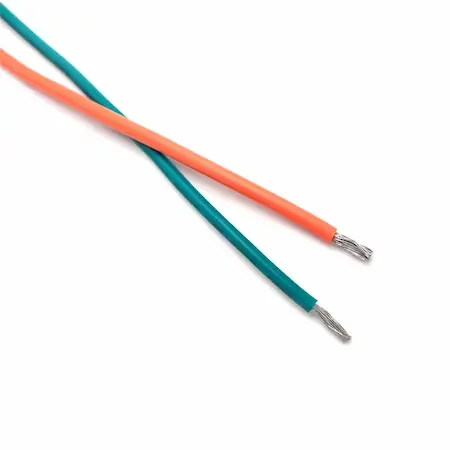

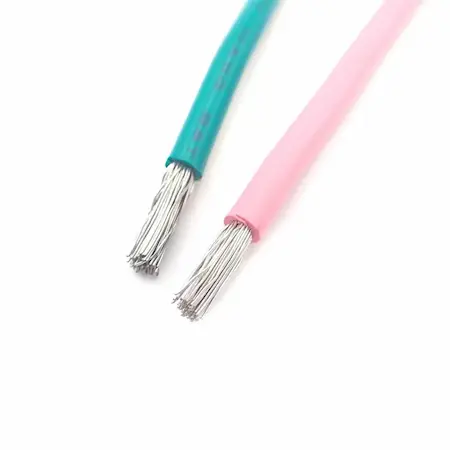

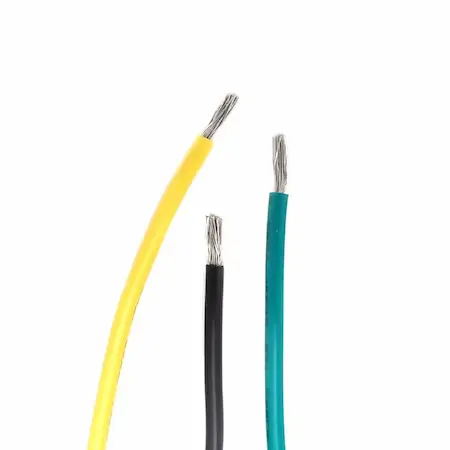

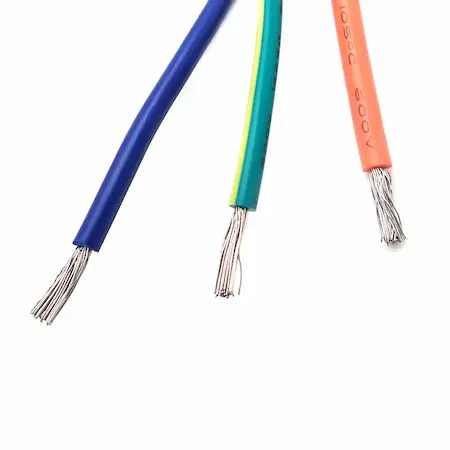

UL 3271 XLPE wire for transformer lead and motor wiring harness

Product Overview

UL 3271 XLPE wire is often selected for internal harness assemblies where the application calls for a stronger internal wire than standard general-purpose hook-up wire. In transformer lead and motor wiring harness projects, buyers usually need a construction that supports both the electrical requirement and the practical reality of routing inside equipment.

This style is useful in assemblies where the wire is part of a more structured harness rather than a single simple connection. For buyers, UL3271 offers an XLPE insulated AWM option that fits industrial internal wiring and lead routing more naturally than lighter-duty alternatives.

Key Ratings

UL Style: UL 3271 (AWM, UL 758)
Temperature Rating: 125°C
Voltage Rating: 600V AC / 750V DC
Insulation: XLPE
Conductor: stranded copper, tinned copper optional
Application type: internal wiring, transformer leads, and motor harnesses

Why Buyers Use It in Harness Assemblies

Harness-based assemblies require more than a correct voltage rating. Buyers also look at how the wire behaves during routing, bundling, stripping, and final installation. UL3271 is often reviewed because it fits industrial internal applications where a more capable XLPE construction is preferred.

For transformer lead and motor harness use, this matters because the wire is often part of a larger internal system rather than an isolated single lead.

Typical Applications

Transformer lead wiring
Motor wiring harness assemblies
Internal industrial equipment wiring
OEM harness production for electrical assemblies
XLPE internal wiring in higher-demand equipment

Practical Buying Notes

For quotation, buyers usually provide AWG size, conductor finish, insulation color, package format, and harness application details. If the project includes multiple wire sizes, it is also useful to confirm whether the order will be supplied as standard reels or prepared for harness-oriented production.

Selection Notes

If the project requires more flexibility and silicone insulation, UL3135 may be reviewed. If fluoroplastic insulation is preferred for a different environment, UL1332 or UL10362 may be more suitable. UL3271 is more appropriate where the design requires an XLPE industrial internal wire with motor lead or transformer harness relevance.
