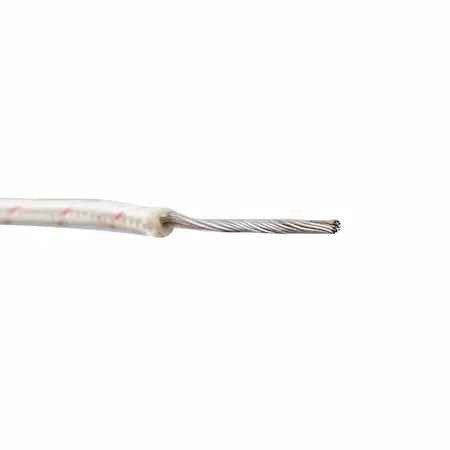

UL 5476 mica tape wire 450C 600V for high temperature internal wiring

Product Overview

UL 5476 mica tape wire is used in internal wiring environments where both very high temperature capability and a stronger electrical rating are required. This puts it in a more demanding category than many standard high-temperature wire constructions. Buyers reviewing this style are usually working on equipment that operates under serious thermal conditions rather than occasional heat exposure.

In these projects, wire selection is less about convenience and more about matching the internal wiring system to the actual environment. UL5476 provides a mica-based construction intended for those more severe conditions.

Key Ratings

UL Style: UL 5476
Temperature Rating: 450°C
Voltage Rating: 600V

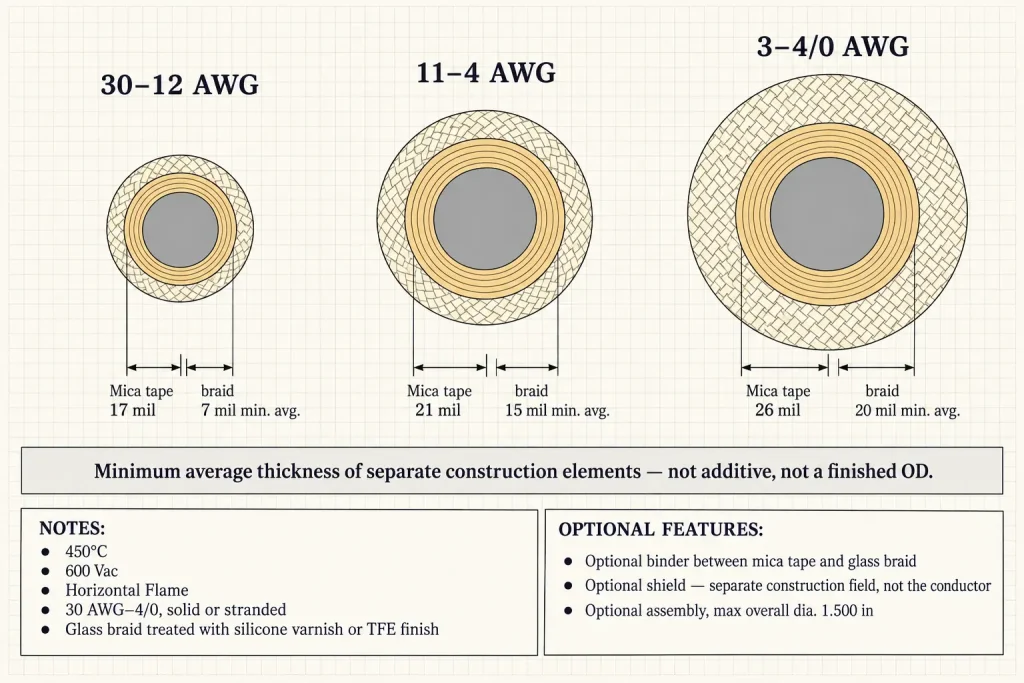

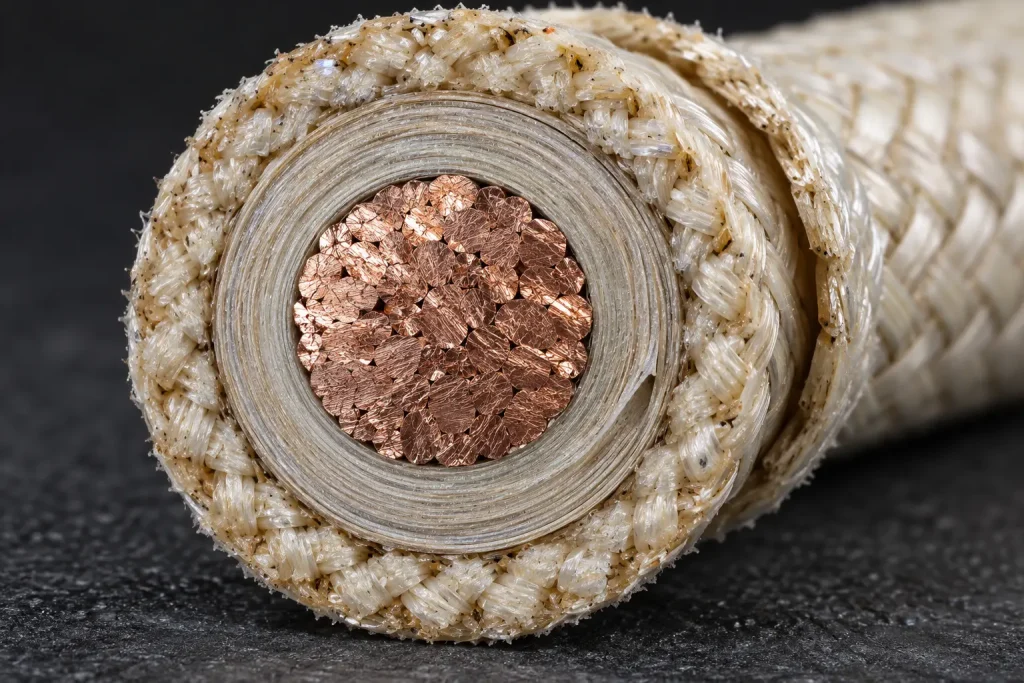

Construction: mica tape with fiberglass-based high temperature structure
Application type: extreme heat internal wiring

Why Buyers Use UL5476

When the thermal environment is demanding and the electrical requirement is also higher, buyers need a wire style that can support both. UL5476 is one of the constructions considered in these cases because it sits at the more serious end of the internal high-temperature wire range.

This makes it suitable for equipment such as industrial ovens, heating systems, and thermal process assemblies where lower-rated wire would not be a practical long-term choice.

Typical Applications

High temperature internal wiring
Thermal process equipment
Industrial oven and heater assemblies
OEM heat-exposed internal electrical systems

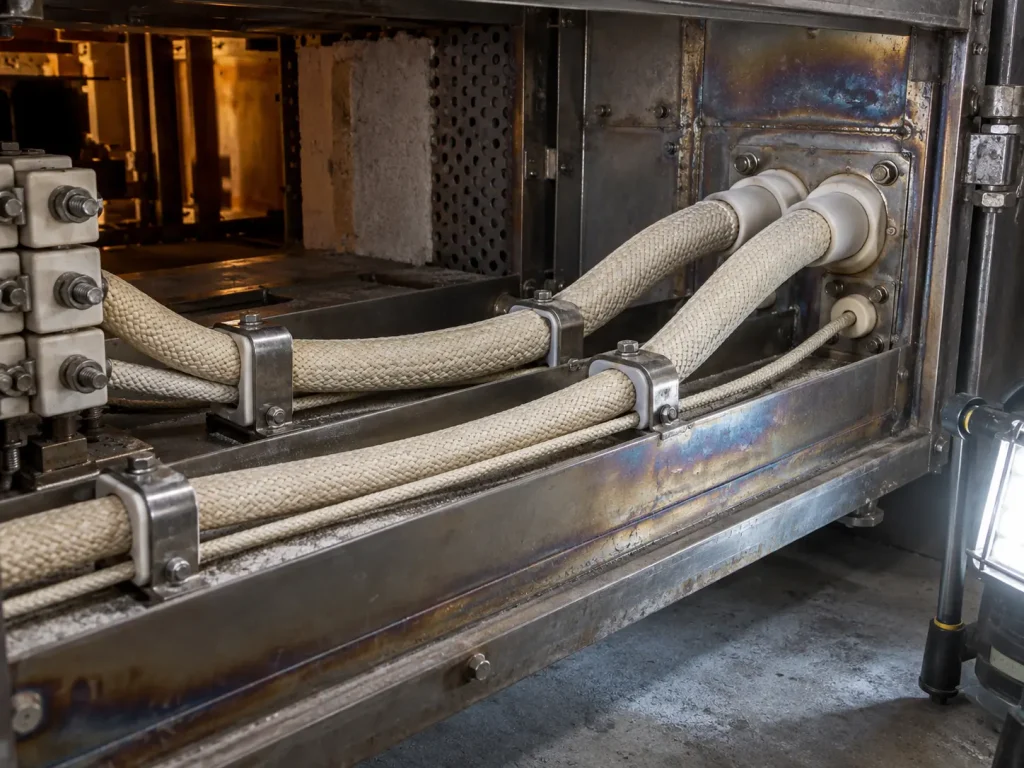

Internal wire routing in extreme thermal environments

Buyer Checklist for Quotation

To quote correctly, buyers usually provide conductor size, installation condition, package requirement, expected operating temperature, and order quantity. For this type of wire, application detail is especially important because the product is highly specialized.

Selection Notes

If the environment does not require 450°C and 600V performance, other high-temperature styles may be more appropriate. UL5476 is more suitable when the project clearly needs a mica-based construction for a severe internal heat environment with a stronger electrical rating.
