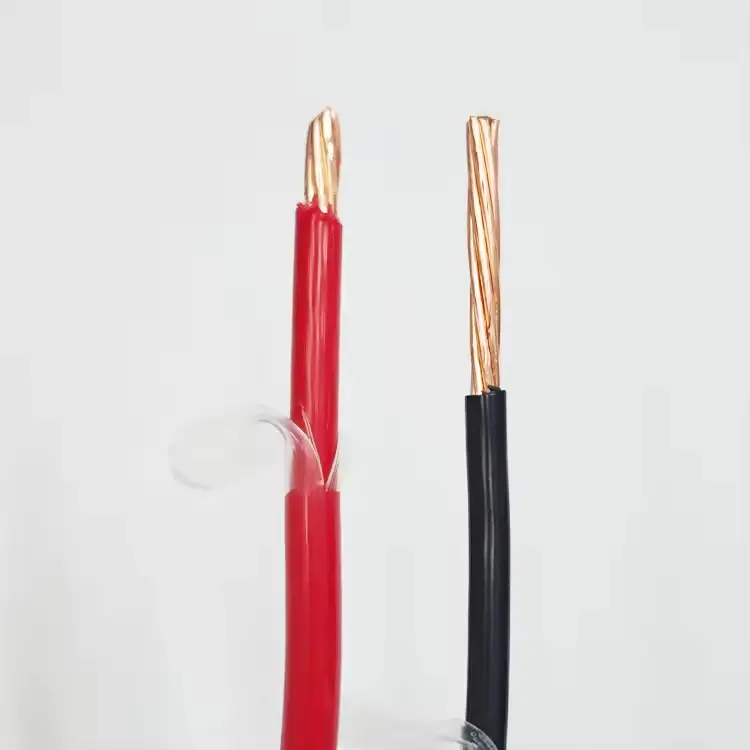

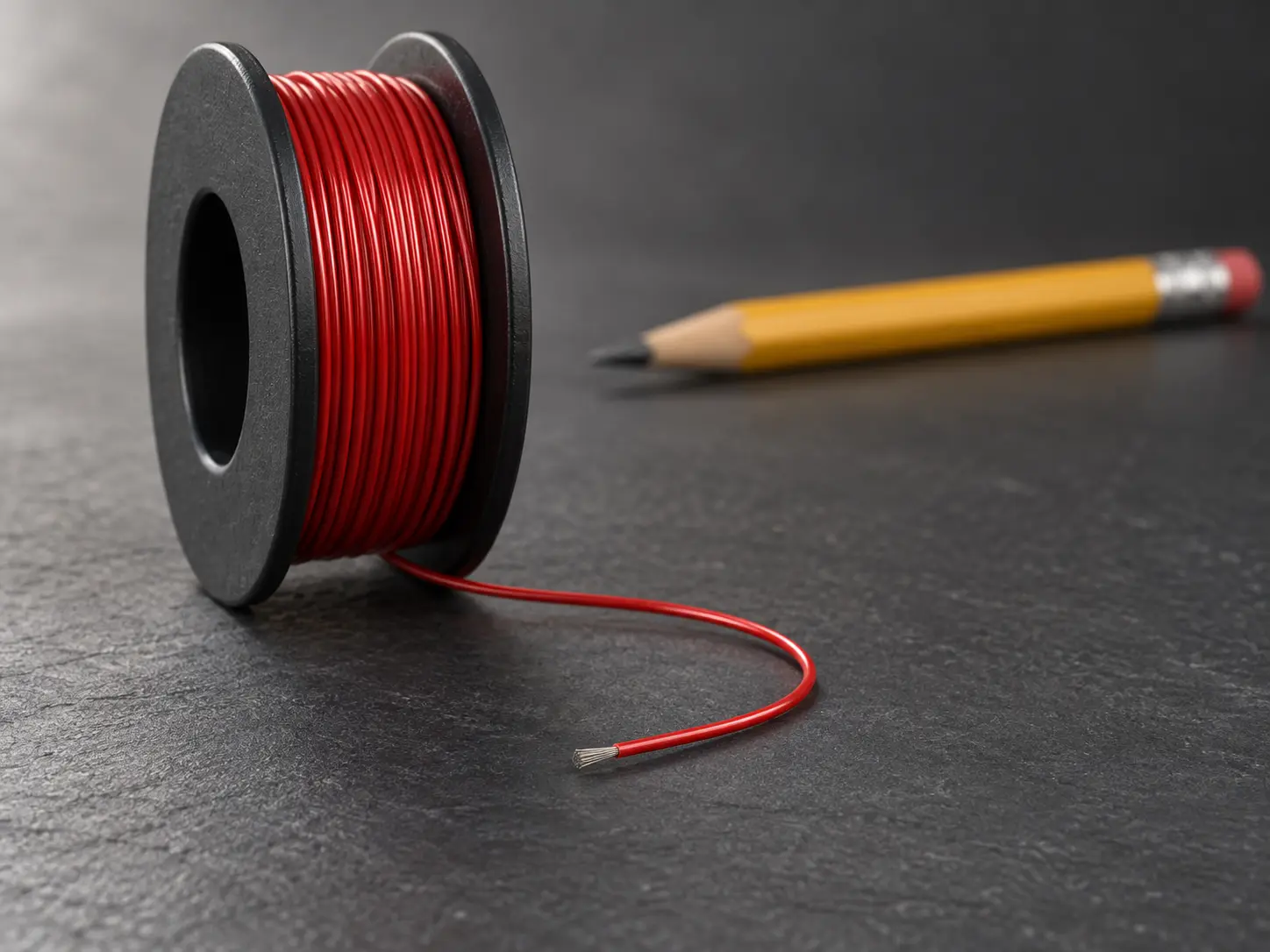

UL 1007 32 AWG Stranded Wire for Saudi Arabia — RoHS and UL Certified
UL 1007 32 AWG is the finest gauge in the UL 1007 AWM standard range — a 0.032 mm² nominal cross-section ultra-fine stranded wire used for signal wiring, sensor connections, and precision instrument internal leads where the smallest possible OD and lowest conductor resistance per unit length at fine gauge are priorities. With a maximum DC resistance of 538 Ω/km and an approximate OD of 1.0 mm, UL 1007 32 AWG is the standard specification for the signal and measurement wiring in analytical instruments, medical devices, and compact consumer electronics where conventional 22–18 AWG wire would consume too much space within the device.
For Saudi Arabia procurement teams, RoHS and REACH compliance is increasingly required for electrical components entering the Kingdom under SASO’s adoption of IEC-aligned environmental and substance restrictions. UL 1007 32 AWG from CableApex is manufactured with lead-free PVC insulation and tin-plated copper conductor — fully compliant with EU RoHS 3 Directive (2015/863/EU), REACH SVHC substance restrictions, and the corresponding SASO environmental material requirements. Full RoHS and REACH compliance documentation, including Declaration of Conformity and material test reports, is supplied with every order.
Product Specifications — UL 1007 32 AWG
| Parameter | Specification |
|---|---|
| UL AWM style | 1007 |
| AWG size | 32 AWG |
| Nominal cross-section | 0.032 mm² |
| Temperature rating | 80°C continuous |
| Voltage rating | 300V AC |

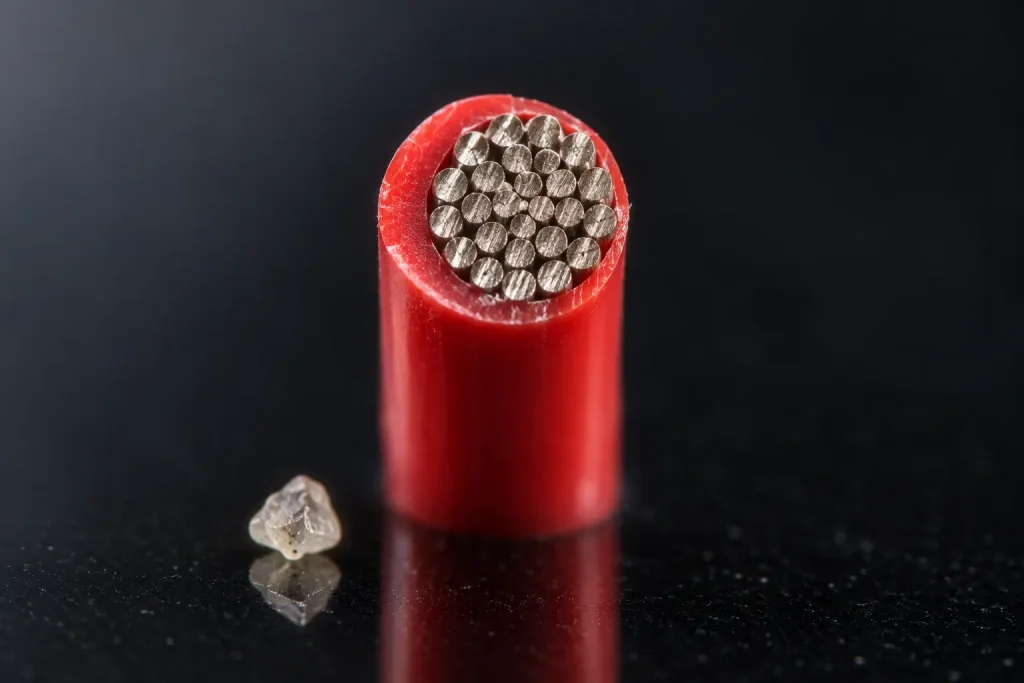

| Conductor | Ultra-fine stranded tinned copper |
| Insulation material | Extruded PVC (lead-free, RoHS compliant) |

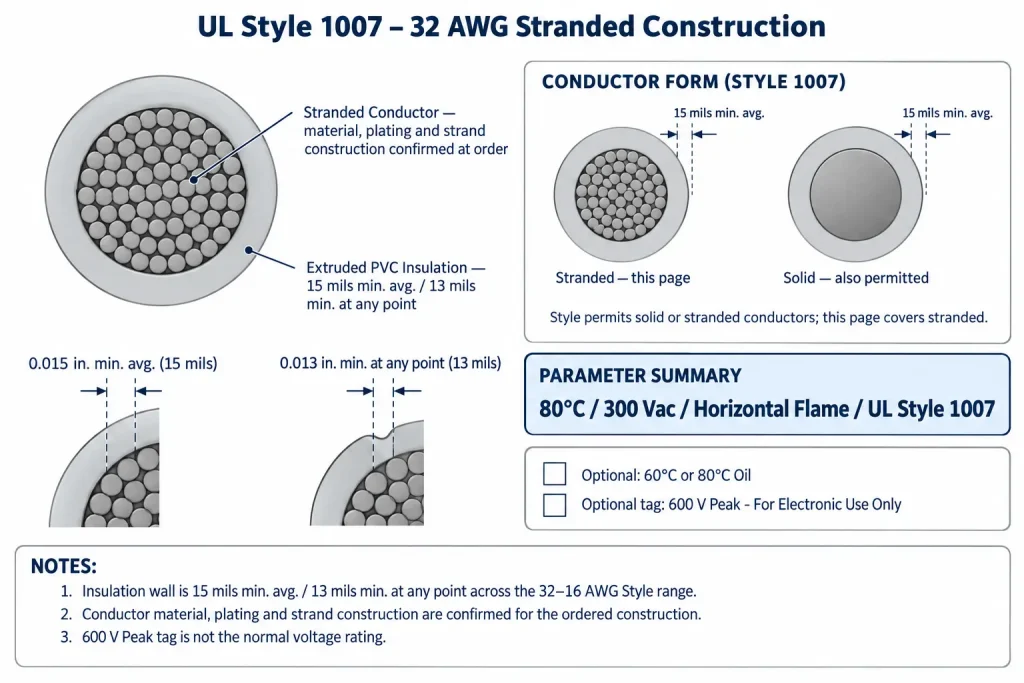

| Min avg insulation thickness | 15 mils (0.38 mm) |
| Approx. OD | 1.0 mm |
| Max DC resistance at 20°C | 538 Ω/km |
| Flame rating | Horizontal flame |
| UL file number | E333030 |
| RoHS compliance | EU RoHS 3 (2015/863/EU) — lead-free PVC insulation |
| REACH compliance | No SVHC substances above 0.1% w/w |
| Colour options | Red, black, white, yellow, blue, green, brown, orange, grey, violet |
| Packaging | 100 m / 200 m / 500 m rolls |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.

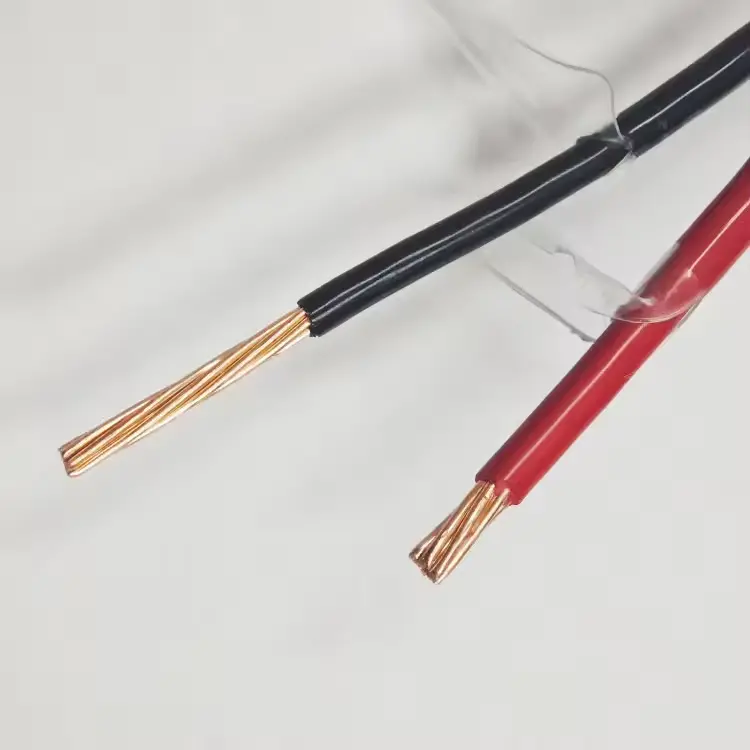

RoHS and UL Certification — Saudi Arabia Requirements
UL certification documentation for Saudi procurement
Saudi importers and equipment manufacturers are increasingly required by international OEM customers and Saudi government tender specifications to provide UL component traceability documentation. CableApex supplies: UL Product iQ listing print referencing Style 1007 and File No. E333030, Production batch records linked to the UL Follow-Up Service programme, and Letter of Conformance confirming the wire was manufactured under the UL-recognised programme. This documentation satisfies standard international procurement qualification requirements for UL-listed component supply.

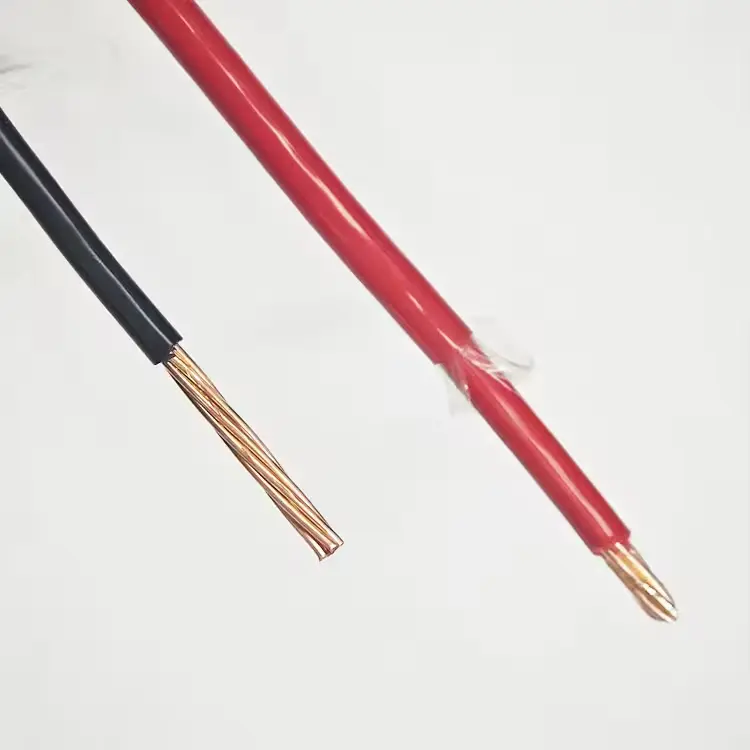

UL 1007 Fine AWG Range Comparison
| AWG | Cross-section | OD (mm) | Max resistance (Ω/km) | Typical application |
|---|---|---|---|---|
| 32 AWG | 0.032 mm² | 1.0 | 538 | Ultra-compact instruments, sensor signal leads |
| 30 AWG | 0.051 mm² | 1.1 | 339 | Compact electronics, precision instruments |
| 28 AWG | 0.081 mm² | 1.2 | 213 | High-density harnesses, PCB connections |
| 26 AWG | 0.128 mm² | 1.4 | 134 | Signal wiring, sensor leads |
| 24 AWG | 0.205 mm² | 1.6 | 84.2 | Control board wiring, standard harnesses |
Common Applications in Saudi Arabia

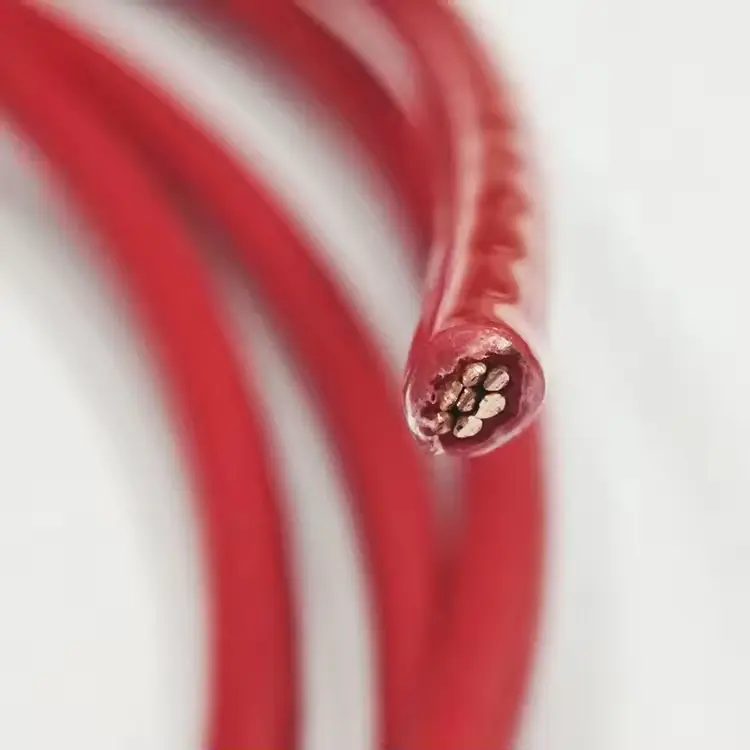

Precision instruments and analytical equipment
UL 1007 32 AWG is the standard wire specification for internal signal and measurement circuit connections in precision analytical instruments, gas detection equipment, and industrial measurement devices used in Saudi Arabia’s petrochemical, oil and gas, and quality control laboratory sectors. The ultra-fine gauge minimises OD and weight within the instrument while the UL 1007 recognition satisfies the internal wiring specification requirements of the instrument equipment standards.
Medical device wiring harnesses
Saudi Arabia’s healthcare sector expansion — including the development of NEOM’s healthcare city and the national hospital building programme — drives demand for medical device components including UL-certified fine-gauge wire for patient monitoring equipment, diagnostic instruments, and medical imaging system wiring harnesses. UL 1007 32 AWG with RoHS compliance satisfies the wire specification requirements for medical device internal wiring under IEC 60601 standards.

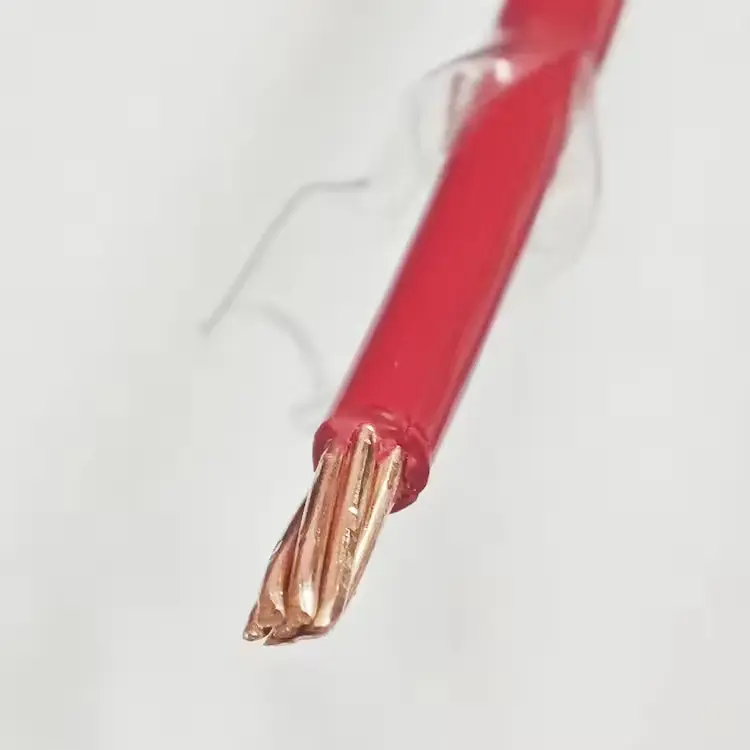

Compact consumer electronics assembly
Saudi Arabia’s electronics assembly and repair sector — concentrated in Riyadh and Jeddah — uses fine-gauge UL 1007 wire for repair wiring in consumer electronics, replacement harness assemblies in compact devices, and prototype wiring for locally developed electronics products targeting the GCC market.
Other applications
- Wearable technology and IoT device harness wiring
- Telecommunications equipment fine signal connections
- Automotive electronics fine wiring harnesses
- Research and development prototype wiring
Ordering Information
Standard order: 32 AWG, specify insulation colour(s), reel length (100 m / 200 m / 500 m), and total quantity. MOQ 500 m per colour. Full RoHS Declaration of Conformity, REACH SVHC Declaration, and material test reports supplied with shipment. Sample orders from 10 m for incoming quality inspection and prototype use.
Request CIF Jeddah pricing with RoHS documentation. Provide colour specification, quantity, and destination port. We respond within 24 hours. Contact us.
Why CableApex for Saudi Arabia RoHS-Certified Wire
CableApex manufactures UL 1007 32 AWG wire under UL Follow-Up Service (File No. E333030) with lead-free RoHS 3 compliant PVC insulation. Our production QC includes 100% spark testing, conductor resistance measurement, and periodic material testing for restricted substances. We supply directly to Saudi Arabia with full export documentation, RoHS compliance certificates, and transit times of 18–22 days to Jeddah. Contact us for CIF Jeddah pricing and compliance documentation within 24 hours.
