What Is a Semi-Conductive Layer, and Why Does UL 3271 Offer It?

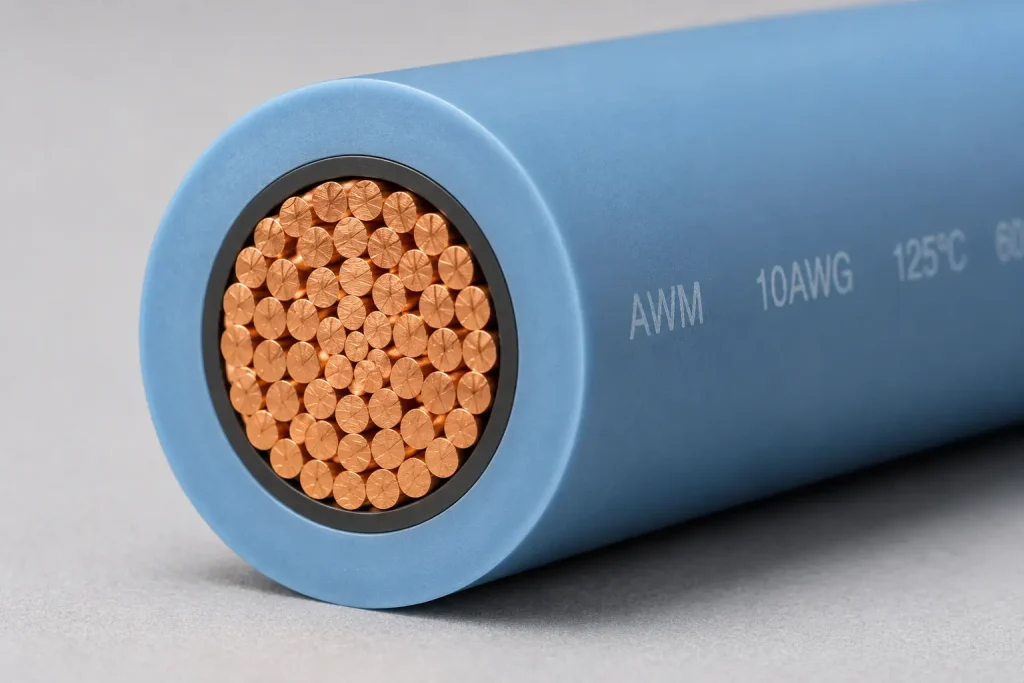

The semi-conductive layer is a thin polymeric layer applied directly over the conductor, between the bare copper strands and the XLPE insulation. The material is neither a conductor (like copper) nor an insulator (like XLPE) — it has a controlled, intermediate electrical resistivity. Among the 26 AWM Styles produced by CableApex under UL File No. E333030, only UL 3271 includes this construction option in its UL listing. Other XLPE Styles (UL 3266, UL 3321, UL 3666) do not offer it, and PVC, FEP, PTFE, silicone rubber, and mica-based Styles cannot accommodate it within their listing scope.
For German engineers searching UL 3271 semi-conductive XLPE wire Germany, this Style-specific feature is the reason UL 3271 is specified for inverter-fed motors and high-voltage motor applications where standard XLPE insulation alone is insufficient. The physics behind this matters.
The Electric Field Problem at a Stranded Conductor Surface
A stranded copper conductor is not a smooth cylindrical surface — it consists of multiple individual wire strands twisted together. When the conductor is energized, the electric field is not uniform around the conductor. The field concentrates at the points where strands touch (creating local field maxima at the strand peaks) and weakens in the gaps between strands (creating local field minima). At low voltages with smooth AC waveforms (50/60 Hz sine wave), this non-uniformity is not problematic. At high voltages or with non-sinusoidal waveforms, it becomes a primary failure mechanism.
In the field maxima zones — the strand peaks — air or void spaces between the conductor and the insulation experience much higher voltage stress per unit distance than the bulk insulation. If the field stress exceeds the breakdown threshold of these microscopic air gaps, partial discharge occurs: small electrical discharges within the void spaces. Each discharge slowly degrades the surrounding XLPE insulation through chemical attack, eroding the insulation over months or years until catastrophic failure.
The semi-conductive layer solves this by providing a continuous conductive surface around the conductor strands. The layer fills the gaps between strands, eliminating air voids, and presents a smooth equipotential surface to the XLPE insulation. The electric field at the insulation interface becomes uniform and circumferential, with no field concentration zones.

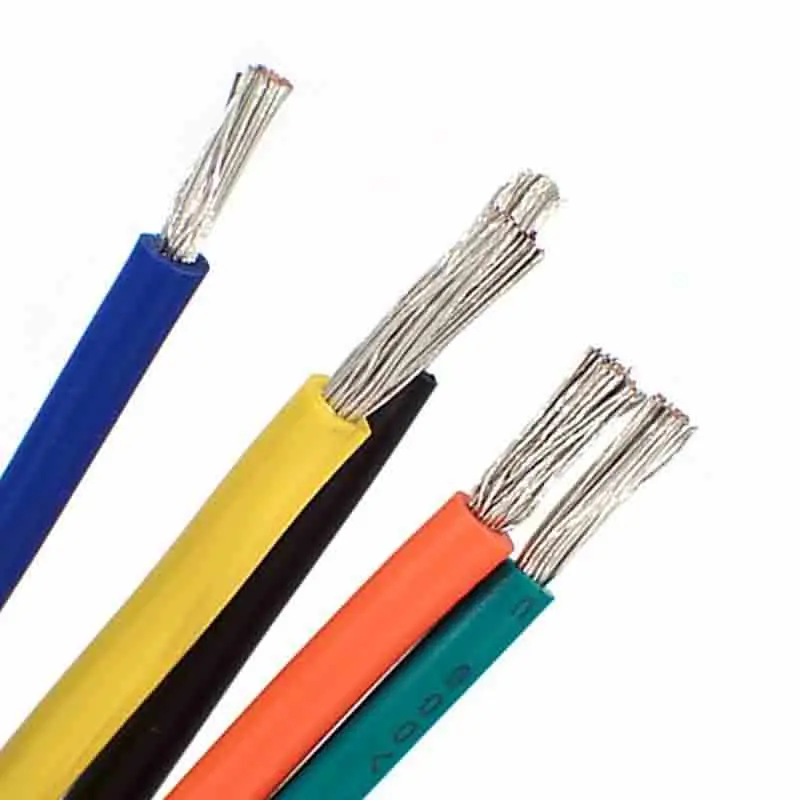

Why VFD-Fed Motors Need Stress Control That Standard Motors Don’t
The semi-conductive layer is not strictly required for direct-line motors operating at industrial voltages. A 480V three-phase motor connected directly to the utility supply experiences smooth 60 Hz sinusoidal voltage with peak voltages near 680V. UL 3271 standard XLPE insulation handles this with comfortable margin.
Variable-frequency drives (VFDs) change this picture entirely. VFDs synthesize variable-frequency motor voltage from a DC bus using high-speed PWM (pulse-width modulation) switching at 2-16 kHz. Each PWM transition is a step function with rise time of 50-200 nanoseconds, and the resulting voltage at the motor terminals is not a clean sine wave but a series of high-frequency steps. Three things happen at the motor cable end:
- Voltage overshoot. Reflections at the motor terminal due to impedance mismatch can push peak voltage to 2-3x the DC bus voltage. For a 480V VFD with 680V DC bus, the motor terminal can briefly see 1,400-2,000V transients.
- High dV/dt stress. The fast rise time creates voltage gradients of 5-20 kV/μs across the insulation, which is many times higher than the gradient experienced by direct-line 60 Hz motors.
- Repetitive partial discharge initiation. The combination of voltage overshoot and high dV/dt activates partial discharge in any voids at the conductor-insulation interface — and these discharges repeat at the PWM frequency (thousands of times per second).
This is the failure mechanism that the semi-conductive layer prevents. By eliminating the air voids at the conductor surface, the layer eliminates the partial discharge initiation site, even under VFD-induced voltage stress.
Who Specifies UL 3271 Semi-Conductive Construction?
NEMA MG-1 Part 31 Definite-Purpose Inverter-Fed Motors

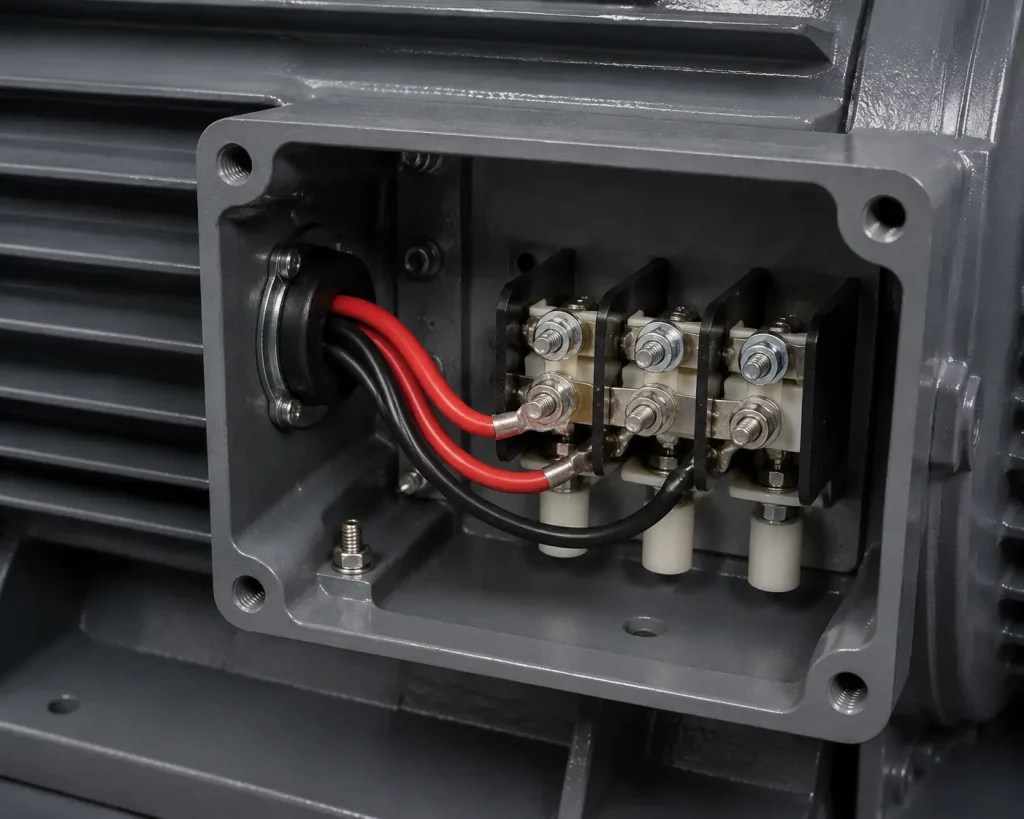

NEMA MG-1 Part 31 governs motors specifically designed and rated for inverter-fed operation. These motors are required to use insulation systems compatible with the partial discharge environment created by VFDs. UL 3271 with semi-conductive layer satisfies this requirement on the motor lead portion of the insulation system. German motor manufacturers building NEMA Premium inverter-rated motors for the US market typically specify UL 3271 with semi-conductive layer for the lead exit from the motor housing.
Servo Motors with Regenerative Drives
German servo motor manufacturers producing precision servo motors for US machine tool, robotics, and packaging applications use UL 3271 with semi-conductive layer for motor leads on regenerative-capable servo drives. Regenerative drives generate higher transient voltages on the motor leads during deceleration cycles, intensifying the dV/dt stress that the semi-conductive layer mitigates.
Industrial AC Motors above 480V Supply
For industrial motors operating on 600V three-phase or higher supply (more common in Canadian industrial facilities than in US 480V plants), the steady-state voltage stress alone — without VFD effects — is high enough to justify the semi-conductive layer. UL 3271’s 600V AC continuous rating with semi-conductive construction provides margin for these higher-voltage applications.

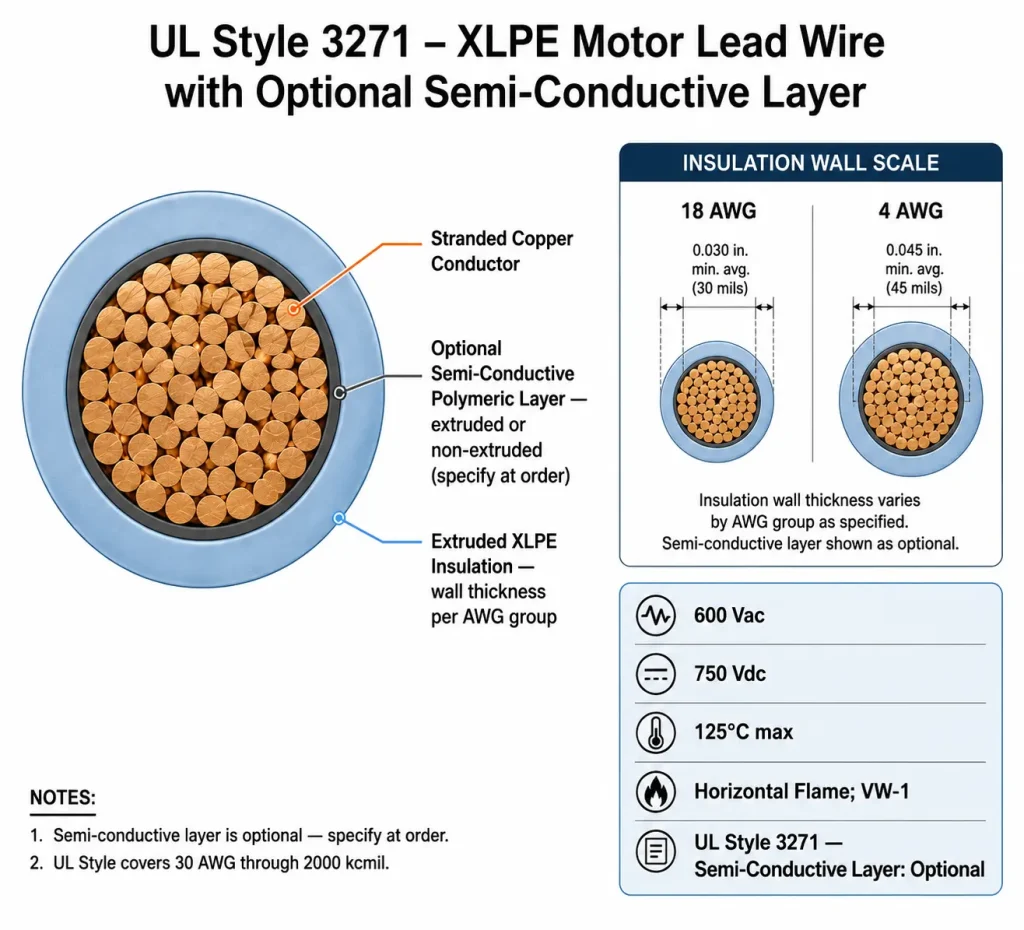

UL 3271 Semi-Conductive XLPE Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 3271 |
| UL File Number | E333030 (Follow-Up Service) |
| UL Designated Use | Motor Leads or Internal Wiring of appliances |
| AWG Range | 30 AWG – 2000 kcmil, solid or stranded |
| Voltage Rating | 600V AC / 750V DC (2,500V peak — for electronic use only, when tag indicates) |
| Temperature Rating | 125°C |
| Insulation | Extruded XLPE (cross-linked polyethylene) |
| Insulation Wall (30-9 AWG) | 30 mils (0.76 mm) min avg / 27 mils (0.69 mm) min at any point |
| Insulation Wall (8-2 AWG) | 45 mils (1.14 mm) min avg / 40 mils (1.02 mm) min at any point |
| Insulation Wall (1-4/0 AWG) | 55 mils (1.40 mm) min avg / 50 mils (1.27 mm) min at any point |
| Insulation Wall (213-500 kcmil) | 65 mils (1.65 mm) min avg / 58 mils (1.47 mm) min at any point |
| Insulation Wall (501-1000 kcmil) | 80 mils (2.03 mm) min avg / 72 mils (1.83 mm) min at any point |
| Insulation Wall (1001-2000 kcmil) | 95 mils (2.41 mm) min avg / 86 mils (2.18 mm) min at any point |
| Semi-Conductive Layer | Optional, extruded or non-extruded semi-conductive polymeric layer over conductor (this Style only) |
| Insulation Type | Thermoset |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 3271 · AWG · 600V · 125°C · E333030 |
Engineering Notes from CableApex
Three points German motor design engineers ask specifically about UL 3271 with semi-conductive construction:
- “Extruded vs non-extruded semi-conductive layer — which should I specify?” The UL 3271 listing permits both. Extruded semi-conductive layer is applied as a continuous polymer coating during the wire extrusion process — it produces the most uniform layer and is preferred for production-volume motor lead applications. Non-extruded semi-conductive layer is typically a tape wrap applied to the conductor before insulation extrusion — it provides equivalent electrical performance but with slightly higher mechanical handling sensitivity at termination. For most German OEM applications, extruded semi-conductive layer is the default specification; non-extruded is occasionally specified for very large kcmil sizes where extrusion of the semi-conductive layer over the large conductor is impractical.
- “Does the semi-conductive layer affect termination procedures?” Yes, but in a manageable way. When stripping the wire for termination, the semi-conductive layer must be removed cleanly along with the XLPE insulation — leaving any semi-conductive residue on the conductor between the strip point and the termination creates a partial discharge initiation site at the termination, defeating the purpose of the layer. Use stripping tools rated for semi-conductive layer removal (some specialty tools have a separate cutting blade for the semi-conductive layer), or perform a manual cleanup after rough stripping. Standard motor terminal block crimp connectors work normally once the conductor is properly cleaned.
- “Can I add the semi-conductive layer specification mid-production?” No, because the semi-conductive layer changes the wire’s outer diameter slightly and affects the production setup. If a production run is configured for standard UL 3271 (without semi-conductive layer) and you discover later that your application needs the semi-conductive variant, the change requires a new production run with adjusted extrusion parameters. For German OEMs developing new motor designs, decide on the semi-conductive specification before placing the first production order to avoid mid-program revisions.
MOQ, Packaging & Shipping

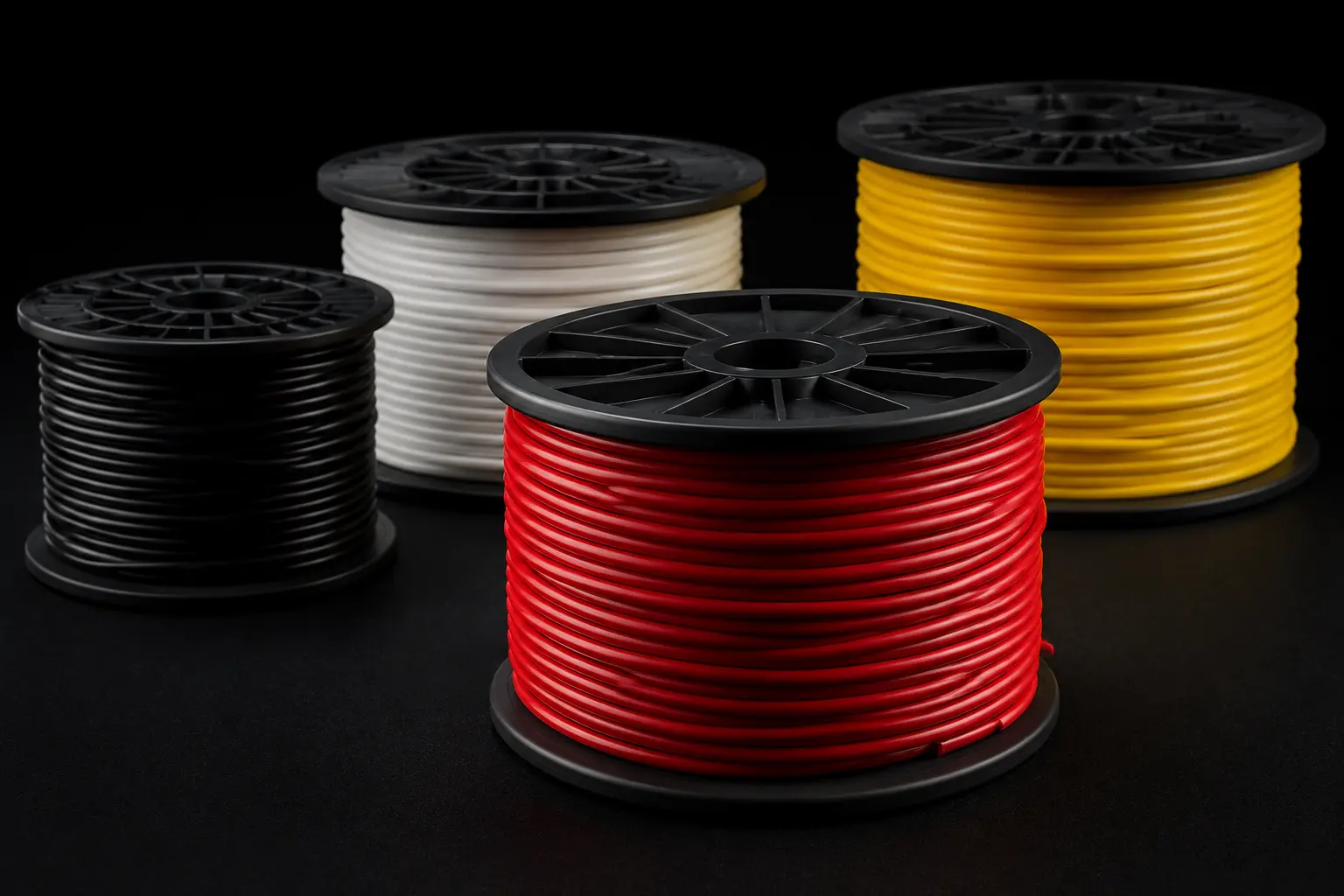

MOQ varies by AWG, color combination, and semi-conductive vs standard configuration — contact us for current MOQ on UL 3271 with semi-conductive layer. Semi-conductive variant production typically has higher MOQ than standard XLPE production due to the additional process step. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles for Motor Lead Applications
UL 3271 semi-conductive buyers commonly cross-reference: UL 3266 (125°C / 300V XLPE without semi-conductive option, 32-10 AWG — for low-voltage motor and internal wiring without VFD partial discharge concerns), UL 1015 (105°C / 600V PVC, 30-2000 kcmil — non-XLPE alternative without semi-conductive option), UL 3071 (200°C / 600V silicone rubber, 18-13 AWG — high-temperature elastomeric motor lead), and UL 1659 (250°C / 600V PTFE, 26-4/0 AWG — extreme-temperature motor lead for high-performance servo motors).
