UL 3271 Semi-Conductive XLPE Wire for Saudi Arabia and Dubai

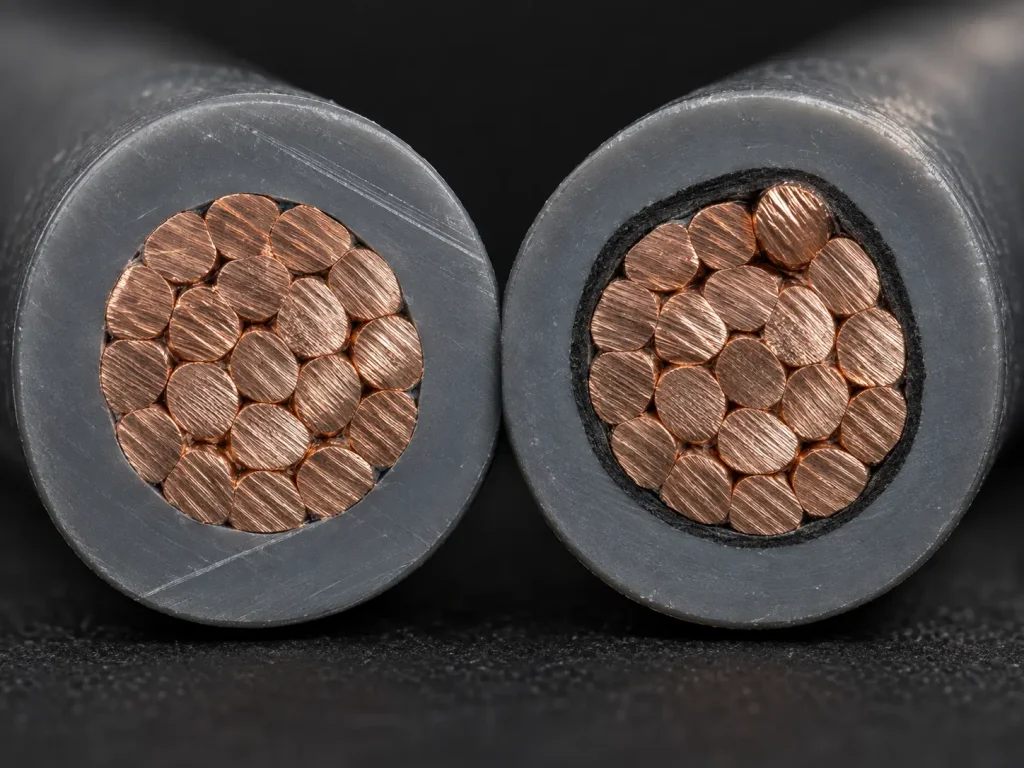

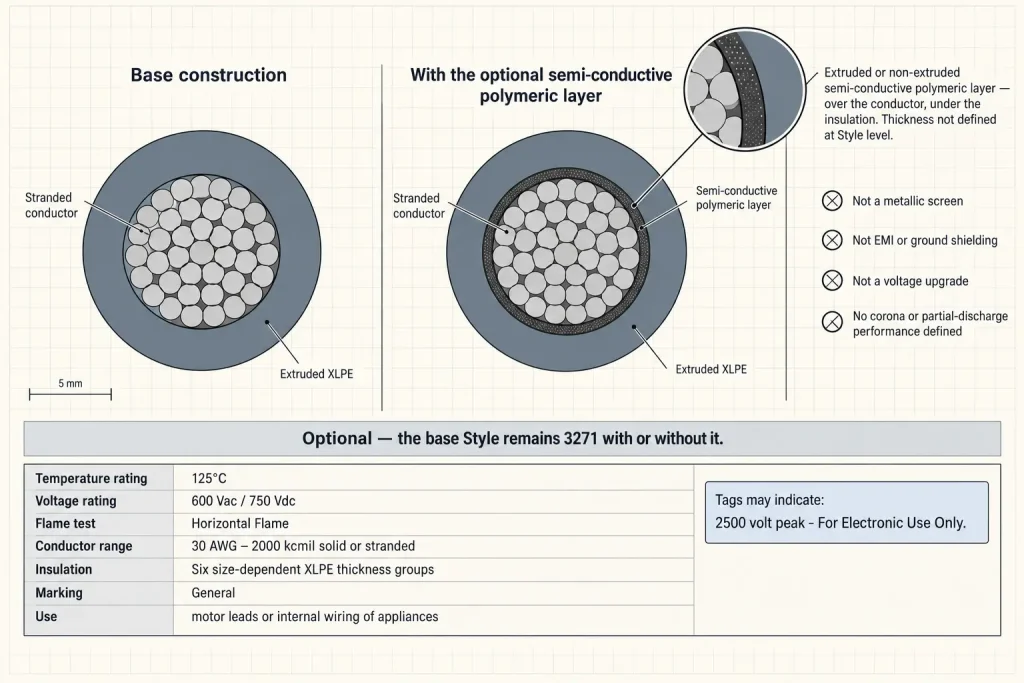

UL 3271 with a semi-conductive inner layer is a specialised construction of the standard UL 3271 XLPE wire where a thin semi-conductive compound is applied between the copper conductor and the main XLPE insulation layer. This semi-conductive layer serves a specific electrical engineering function: it smooths the electric field at the conductor surface, eliminates microscopic air voids at the conductor-insulation interface, and prevents the localised field concentration that causes corona discharge and partial discharge in high-voltage internal wiring applications.
Semi-conductive XLPE construction is specified for internal wiring where the circuit voltage or the current-carrying cross-section reaches levels where corona discharge at the conductor surface would gradually erode the XLPE insulation, shortening the service life of the wire below the expected equipment life. In Saudi Arabia’s petrochemical equipment sector and UAE’s industrial and energy infrastructure, this applies to medium voltage motor leads, high-current transformer internal connections, and specialist power electronic equipment where the combination of high voltage and large conductor cross-section creates the electric field conditions that require semi-conductive screening. CableApex manufactures both standard and semi-conductive UL 3271 XLPE wire under File No. E333030.
Product Specifications — UL 3271 Semi-Conductive
| Parameter | Specification |
|---|---|
| UL AWM style | 3271 |
| Insulation material | Cross-linked polyethylene (XLPE) |
| Semi-conductive layer | Extruded semi-conductive compound — inner (conductor screen) |
| Temperature rating | 90°C continuous |
| Voltage rating | 600V AC (semi-conductive screen extends effective high-voltage performance) |
| Conductor | Stranded copper (tinned or bare) |
| AWG / size range | 14 AWG – 4/0 AWG (semi-conductive variant) |
| Min avg insulation thickness | 30 mils (0.76 mm) XLPE |
| Semi-conductive layer thickness | Typically 0.5–1.0 mm |
| Flame rating | Horizontal flame, VW-1 |
| UL file number | E333030 |
| Compliance | RoHS, REACH |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.
Why Semi-Conductive XLPE for Saudi Arabia and Dubai
Saudi Arabia petrochemical motor and transformer leads
Saudi Aramco and SABIC petrochemical facilities operate process equipment with medium voltage motors (3.3 kV, 6.6 kV, 11 kV) where the motor lead from the cable termination to the motor terminal box requires semi-conductive screened insulation to prevent partial discharge in the high-voltage lead wire. UL 3271 semi-conductive XLPE manufactured under File No. E333030 provides the recognised internal wiring construction for these applications when specified by international equipment standards or Saudi Aramco engineering specifications.
Dubai industrial power equipment
Dubai Industrial City hosts power transformer manufacturers, drive system OEMs, and high-power electrical equipment builders supplying the GCC infrastructure market. Internal wiring of medium voltage transformers, large VFD DC bus connections, and high-power rectifier assemblies in this equipment benefits from semi-conductive XLPE construction to manage field stress at the conductor surface and extend equipment service life in the demanding UAE operating environment.
Riyadh manufacturer procurement
Riyadh-based electrical equipment manufacturers and panel builders supplying Vision 2030 infrastructure projects increasingly specify semi-conductive XLPE wire for high-voltage internal connections in equipment that must meet international standards (IEC 60502, UL standards) required by international EPCs and end users on these projects. CIF Jeddah supply with full UL and compliance documentation satisfies standard procurement qualification requirements for these projects.
Key Features
Semi-conductive construction
- Extruded conductor screen — eliminates air voids at interface
- Smooths electric field at conductor surface
- Prevents corona and partial discharge onset
- Extends service life in high-voltage applications
- Available from 14 AWG to 4/0 AWG
- UL 3271 recognised — File No. E333030
Supply for Saudi Arabia and Dubai
- Factory-direct from Yangzhou, China
- CIF Jeddah (Saudi) / CIF Jebel Ali (Dubai)
- Full UL and compliance documentation
- Arab League CoO available
- MOQ 500 m
- 10–15 working day lead time
Common Applications

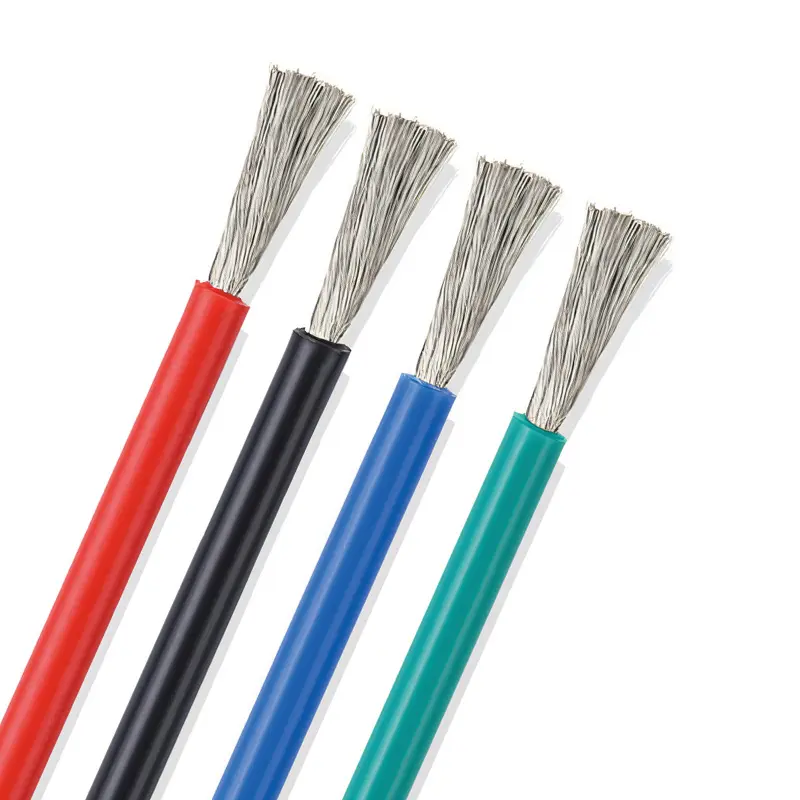

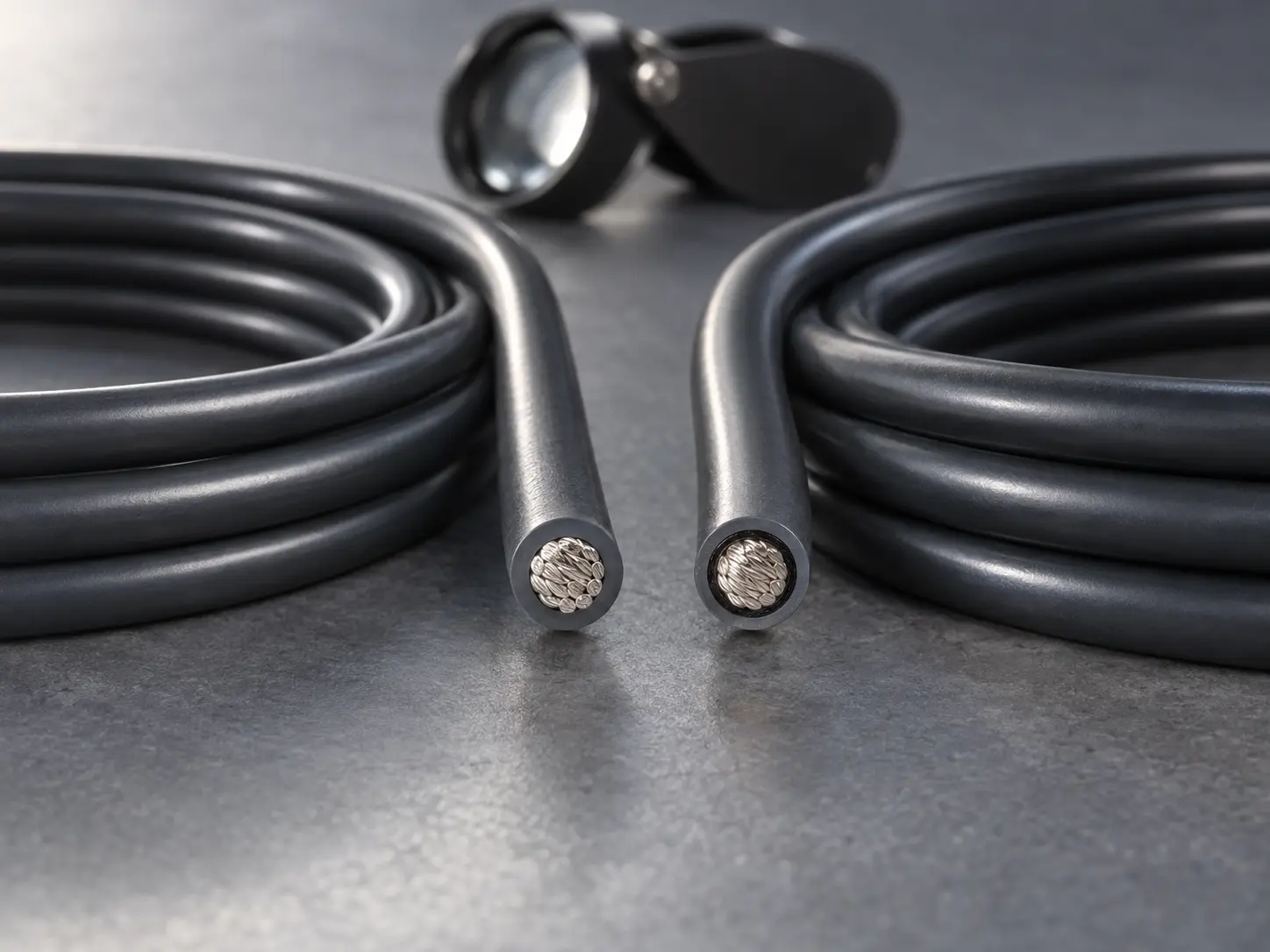

Medium voltage motor leads (Saudi petrochemical)

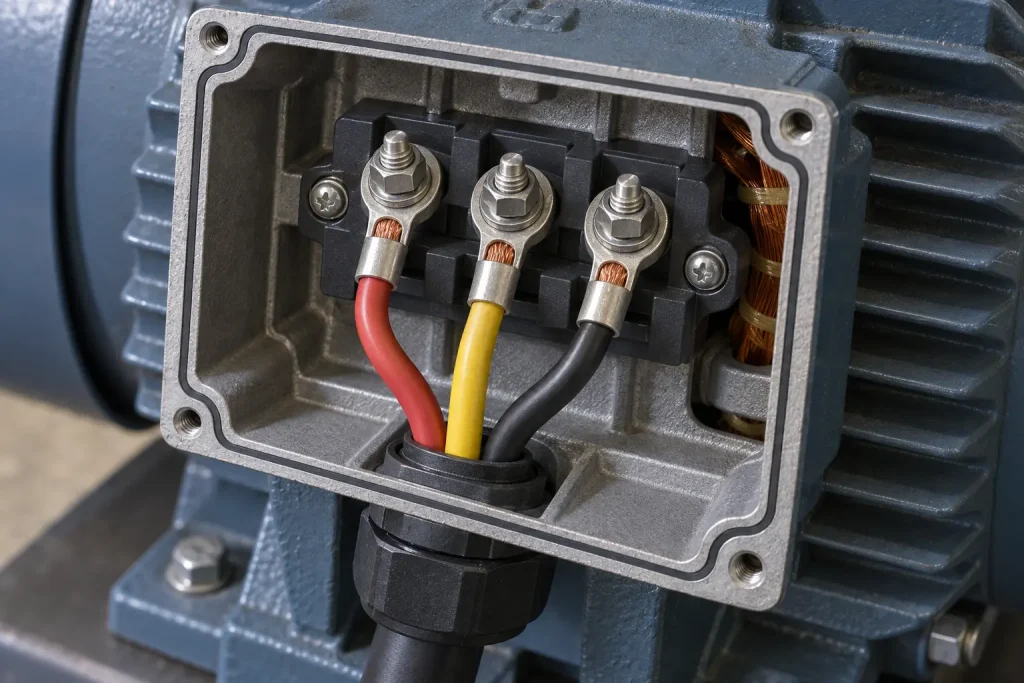

Motor lead connections for 3.3 kV and 6.6 kV motors in Saudi Aramco and SABIC petrochemical facilities — where the lead between the cable joint and the motor terminal box must use semi-conductive screened insulation to satisfy IEC 60502 and Saudi Aramco engineering specifications for medium voltage internal wiring. See also: UL 3271 standard motor lead wire for LV 600V applications.

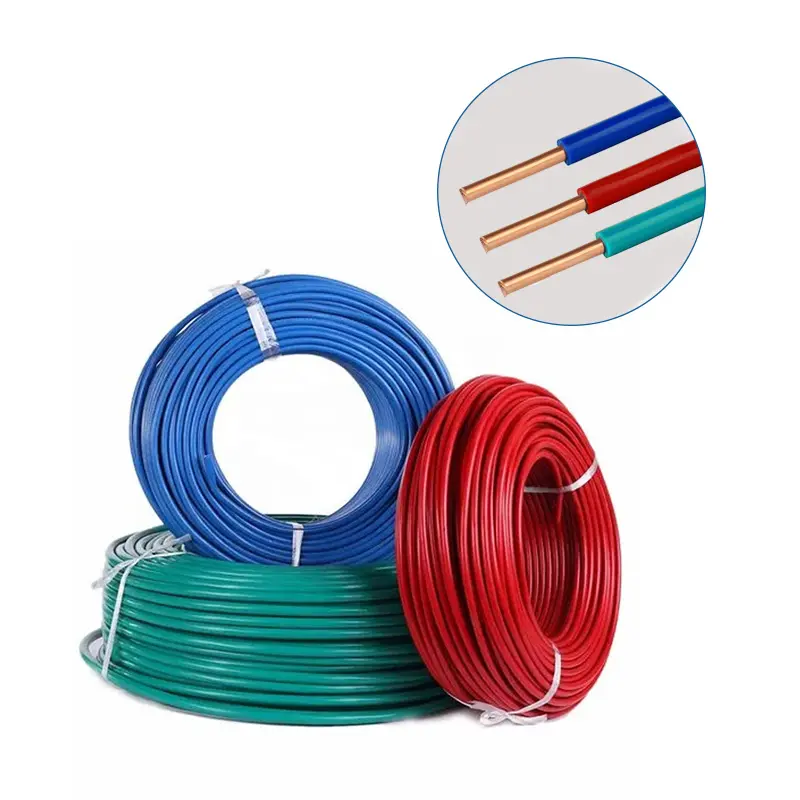

Power transformer internal wiring (Dubai)
Large cross-section internal connections in medium voltage distribution transformers manufactured in Dubai Industrial City for the GCC market — where the conductor cross-section and operating voltage combine to create field stress levels that require semi-conductive screening.
High-power VFD and drive internal connections
DC bus and output connections inside high-power VFDs and motor drives where switching frequency and voltage levels create conditions for partial discharge at unscreened conductor surfaces. Semi-conductive UL 3271 provides the internal wiring construction that prevents this failure mode in high-power drive assemblies supplied to Saudi and UAE industrial projects.
Other applications
- High-current rectifier assembly internal connections
- MV switchgear internal bus connections
- Offshore and subsea power equipment internal wiring
- Wind turbine generator internal connections for UAE renewable energy projects
Ordering Information
Specify AWG, semi-conductive layer (inner screen), conductor type, and quantity. MOQ 500 m. UL 3271 compliance documentation, RoHS and REACH Declarations supplied. Arab League CoO on request. Sample from 10 m for incoming inspection.
Request CIF Jeddah or Jebel Ali pricing for semi-conductive UL 3271. Provide AWG, quantity, and destination port. We respond within 24 hours. Contact us.
Why CableApex for Saudi Arabia and Dubai
CableApex manufactures UL 3271 XLPE wire — both standard and semi-conductive variants — under UL Follow-Up Service (File No. E333030) in Yangzhou. 100% spark testing and conductor resistance verification. Direct export to Saudi Arabia (18–22 days to Jeddah) and Dubai (16–20 days to Jebel Ali). Complete UL and compliance documentation for Saudi Aramco, SABIC, and Vision 2030 procurement qualification. Contact us within 24 hours.
