UL 1332 FEP Wire — 200°C 300V High-Temperature Hook-Up with Gasoline Resistance Option for Germany

FEP — The Practical Fluoropolymer for 200°C Applications

FEP (Fluorinated Ethylene Propylene) is one of the most useful insulation materials in the UL Recognized AWM family because it delivers most of the chemical and thermal performance of PTFE at a meaningfully lower production cost. German engineers searching UL 1332 FEP 200C Hochtemperatur Draht Germany are typically choosing between PTFE Styles (UL 1659 at 250°C) and FEP Styles (UL 1332 at 200°C) — and the choice usually comes down to whether the application actually requires the additional 50°C of temperature headroom that PTFE provides.

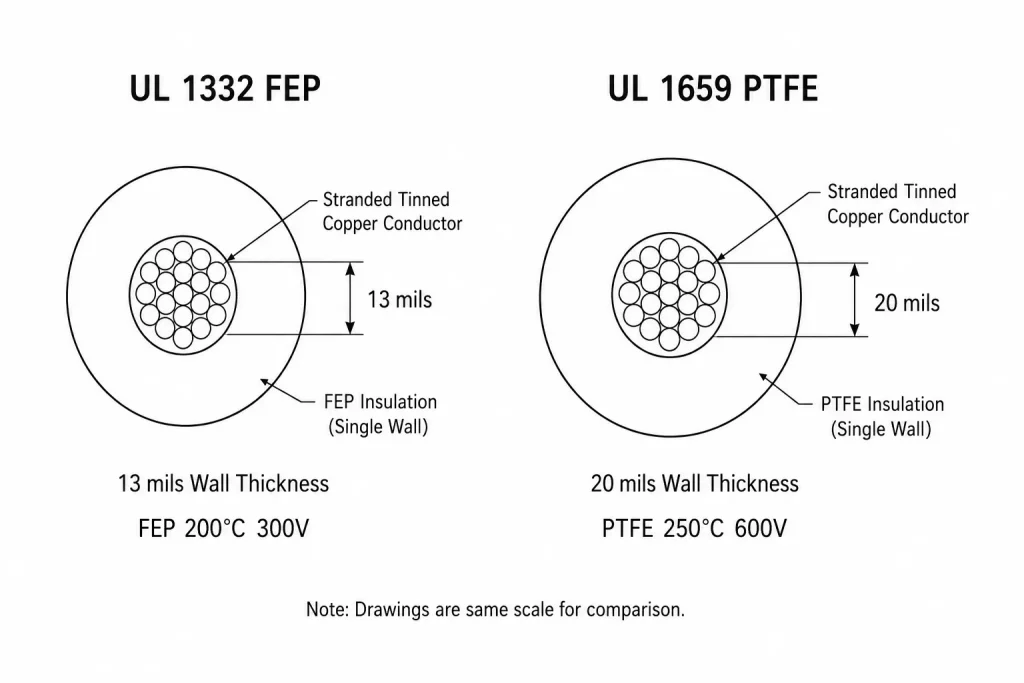

The fundamental difference between FEP and PTFE is processing:

• PTFE cannot be melt-extruded. It must be processed by paste extrusion (mixing PTFE powder with a lubricant, extruding, then sintering at high temperature) or by sintered tape wrapping. These processes are slow, equipment-intensive, and expensive.

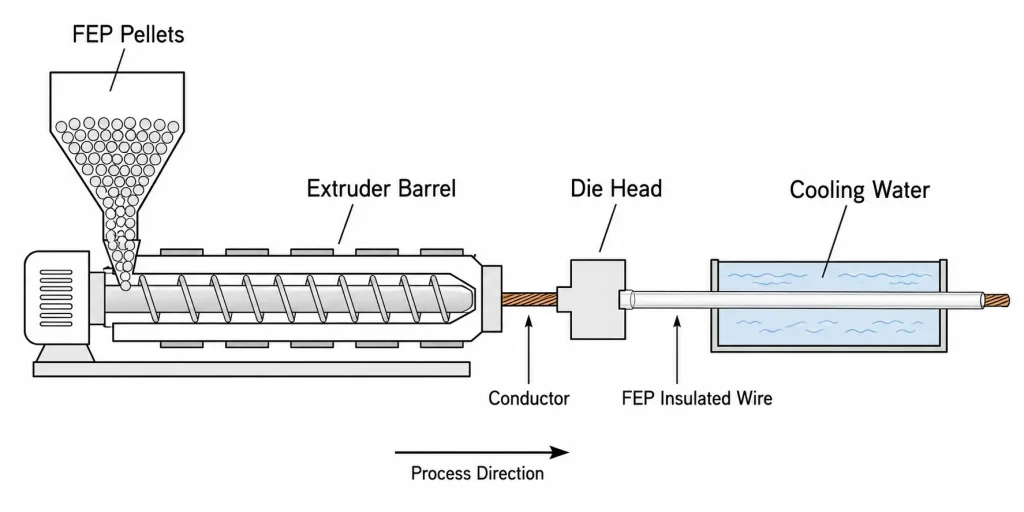

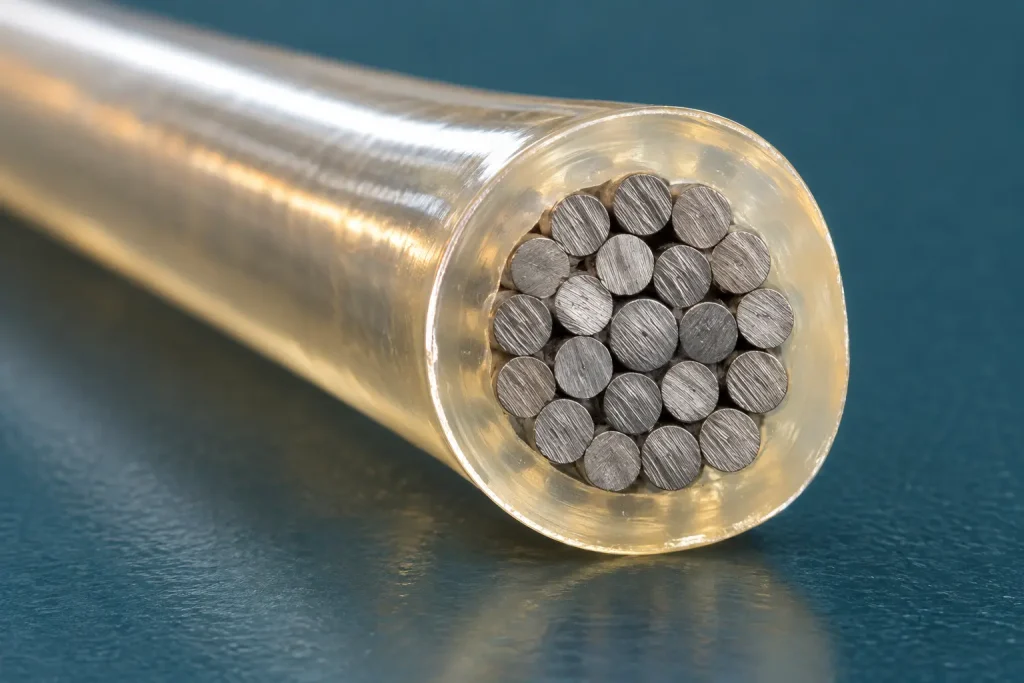

• FEP can be melt-extruded directly, like PVC or polyethylene. The processing is faster, the equipment is more conventional, and the production cost per meter is significantly lower than PTFE while still delivering fluoropolymer-grade chemical and electrical properties.

For applications where 200°C continuous service is sufficient and the 250°C of PTFE is overkill, UL 1332 FEP delivers the right combination of performance and cost. CableApex produces UL 1332 alongside UL 1659 PTFE under the same UL File No. E333030, allowing engineers to specify either Style as fits the application requirement.

The 300V Voltage Limitation — When It Matters

One important distinction within the fluoropolymer Styles family: UL 1332 is rated 300V AC continuous (with 600V peak for electronic use only), while UL 1659 PTFE is rated 600V AC continuous. This 300V/600V split is a meaningful application boundary:

• UL 1332 (300V) is correct for: low-voltage internal wiring of appliances, signal and control circuits, instrumentation cables, sensor leads, and electronic equipment internal wiring where the operating voltage stays at 24V, 120V, or 240V residential/commercial single-phase supply.
• UL 1659 (600V) is correct for: 480V three-phase industrial supply, motor leads operating at 480V, and any application where the continuous operating voltage exceeds 300V.

For most appliance internal wiring where the dominant voltage class is 120V or 240V North American residential/light commercial supply, UL 1332’s 300V rating is sufficient — and the cost savings versus PTFE make it the practical choice. The “600V peak — for electronic use only” tag designation extends UL 1332’s applicability into electronic equipment with transient voltages between 300V and 600V (typical of switching power supplies, control circuits with inductive loads, and similar electronic applications).

Optional Constructions That Make UL 1332 Unique

UL 1332 listing under UL Subject 758 includes several optional construction features that create a versatile product family from a single Style number:

Optional FEP Outer Covering (2 mils minimum)

An additional FEP layer over the primary FEP insulation provides extra dielectric margin and mechanical robustness. This is specified for applications where the wire is routed through tight spaces with potential abrasion, or where the application demands extra-clean dielectric performance.

Optional Glass Braid Covering (7 mils minimum)

A glass braid over the FEP insulation provides mechanical abrasion protection and slight additional thermal margin. This construction is similar in concept to the silicone+braid construction of UL 3071, but using FEP as the underlying insulation gives chemical resistance that silicone cannot match.

Optional Oil Resistance (80°C)

The base FEP material is inherently chemically resistant, but the UL 1332 listing includes an explicit “Oil Resistant 80°C” optional rating that adds tag designation when sustained oil contact at elevated temperature is part of the application environment.

Optional Gasoline Resistance — Distinctive UL 1332 Feature

This is unusual in the AWM family. UL 1332 explicitly includes “Gasoline Resistant” as an optional rating, and the listing language permits tag indication that the wire is “Suitable for immersion in gasoline; gasoline vapor”. This makes UL 1332 specifically applicable to fuel system internal wiring — fuel pumps, fuel level senders, fuel injection systems, and similar applications where the wire is in direct contact with liquid gasoline or gasoline vapor.

Where UL 1332 Fits in German Industrial Applications

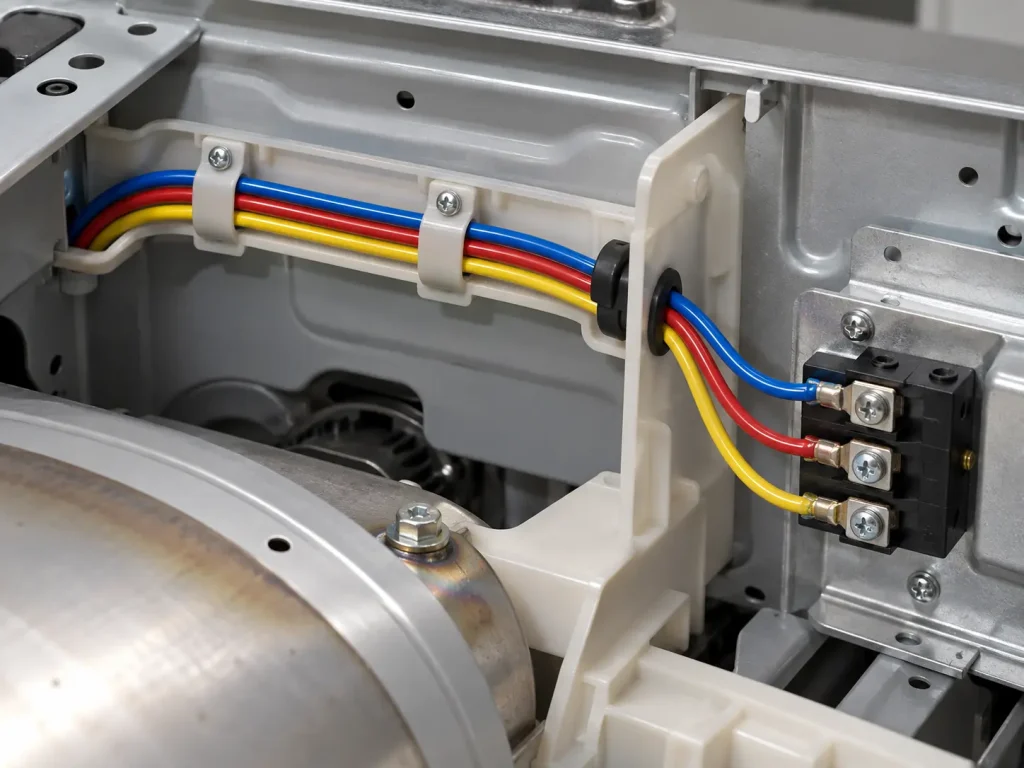

Appliance Internal Wiring at 200°C

German appliance manufacturers producing high-temperature small appliances for North American distribution — heated tools, professional hair styling equipment, food preparation equipment with sustained heat — use UL 1332 for internal wiring where 200°C is reached but voltage stays at 120V/240V residential supply. UL 1332 provides the temperature rating without the cost of UL 1659 PTFE.

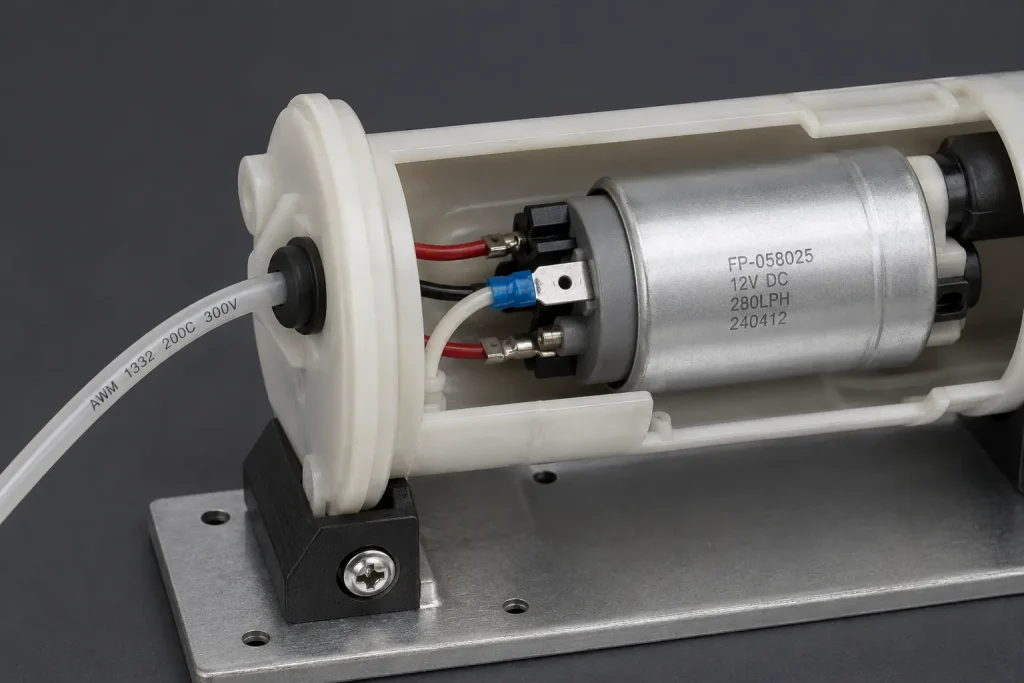

Fuel System Internal Wiring (Gasoline Resistant Variant)

German automotive aftermarket and small engine equipment manufacturers producing fuel system components for North American distribution use UL 1332 with gasoline resistance designation for fuel pump internal wiring, fuel level sensor connections, and similar applications inside the fuel system envelope. The combination of FEP chemical resistance and explicit UL gasoline resistance designation makes this Style the appropriate choice for fuel system component internal wiring.

Electronic Equipment with High-Temperature Components

German electronics manufacturers producing equipment with internal heating elements, high-power LEDs, RF amplifiers, or other components creating localized 150-200°C zones use UL 1332 for wiring within these elevated-temperature regions. The 600V peak rating for electronic use accommodates switching transients in modern electronic equipment.

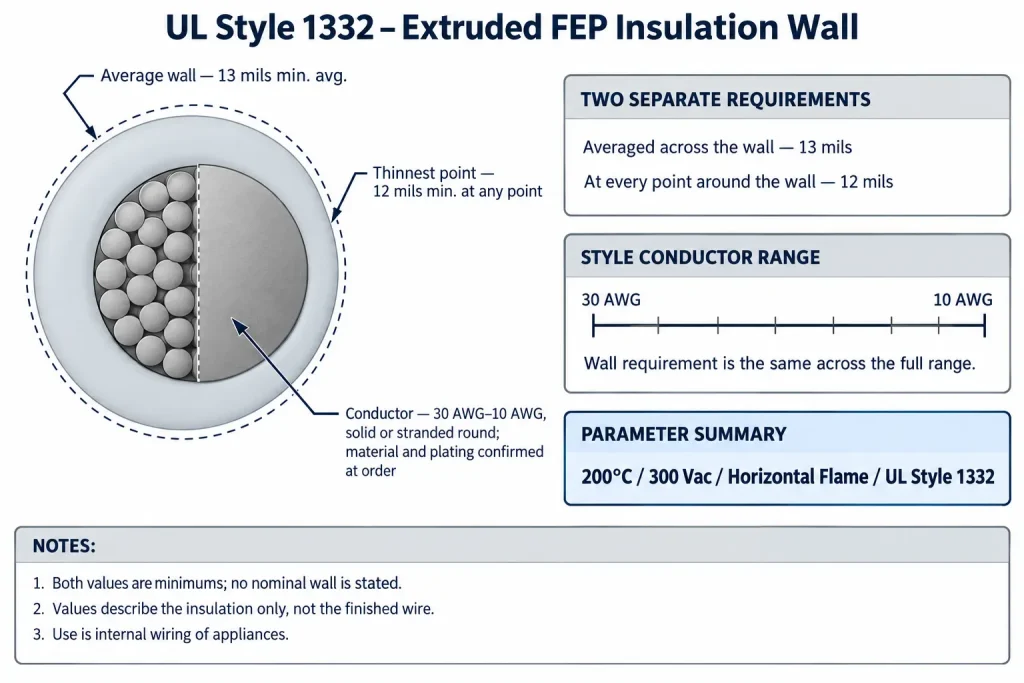

UL 1332 Specifications

Engineering Notes from CableApex

Three points German engineers raise about UL 1332 FEP:

1. “How does UL 1332 FEP price compare to UL 1659 PTFE for the same gauge?” UL 1332 FEP is typically 40-60% lower per-meter cost than UL 1659 PTFE at equivalent AWG. The savings come from FEP’s faster melt-extrusion process versus PTFE’s slower paste-extrusion or sintering process. For applications where 200°C continuous and 300V continuous are sufficient, UL 1332 delivers fluoropolymer-grade chemical and electrical performance at PVC-class cost economics. The cost gap is one of the strongest reasons to specify FEP over PTFE when the application allows.
2. “For gasoline-resistant applications, what’s the difference between specifying UL 1332 with gasoline resistance vs UL 1659 PTFE?” Both fluoropolymers resist gasoline well in ambient conditions. UL 1332 carries an explicit “Gasoline Resistant” tag designation that provides regulatory clarity in fuel system applications — meaning the wire itself is UL-recognized as appropriate for gasoline immersion. UL 1659 has the chemical resistance but does not carry the explicit gasoline-resistance tag. For UL component listing of fuel system equipment, UL 1332 with gasoline resistance designation is the safer specification because it provides explicit UL recognition of the use case.
3. “Is FEP harder to terminate than PTFE or PVC?” FEP termination is similar to PTFE — the material is chemically inert, which makes it slippery and difficult to bond with adhesives or heat-shrink tubing. Crimp terminations work normally with appropriate crimp barrel sizing for the wire’s outer diameter. Soldered terminations require the same considerations as PTFE: high-temperature solder for the joint, since the wire’s 200°C rating can be wasted if the termination melts at lower temperature. Heat shrink will not bond to FEP — use mechanical compression connectors or specialty FEP-bondable shrink tubing if heat shrink is required.

MOQ, Packaging & Shipping

MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on UL 1332. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.

Related UL Styles for High-Temperature and Chemical-Resistant Applications

UL 1332 FEP buyers commonly cross-reference: UL 1659 (250°C / 600V PTFE, 26-4/0 AWG — higher temperature and higher voltage fluoropolymer at 60-100% premium over UL 1332), UL 10362 (250°C / 600V PFA, 30-4/0 AWG — alternative fluoropolymer at the higher temperature/voltage class), UL 3071 (200°C / 600V silicone rubber, 18-13 AWG — non-fluoropolymer alternative at same temperature with higher voltage rating), and UL 1015 (105°C / 600V PVC, 30-2000 kcmil — PVC alternative for applications below 105°C).
