Why Gas Ignition Systems Need 10,000V Wire

Standard hook-up wire operates at 300V, 600V, or 1000V. UL 3304 jumps to 10,000V AC continuous — a fundamentally different voltage class. German engineers searching UL 3304 10000V Silikon Draht kaufen Deutschland are working in one specific application family: electronic ignition systems for gas and fuel oil burners. This is the only application context where 10,000V wiring inside an appliance makes engineering sense.

The physics is straightforward. Gas ignition systems use a high-voltage spark to ignite the gas-air mixture at the burner. The spark gap requires several thousand volts to break down across an air gap of 2-4 mm in atmospheric conditions. Modern electronic ignition modules generate this voltage from low-voltage supply (typically 24V DC) through a step-up transformer or voltage multiplier circuit, producing 10-15 kV pulses delivered to the spark electrode. The wire that carries this pulse from the ignition module to the spark electrode must withstand the full spark voltage continuously without breaking down its own insulation.

If the wire’s insulation breaks down, the result is one of two failure modes: a short circuit through the wire to chassis (the most common failure), or an internal arc within the wire that destroys the insulation and creates a fire hazard. UL 3304’s 10,000V AC continuous rating with 200°C temperature class addresses both failure modes by combining high-dielectric silicone rubber with fiberglass braid mechanical protection.

The Silicone Rubber + Fiberglass Braid Construction

UL 3304 specifies a two-layer construction that distinguishes it from single-layer high-voltage wires:

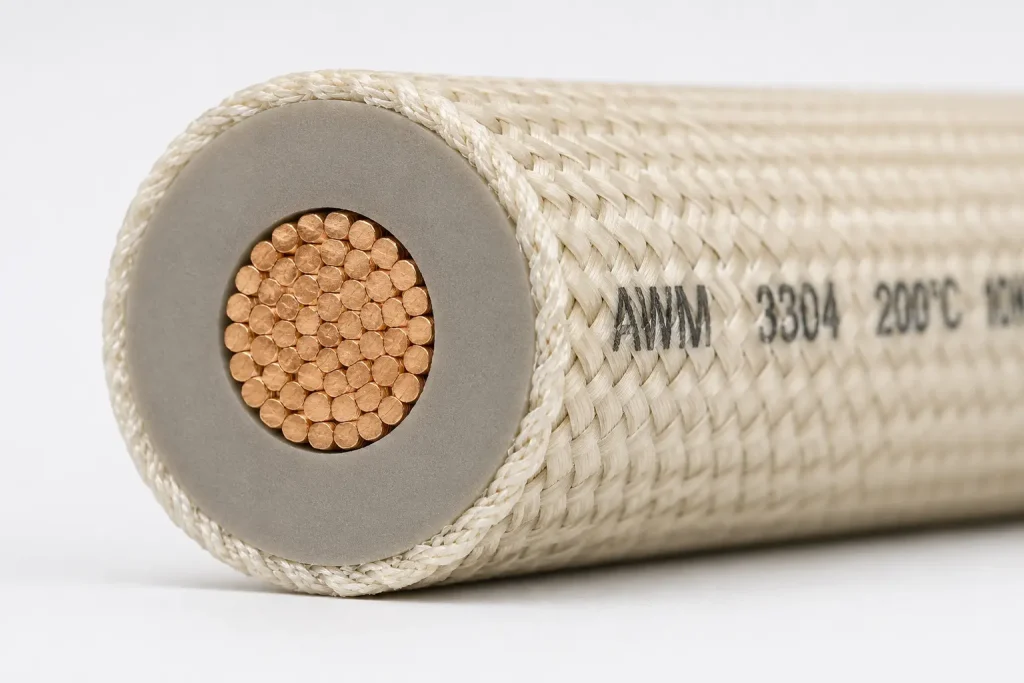

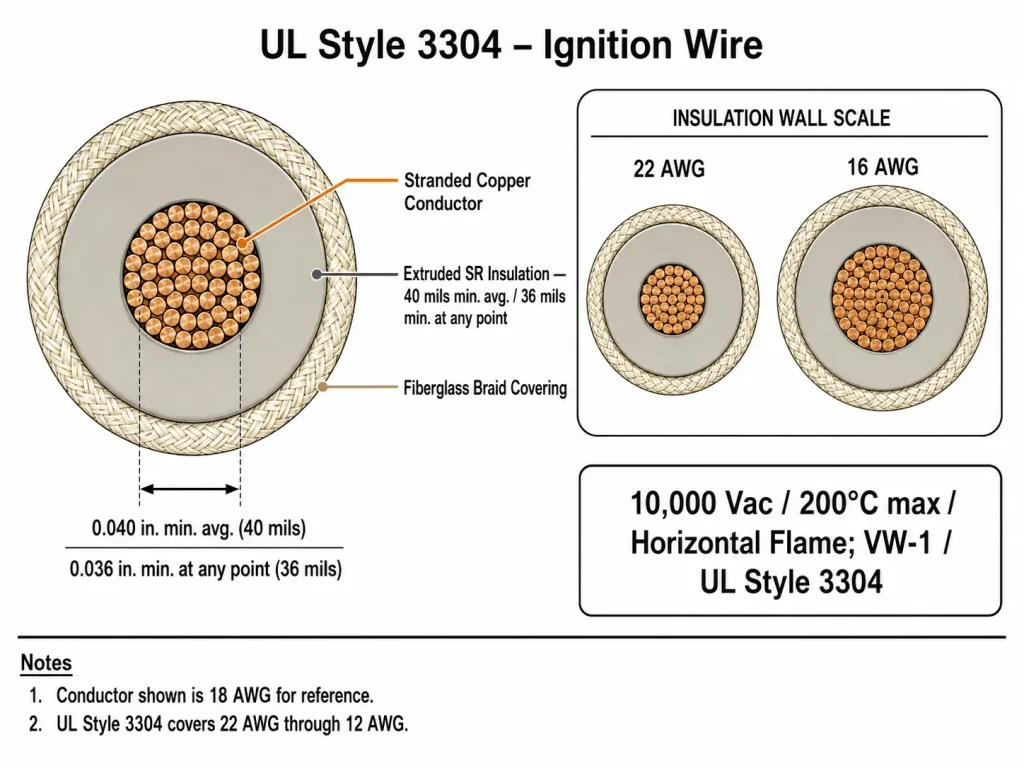

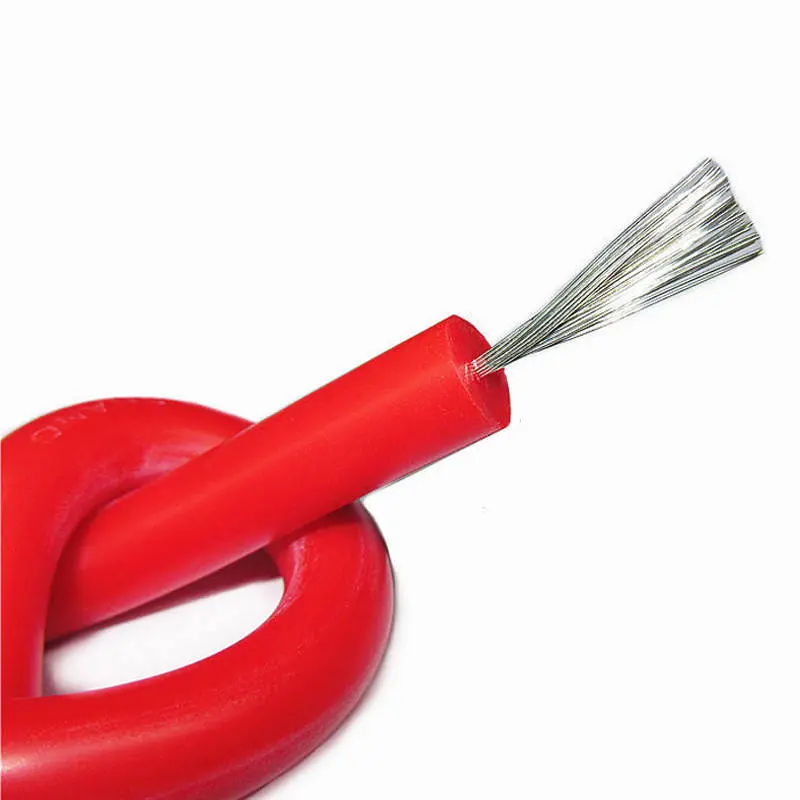

Inner Layer — Extruded Silicone Rubber (40 mils minimum average wall)

The primary insulation is silicone rubber (SR), extruded to a minimum average wall thickness of 40 mils (1.02 mm) and minimum-at-any-point of 36 mils (0.91 mm) per UL Subject 758. Silicone rubber is chosen specifically for high-voltage ignition wire applications because of three properties:

• High dielectric strength. Silicone rubber has dielectric strength typically 20-30 kV/mm, more than sufficient for 10 kV continuous with safety margin.
• Temperature stability at 200°C. Burner enclosures during operation reach elevated temperatures from radiated heat and combustion products. Silicone rubber maintains insulating properties at sustained 200°C without thermal aging.
• Flexibility and mechanical compliance. Ignition wires are routed through tight curves inside burner assemblies and may experience movement during equipment service. Silicone rubber’s elastomeric flexibility tolerates this routing without cracking.

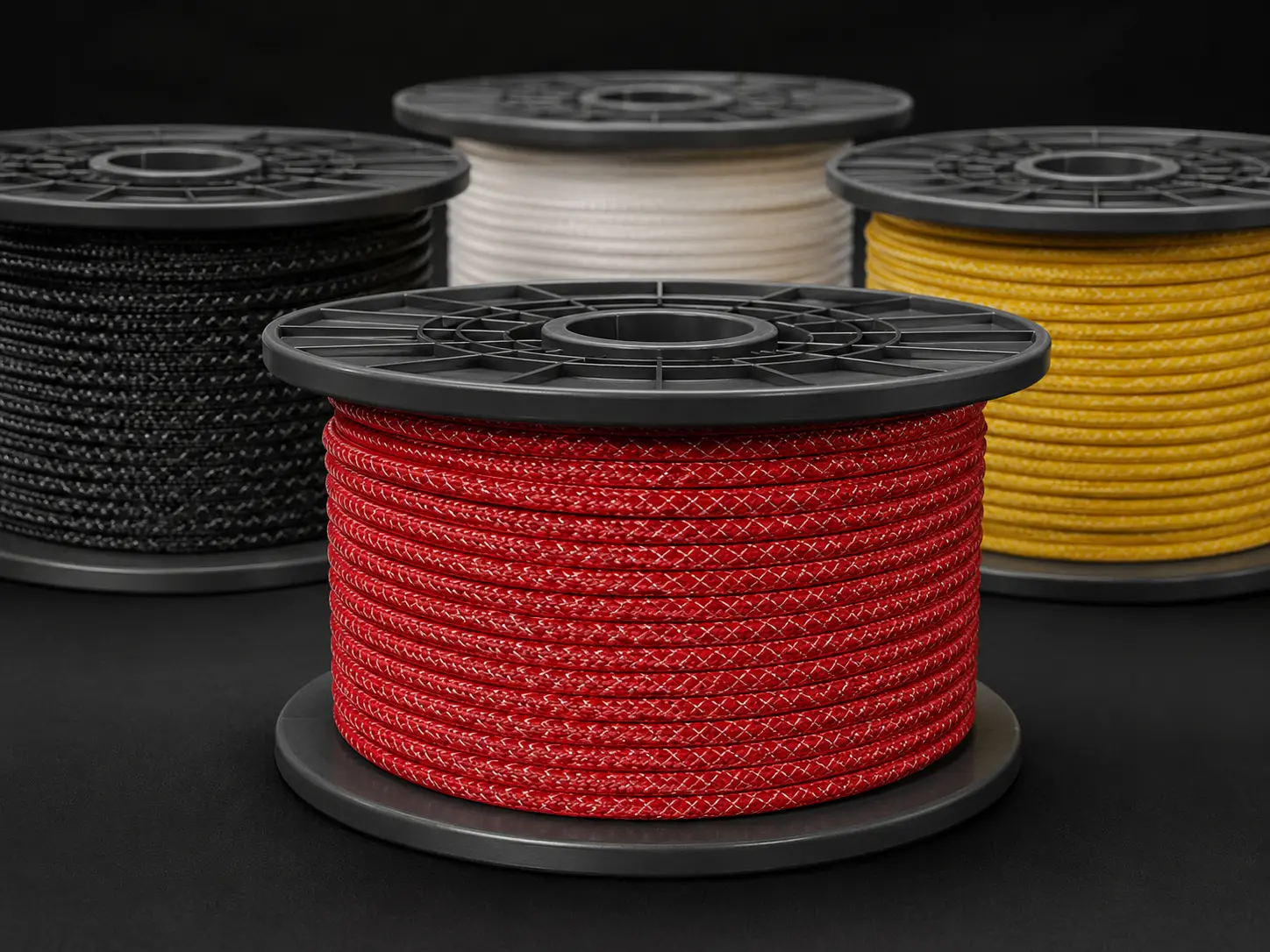

Outer Layer — Fiberglass Braid

Over the silicone rubber insulation, UL 3304 specifies a fiberglass braid covering. The braid serves two functions:

• Mechanical abrasion protection. Burner assemblies have sharp edges, mounting brackets, and metal chassis surfaces. The fiberglass braid prevents the silicone insulation from being abraded or cut during installation and service. Silicone rubber alone, while flexible, is mechanically soft — fiberglass braid adds toughness without compromising the dielectric performance underneath.
• Heat resistance reinforcement. Fiberglass itself withstands temperatures far above 200°C. In the localized hot zones near the spark electrode and combustion chamber, the fiberglass braid maintains structural integrity even when transient temperatures briefly exceed the silicone rubber’s continuous rating.

Three Real Application Cases for UL 3304

Case 1 — Commercial Gas Range for US Restaurant Distribution

A German commercial cooking equipment manufacturer produces 6-burner and 10-burner commercial gas ranges for US restaurant chain distribution. Each burner has its own electronic ignition module driving a spark electrode through a 200-300 mm length of UL 3304 wire. The ignition module generates 12 kV pulses at 1-2 Hz repetition rate during the ignition sequence.

Specification: UL 3304, 18 AWG stranded tinned copper, silicone rubber + fiberglass braid construction. Multiple wires routed through the range chassis from each ignition module to its corresponding burner electrode. The 200°C rating accommodates radiated heat from adjacent burner cavities; the fiberglass braid protects against abrasion at chassis edges during routing.

Case 2 — Industrial Gas Boiler Pilot Ignition

A German industrial boiler manufacturer produces commercial heating boilers (50-500 kW capacity) for hotels, schools, and small industrial facilities in North America. The pilot ignition system uses a single ignition transformer driving a pilot electrode through 500-800 mm of high-voltage wire. The pilot ignition pulse is approximately 8 kV.

Specification: UL 3304, 14 AWG stranded tinned copper, silicone rubber + fiberglass braid construction. The longer wire run (compared to range applications) and the higher boiler enclosure ambient temperature make UL 3304’s 200°C continuous rating critical for long-term reliability. The fiberglass braid prevents abrasion damage during the boiler installation process when the wire is routed through tight access points in the boiler housing.

Case 3 — Fuel Oil Burner for Industrial Equipment

A German fuel oil burner manufacturer produces oil-fired burners for industrial process heating equipment exported to North American manufacturing facilities. The fuel oil ignition system requires reliable spark ignition in an environment contaminated with oil mist, fuel vapors, and combustion residue.

Specification: UL 3304, 16 AWG stranded tinned copper, silicone rubber + fiberglass braid construction. The chemical resistance of silicone rubber to oil exposure and the fiberglass braid’s resistance to mechanical degradation in this contaminated environment make UL 3304 the preferred choice. Note: UL 3304 listing specifies the wire must be “protected from damage during handling, installation and servicing” — for environments with very heavy mechanical exposure, additional jacketing or conduit may be advisable.

UL 3304 Specifications

Engineering Notes from CableApex

Three points German gas ignition system OEM engineers raise about UL 3304:

1. “What’s the difference between UL 3304 and UL 3573?” Both are 10,000V AC silicone rubber wires with fiberglass braid covering. The key differences are temperature and AWG range. UL 3304 is rated 200°C / 22-12 AWG. UL 3573 is rated 200°C / 22-12 AWG with a different insulation wall structure (30 mils inner silicone + 10 mils outer over braid construction). UL 3304 has the simpler single-thickness insulation construction (40 mils silicone + braid), while UL 3573 uses a layered construction with insulation both inside and outside the braid. The choice between them depends on which construction the OEM’s existing design specifies — the UL listings are not interchangeable without re-evaluation.
2. “Can UL 3304 be used with brass terminals or does it need special connectors?” UL 3304 terminations require special attention because of the 10 kV voltage class. Standard automotive/appliance crimp terminals are typically rated 600V or below — they will fail dielectrically when subjected to 10 kV. High-voltage ignition terminations use specialty crimp connectors designed for ignition wire applications, often with extended insulation barrels and silicone boots over the terminal to maintain the dielectric envelope through the connection. Specify high-voltage rated terminals at the BOM level; do not substitute standard appliance terminals.
3. “How long can UL 3304 wire runs be in a burner system?” Practically, UL 3304 wire runs in burner systems are typically 100-1000 mm. Beyond this range, two issues emerge: capacitive loading on the ignition transformer reduces spark energy at the electrode, and the longer wire creates more potential for abrasion or installation damage. For systems requiring longer high-voltage runs, additional engineering verification of the ignition system performance is recommended at the design stage.

MOQ, Packaging & Shipping

MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on UL 3304. UL 3304 is a specialty production Style (lower volume than mainstream PVC/XLPE Styles), so MOQ is typically higher than commodity AWM. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.

Related UL Styles for High-Voltage Ignition Applications

UL 3304 buyers commonly cross-reference: UL 3573 (200°C / 10,000V AC silicone rubber + fiberglass braid, 22-12 AWG — alternative high-voltage ignition wire with different layered insulation construction), UL 3071 (200°C / 600V silicone rubber, 18-13 AWG — same temperature class but lower voltage for non-ignition silicone applications), UL 1659 (250°C / 600V PTFE, 26-4/0 AWG — higher temperature alternative for non-ignition high-temperature applications), and UL 3266 (125°C / 300V XLPE, 32-10 AWG — entirely different voltage and temperature class for general internal wiring).
