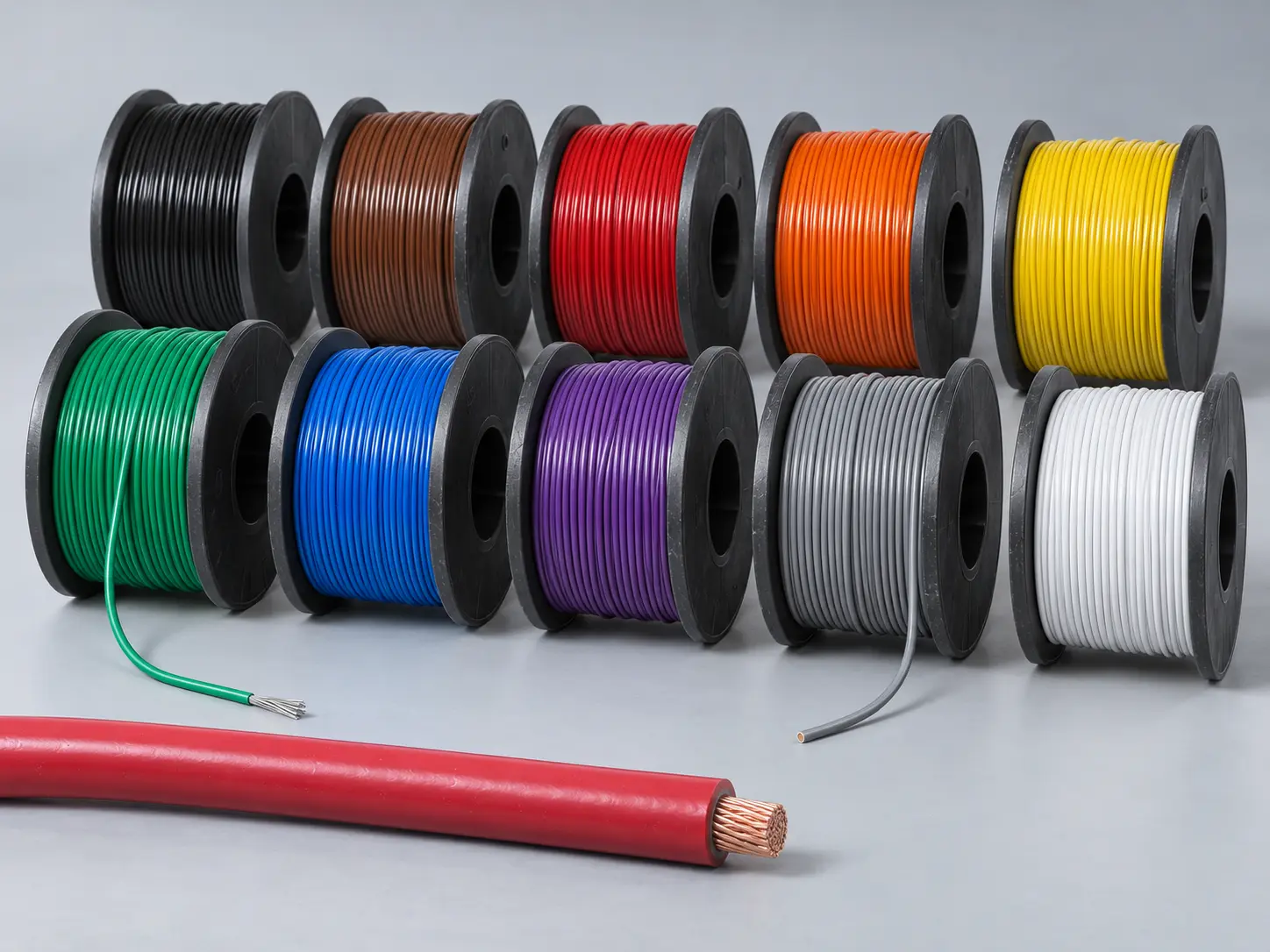

UL 1569 Thin-Wall Hook-Up Wire for Dubai and UAE Sourcing
UL AWM Style 1569 is a single conductor with extruded insulation, offering 80°C, 90°C or 105°C rating options at 300 Vac, with Horizontal Flame. The full Style conductor range is 30 AWG through 2 AWG, solid or stranded, with extruded PVC insulation.
This page focuses commercially on the 30 AWG–10 AWG subset, where the Style specifies 15 mils minimum average insulation with 13 mils minimum at any point. That is the thin-wall group, and it is why the term is used here.
The commercial context is Dubai and UAE B2B sourcing: electrical-component distributors, appliance and equipment OEM buyers, and procurement teams working from an approved drawing or bill of materials.
Hook-up wire is purchasing and product terminology. The formal UL Style Use is internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage, and the commercial term does not imply unrestricted general-purpose electrical wiring.
Verified UL Style 1569 Specification
| Parameter | Style-level information |
|---|---|
| UL AWM Style | 1569 |
| Product description | Single Conductor with extruded insulation |
| Page-specific commercial focus | 30 AWG–10 AWG thin-wall subset |
| Temperature rating options | 80°C / 90°C / 105°C |
| Normal voltage rating | 300 Vac |
| Flame | Horizontal Flame |
| Full Style conductor range | 30 AWG–2 AWG |
| Conductor form | Solid or Stranded |
| Insulation | Extruded PVC |
| 30–10 AWG insulation | 15 mil minimum average / 13 mil minimum at any point |
| 9–2 AWG insulation | 30 mil minimum average / 27 mil minimum at any point |
| Optional covering | Extruded PVC, 9 mil minimum average / 8 mil minimum at any point |
| Marking | General |
| Official Use | Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage |
| Optional tag | 600 Volts Peak for Electronic Use Only |
Nine clarifications belong with that table. 30–10 AWG is this page’s focus, not the complete Style range. The complete range extends to 2 AWG. “Thin-wall” is a commercial descriptor for the 30–10 AWG 15/13 mil subset only. The 9–2 AWG group uses the thicker 30/27 mil requirement. 80, 90 and 105°C are rating options. The applicable ordered temperature rating must be confirmed. The optional covering is not mandatory. 600 Volts Peak is not the normal voltage rating. And conductor material and plating are not universally specified at Style level.

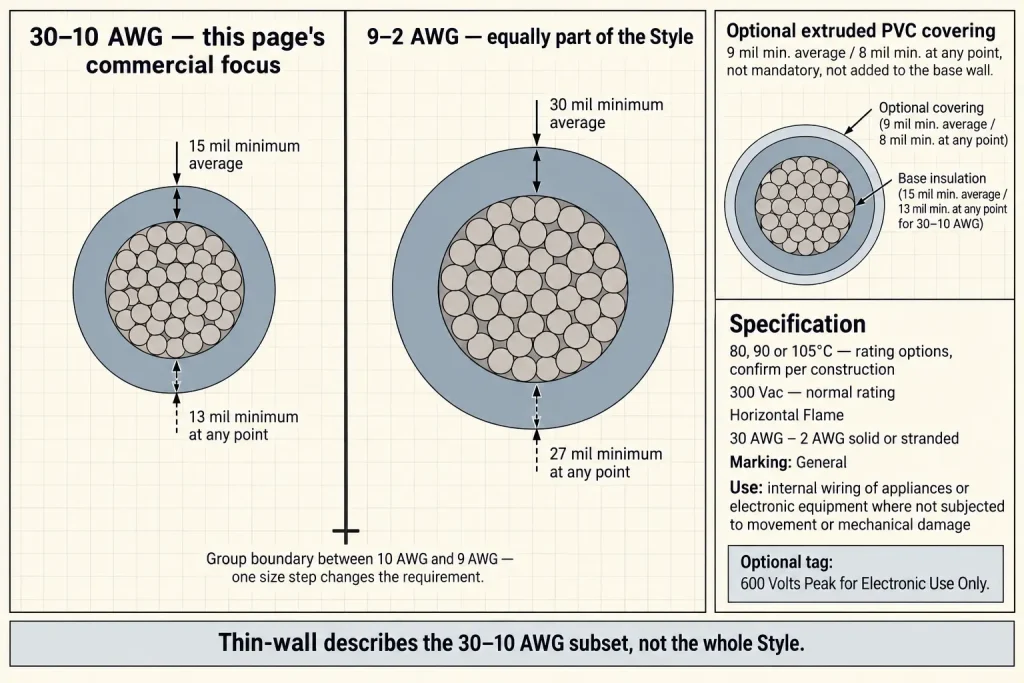

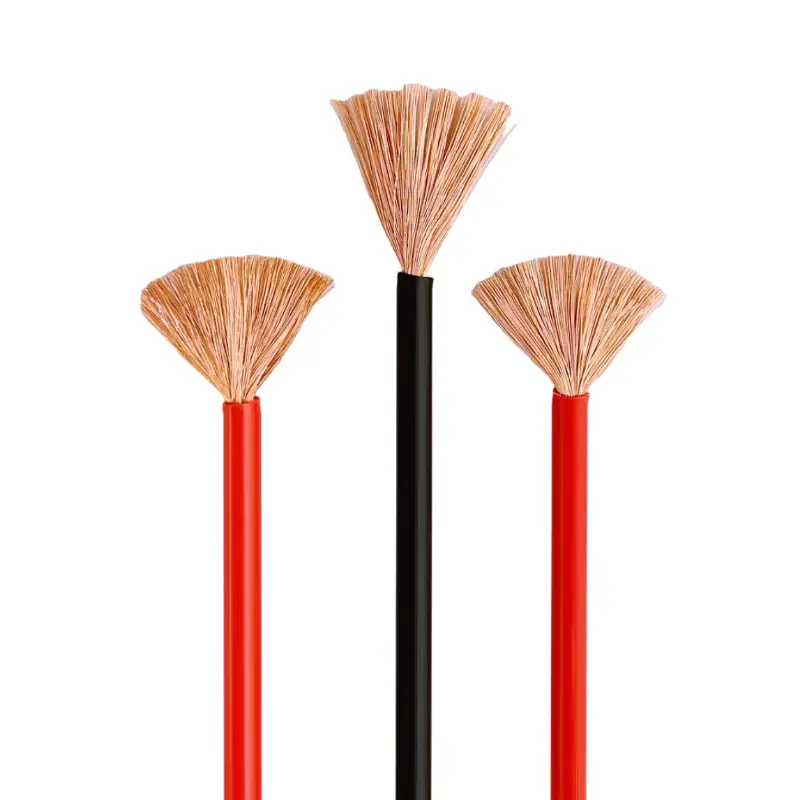

Thin-Wall Describes the 30–10 AWG Subset
Style 1569 defines two insulation groups, and they differ by a factor of two.
From 30 AWG through 10 AWG the requirement is 15 mils minimum average with 13 mils minimum at any point. From 9 AWG through 2 AWG it is 30 mils minimum average with 27 mils minimum at any point.
So the statement “UL1569 is a thin-wall Style” is too broad. The accurate framing is that this page focuses on the 30–10 AWG thin-wall subset of Style 1569. The 9–2 AWG group is equally part of the Style and is not described here as a 15 mil thin-wall construction.
This matters at RFQ stage because a wire schedule spanning both groups describes two different constructions under one Style number, and the boundary sits between 10 AWG and 9 AWG.
The figures themselves are minimum requirements rather than nominal values. The first governs the average across the wall; the second sets a floor at every individual point on it. Neither is an exact finished-wall value.
Three Temperature Options
Style 1569 provides 80°C, 90°C or 105°C rating options. The applicable rating for the ordered construction must be confirmed.
105°C is one of those options. It is not presented here as a universal Style rating, no construction carries all three simultaneously, and no continuity qualifier is attached — 105°C continuous, continuous operation at 105°C and long-term 105°C service are not used, because the Style record states the three options and nothing further.
Where a UAE buyer’s drawing specifies a rating, it belongs in the enquiry, since a compliant Style 1569 construction may be 80°C.
300 Vac and the Optional Peak Tag
The normal Style voltage rating is 300 Vac, used accurately in technical sections. Style 1569 is not described here as 300/600V, 600 Vac, 600V continuous, a 600V working voltage or 600V AC/DC.
The Style separately permits an optional tag stating 600 Volts Peak for Electronic Use Only. That is not the normal voltage rating, and the complete qualifier stays intact wherever it appears — neither “Peak” nor “For Electronic Use Only” is dropped, and it is not written as 600V rated, 600V wire, 600 Vac, 600V continuous or 300/600V.
The optional tag also does not expand the official Use.
The Use Limitation Is Part of the Use

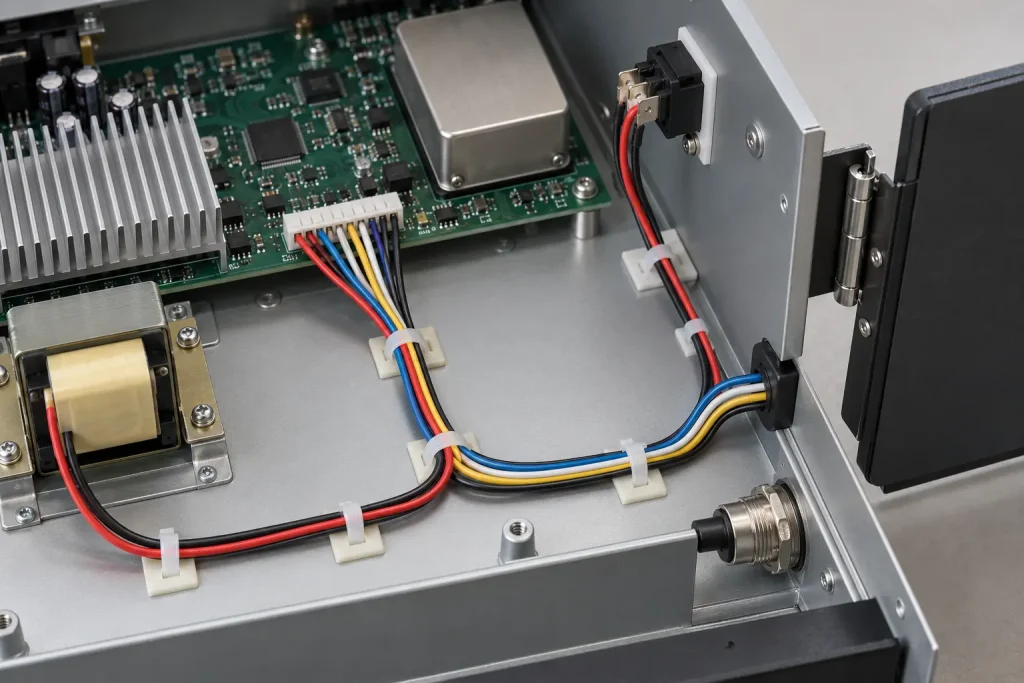

The formal Use is: internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. The final clause is as binding as the first, and it is not shortened here to “internal wiring”.
Read commercially, the Use points toward fixed internal wiring, protected internal routing, and internal component-to-component connections inside appliances or electronic equipment where the wire is not subjected to movement or mechanical damage. That is an interpretation of the Use boundary rather than quoted UL wording.
Movement. The wording excludes movement, not merely repeated flexing. Style 1569 is not positioned here for continuous flexing, moving harnesses, robotic motion, drag chains, hinged equipment or frequent cable movement.
Mechanical damage. The wire is not positioned for exposed routing, unprotected wiring, abrasive machinery environments or external equipment connections where mechanical damage can occur. The approved equipment design is what provides appropriate protection.
The Use is also not extended into building wire, field-installed wire, branch-circuit wire, tray cable, conduit cable, facility wiring or external contractor wiring.
Application Contexts Within the Use
Acceptable buyer contexts are those the Use supports: appliance internal wiring specified by drawing, protected electronic-equipment internal wiring, fixed component-to-component internal connections, and OEM assemblies whose approved bill of materials specifies Style 1569.
Where a particular electronic product’s approved specification requires Style 1569 for protected internal wiring, that is evaluated on its own terms. No named appliance or equipment category is presented here as separately UL-approved through the Style, and no equipment sector is claimed as a universal application.
One correction worth stating plainly: 300 Vac is the Style rating for the wire. It does not establish suitability for every control circuit, electronic circuit or equipment voltage — the equipment specification remains controlling.

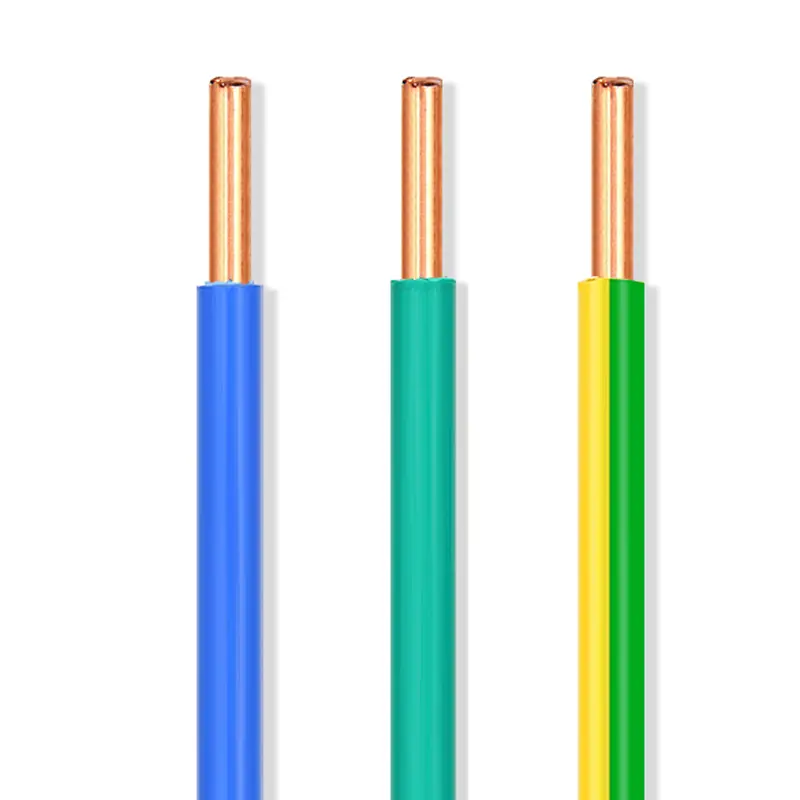

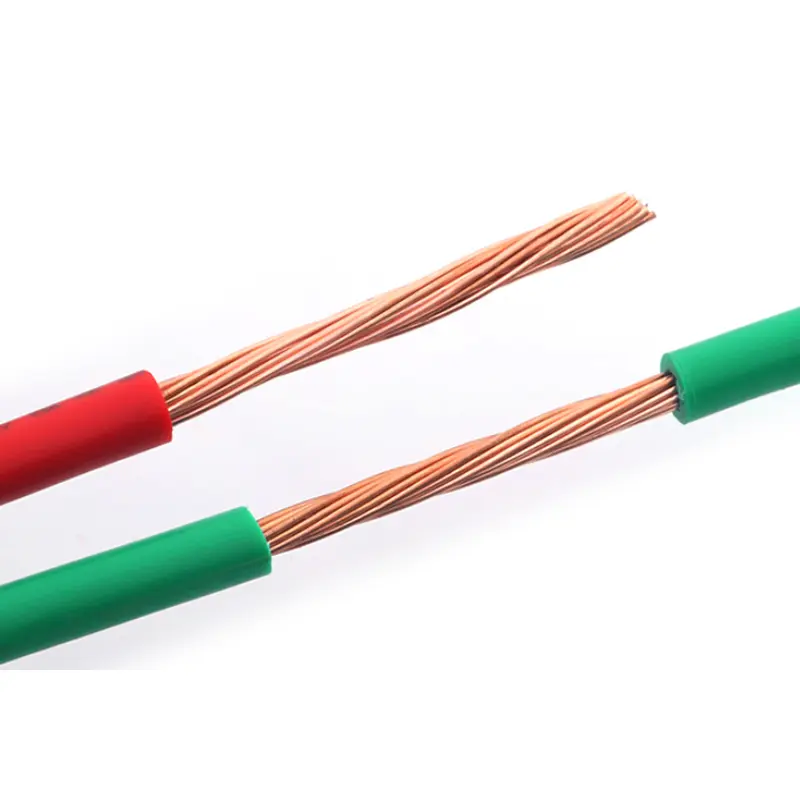

Conductor Material, Form and Stranding
The Style-level evidence establishes the conductor range and the solid or stranded form. It establishes nothing else about the conductor.
Copper, bare copper, tinned copper, silver-plated copper and nickel-plated copper are none of them universally defined by Style 1569, and no strand count, strand diameter, lay length or conductor resistance is stated here. This page therefore does not present the product as solid or stranded copper, tinned or bare.
Conductor material, conductor finish or plating, the solid or stranded requirement and detailed strand construction are RFQ confirmation fields. Both conductor forms are permitted, so the Style is not described as stranded only, and it is not characterised as fine-stranded, high-flex, extra-flexible or to any strand class.

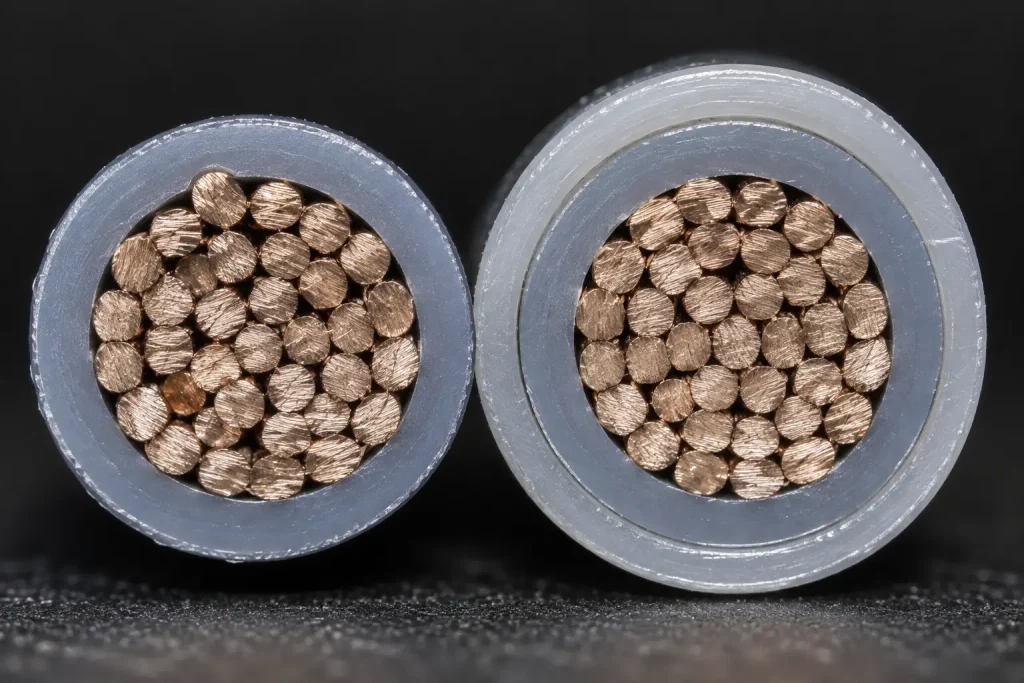

The Optional PVC Covering
Style 1569 permits an optional extruded PVC covering at 9 mils minimum average with 8 mils minimum at any point. It is a separate permitted construction feature and is not mandatory — not every Style 1569 product includes a second PVC covering.
No covering colour, covering purpose, mechanical rating, abrasion rating or dimensional benefit is stated here, because the Style record establishes none.
The covering figures are also not added to the 15/13 mil base insulation to publish one universal total wall thickness. Where a buyer requires the optional covering, it is specified in the RFQ and confirmed against the applicable construction.
Finished OD, Weight and Cost
No universal finished outside diameter is published. Thin-wall construction does not guarantee a specific OD, and no defined harness-OD reduction is claimed.
Actual finished OD depends on the conductor construction, the actual conductor diameter, the PVC extrusion, whether the optional covering is used, and manufacturing tolerance. Where dimensions matter, request the maximum finished OD, the OD tolerance, the routing clearance and the terminal-entry requirement.
No weight data is published either. The Style file defines insulation-wall minimums; it provides no weight per length, harness-weight saving or percentage weight reduction, and none is calculated here.
The same applies to price. Style 1569 is not described as universally cheaper, lower cost or preferred for price-sensitive buyers, and no cost comparison against another Style is made. Material cost depends on the AWG, the conductor construction, the PVC construction, the quantity and the order requirements — and other AWM Styles have their own ratings, conductor ranges, wall requirements and Uses, which a simple cost hierarchy would misrepresent.
No Ampacity or Conductor Resistance
No universal current rating is published. Style 1569 provides no ampacity table, and no current is derived from AWG, from a temperature option, from the 300 Vac rating or from the thin-wall PVC construction.
No universal conductor resistance is published either, because the Style defines neither a universal conductor material nor a detailed stranding construction, and generic AWG tables are not copied in as product specifications.
Horizontal Flame
The verified Style flame designation is Horizontal Flame. VW-1, FT1, vertical flame, flameproof and fire-resistant characterisations are not claimed here, and any additional flame requirement depends on separate confirmation for the ordered construction.
Style Range Is Not Inventory
30 AWG through 2 AWG is the verified Style construction scope. It does not indicate that every size is automatically stocked, available in every temperature rating, available in every colour or available in every conductor construction.
Colour in particular is not defined by the Style at all, and no fixed colour list is published here as a Style-defined specification — it is an RFQ field confirmed for the ordered construction.

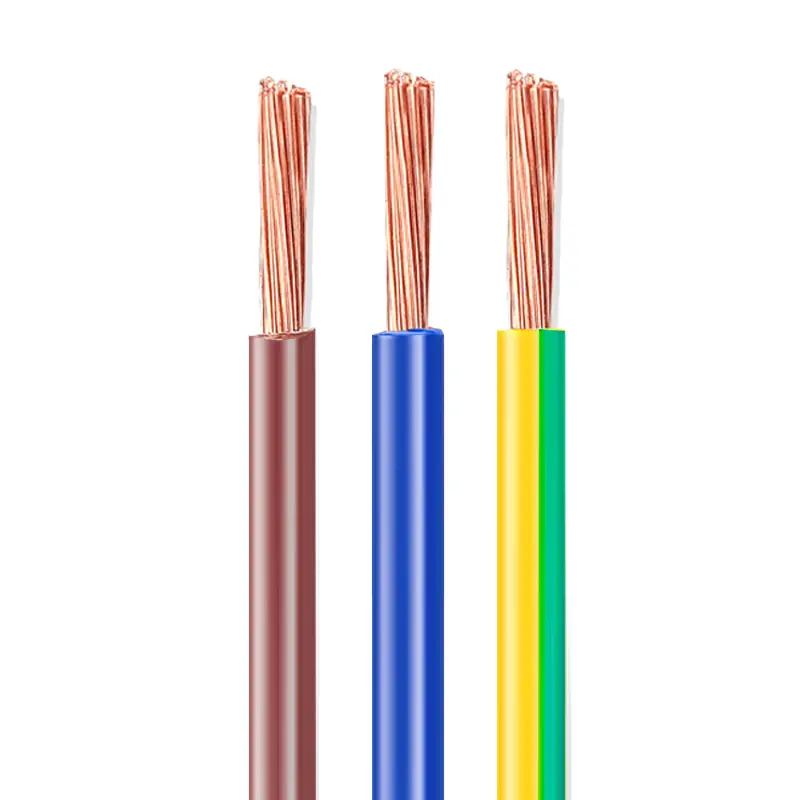

Dubai and UAE Sourcing
Dubai and Jebel Ali are relevant commercial destinations for UAE B2B buyers and distributors, and the buyer contexts this page addresses are UAE electrical-component distributors, UAE appliance and electronic-equipment OEM buyers, and UAE procurement teams requiring a controlled Style 1569 specification. A UAE OEM may request Style 1569 according to its approved product specification.
UAE location does not change the technical scope or the UL Use, and no local technical approval is implied by geography. No named distributors, stocking arrangements, purchasing behaviour or re-export flows are claimed, and no regional conformity or market-approval status is attributed to the Style.
Where a UAE distributor purchases for regional resale, the applicable requirements of the destination market remain the buyer’s to determine. What the destination affects on this page is the commercial side of the enquiry: the quantity, the packaging, the destination city or port, the Incoterm and the documentation the buyer needs.
Commercial Terms and Documentation
No minimum order quantity, sample quantity, mixed-size order policy, stock position, lead time, transit time, production capacity, quotation response time, fixed Incoterm or fixed port is published here, and no manufacturing or quality-control procedures are described.
Where a buyer requires a particular certificate or document, the exact requirement should be stated and availability confirmed for the shipment rather than assumed. Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
Bulk Wire and Processed Leads
This page primarily represents UL AWM Style 1569 single-conductor wire.
Nothing here implies that supply automatically includes cutting, stripping, crimping, terminals, connectors or finished harnesses. Processed-wire requirements are separately specified and confirmed.
What Style 1569 Does and Does Not Define
The Style does define: 80, 90 or 105°C; 300 Vac; Horizontal Flame; 30 AWG–2 AWG; solid or stranded; extruded PVC; size-dependent insulation thickness; an optional PVC covering; the Use — internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage; and the optional 600 Volts Peak for Electronic Use Only tag.
The Style does not define:
- Conductor material, conductor plating, strand count, strand diameter and lay length
- Conductor resistance
- Finished OD and OD tolerance
- Ampacity and current rating
- Wire weight and harness weight saving
- Any universal cost advantage
- Colour and reel length
- MOQ, stock, lead time, production capacity and shipping term
Each requires the customer specification, verified SKU documentation, the applicable qualified construction, or commercial confirmation.
Common Procurement Errors
- Treating 105°C as the only Style rating. 80°C and 90°C are equally options.
- Calling 105°C continuous service.
- Stating the entire Style range is only 30–10 AWG. It extends to 2 AWG.
- Calling all Style 1569 universally thin-wall.
- Using 15/13 mil for 9–2 AWG. That group requires 30/27 mil.
- Omitting the 13 mil minimum-at-any-point value.
- Omitting the 9–2 AWG 30/27 mil group.
- Treating the optional PVC covering as mandatory.
- Assuming all Style 1569 wire is copper.
- Assuming tinned or bare copper are universal Style options.
- Using 600 Volts Peak as the normal voltage rating.
- Omitting “For Electronic Use Only” from the optional peak tag.
- Ignoring the no-movement and no-mechanical-damage Use limitation.
- Using Style 1569 for field-installed external wiring.
- Assuming the full Style range is stocked.
Dubai and UAE RFQ Checklist
- UL AWM Style 1569 requirement
- Required AWG
- Whether the project specifically requires the 30–10 AWG thin-wall subset
- Required temperature rating: 80°C, 90°C or 105°C
- 300 Vac requirement
- Solid or stranded requirement
- Required conductor material
- Required conductor finish or plating
- Detailed strand construction, if controlled
- Whether the optional PVC covering is required
- Exact appliance or electronic-equipment internal-wiring location
- Confirmation that the wire will not be subjected to movement or mechanical damage
- Customer drawing
- Existing wire specification or bill of materials
- Maximum finished OD, if controlled
- OD tolerance
- Colour
- Bulk wire or processed lead requirement
- Quantity
- Packaging
- Dubai or UAE destination
- Destination city or port
- Requested Incoterm
- Required compliance or shipping documentation
None of these values is invented here, and no requested configuration is presented as automatically available.
UL Marking and Documentation
Material is supplied as UL-recognized component wire where supplied under qualified manufacturing scope, and UL marking is applied according to the confirmed ordered construction. The Style-level marking designation is General.
CSA AWM, FT1, VW-1 and dual UL / CSA certification are not claimed here; any additional certification depends on the ordered construction. Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
