UL AWM 1571 PVC Hook-Up Wire 22 AWG — Class 2 Internal Wiring, 80°C Maximum, 30 Vac
UL AWM 1571 in 22 AWG with extruded PVC insulation is a single-conductor hook-up wire rated 80°C maximum at 30 Vac, recognised for internal wiring of Class 2 circuits in electronic equipment. At 22 AWG, this is the heaviest gauge available within Style 1571, offering the largest conductor cross-section in the style while retaining the same thin 2 mils minimum PVC wall that defines the range from 50 AWG up to 22 AWG. CableApex supplies UL AWM 1571 22 AWG as a UL Recognized Component — file on record.
Why Choose the Heaviest Gauge in a Thin-Wall Style
Style 1571 was designed around a single defining constraint: a PVC wall of only 2 mils minimum at any point, regardless of conductor size. That constraint keeps every size in the range slim relative to conventional PVC hook-up wire, but it also means the maximum available conductor cross-section is capped at 22 AWG — the style simply does not extend further into heavier gauges. For a Class 2 circuit that needs more current-carrying capacity than 24 or 26 AWG can comfortably provide, but still needs to stay within a UL-recognised thin-wall PVC construction, 22 AWG is the practical ceiling. Reaching for a heavier-wall style such as UL 1032 would solve the current question but add both insulation bulk and a component that is rated well beyond the 30 Vac Class 2 envelope this application actually requires.
Where 22 AWG Sits in the Style 1571 Range
Compared with the finer sizes in the same style — 30 AWG for micro-sensor interconnects, 28 AWG in the SR-PVC variant for flexible harnesses, 26 AWG for general Class 2 signal wiring, and 24 AWG as the de facto signal-wire standard — 22 AWG is the size specifiers turn to when the circuit load is closer to the upper end of what a Class 2 source can deliver. It remains fully interchangeable with the other Style 1571 sizes in terms of UL recognition, insulation material options, and optional covering, shield and jacket constructions, so a single bill of materials can mix 22 AWG for power-carrying leads with a finer gauge for adjacent signal leads without introducing a second UL style into the design.
UL AWM 1571 22 AWG Specifications
| Item | Specification |
|---|---|
| UL Style | 1571 — single conductor with extruded insulation |
| Temperature Rating | 80°C maximum |
| Voltage Rating | 30 Vac |
| Conductor | 22 AWG, solid or stranded (style range: 50 AWG minimum to 22 AWG maximum) |

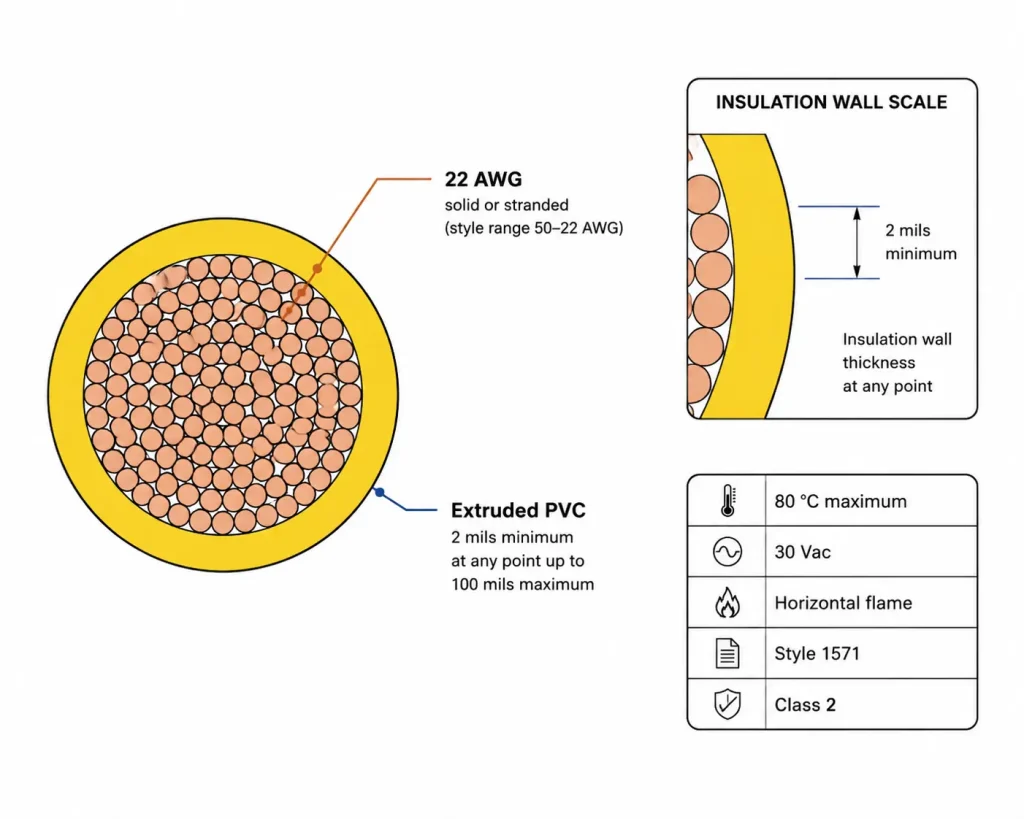

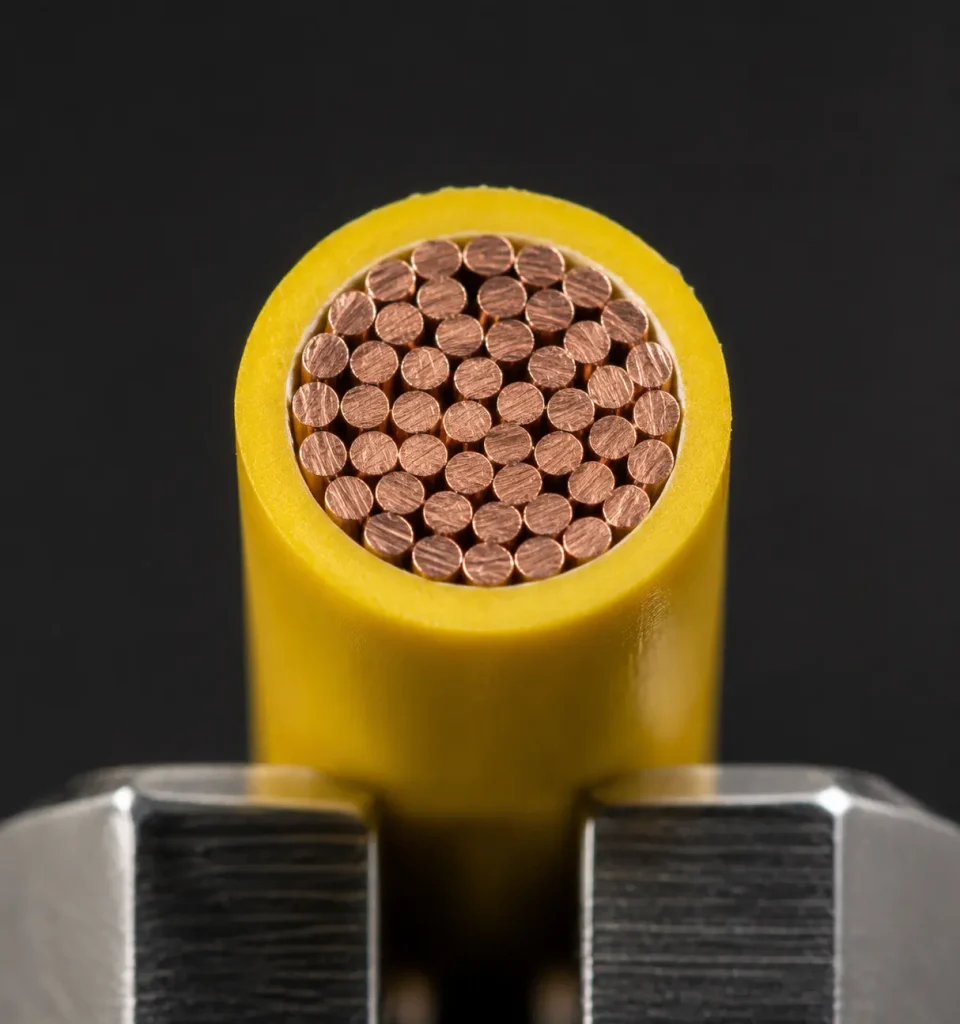

| Insulation (this page) | Extruded PVC, 2 mils minimum thickness at any point, 100 mils maximum |
| Available Insulation Materials | PVC, SRPVC, foamed PVC, foamed SRPVC, XLPVC, XLSRPVC, foamed XLPVC, foamed XLSRPVC |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Optional Covering | PVC, Nylon, ETFE, Polyester, XLPVC, XL Nylon, XLETFE or XL Polyester (2 mils min), or lacquered braid |
| Optional Shield / Jacket | Shield optional; jacket optional (same as covering); additional outer shield and covering optional |
| UL Recognition | UL Recognized Component — file on record |
| Marking | Per UL Subject 758 marking requirements |
| Permitted Use | Internal wiring of Class 2 circuits in electronic equipment |
| RoHS / REACH | Documentation available on request |
Choosing an Insulation Variant for 22 AWG
All eight insulation materials available under Style 1571 are offered at 22 AWG. Standard PVC is the default and most cost-effective choice for general Class 2 wiring. SRPVC (silicone-rubber-modified PVC) improves flexibility and dimensional stability where the wire experiences repeated thermal cycling or must remain pliable in cold storage or transport. The foamed variants — foamed PVC and foamed SRPVC — reduce weight and capacitance, which matters in dense harnesses where many 22 AWG conductors run in parallel. The cross-linked variants (XLPVC, XLSRPVC, foamed XLPVC, foamed XLSRPVC) add improved heat and solvent resistance within the 80°C envelope, useful where the wire may contact cleaning solvents or lubricants during equipment servicing.
Applications

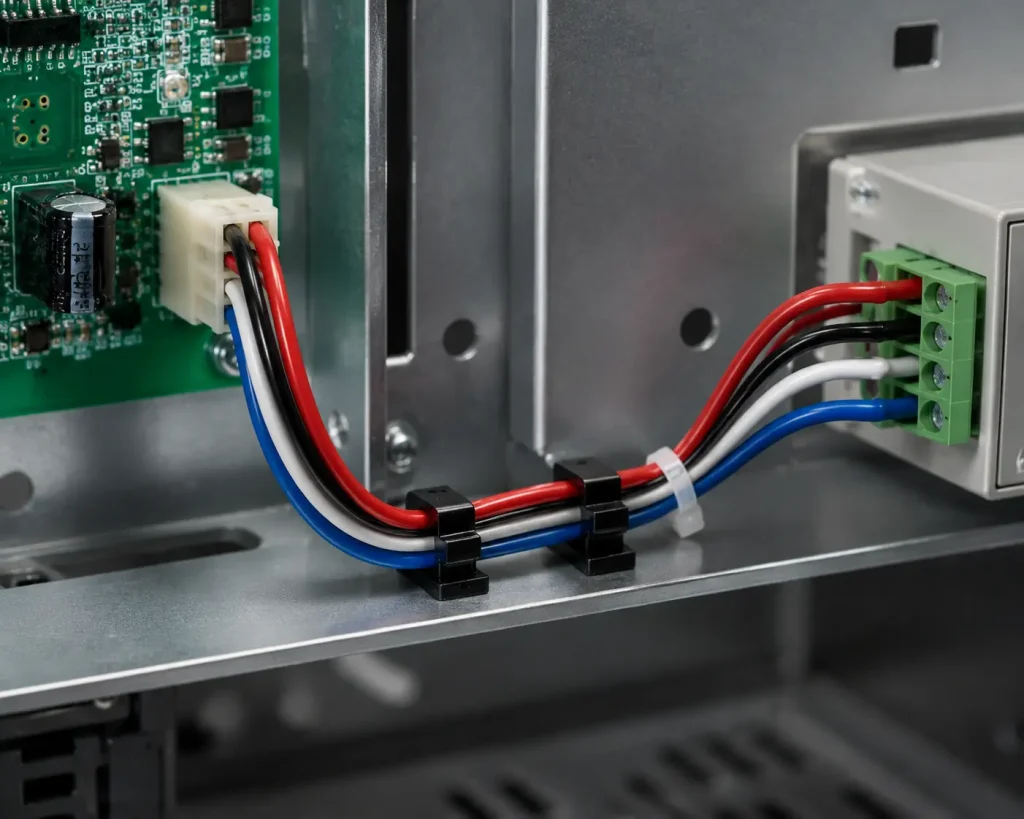

Within its permitted use — internal wiring of Class 2 circuits in electronic equipment — UL AWM 1571 22 AWG PVC suits general hook-up wiring, control panel connections, switch and indicator leads, and internal power feeds to sub-modules across consumer electronics, small appliances, instrumentation and lighting control equipment. Because it is the largest cross-section available in the style, it is also the size most commonly specified as a default when a bill of materials calls for “UL 1571 hook-up wire” without further qualification, and later refined to a finer gauge only where space constraints require it. For applications outside Class 2 internal electronic wiring, confirm application suitability before specifying.
Key Features
- Heaviest conductor size available within Style 1571
- Thin 2 mils minimum PVC wall keeps overall wire diameter compact
- Eight insulation material variants including foamed and cross-linked PVC
- Fully interchangeable UL recognition with finer Style 1571 sizes
- Horizontal flame; VW-1 vertical flame test available
- UL Recognized Component — file on record
