UL 3135 Silicone Wire for Totally Enclosed Oven Internal Wiring
UL AWM Style 3135 silicone rubber wire, rated 200°C and 600 Vac, is used for protected internal lead and harness wiring inside totally enclosed oven assemblies — connecting terminals, control components, and heat-adjacent leads within the appliance structure. This page covers the Style 3135 construction as it applies to oven internal wiring across its full 26 AWG–12 AWG conductor range; it is not tied to one specific AWG. CableApex maintains separate AWG-specific UL 3135 product pages for buyers with a defined single conductor size already selected.

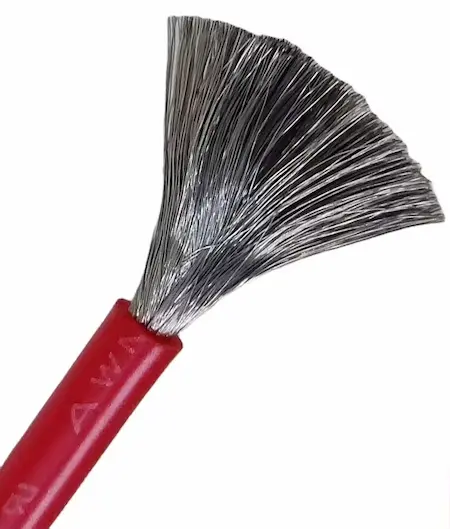

The Confirmed UL 3135 Construction
| Parameter | UL 3135 |
|---|---|
| UL AWM Style | 3135 |
| Description | Single conductor with extruded insulation |
| Conductor Range | 26 AWG – 12 AWG, solid or stranded |
| Temperature Rating | 200°C |
| Voltage Rating | 600 Vac |
| Flame | Horizontal Flame |

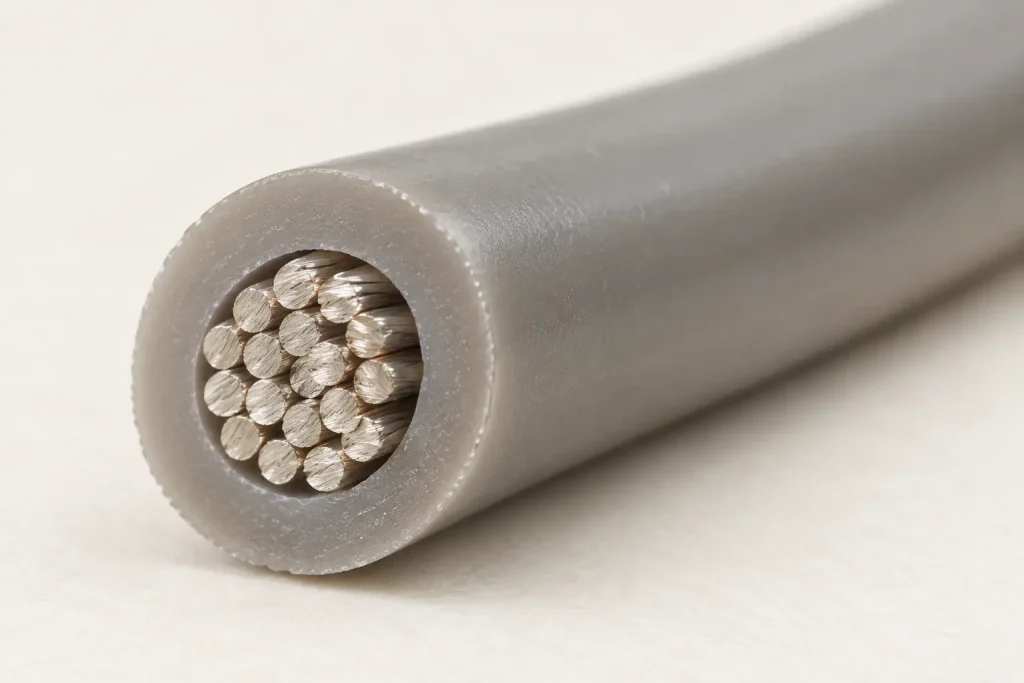

| Insulation | Extruded SR (silicone rubber), 30 mils min. average / 27 mils min. at any point |
| UL-Defined Use | Internal wiring of appliances where totally enclosed |
The Style rating is stated exactly as 200°C and 600 Vac throughout this page — not written as “up to 200°C” and not converted to a different voltage designation.

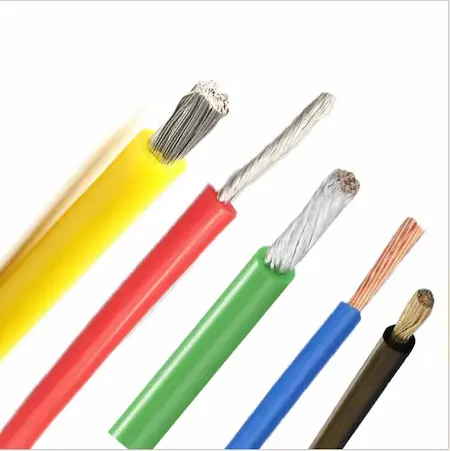

30/27 Mil Silicone Insulation Across the Full 26–12 AWG Range

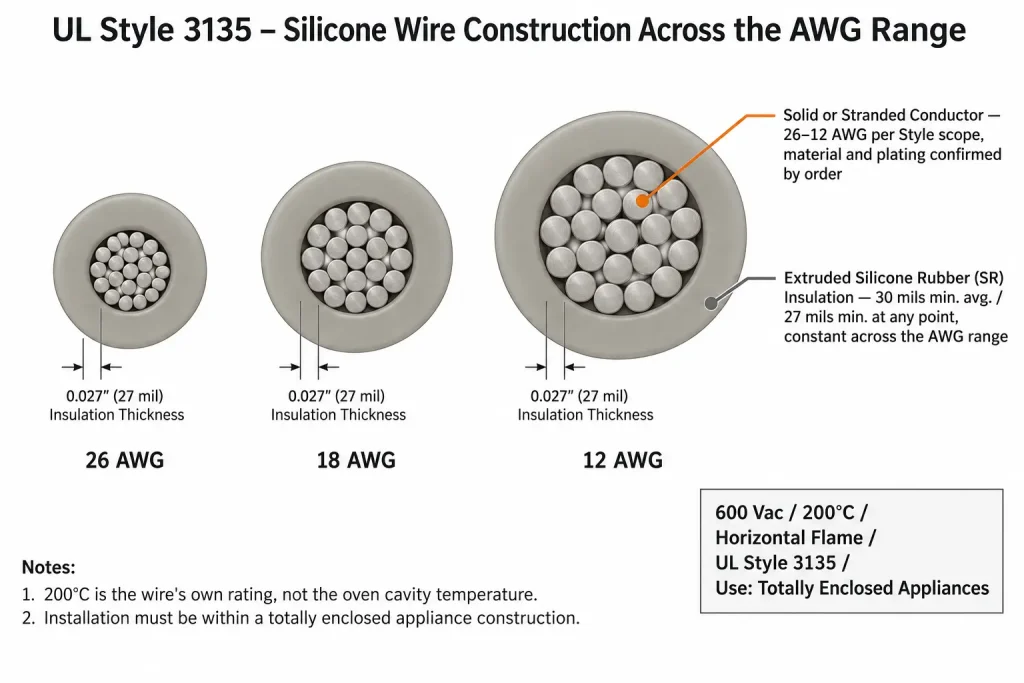

The confirmed insulation requirement for UL 3135 is extruded silicone rubber at 30 mils minimum average thickness and 27 mils minimum thickness at any point, applying uniformly across the Style’s full 26 AWG–12 AWG conductor range — this figure is not tiered by conductor size group. This page does not convert this figure into an invented finished outside diameter; conductor geometry, including finished OD, is order-specific and depends on the actual AWG and construction ordered.
“Totally Enclosed” Is a Required Installation Condition for Oven Wiring
This qualifier is central to how UL 3135 must be applied and is preserved throughout this page rather than shortened to generic “internal wiring.” The confirmed UL Use states internal wiring of appliances where totally enclosed — meaning the wire is installed within an oven construction that fully encloses the internal wiring, not in an open, exposed, or externally accessible installation. This page does not describe UL 3135 as suitable for external oven wiring, field-installed leads, or exposed control wiring outside the appliance enclosure.

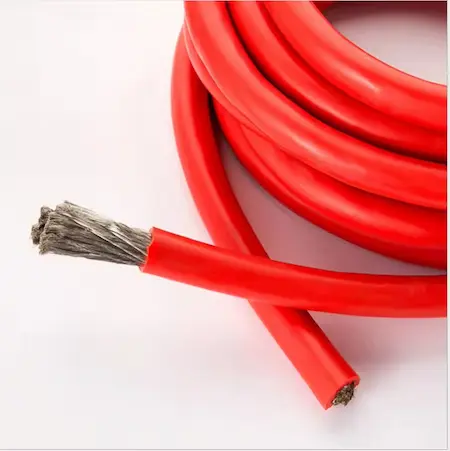

Oven Cavity Temperature vs the Wire’s Own Rating

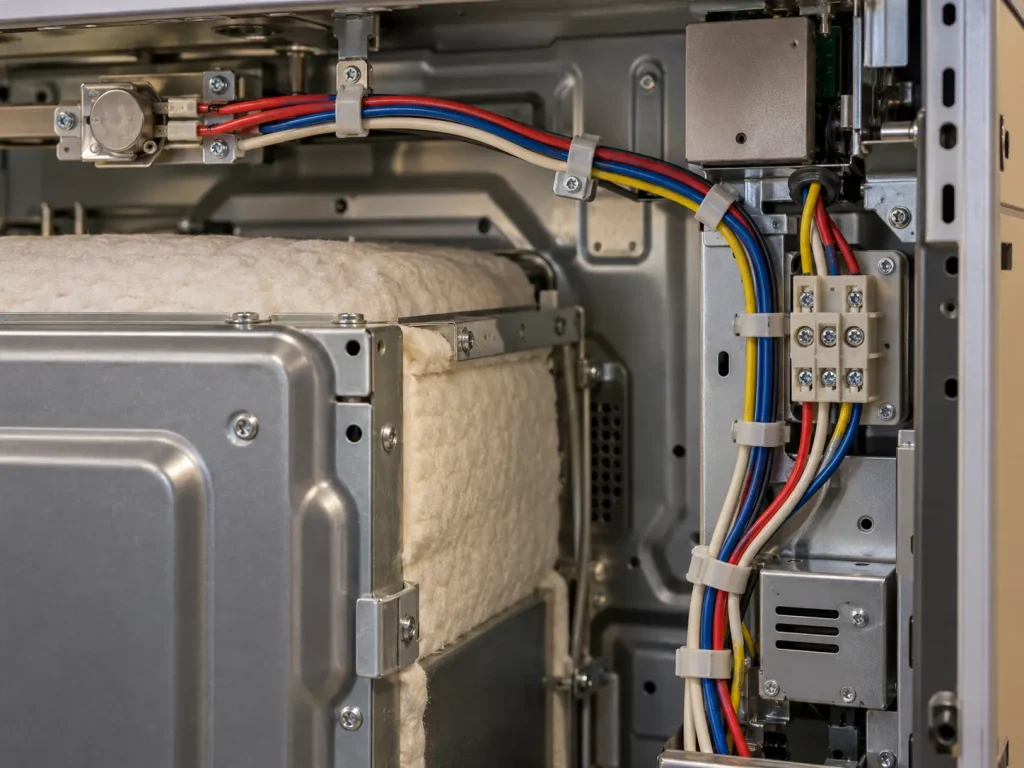

This distinction matters and is a common source of confusion. UL 3135’s 200°C rating describes the maximum temperature the wire construction itself is rated to withstand — it does not describe or guarantee the oven cavity temperature, heater surface temperature, or terminal temperature at the actual wire routing location. Internal wiring in an oven is typically routed away from the direct heating cavity, through zones where the local temperature is lower than the cooking-cavity setpoint, but the actual local temperature at the wire’s routing path must be confirmed against your specific oven design — not assumed to equal the cavity temperature or the wire’s 200°C rating.
Selecting AWG for Your Oven Wiring Harness
UL 3135 covers 26 AWG through 12 AWG, solid or stranded. This page does not recommend one AWG as standard for oven wiring — the correct conductor size for a given lead depends on the circuit’s current requirement, voltage drop over the routing length, and the specific terminal or connector used, all of which are determined by your oven’s electrical design. If you have already identified specific AWG requirements for individual leads within your harness, our AWG-specific UL 3135 product pages provide the corresponding SKU detail; this page is intended for buyers evaluating the Style at the harness or project level, potentially across multiple AWG sizes in the same oven assembly.

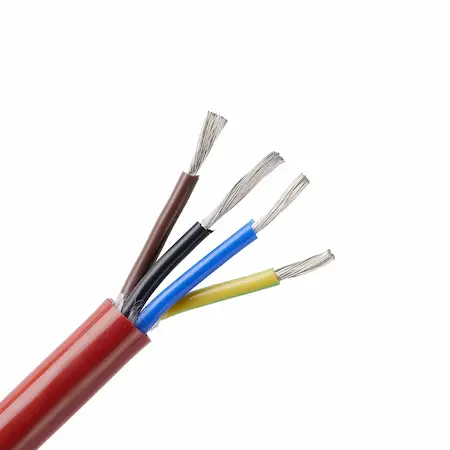

Conductor Form, Material, Termination and Connectors: RFQ Fields
UL Style 3135 permits solid or stranded conductor construction; conductor material and plating are not established by the Style data. This page does not describe UL 3135 as a fixed bare-copper or tinned-copper product — if your BOM or drawing specifies a conductor material, plating, terminal, connector, or termination process for any lead in your oven harness, include that in your RFQ so the corresponding construction can be confirmed.
Reel, Cut-Length and Packaging for Harness Production
Oven harness production may require continuous reel supply, specified cut lengths for individual leads, harness production lengths, or project-specific packaging. For cut lengths, provide the required length, tolerance, and quantity per length. This page does not publish a standard reel length, standard cut tolerance, MOQ, lead time, or stock availability — these are confirmed against your specific order.
What UL 3135 Does Not Automatically Define
The Style data does not automatically define: conductor material, conductor plating, strand count, strand diameter, lay length, finished OD, conductor resistance, ampacity, current rating, bend radius, flex-cycle rating, oven cavity temperature, heater surface temperature, terminal temperature, connector compatibility, standard colour, reel length, cut-length tolerance, MOQ, stock availability, lead time, or production capacity. These remain RFQ, drawing, or ordered-construction parameters where relevant.
Common RFQ Gaps for UL 3135 Oven Wire
Certain specification fields are frequently left out of an initial enquiry and typically require a follow-up before an accurate quotation can be issued. These are common information gaps, not observations about any particular buyer: “UL3135 oven wire” is stated but AWG is omitted; conductor form is not specified; conductor finish required by the termination process is not stated; a finished OD limit is omitted; heater proximity is described vaguely without an actual thermal requirement; terminal or connector information is missing; oven cavity temperature is confused with wire temperature; a cut length is supplied without a tolerance; colour is omitted; or external wiring is assumed even though the official Use requires totally enclosed appliance internal wiring. Resolving these items before quotation reduces specification mismatch.
RFQ Checklist for UL 3135 Oven Internal Wiring
To request an accurate quotation, please provide:
- UL AWM Style 3135
- Required AWG (per lead, if harness has multiple sizes)
- Solid or stranded
- Conductor material, if controlled
- Conductor plating, if controlled
- 200°C requirement
- 600 Vac requirement
- Confirmation of totally enclosed oven internal location
- Actual local temperature requirement, if separately controlled
- Insulation colour
- Nominal or maximum finished OD, if controlled
- Terminal / contact type
- Connector information
- Termination method
- Cut length, if applicable
- Quantity
- Reel or packaging requirement
- Destination
- Documentation requirements
Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
See the UL 3135 Silicone Wire category for AWG-specific product options within this Style.
