UL 3271 8 AWG XLPE Motor Lead Wire
UL AWM Style 3271 8 AWG XLPE wire, rated 125°C, 600 Vac and 750 Vdc, is a specific conductor-size configuration within Style 3271’s broader 30 AWG–2000 kcmil range, used as a motor lead or for internal wiring of appliances. This page is built around the 8 AWG SKU specifically — its confirmed insulation-wall requirement, optional construction features, and RFQ specification fields. 8 AWG represents this page’s SKU; it is not presented as a universal motor conductor size. Actual conductor sizing follows the buyer’s approved motor design, BOM, and end-product requirements.

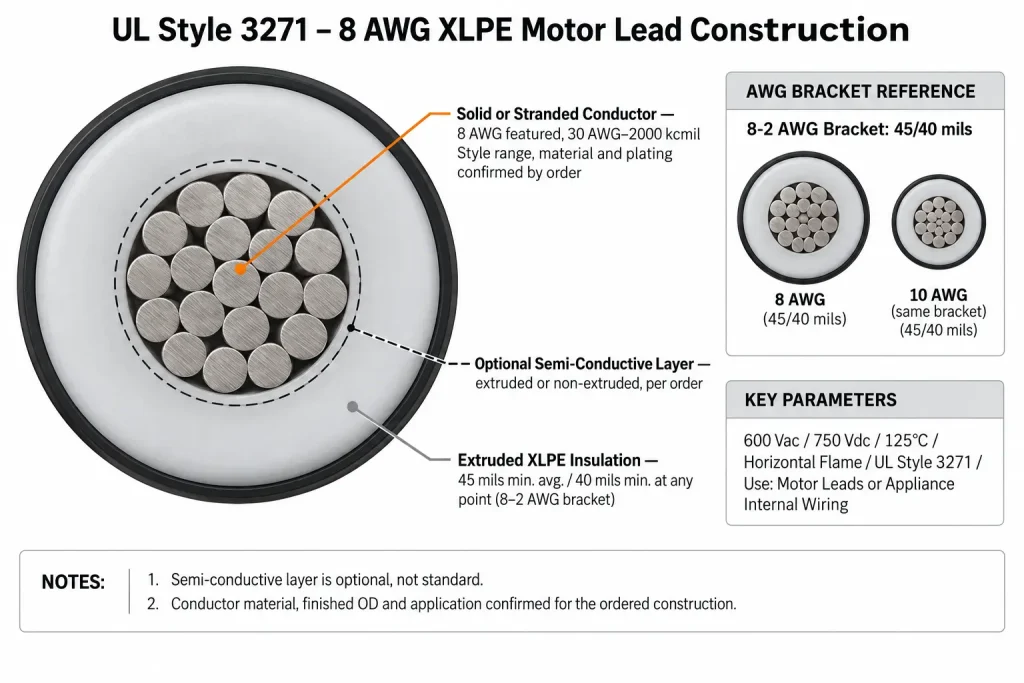

The 45/40 Mil Insulation Bracket: What Distinguishes 8 AWG
UL Style 3271’s XLPE insulation-wall requirement is tiered by conductor size, and 8 AWG falls within the Style’s 8–2 AWG bracket: 45 mils minimum average thickness and 40 mils minimum thickness at any point. This is the same insulation bracket that applies to our separate UL 3271 10 AWG Motor Lead Wire page — 8 AWG and 10 AWG both fall within the 8–2 AWG group and share this insulation requirement, while finer AWG sizes outside this bracket use different minimum thicknesses. This page does not convert the 45/40 mil figure into an invented finished outside diameter; conductor geometry, including finished OD, is order-specific and depends on the actual ordered construction.

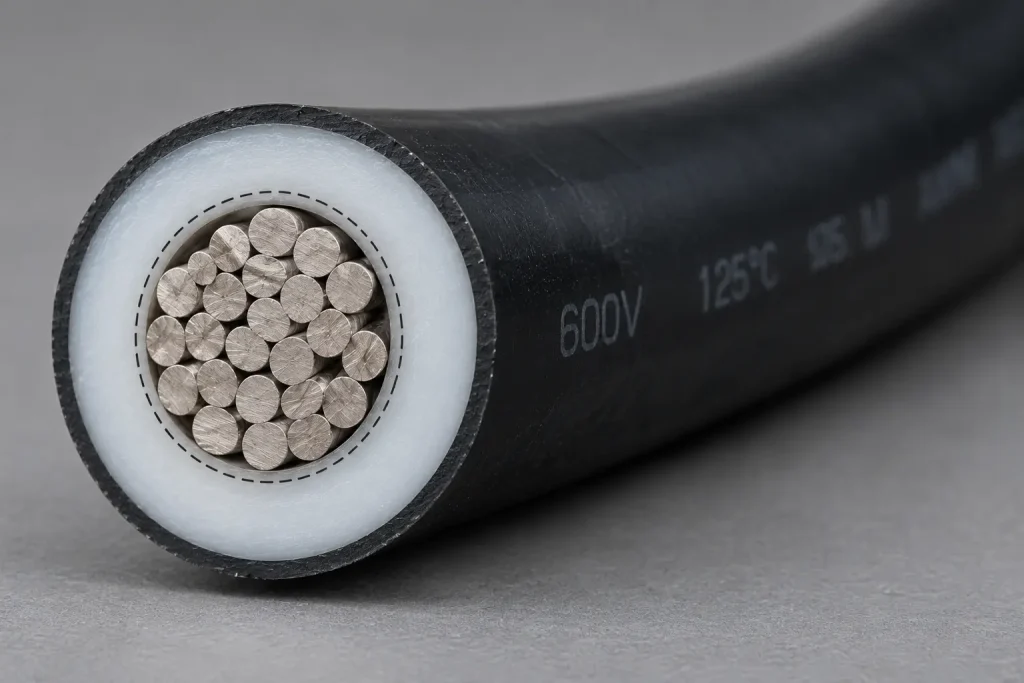

The Confirmed UL 3271 8 AWG Construction
| Parameter | UL 3271 |
|---|---|
| UL AWM Style | 3271 |
| Description | Single conductor with extruded insulation |
| Featured Conductor Size | 8 AWG |
| Style Conductor Range | 30 AWG – 2000 kcmil, solid or stranded |
| Temperature Rating | 125°C |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame | Horizontal flame |
| Insulation | Extruded XLPE, 45 mils min. average / 40 mils min. at any point (8–2 AWG group) |
| Optional Layer | Extruded or non-extruded semi-conductive polymeric layer over conductor |
| Marking | General; tags may optionally indicate 2500 V peak — for electronic use only |
| UL-Defined Use | Motor leads or internal wiring of appliances |

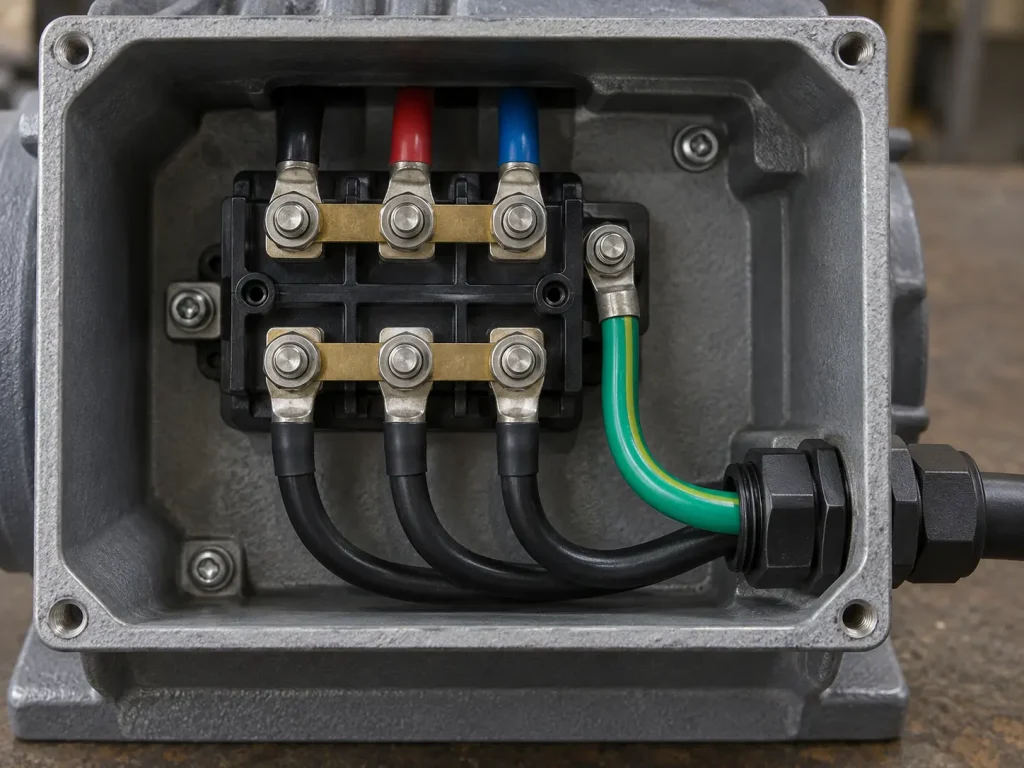

Motor Leads or Appliance Internal Wiring — Not Industrial Control Equipment Wiring
This distinction matters for accurate specification. UL Style 3271’s confirmed Use is motor leads or internal wiring of appliances — it is not defined by UL as general industrial control equipment wiring, control-cabinet internal wiring, or panel-side lead work in a broader sense. Where a motor lead genuinely connects motor terminals within a control-equipment assembly, that falls within the confirmed motor-lead use; but this page does not extend UL 3271 into a general “industrial control equipment” positioning beyond that specific motor-lead application.
Optional Semi-Conductive Layer
UL Style 3271 permits an optional extruded or non-extruded semi-conductive polymeric layer over the conductor. This is an order-specific, optional feature — not a default component of every UL 3271 8 AWG wire. This page does not assume the semi-conductive layer is included unless specifically required. If your motor design requires this layer, state it explicitly in your RFQ.
8 AWG Does Not Establish Motor Current, HP, or kW Rating
This page does not publish a generic ampacity figure, motor horsepower rating, or kilowatt rating simply because the product is 8 AWG, and does not infer allowable motor current from the 8 AWG conductor size or the 600 Vac / 750 Vdc voltage ratings — these are separate parameters determined by motor design. Current-carrying suitability, motor HP, motor kW, and motor insulation class depend on the actual motor design, conductor construction, ambient conditions, and installation, and must be evaluated accordingly rather than assumed from AWG alone.
VFD and PWM Applications: Confirm Separately
UL 3271’s 600 Vac and 750 Vdc figures are the Style’s rated voltage limits — they do not by themselves establish VFD suitability, PWM voltage-spike performance, or shielding requirements for a variable-frequency-drive-fed motor. If your project involves a VFD-driven motor, confirm your actual circuit voltage, PWM characteristics, and any shielding requirement separately; this page does not make VFD-specific or PWM-specific performance claims beyond the confirmed Style rating.
Conductor Form, Material, Termination and Connectors: RFQ Fields
UL Style 3271 permits solid or stranded conductor construction at 8 AWG; conductor material and plating are not established by the Style data. This page does not describe UL 3271 8 AWG as a fixed bare-copper or tinned-copper product — if your BOM or drawing specifies a conductor material, plating, terminal, connector, or termination process for the motor lead, include that in your RFQ so the corresponding construction can be confirmed.
Common RFQ Gaps for UL 3271 8 AWG Motor Leads
Certain specification fields are frequently left out of an initial enquiry and typically require a follow-up before an accurate quotation can be issued. These are common information gaps, not observations about any particular buyer: UL 3271 and 8 AWG are stated but conductor form is omitted; a buyer assumes a 30/27 mil wall instead of the correct 45/40 mil requirement for 8 AWG; conductor plating is omitted; maximum OD is missing; the semi-conductive layer is not clearly specified; motor terminal information is missing; motor current is assumed from AWG alone; “VFD motor wire” is requested without VFD-specific requirements; a cut length is stated without a tolerance; colour is omitted; or packaging method is omitted. These gaps can cause supplier quotations to represent different constructions.
What UL 3271 Does Not Automatically Define
The Style data does not automatically define: conductor material, conductor plating, strand count, strand diameter, lay length, conductor resistance, current rating, ampacity, motor HP, motor kW, motor insulation class, finished OD, bend radius, flex cycles, VFD suitability, PWM performance, shielding, terminal compatibility, connector compatibility, standard colour, reel length, cut-length tolerance, MOQ, stock availability, lead time, or production capacity.
RFQ Checklist for UL 3271 8 AWG XLPE Motor Lead Wire
To request an accurate quotation, please provide:
- UL AWM Style 3271
- 8 AWG
- Solid or stranded
- Conductor material, if controlled
- Conductor plating, if controlled
- 125°C requirement
- 600 Vac requirement
- 750 Vdc requirement
- Motor-lead application
- 45/40 mil XLPE insulation requirement (confirmed for 8 AWG)
- Semi-conductive layer required or not required
- Insulation colour
- Nominal or maximum finished OD, if controlled
- Terminal / contact type
- Connector information
- Termination method
- Cut length, if applicable
- Cut-length tolerance
- Quantity

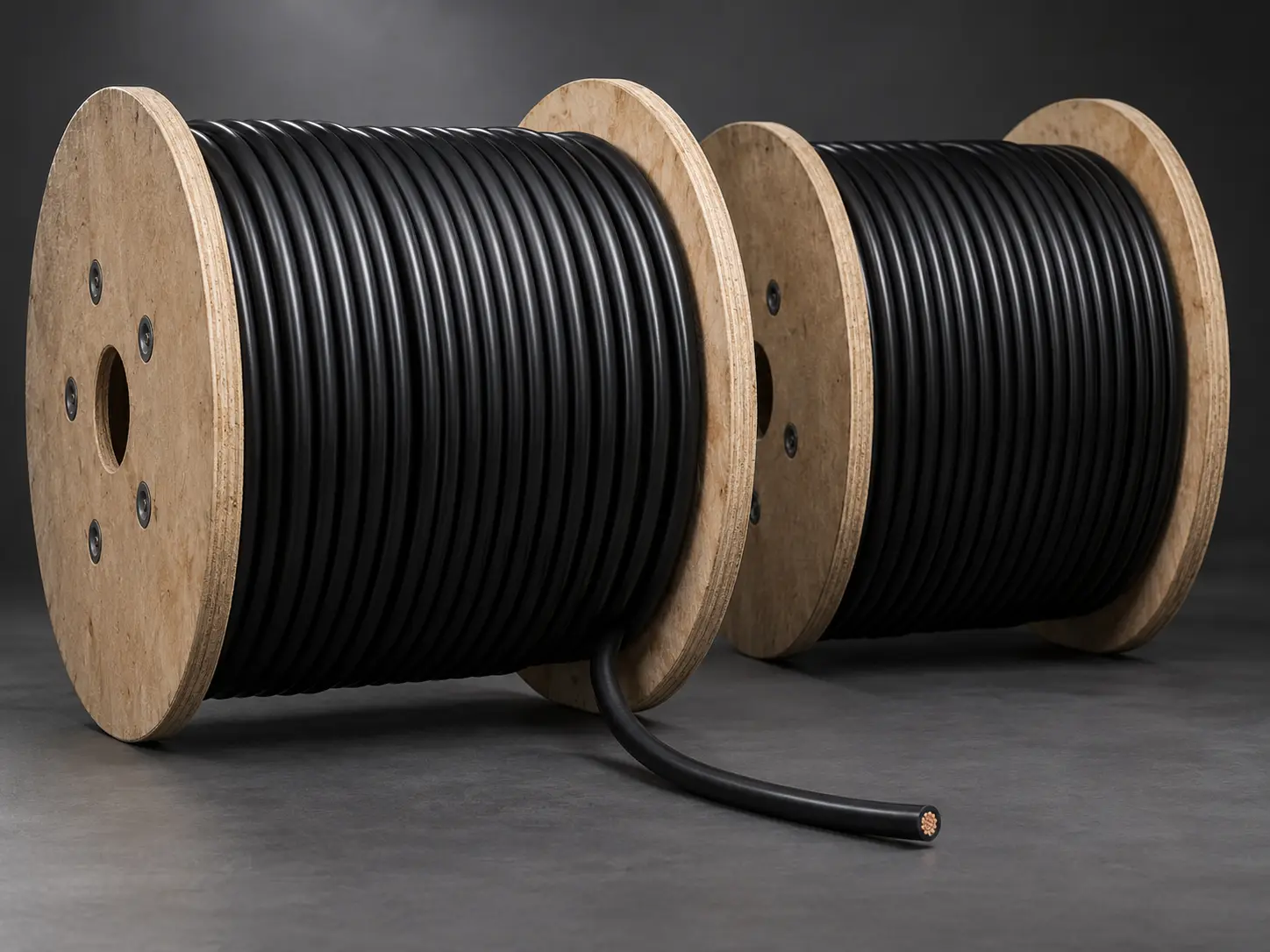

- Reel or packaging requirement
- Destination
- Documentation requirements
Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
See the UL 3271 XLPE Wire category, our XLPE Wire range, or our AWM Wire category for other conductor sizes within this Style.
