UL 3573 10,000V Silicone Rubber Ignition Wire for Riyadh and Saudi Arabia
UL 3573 is a high voltage silicone rubber ignition lead wire rated 200°C and 10,000V AC under UL AWM Style 3573. Like UL 3304, it is used for gas burner and gas appliance ignition circuits — but UL 3573 is the specification for enclosed, protected ignition circuit routing rather than open routing. The key difference from UL 3304 is that UL 3573 incorporates a fiberglass braid or jacketed outer covering as part of the standard construction, providing mechanical protection for ignition leads that are routed through conduit, cable channels, or tight equipment assemblies where the wire could be subject to abrasion, pinching, or contact with hot metal surfaces.
In Riyadh’s industrial and commercial sectors, UL 3573 ignition wire is the specification used by gas appliance OEMs, industrial burner manufacturers, and HVAC equipment builders who design ignition lead routing inside enclosed equipment housings — where the lead is protected from direct flame exposure but must still withstand the elevated ambient temperature inside the appliance and the 10,000V ignition pulse. Saudi Arabia’s large base of gas-fired commercial kitchen equipment, industrial process heaters, and commercial HVAC boiler plant creates consistent procurement demand for both UL 3304 (open routing) and UL 3573 (enclosed routing) ignition wire. CableApex manufactures UL 3573 under File No. E333030 and supplies factory-direct to Riyadh and across Saudi Arabia (CIF Jeddah).
Product Specifications — UL 3573
| Parameter | Specification |
|---|---|
| UL AWM style | 3573 |
| Insulation material | Extruded silicone rubber (SR) |

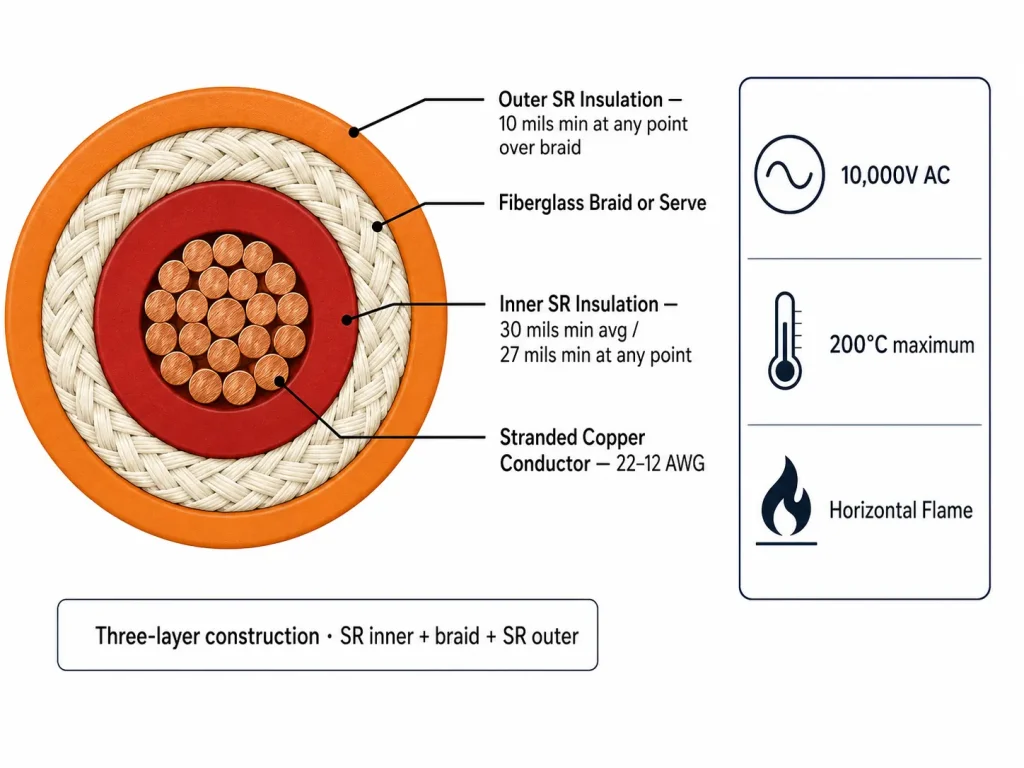

| Outer covering | Treated fiberglass braid (standard) or overall jacket |
| Temperature rating | 200°C continuous |
| Voltage rating | 10,000V AC |
| Conductor | Solid or stranded copper (tinned or nickel-plated) |
| AWG range | 18 AWG – 10 AWG |
| Silicone insulation thickness | Per UL 3573 construction — thicker than UL 3304 at equivalent AWG |
| Flame rating | Horizontal flame |
| UL file number | E333030 |

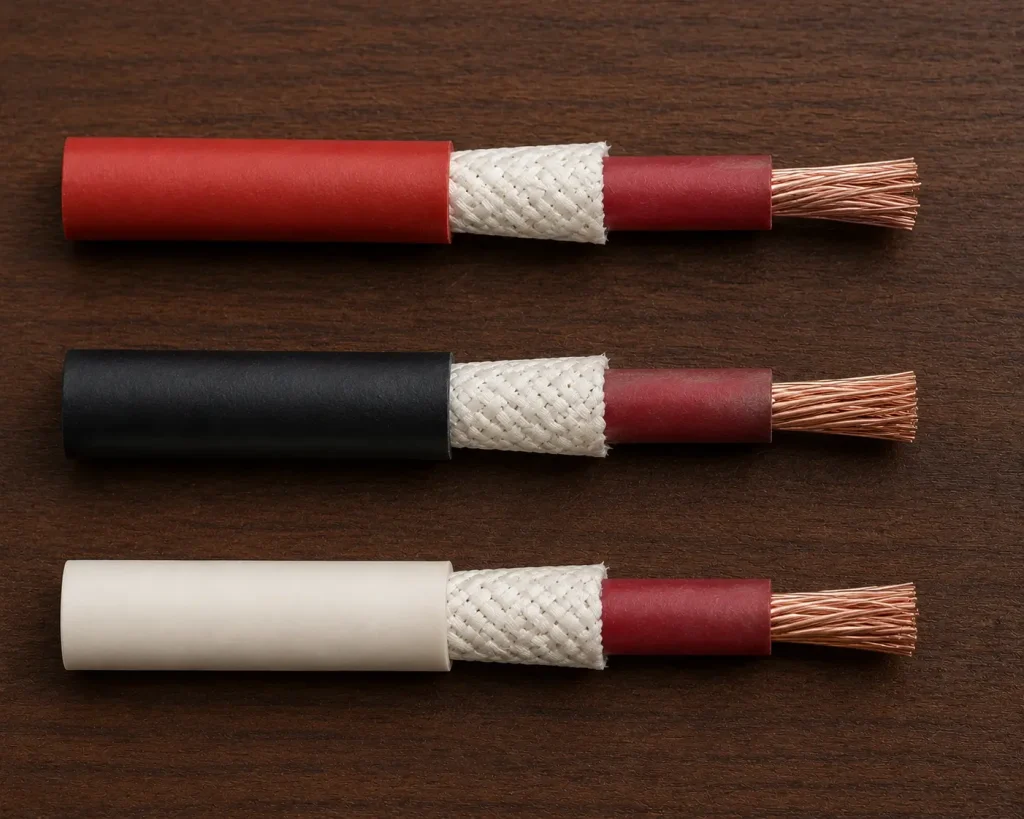

| Colour options | Red, black, white, custom |
| Compliance | RoHS, REACH |
Reprinted from Product iQ with permission from UL Solutions. ©2026 UL LLC. File No. E333030, last updated 2025-12-01.

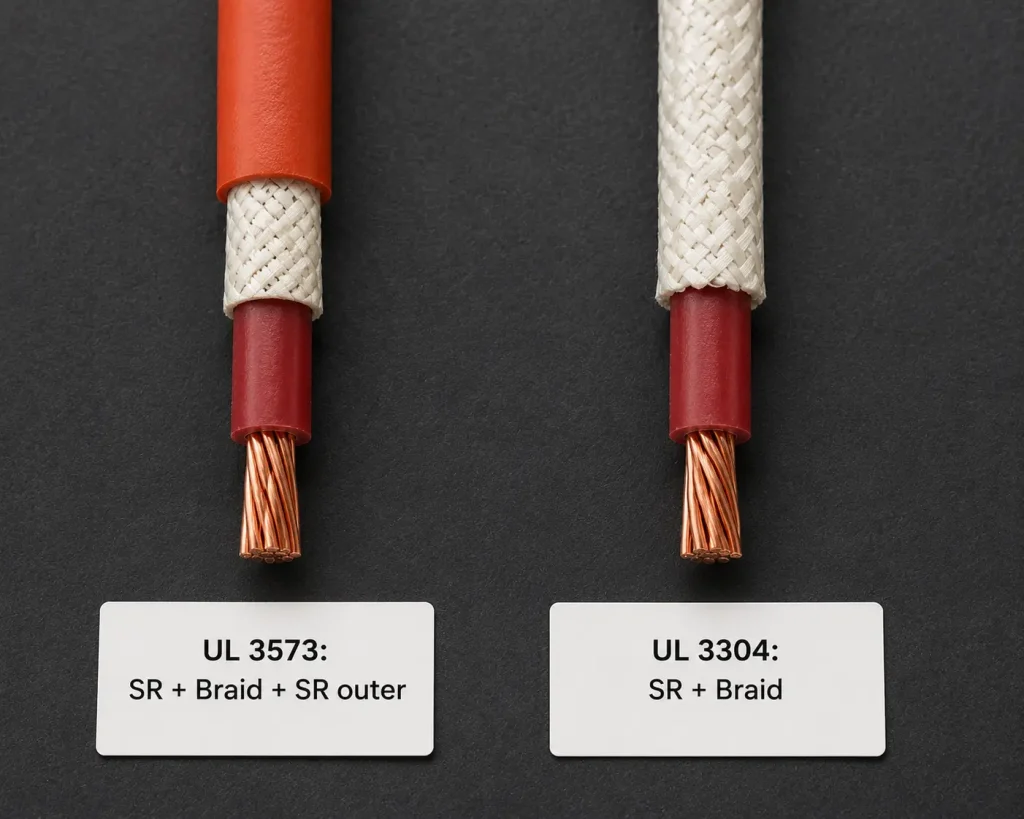

UL 3573 vs UL 3304 — When to Specify Each
| Criterion | UL 3573 (this product) | UL 3304 |
|---|---|---|
| Voltage rating | 10,000V AC | 10,000V AC |
| Temperature rating | 200°C | 200°C |
| Outer covering | Fiberglass braid or jacket — standard | Optional fiberglass braid |
| Routing type | Enclosed — through conduit, inside appliance housings | Open — direct routing in burner zone |
| Mechanical protection | Higher — braid resists abrasion and pinching | Standard — silicone insulation only |
| Typical Saudi/Riyadh use | Gas appliance OEM internal ignition routing | Replacement ignition leads, open burner zone wiring |
Supply to Riyadh and Saudi Arabia
Riyadh gas appliance OEM procurement

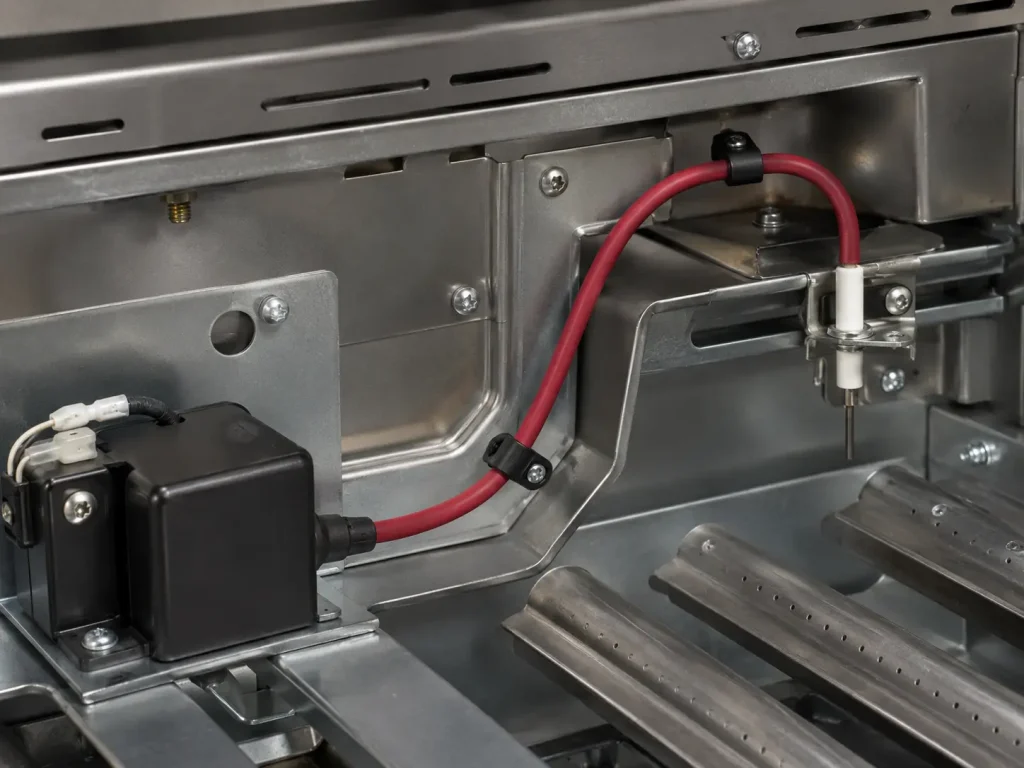

Riyadh hosts a growing base of gas appliance assembly operations and equipment maintenance companies serving Saudi Arabia’s residential and commercial gas appliance market. Gas range manufacturers, commercial oven assemblers, and water heater producers sourcing ignition components for the Saudi domestic market specify UL 3573 for the internal ignition lead routing inside enclosed appliance housings — where the wire runs through metal conduit or cable channels inside the appliance body from the control board ignition transformer to the spark electrode. UL 3573’s fiberglass braid outer protection resists abrasion against the metal edges of the appliance housing during routing and service.
Industrial burner manufacturers — Saudi Arabia export
Saudi Arabia’s industrial burner equipment sector supplies gas-fired process burners to the petrochemical, cement, food processing, and general manufacturing industries across the GCC. Burner management systems use UL 3573 for the ignition lead connections inside the burner control enclosure — where the lead is routed through the control panel wireway from the ignition module to the HV output connector that connects to the external electrode lead. The fiberglass braid covering of UL 3573 provides the mechanical protection and temperature resistance required in this compact, high-temperature control panel environment.
HVAC boiler equipment — Riyadh
Commercial gas boilers and hot water generators installed in Riyadh commercial buildings route their ignition leads inside the boiler casing through metal clips and conduit segments. UL 3573’s covered construction is preferred for these enclosed routing applications over UL 3304 bare silicone wire, providing mechanical protection during installation and service — an important consideration given that boiler ignition leads are frequently accessed by maintenance technicians and must withstand repeated handling without insulation damage. See also: UL 3304 10,000V ignition wire for open routing applications.
Key Features
Product
- UL AWM Style 3573, 200°C, 10,000V AC
- File No. E333030 — UL Follow-Up Service
- Silicone rubber + fiberglass braid construction
- Mechanical protection for enclosed routing
- Tinned or nickel-plated conductor options
- Horizontal flame rated
Supply for Riyadh and Saudi Arabia
- Factory-direct from Yangzhou, China
- CIF Jeddah — 18–22 day transit
- Full UL and compliance documentation
- Arab League CoO available
- MOQ 500 m per AWG/colour
- 10–15 working day lead time
Common Applications in Saudi Arabia
Gas appliance internal ignition routing (Riyadh OEMs)
Ignition lead wire routed inside gas range, oven, and water heater housings in Riyadh assembly operations — from the ignition transformer output through metal conduit to the spark electrode connector. The fiberglass braid provides abrasion resistance against metal housing edges during production and maintenance.
Industrial process burner control enclosures
Ignition module to HV output connector wiring inside burner management control panels in Saudi Arabia’s industrial process heater and furnace equipment — where the compact, high-temperature panel environment requires covered wire for mechanical protection alongside the 10,000V and 200°C electrical ratings.
Commercial boiler ignition systems (Riyadh)
Enclosed ignition lead routing inside commercial gas boiler casings for Riyadh HVAC plant — where UL 3573’s covered construction survives repeated handling by maintenance technicians without insulation damage, extending the service interval for ignition lead replacement.
Other applications
- Gas turbine pilot burner ignition — enclosed routing variant
- Industrial drying oven burner ignition panel wiring
- Gas-fired infrared heating equipment ignition leads
- Marine gas appliance ignition circuits for Saudi Red Sea and Gulf ports
Ordering Information
Specify AWG, conductor type (tinned or nickel-plated), colour, and quantity. Fiberglass braid covering is standard on UL 3573. MOQ 500 m per AWG/colour. UL 3573 compliance documentation and RoHS Declaration supplied. Arab League CoO on request. Sample from 10 m.
Request CIF Jeddah pricing for Riyadh and Saudi Arabia. Provide AWG, quantity, and required documentation. We respond within 24 hours. Contact us.
Why CableApex for Riyadh and Saudi Arabia
CableApex manufactures UL 3573 silicone rubber ignition wire under UL Follow-Up Service (File No. E333030) in Yangzhou. 100% online high voltage spark testing on all production. Direct export to Saudi Arabia CIF Jeddah, 18–22 day transit. Arab League CoO capability for GCC re-export. Complete UL documentation for Saudi appliance OEM and industrial procurement qualification. Contact us within 24 hours.
