UL 1332 30 AWG FEP Wire Overview
This page covers UL AWM Style 1332 FEP insulated wire in the 30 AWG conductor size, supplied by CableApex as a factory-direct manufacturer for OEM appliance production. Style 1332 is a single-conductor construction with extruded FEP insulation, rated 200°C and 300 Vac. This page focuses specifically on the 30 AWG gauge within the Style; buyers requiring other gauges within the 30 AWG–10 AWG Style range should confirm their specific size during quotation or see our broader UL 1332 FEP Wire category.
UL 1332 FEP wire is supplied here as a solid or stranded round conductor, in line with the Style definition. Conductor construction, plating, insulation colour, and packaging are confirmed according to the ordered specification rather than fixed to a single default configuration.
UL AWM Style 1332 Technical Scope
The table below summarizes the Style-level parameters that define UL 1332 as a construction, applicable across its full 30 AWG–10 AWG range.
| Parameter | UL Style 1332 |
|---|---|
| Construction | Single conductor with covering |
| Rated Temperature (Maximum) | 200°C |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Conductor Size Range (Style) | 30 AWG – 10 AWG, solid or stranded round |
| Insulation | Extruded FEP, 13 mil min. average / 12 mil min. at any point |
| Optional Covering | Extruded FEP, 2 mil or heavier, or glass braid, 7 mil or heavier (order-specific, not default) |
| Optional Conditions | Oil resistant 80°C and gasoline resistant — optional per Style definition, confirmed per order |
| Marking | General; tag may indicate suitability for immersion in gasoline, gasoline vapor, 80°C oil, and/or 600 V peak — for electronic use only |

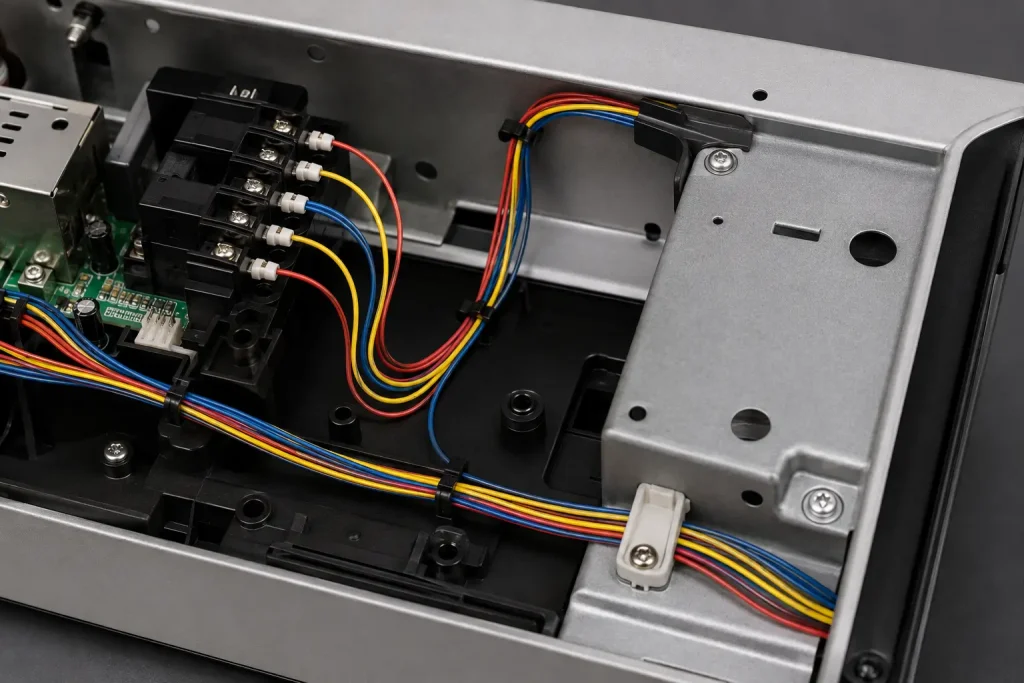

| Use per UL Style file | Internal wiring of appliances |
| RoHS / REACH | Confirmed during quotation according to ordered materials and documentation requirements |
Why 30 AWG Is the Focus of This Page

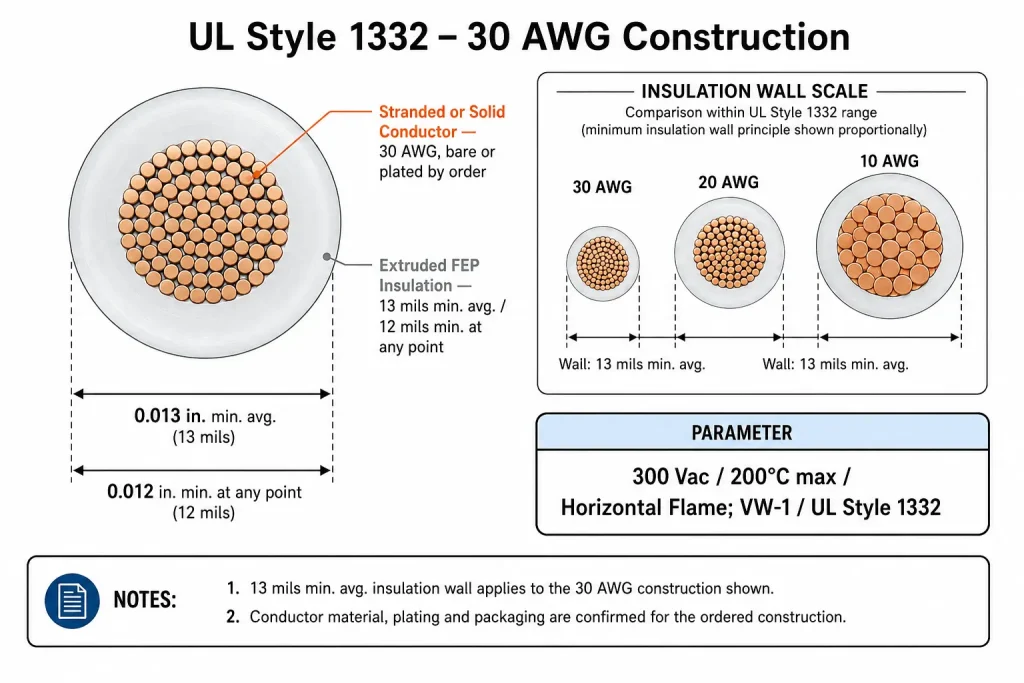

This page is built around the 30 AWG conductor size within UL Style 1332, which sits at the fine end of the Style’s 30 AWG–10 AWG range. 30 AWG is specified here as a gauge-specific purchasing attribute — the wire is supplied at a fine conductor size with FEP insulation applied at the Style’s 13 mil minimum average / 12 mil minimum-at-any-point thickness. We do not classify this as a specialized “thin-wall” product unless a specific ordered construction and confirmed measurement establishes that classification separately from the standard Style thickness table. Finished outside diameter is not published here as a general figure; it depends on the ordered conductor construction and should be confirmed during quotation if required for your design.

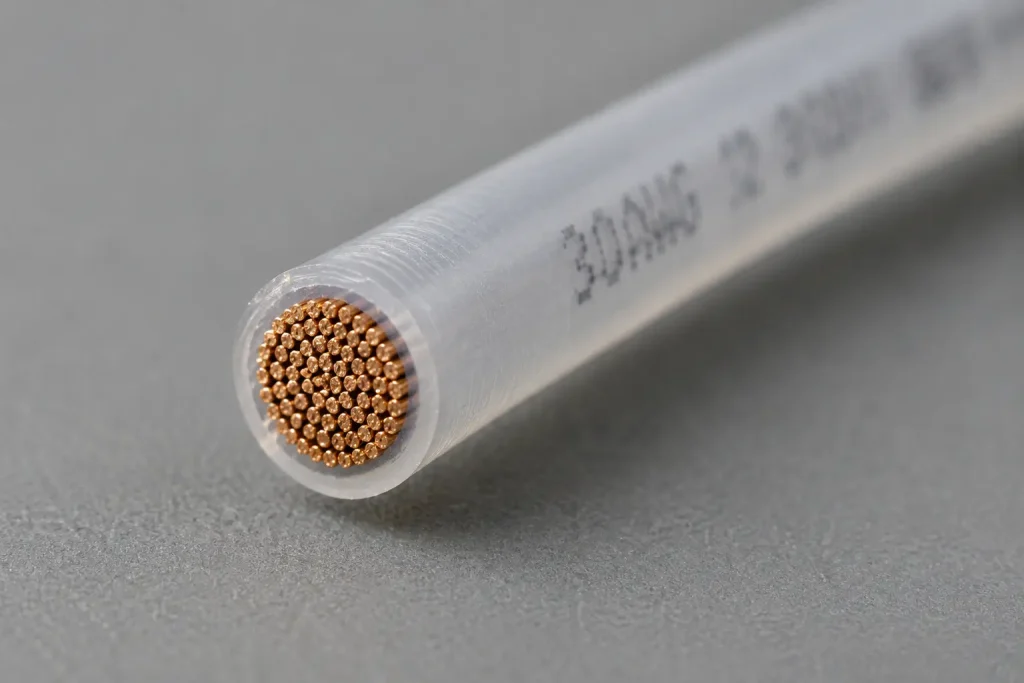

Conductor and Insulation Requirements by Ordered Construction

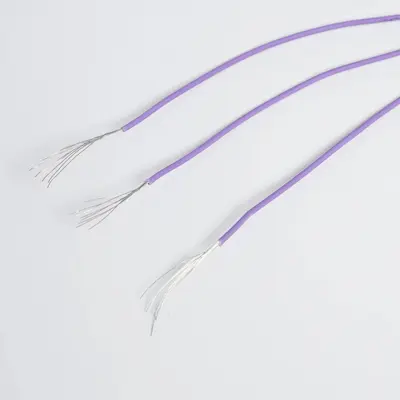

At 30 AWG, the conductor can be supplied solid or stranded per the Style scope. Conductor material, plating, strand count, and strand diameter are not fixed by the UL Style definition and are confirmed according to your ordered specification rather than published as generic figures on this page. If your application requires a specific plating (such as tinned or silver-plated copper), specify this when requesting a quotation.
FEP insulation is extruded to the Style’s minimum thickness requirements. Insulation colour is set per order to support your circuit-identification needs. The optional extruded FEP covering or glass braid covering described in the Style definition is not a default feature of this page’s base construction and should be requested specifically if needed.
UL Marking and Documentation Boundaries
Qualifying UL AWM Style 1332 constructions can be supplied through the partner manufacturing scope associated with the applicable UL Recognized Component file on record. UL marking and related documentation depend on the specific qualified construction ordered; not every configuration automatically carries a UL Mark, and we do not guarantee that a given shipment will pass a customer’s internal or third-party audit, certification review, or regulatory approval. If UL marking is required, confirm this explicitly when requesting a quotation.
RoHS and REACH are separate regulatory frameworks from UL recognition and are not treated as equivalent certifications on this page. Applicable RoHS / REACH documentation, where required, is confirmed according to the ordered materials and your documentation requirements.
Bulk and Custom Purchasing Information
UL 1332 30 AWG FEP wire can be supplied in bulk or custom-length quantities depending on your production requirement. To provide an accurate quotation, please specify:
- Confirmation of 30 AWG as the required gauge
- Solid or stranded conductor
- Conductor plating requirement, if any

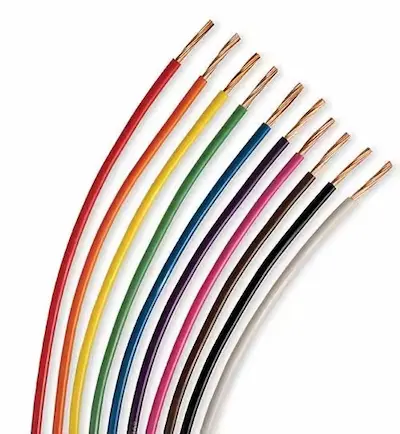

- Insulation colour
- Order quantity

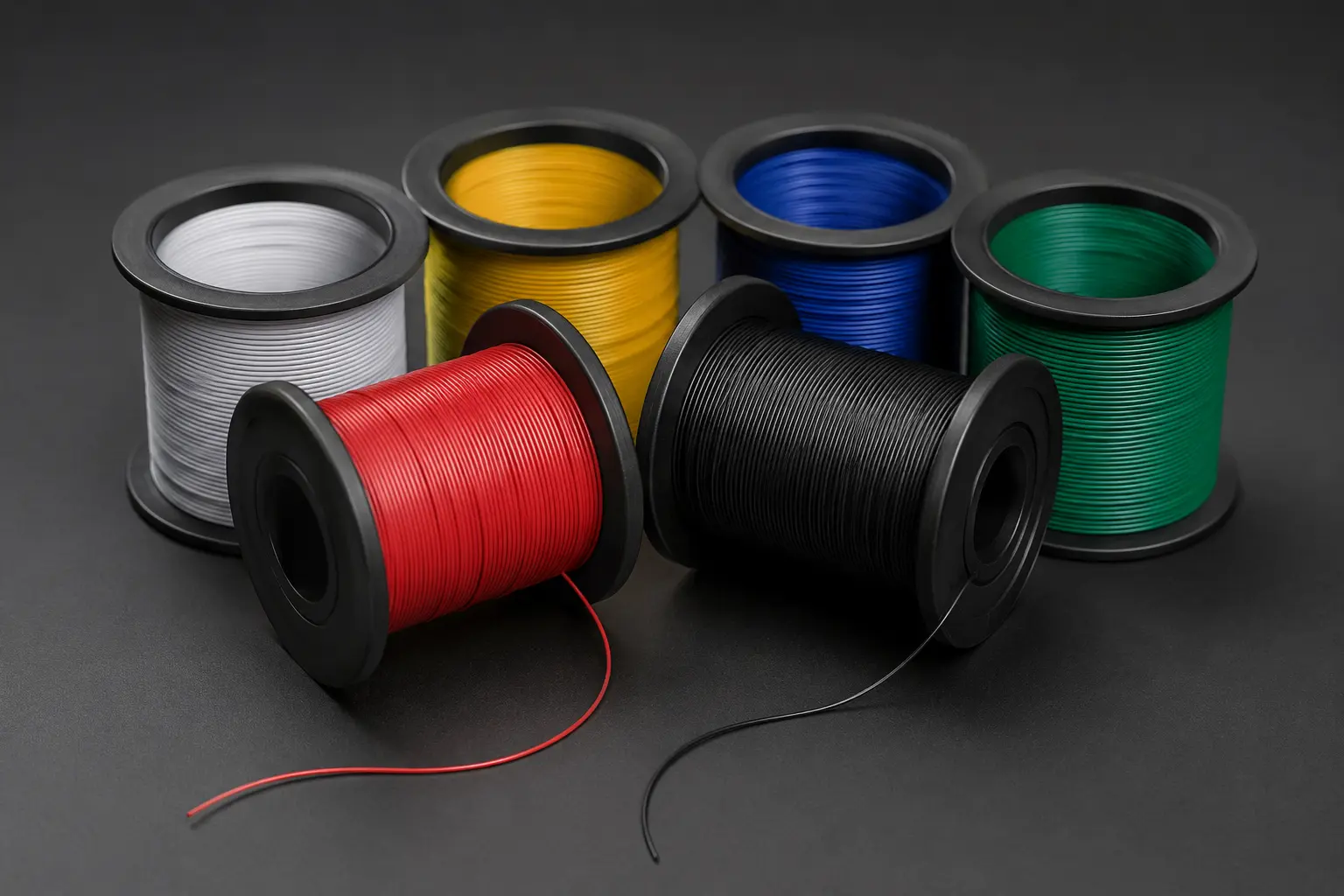

- Reel, spool, or coil packaging requirement
- UL marking requirement, if applicable
- Documentation requirements, including RoHS / REACH if needed
- Shipping destination
Send this information and we respond with a quotation within 12 business hours. Production lead time depends on the confirmed construction and order quantity, and shipping options and applicable Incoterms are confirmed during quotation according to destination.
For other gauges within this Style, browse our UL 1332 FEP Wire category, or see our broader FEP Wire range to compare constructions.
