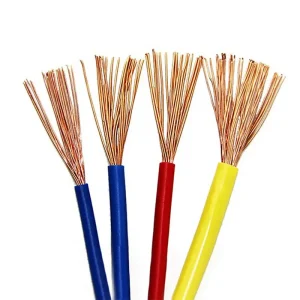

10 AWG — The Upper Limit of UL 3266
UL 3266 is listed under UL Subject 758 for the conductor range 32 AWG to 10 AWG. 10 AWG (~5.26 mm²) is the largest gauge permitted under this Style — anything heavier than 10 AWG falls outside the UL 3266 listing and requires a different XLPE Style (typically UL 3271 for 30 AWG to 2000 kcmil at 600V, or UL 3666 for 32 AWG to 1000 kcmil at 600V).
German engineers searching UL 3266 XLPE Draht 10 AWG Deutschland supplier are typically working at the upper current end of the UL 3266 application range. At 10 AWG, the cross-section supports significantly more current than 14 AWG or 12 AWG, opening up applications that the smaller UL 3266 gauges cannot serve — but staying within the 300V voltage limit that distinguishes UL 3266 from the 600V UL 3271.
Current-Carrying Capacity for 10 AWG XLPE at 125°C
10 AWG conductor at the 125°C temperature class supports significantly higher continuous current than the same gauge at 90°C or 105°C. NEC Table 310.16 ampacity values give a useful reference for engineers sizing internal panel wiring:
- 10 AWG at 60°C insulation: 30A continuous
- 10 AWG at 75°C insulation: 35A continuous
- 10 AWG at 90°C insulation: 40A continuous
- 10 AWG XLPE at 125°C: Higher than 90°C class — exact internal cabinet derating depends on bundling, conduit fill, and ambient per UL 508A Table 28.1
For German engineers used to DIN VDE 0298-4 ampacity tables, the practical implication is that 10 AWG UL 3266 covers the same internal panel wiring applications as 4 mm² H07V-K at 70°C — but with substantially more thermal headroom for cabinet-mounted applications where ambient temperature is elevated by adjacent power components, transformers, or VFDs.
Where 10 AWG UL 3266 Fits in German Equipment Export

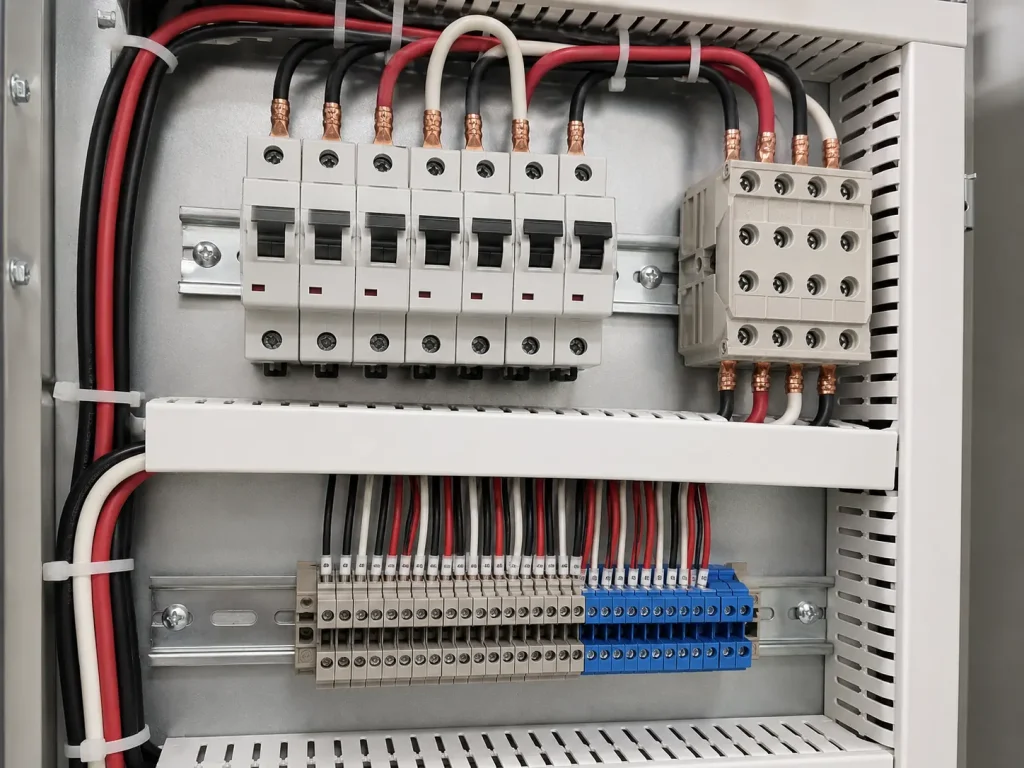

UL 508A Panel Power Distribution (Branch Circuits Below 300V)
Inside German UL 508A control panels exported to North America, 10 AWG UL 3266 is specified for 24V DC and 120V AC branch circuit distribution where the load draws 25–35A continuous. The 300V rating is well above 120V supply, the 125°C XLPE provides headroom over typical cabinet temperatures, and the thermoset behavior provides safety margin during temporary overload. For 240V or 480V three-phase circuits, UL 3271 600V is the required upgrade.
Battery System Internal Wiring
German battery system manufacturers — particularly UPS systems, energy storage equipment, and DC backup systems for the US market — use 10 AWG UL 3266 for internal connections between battery strings, BMS modules, and DC bus terminals where the system voltage stays within the 300V envelope. The thermoset XLPE is preferred over PVC for battery enclosures because it does not soften during a thermal runaway event in adjacent cells.
Industrial Heating Equipment Auxiliary Circuits
German industrial heating equipment OEMs producing equipment for North American distribution use 10 AWG UL 3266 for auxiliary control circuits, contactor coil supply, and instrumentation power distribution inside heated equipment housings. The 125°C rating accommodates the elevated ambient temperature inside heating equipment cabinets without requiring the cost of UL 3071 silicone rubber at 200°C.

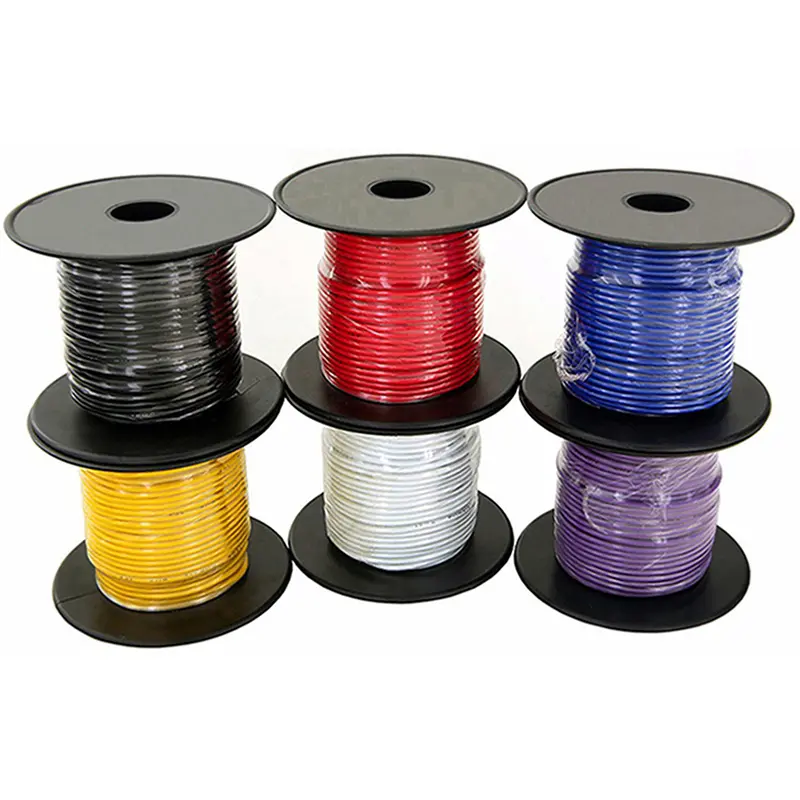

German Local Supplier vs China Direct — A Decision Framework
For German buyers evaluating where to source 10 AWG UL 3266, the decision typically comes down to three factors:
| Factor | German Local Supplier | CableApex Direct from China |
|---|---|---|
| Lead time for stock items | 1–5 days | 25–30 days CIF |
| Lead time for non-stock 10 AWG XLPE | 4–8 weeks (special order) | 25–30 days CIF (standard production) |
| Pricing on container quantities | Distributor margin layered on import cost | Factory-gate pricing direct |
| UL documentation access | Through distributor channel | Direct from manufacturer (E333030) |
| MOQ flexibility | Often 100m minimum, reels only | Production-run MOQ, custom packaging available |
| Technical communication | Through distributor sales rep | Direct with production team |
For one-off small quantities (under 500 m) of common gauges where the wire is needed within a week, German local distribution makes sense. For OEM production volumes, container-quantity orders, or non-standard specifications (custom colors, specific stranding, oil-resistant grade), direct sourcing from CableApex provides better economics, more transparent documentation, and direct technical support.

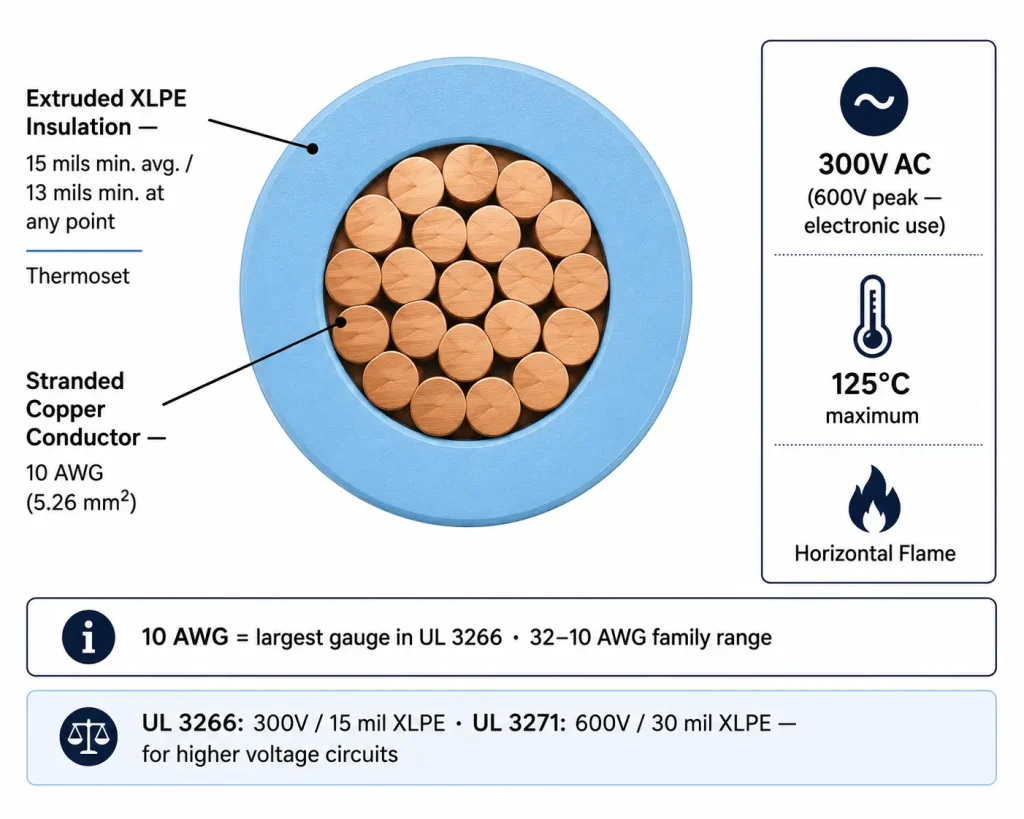

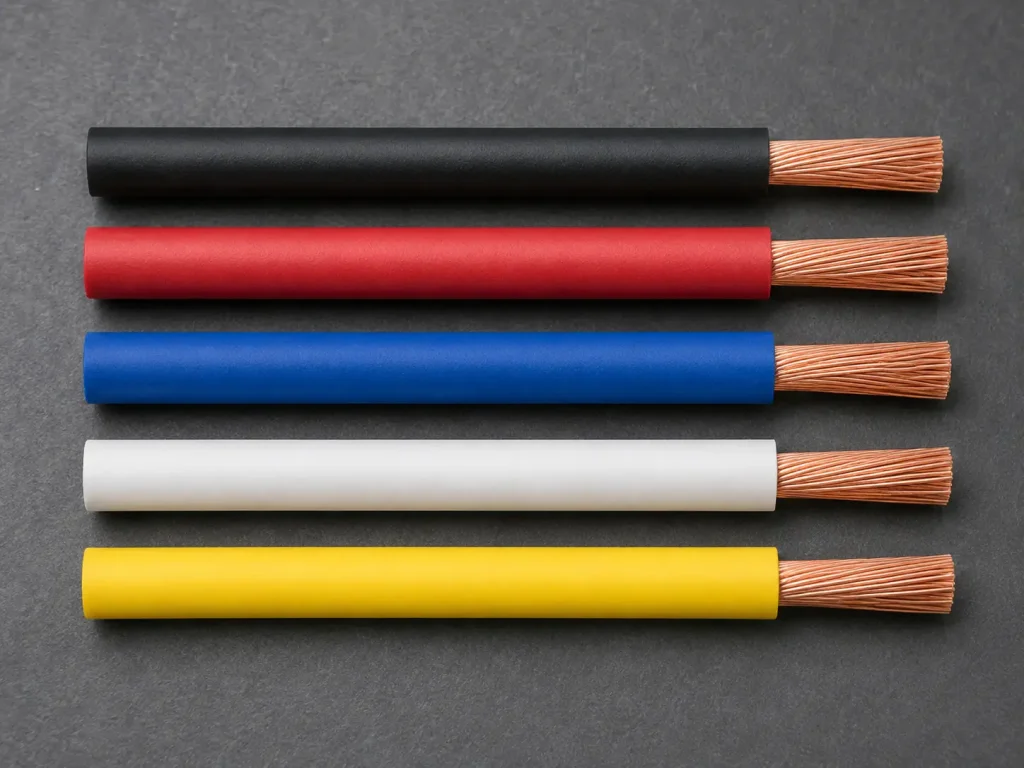

UL 3266 10 AWG Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 3266 |
| UL File Number | E333030 (Follow-Up Service) |
| Conductor Size | 10 AWG (~5.26 mm²) |
| UL 3266 Range | 32 AWG – 10 AWG (10 AWG is the largest in family) |
| Conductor Material | Bare or tinned copper, solid or stranded round |
| Voltage Rating | 300V AC (600V peak — for electronic use only, when tag indicates) |
| Temperature Rating | 125°C |
| Insulation | Extruded XLPE (cross-linked polyethylene), 15 mils (0.38 mm) min avg / 13 mils (0.33 mm) min at any point |
| Insulation Type | Thermoset |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Use | Internal Wiring |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 3266 · 10 AWG · 300V · 125°C · E333030 |
Engineering Notes from CableApex
Three points German engineers ask specifically about 10 AWG UL 3266:

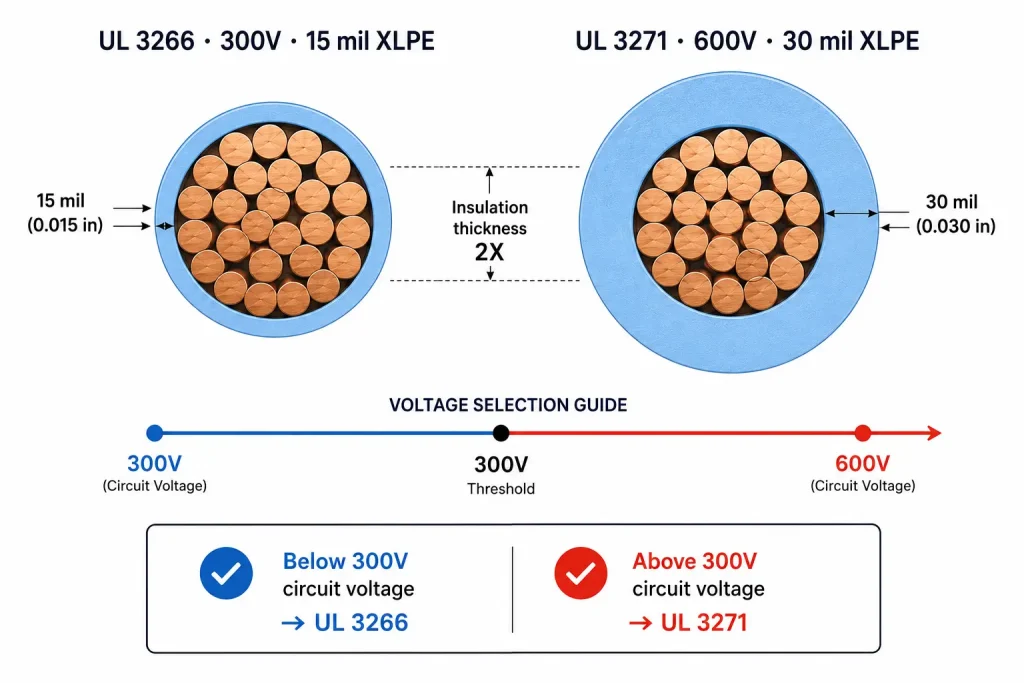

- “Why is the UL 3266 wall thickness only 15 mils for 10 AWG when UL 1015 PVC at the same gauge requires 30 mils?” Different UL Styles specify different minimum wall thicknesses based on the insulation material’s dielectric and mechanical properties. XLPE at 15 mils provides equivalent or better dielectric performance than PVC at 30 mils because XLPE has higher dielectric strength per unit thickness and lower water absorption. The thinner wall on UL 3266 means smaller finished OD — useful in space-constrained applications. UL 3271 (600V XLPE) returns to 30 mils minimum because of the higher voltage requirement.
- “Can 10 AWG UL 3266 replace 4 mm² H07V-K in our existing German design?” Functionally close but not a direct substitute. H07V-K is rated 450/750V at 70°C under HD 21.3 (European standard), while UL 3266 is 300V at 125°C under UL Subject 758. If your circuit voltage is below 300V and the application calls for higher temperature rating, UL 3266 is the upgrade. If your circuit voltage is above 300V, you need UL 3271 (600V XLPE) instead.
- “Stranded vs solid 10 AWG — which is more common?” For internal panel wiring in OEM equipment, stranded 10 AWG is the default choice because of routing flexibility through cable management channels and crimp termination compatibility. Solid 10 AWG is occasionally specified for terminal-block direct connections where the wire is fully supported. CableApex supplies both under the same UL 3266 listing.
MOQ, Packaging & Shipping

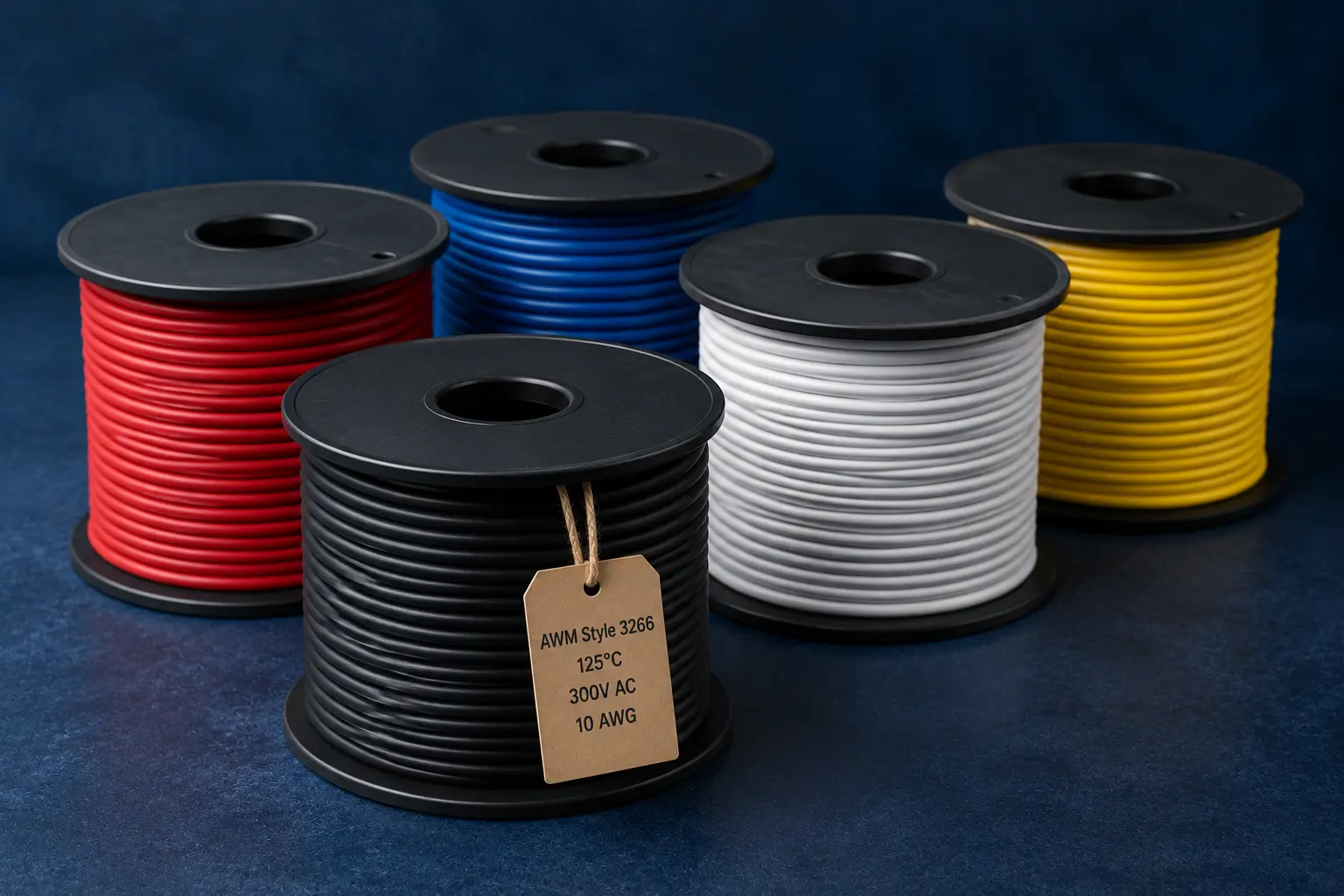

MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on 10 AWG. Standard packaging: spools or reels per customer specification, typical 305 m to 1,000 m per spool for 10 AWG. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles for Higher-Current Applications
10 AWG UL 3266 buyers commonly cross-reference: UL 3271 (125°C / 600V XLPE, 30-2000 kcmil — the 600V upgrade beyond UL 3266’s 300V limit), UL 1015 (105°C / 600V PVC, 30-2000 kcmil — PVC alternative if 125°C is not required), UL 3666 (105°C / 600V XLPE, 32 AWG to 1000 kcmil — lower-temperature XLPE alternative), and UL 10269 (105°C / 1000V PVC, 30-2000 kcmil — when higher voltage is required at lower temperature).
