UL 1015 PVC Wire — 105°C 600V Appliance Internal Wiring
Product Overview

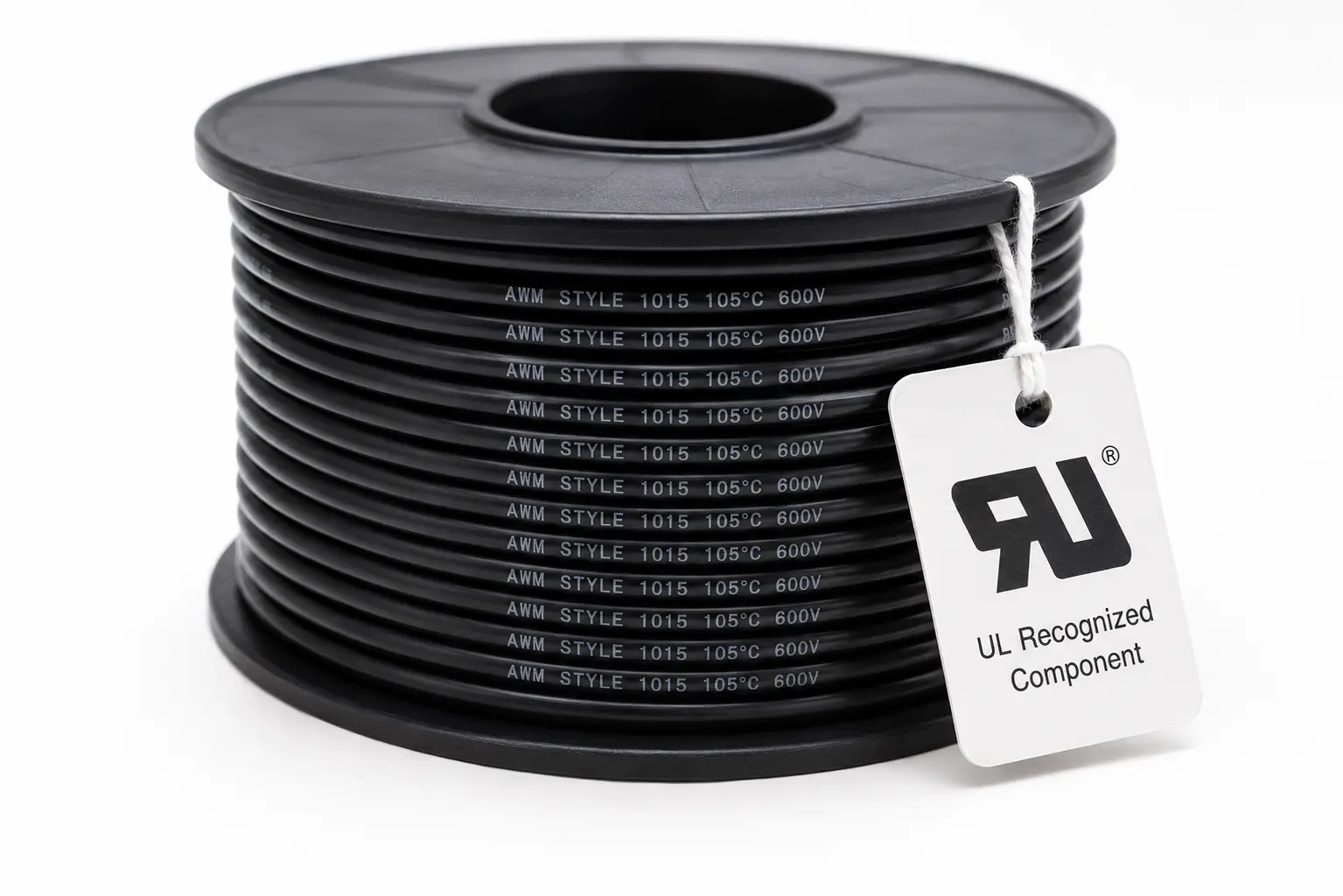

UL 1015 is a PVC insulated wire rated up to 105°C and 600V AC under UL AWM Style 1015, supplied as a UL Recognized Component — file on record. It is commonly selected for fixed internal wiring in appliances and equipment where a standard 600V PVC AWM wire is required and the operating temperature remains within the selected rating. UL 1015 can be marked for 80°C, 90°C, or 105°C depending on the selected construction; confirm the required temperature marking at time of order.
Key Ratings
| Parameter | Specification |
|---|---|
| UL AWM Style | 1015 (UL Subject 758) |
| Temperature Rating | 80°C / 90°C / 105°C (per construction) |
| Voltage Rating | 600V AC / 750V DC |
| Insulation | Extruded PVC |

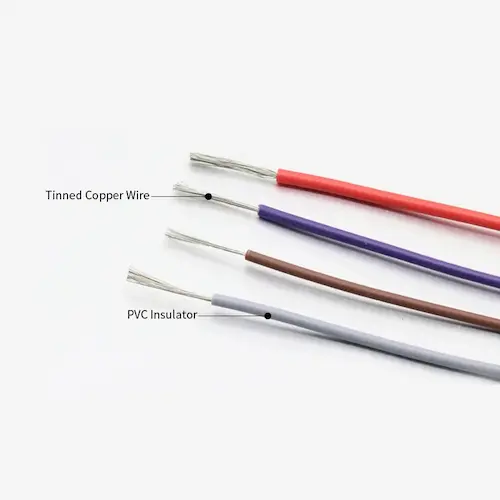

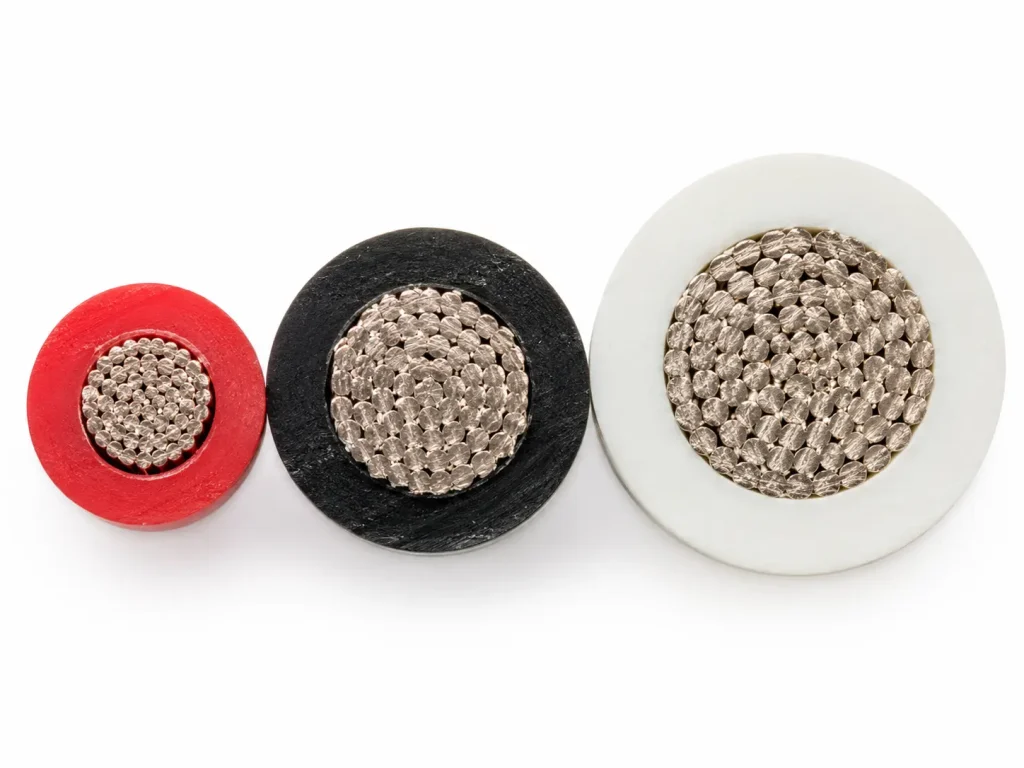

| Conductor | Solid or stranded copper (tinned or bare) |

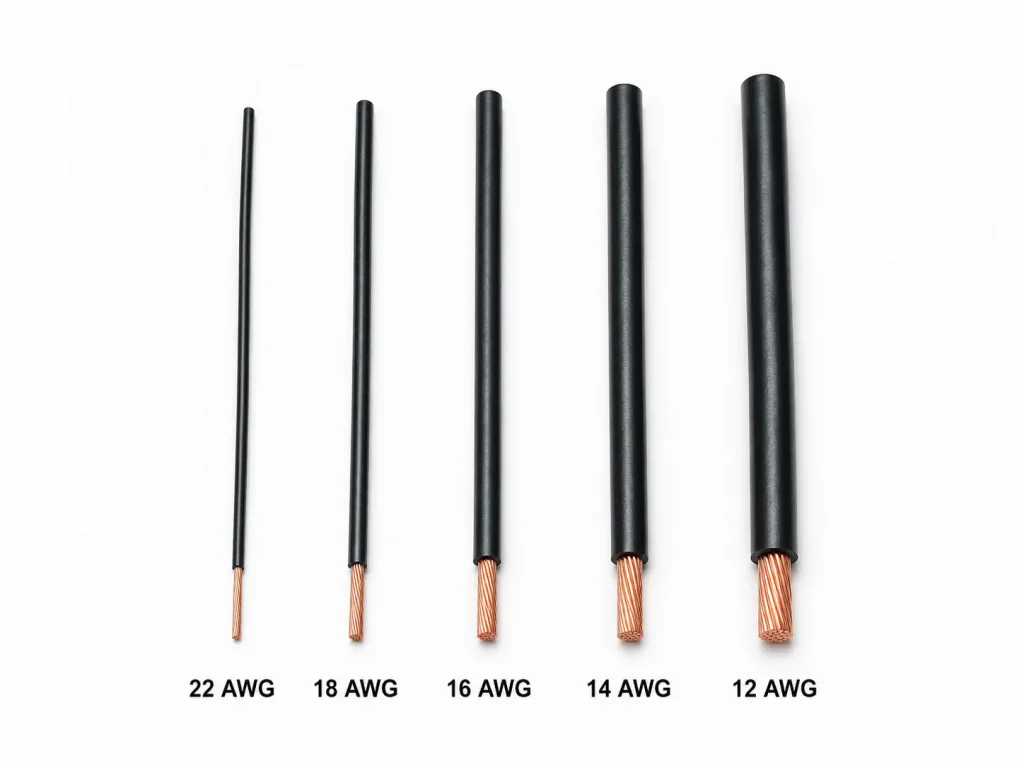

| AWG Range | 30 AWG – 2000 kcmil (common supply 30 AWG – 4/0 AWG) |
| Optional Rating | Oil-resistant grade available (when specified and marked) |
| Flame Rating | Horizontal flame |
| Typical Use | Internal wiring of appliances |
Selection Notes
UL 1015 is suited to fixed internal wiring in appliances and equipment where a 600V / 750V DC PVC AWM wire is required and the routing is protected within the equipment enclosure. The three available temperature markings (80°C, 90°C, 105°C) allow selection to match the operating temperature at the routing position. An optional oil-resistant grade is available when the design requires it.
For lighter 300V internal wiring, see UL 1007 (80°C / 300V / 32–16 AWG). For higher-temperature XLPE alternatives at the same 600V rating, see UL 3271 (125°C / 600V) or UL 3321 (150°C / 600V). For silicone rubber at 200°C, see UL 3135.
Typical Applications

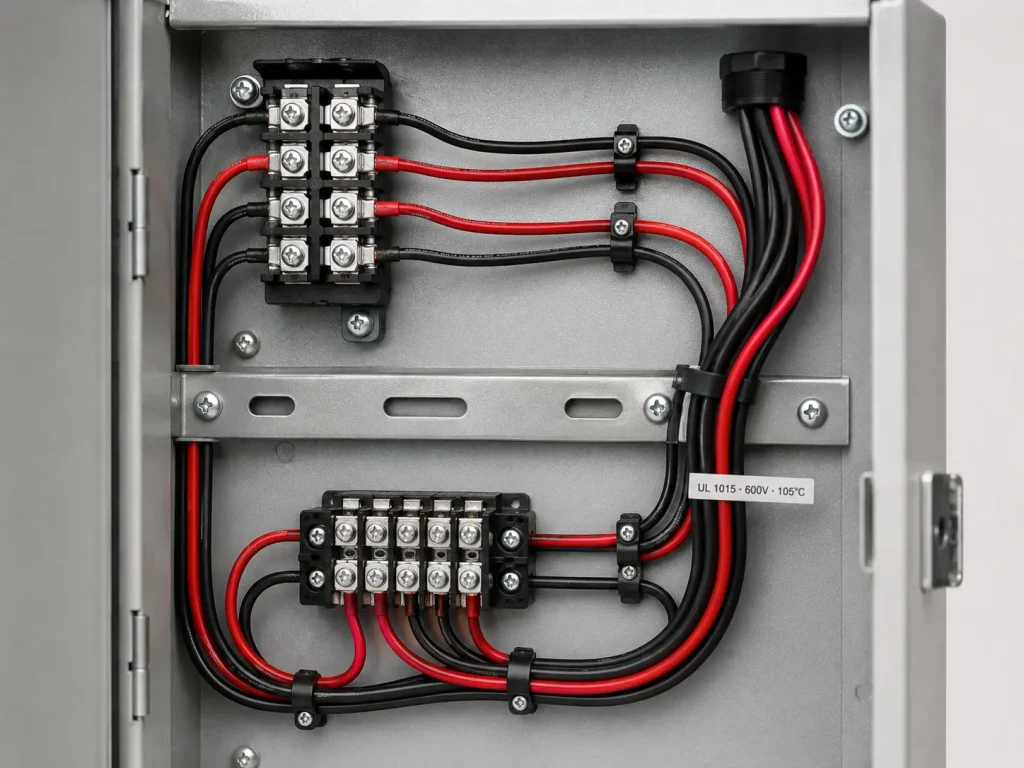

- Fixed internal wiring in appliances and OEM equipment enclosures
- Control panel internal wiring at 600V / 750V DC where PVC AWM is specified
- Power lead routing inside enclosed appliance housings
- Motor lead connections in appliances where the terminal temperature remains within the selected rating
- Internal wiring in electronic equipment where 600V PVC AWM is required
Ordering Information
Specify AWG, temperature marking required (80°C, 90°C, or 105°C), conductor type (solid or stranded, tinned or bare), oil-resistant requirement if applicable, insulation colour, and quantity. RoHS and REACH documentation available on request. Quotations returned within 24 hours; mixed-AWG orders accepted on a single shipment.
