UL 1330 FEP Wire 18 AWG — 200°C at 600 Vac with Optional Gasoline Immersion and 80°C Oil Tags

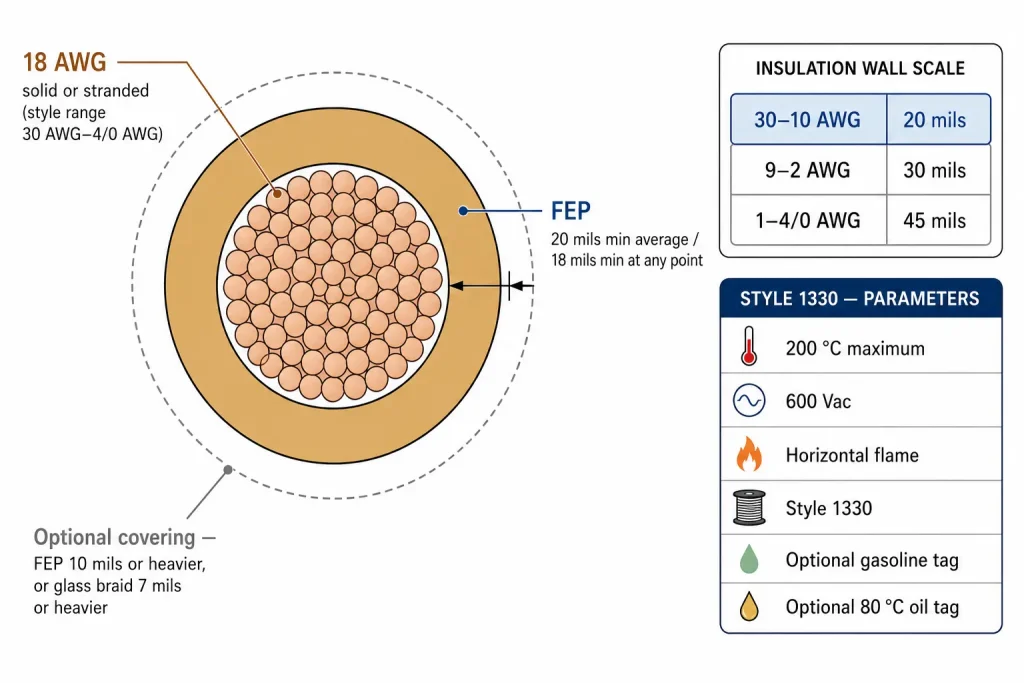

UL 1330 in 18 AWG is a single-conductor appliance wiring material with extruded FEP insulation, rated 200°C maximum at 600 Vac. At 18 AWG the insulation falls in the style’s 30–10 AWG bracket at 20 mils minimum average thickness, 18 mils minimum at any point. This size combines the highest temperature rating available across the FEP appliance wiring styles with the tag options that distinguish UL 1330 from its neighbours: suitability for immersion in gasoline, for gasoline vapour exposure, and for 80°C service in oil. CableApex supplies UL 1330 18 AWG as a UL Recognized Component — file on record.
What the Gasoline Tag Options Cover
Most appliance wiring styles carry an oil-resistance option and nothing further. UL 1330 goes beyond that: the style permits the tag to indicate suitability for immersion in gasoline, for exposure to gasoline vapour, and for 80°C service in oil — three distinct markings that can be specified individually or together at time of order. The neighbouring FEP styles do not carry the gasoline immersion description in the same form, and no PVC-insulated style CableApex supplies approaches this combination at all. For an 18 AWG internal conductor routed through a fuel-adjacent compartment, this is the specification difference that determines whether the wire is a recognised component for the application or merely close to one.
UL 1330 18 AWG Specifications
| Item | Specification |
|---|---|
| UL Style | 1330 — insulated wire |
| Temperature Rating | 200°C maximum |
| Voltage Rating | 600 Vac |
| Conductor | 18 AWG, solid or stranded (style range 30 AWG–4/0 AWG) |

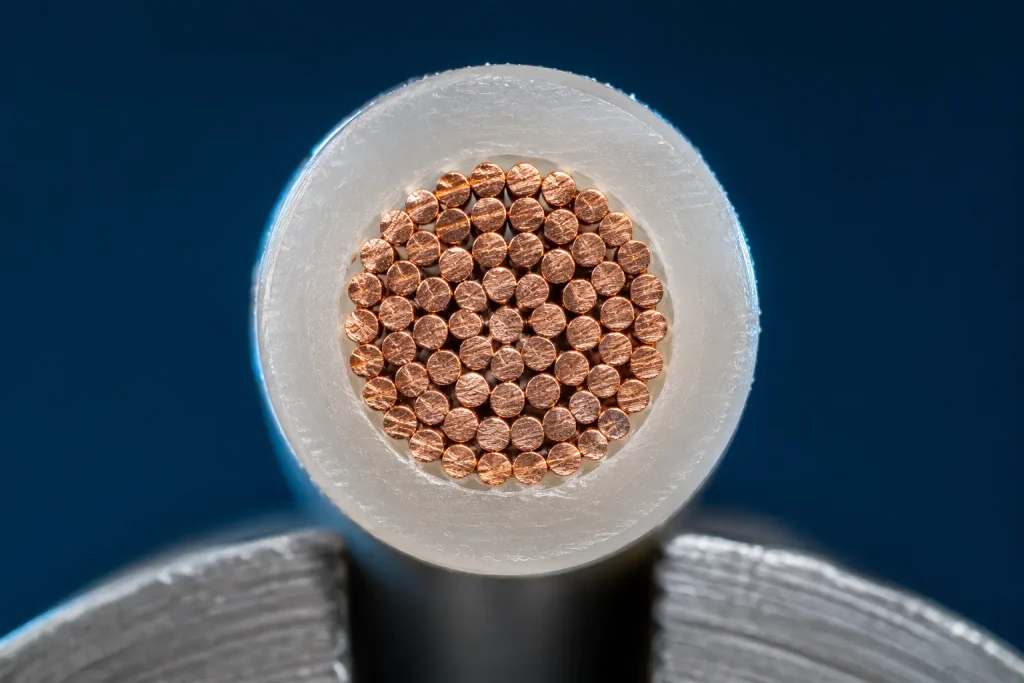

| Insulation | FEP, 20 mils minimum average thickness, 18 mils minimum at any point |
| Flame Rating | Horizontal flame; VW-1 vertical flame test available |
| Oil Rating | Optional — oil resistant 80°C |
| Gasoline Resistance | Optional — tag may indicate suitability for immersion in gasoline and gasoline vapour |
| Optional Covering | FEP, 10 mils or heavier; or glass braid, 7 mils or heavier |
| UL Recognition | UL Recognized Component — file on record |
| Marking | Per UL Subject 758 marking requirements |
| Permitted Use | Internal wiring of appliances; tag may indicate suitability for immersion in gasoline, gasoline vapour, and 80°C in oil |
| RoHS / REACH | Documentation available on request |
Selecting Between UL 1330, 1331 and 1333 at 18 AWG
| At 18 AWG | UL 1330 (this page) | UL 1331 | UL 1333 |
|---|---|---|---|
| Temperature | 200°C | 150°C | 150°C |
| Voltage | 600 Vac | 600 Vac | 300 Vac |
| FEP wall | 20 mils avg / 18 mils min | 20 mils avg / 18 mils min | 13 mils avg / 12 mils min |
| Gasoline immersion tag | Available | Gasoline resistant option | Gasoline resistant option |
| Litz conductor | Not listed | Available | Available |
Applications

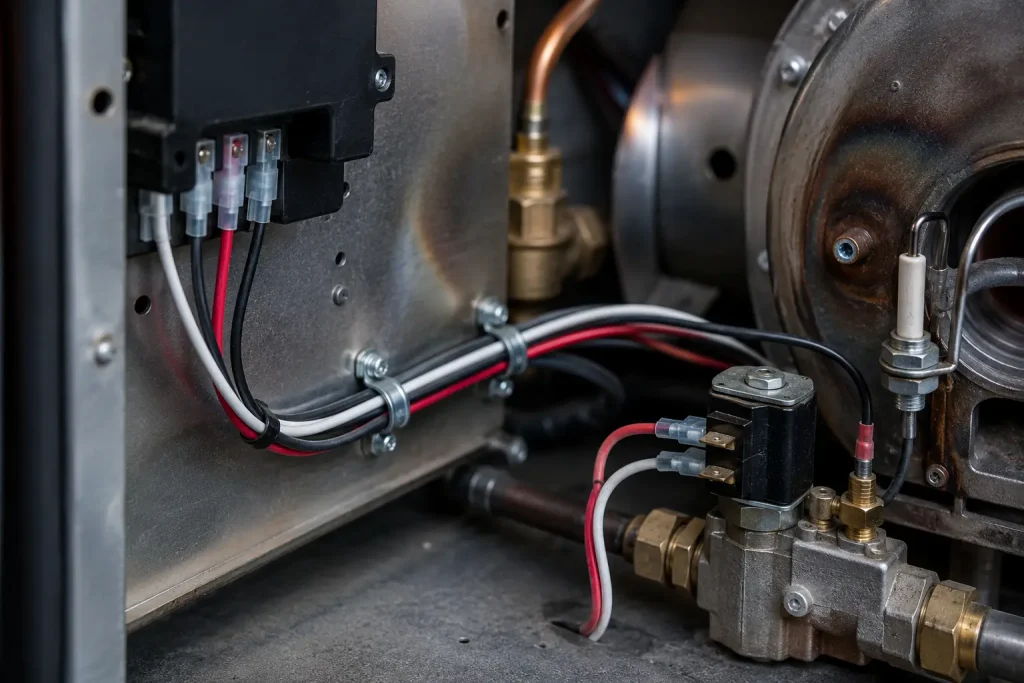

Within its permitted use — internal wiring of appliances — UL 1330 18 AWG suits internal conductors in fuel-fired and oil-containing appliances where the wire may be exposed to gasoline, gasoline vapour or hot oil, and general appliance internal wiring in high-temperature zones approaching 200°C where PVC and lower-rated fluoropolymer styles are unsuitable. The optional glass braid covering adds abrasion resistance where the conductor is pulled through tight passages or contacts sheet-metal edges during assembly. Specify the gasoline and oil tag options at time of order, as they are not standard on all product. For applications outside internal appliance wiring, confirm application suitability before specifying.
Key Features
- 200°C maximum — highest rating among the FEP appliance wiring styles
- Optional tags for gasoline immersion, gasoline vapour and 80°C oil
- FEP wall 20 mils average, 18 mils minimum at 18 AWG
- Solid or stranded conductor within a 30 AWG–4/0 AWG style range
- Optional FEP or glass braid covering; horizontal flame, VW-1 available
- UL Recognized Component — file on record
Request a Quote

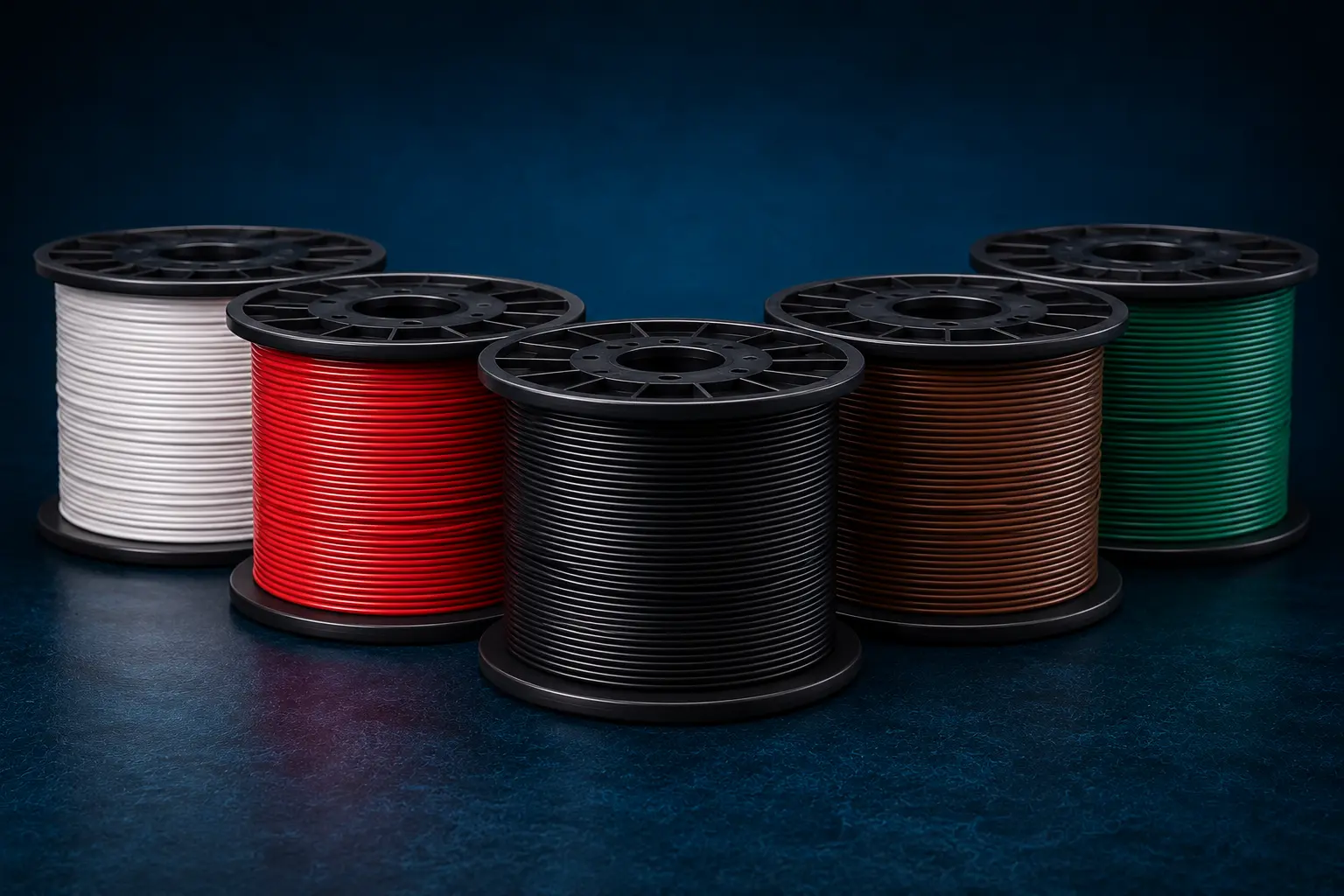

CableApex supplies UL 1330 18 AWG from 100 m per color and responds to B2B inquiries within 12 hours. Specify conductor construction (solid or stranded), colors, covering option and any gasoline or oil tag markings required through the form below.
