UL AWM Style 1569 PVC Hook-Up Wire for Vietnam and Indonesia Sourcing
This page is the regional sourcing page for UL AWM Style 1569 single-conductor PVC wire for buyers in Vietnam and Indonesia. It covers the full verified Style range of 30 AWG–2 AWG and is written for procurement teams, distributors and OEM buyers whose drawing, BOM or existing wire specification calls for Style 1569.

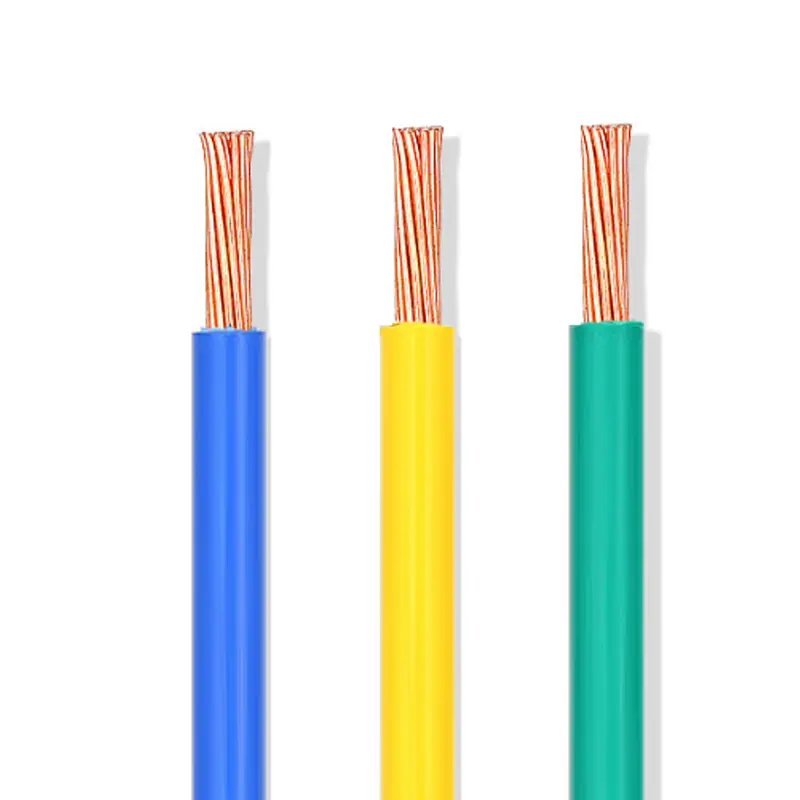

Style 1569 is a single conductor with extruded PVC insulation. The Style provides temperature rating options of 80°C, 90°C or 105°C at a normal voltage rating of 300 Vac, with a Horizontal Flame designation. The insulation wall requirement splits into two conductor-size groups, and an extruded PVC covering is permitted as an option. The official Use is “Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage.”
“Hook-up wire” is the commercial term buyers use when searching for this Style. The two restrictions in the official Use, on movement and on mechanical damage, stay with the product regardless of the commercial term, and they are treated here as part of the specification rather than as a footnote.
Technical Reference — UL AWM Style 1569
| Parameter | Requirement |
|---|---|
| UL AWM Style | 1569 |
| Product Description | Single Conductor with extruded insulation |
| Temperature Rating Options | 80°C, 90°C or 105°C |
| Normal Voltage Rating | 300 Vac |
| Flame | Horizontal Flame |
| Style Conductor Range | 30 AWG–2 AWG |
| Conductor Form | Solid or Stranded |
| Insulation | Extruded PVC |
| 30–10 AWG Insulation | 15 mil minimum average / 13 mil minimum at any point |
| 9–2 AWG Insulation | 30 mil minimum average / 27 mil minimum at any point |
| Optional Covering | Extruded PVC, 9 mil minimum average / 8 mil minimum at any point (optional) |
| Marking | General |
| Official Use | Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. |
| Optional Tag | 600 Volts Peak for Electronic Use Only |
Ten points to clarify about the table above:
- 80°C, 90°C and 105°C are alternative options. One applies to a given construction and must be confirmed for the ordered construction.
- 300 Vac is the normal voltage rating for the Style. No DC rating appears in the record.
- 600 Volts Peak for Electronic Use Only is an optional tag indication, not the normal voltage rating.
- The two insulation groups are separate. The 15/13 mil values apply to 30–10 AWG and the 30/27 mil values apply to 9–2 AWG.
- Within each group, the minimum average and the minimum at any point are two independent requirements, not a range and not nominal values.
- The extruded PVC covering is optional. It is not included unless it is specified and confirmed.
- The covering’s own 9/8 mil values are separate requirements and are not added to the insulation wall to produce a single figure.
- 30 AWG–2 AWG is the Style scope, not an inventory list or a guarantee that every size exists in every temperature option and colour.
- Conductor material, plating, strand count, strand diameter and lay length are not defined by the Style.
- Finished OD, conductor resistance and ampacity are not Style-level values and require SKU-specific confirmation.
The Three Temperature Options Are Alternatives
A Style 1569 construction carries the temperature rating confirmed for it, so an enquiry for “UL 1569” without a stated option leaves the specification incomplete. Buyers in Vietnam and Indonesia whose equipment specification controls a wire temperature rating should state 80°C, 90°C or 105°C, or supply the drawing that states it.
The rating is not described here as continuous, and no service life or thermal margin is derived from it. This page also does not assign a temperature option to an appliance type or to a routing position. The Style record contains no equipment ambient temperatures, no thermal profiles for ovens, power supplies, luminaires or motors, and no rule that proximity to a heat source calls for a particular option. That determination belongs to the buyer’s thermal design and approved BOM.
300 Vac and the Optional Peak Tag
The normal voltage rating is 300 Vac. It is not written as 300 Vdc or as an AC/DC rating, and it is not raised to 600 Vac on the strength of the optional tag.
Tags may indicate “600 Volts Peak for Electronic Use Only.” Both qualifiers stay attached whenever the tag is cited in a specification. The tag is not a working-voltage rating and does not widen the official Use.

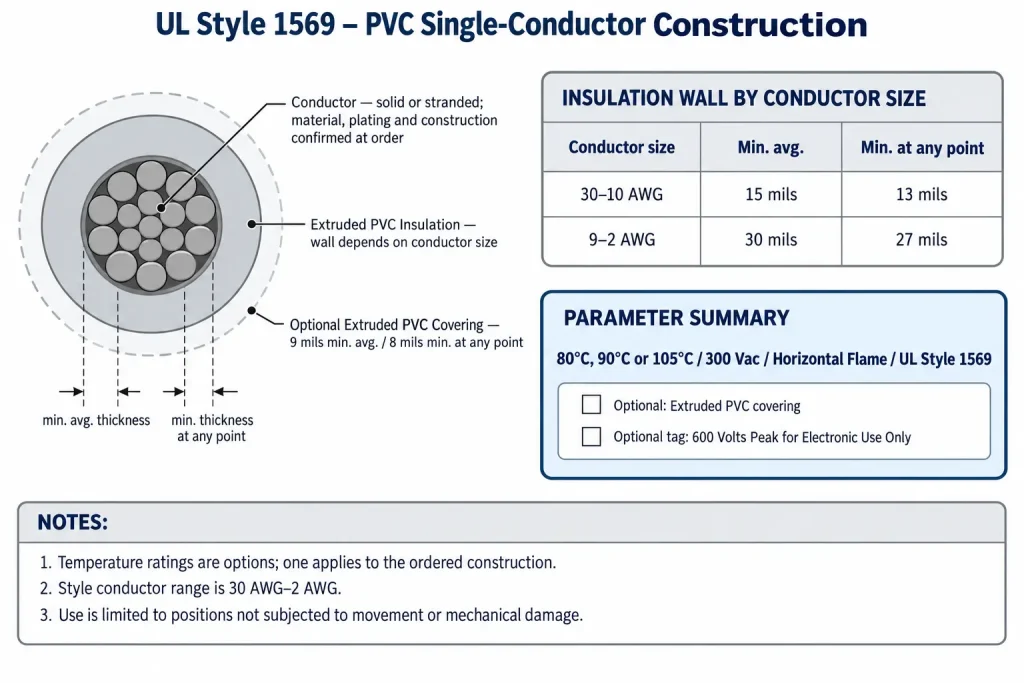

Two Insulation Wall Groups Across 30 AWG–2 AWG
Style 1569 sets the extruded PVC wall in two conductor-size groups. For 30–10 AWG the requirement is 15 mil minimum average and 13 mil minimum at any point. For 9–2 AWG it rises to 30 mil minimum average and 27 mil minimum at any point. A specification that quotes one wall figure for the whole Style has applied one group’s values outside their range.
If “thin-wall” is used commercially, it describes the 30–10 AWG group only. The 9–2 AWG group carries the heavier wall requirement, and no percentage dimensional advantage is claimed here for the Style as a whole.
Minimum wall values do not produce a finished outer diameter. Actual OD depends on conductor material, solid or stranded form, the actual conductor dimensions, the applicable insulation group, whether the optional covering is applied, PVC extrusion and manufacturing tolerance. Where routing clearance or terminal entry is controlled, state a maximum finished OD and OD tolerance in the RFQ.

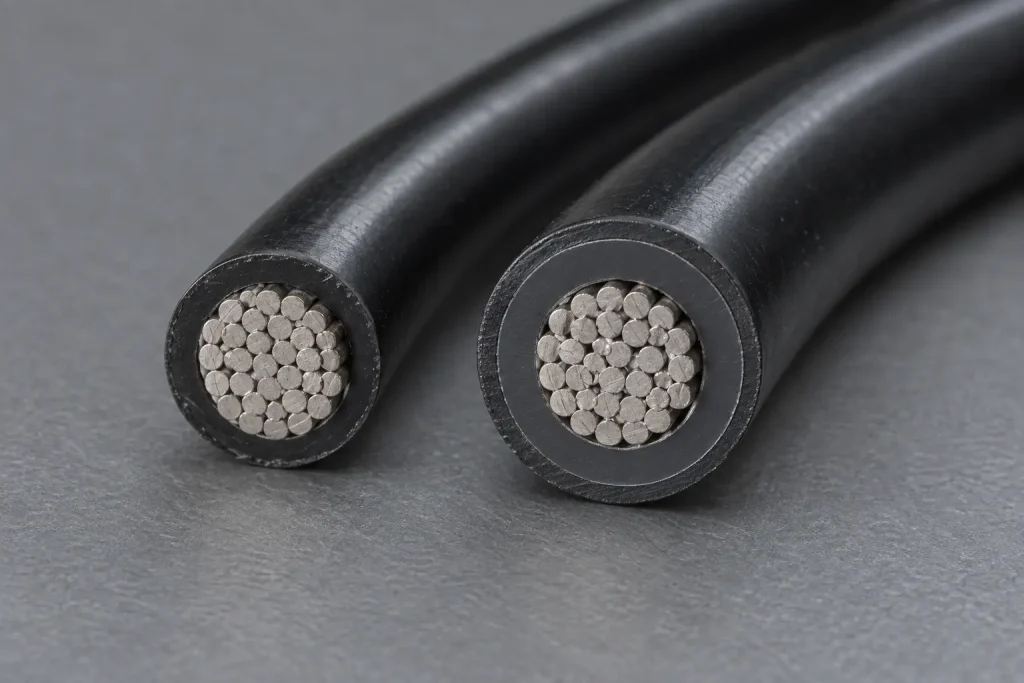

The Optional Extruded PVC Covering
An extruded PVC covering is permitted by the Style as an option, with its own requirement of 9 mil minimum average and 8 mil minimum at any point. The record establishes that the covering is optional and states those minimums. It does not state a purpose for the covering, and none is supplied here.
Two consequences follow for procurement. First, a Style 1569 construction does not include the covering unless it is specified, so an enquiry that requires it should say so explicitly. Second, no performance is attributed to it on this page, whether abrasion resistance, mechanical protection, improved flame behaviour or dielectric benefit. If the buyer’s design relies on the covering for a defined function, that requirement belongs in the drawing and is reviewed against the proposed construction.

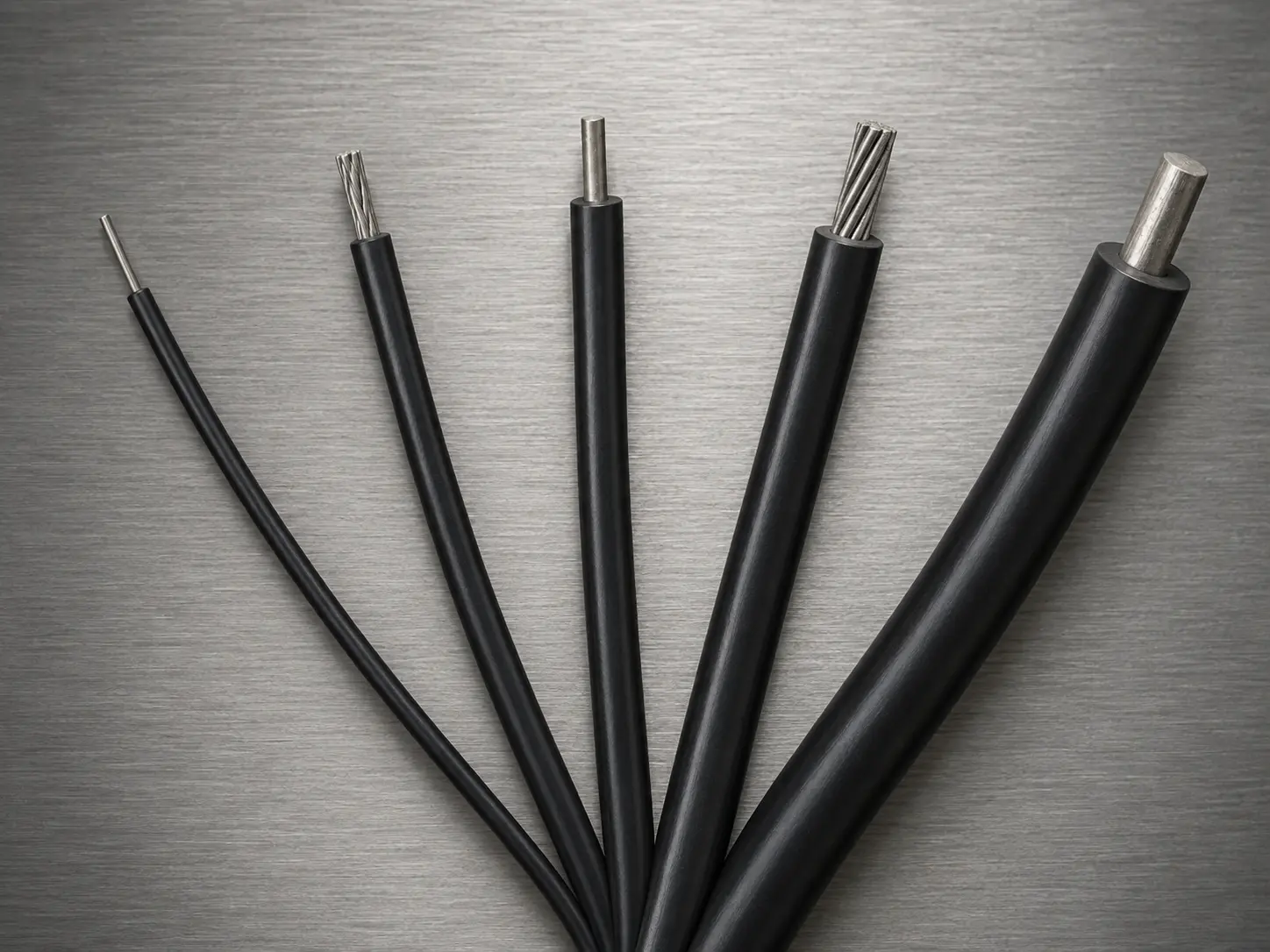

Conductor Range, Availability and Circuit Function
The Style scope runs from 30 AWG to 2 AWG, and both ends belong to it. Describing the Style as a 30–10 AWG product omits the 9–2 AWG group together with its separate wall requirement.
Scope is not availability. Not every size is regularly produced, held in stock, offered in every temperature option, available in every colour or quoted on the same terms, and commercial availability of a proposed construction is confirmed per enquiry.
Conductor size also does not assign circuit function or current capacity. The Style designates no size as signal wire, control wire, power wire or a feed conductor, and gives no ampacity for any size. No current value is inferred here from conductor size, the 300 Vac rating, the wall thickness or the temperature option. Where a Vietnamese or Indonesian buyer’s BOM specifies a particular size of Style 1569 in a particular internal position, the equipment design controls the function and the current requirement.

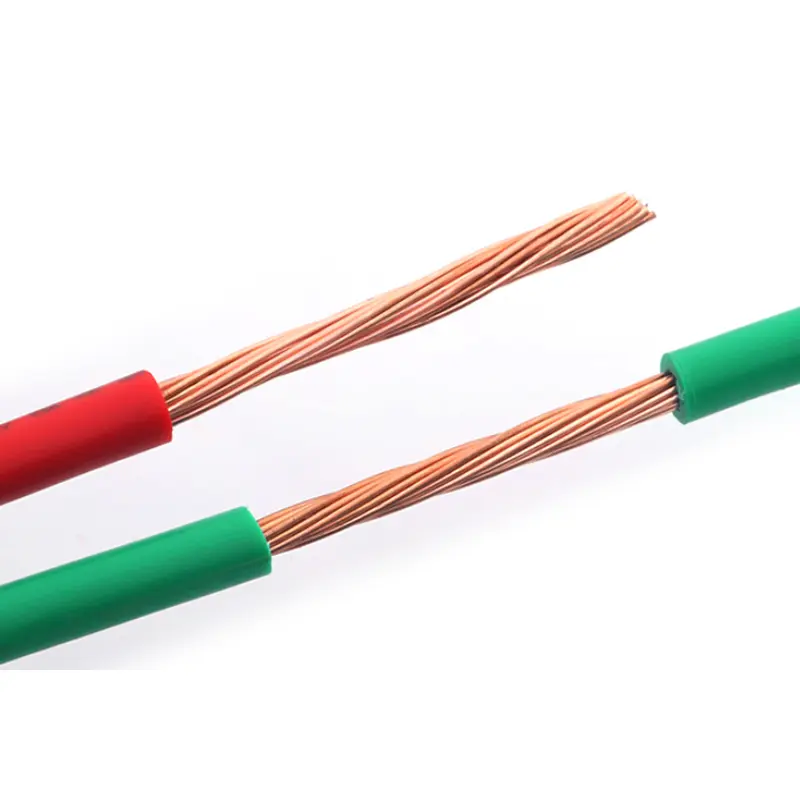

Conductor Construction Confirmed at Order
At Style level the conductor is described as solid or stranded across the size range. Material and construction remain open, so the following are RFQ fields:
- solid or stranded form
- conductor material
- plating or surface finish
- strand count, strand diameter and lay construction, where controlled
- maximum conductor resistance, where controlled
Stranding-class designations and flexibility grades are not part of the record and are not applied to Style 1569 here. Resistance figures from generic conductor tables or from another manufacturer’s datasheet are not used as product data.

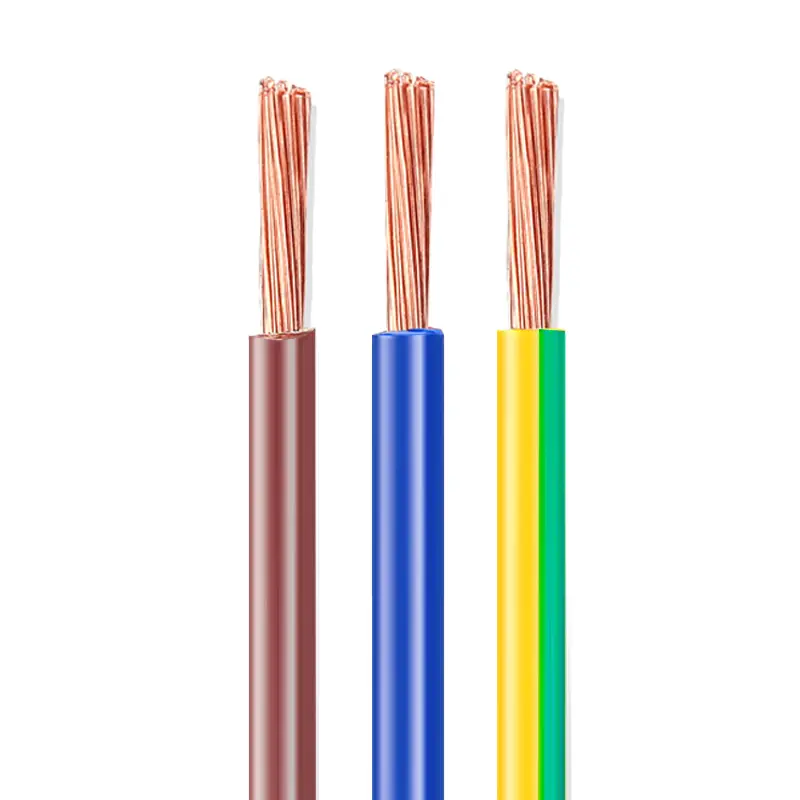

Official Use and Its Two Restrictions
The official Use is “Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage.” Three elements of that sentence matter in procurement.
The Use covers appliances and electronic equipment. Dropping either term narrows or widens the Style incorrectly.
The movement restriction stands. Style 1569 is not presented for continuous flexing, moving or hinged harnesses, drag chains, robotic motion or any repeated mechanical movement.
The mechanical-damage restriction also stands. The wire is not presented for exposed or unprotected routing, abrasive locations or field-installed runs where mechanical damage may occur. Protection of the wire at its routing position is part of the equipment design.

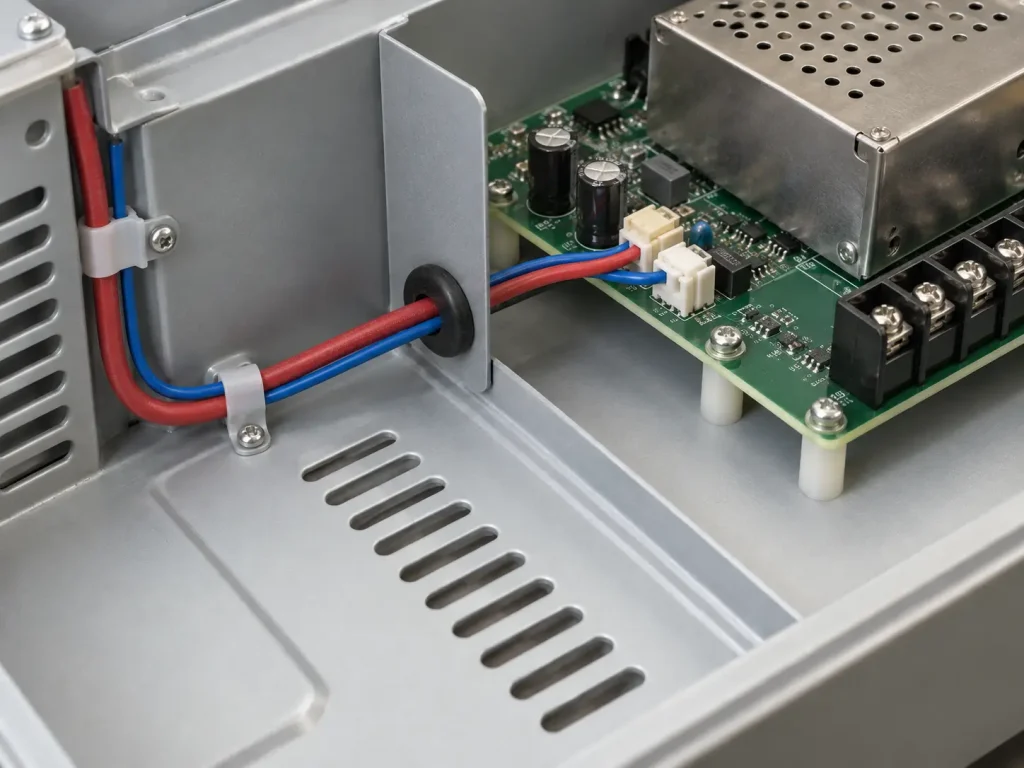

Within those limits, “protected static internal wiring” is a practical way to describe the restriction in an enquiry, though it is not itself a UL Use category. The Use is likewise not extended to building or field wiring, branch circuits, tray or conduit wiring, portable cord or external equipment wiring, and buyer location in Vietnam or Indonesia does not change it. Compliance of a finished appliance or electronic product is established at the equipment level, not by the Style designation of one internal wire.
Vietnam and Indonesia Sourcing Context
Vietnam and Indonesia are the commercial setting for this page: buyer locations, OEM sourcing markets, component distribution markets and shipment destinations. Enquiries typically come from buyers sourcing Style 1569 by AWG and temperature option, from buyers supplying an existing BOM or drawing, and from buyers who need to confirm whether the optional covering is required before a purchase order is issued.
No local specification practices, usage statistics or named customers are claimed for either market. Destination city or port, Incoterm, packaging, colour and quantity are quotation variables handled per enquiry rather than published as fixed terms.
Bulk Wire Versus Processed Leads
This page represents Style 1569 single-conductor wire supplied as bulk wire. Supply does not automatically include cutting, stripping, crimping, terminals, connectors, finished leads or harnesses. Processing requirements must be specified separately with lengths, termination details and drawings.
What Style 1569 Does and Does Not Define
Style 1569 defines:
- 80°C, 90°C or 105°C temperature rating options
- 300 Vac normal voltage rating
- Horizontal Flame
- conductor range 30 AWG–2 AWG, solid or stranded
- extruded PVC: 15/13 mil for 30–10 AWG and 30/27 mil for 9–2 AWG
- optional extruded PVC covering at 9/8 mil
- Marking: General
- Use: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage.
- optional tag: 600 Volts Peak for Electronic Use Only
Style 1569 does not universally define:
- conductor material, plating, strand count, strand diameter or lay length
- finished OD, OD tolerance or conductor resistance
- ampacity or current rating
- equipment ambient temperature at any routing position
- heating-element, motor-proximity, lighting, sensor or power-tool suitability
- a purpose for the optional covering
- colour, reel length, MOQ, stock, lead time, production capacity or shipping term
Common Procurement Errors
- Treating 80, 90 and 105°C as one combined rating, or writing “105°C continuous”.
- Selecting a temperature option from a generic appliance type instead of the buyer’s thermal design.
- Quoting equipment ambient temperatures as if the Style record established them.
- Applying the 15/13 mil values to 9–2 AWG, or describing the whole Style as thin-wall.
- Describing the Style range as 30–10 AWG.
- Treating the optional PVC covering as included, or assigning it a performance purpose.
- Adding the covering’s 9/8 mil to the insulation wall as one figure.
- Assuming every Style 1569 conductor is copper or stranded.
- Publishing generic finished OD, conductor resistance or ampacity by AWG.
- Classifying larger sizes as high-current appliance power wiring.
- Using 600 Volts Peak as the normal working voltage, or dropping “For Electronic Use Only”.
- Ignoring the movement restriction or the mechanical-damage restriction in the official Use.

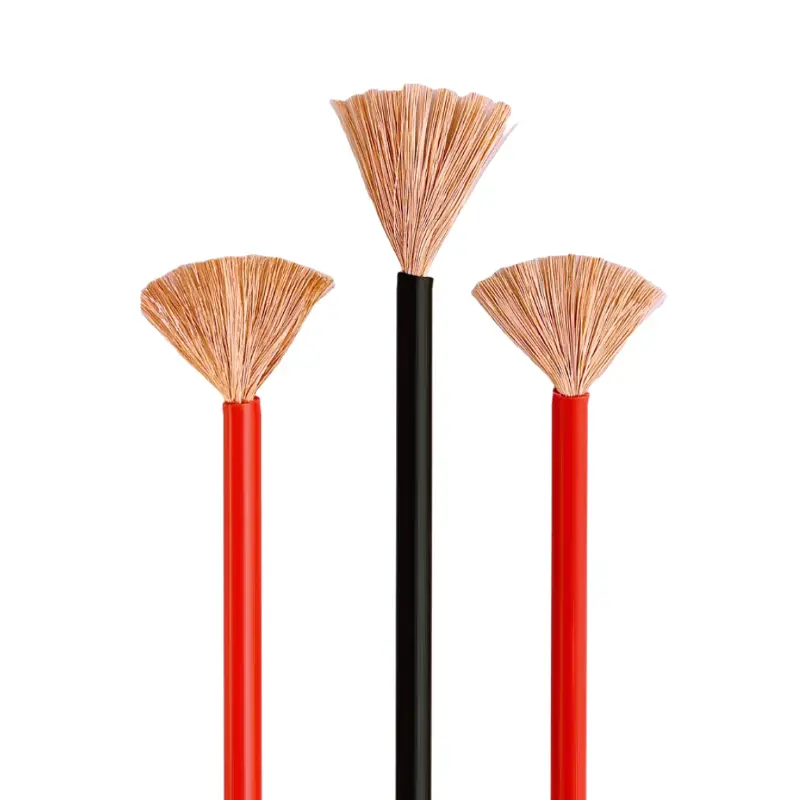

- Substituting one PVC Style for another on temperature or AWG alone, instead of following the Style the drawing requires.
RFQ Checklist — Style 1569 for Vietnam and Indonesia
Style and ratings
- UL AWM Style 1569 requirement
- Required AWG within 30 AWG–2 AWG
- Required temperature option: 80°C, 90°C or 105°C
- 300 Vac requirement
- Whether the optional extruded PVC covering is required
Conductor
- Solid or stranded
- Conductor material and finish / plating
- Strand construction, if controlled
- Maximum conductor resistance, if controlled
Dimensions and appearance
- Maximum finished OD and OD tolerance, if controlled
- Colour
Application references
- Exact appliance or electronic-equipment internal-wiring location
- Confirmation that the wire is not subjected to movement or mechanical damage at that position
- Customer drawing, BOM and existing wire specification
Commercial
- Bulk wire or processed lead
- Quantity and packaging
- Vietnam or Indonesia destination city or port and requested Incoterm
- Required compliance and shipping documentation
UL Marking and Documentation
CableApex is an international sales and export company and does not hold a UL File for Style 1569. Supplied wire is UL-recognized component wire where supplied under a qualified manufacturing scope, with UL marking according to the confirmed ordered construction. The Style record lists Marking as General.
Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
Commercial, origin, compliance and transport documents are identified during quotation and confirmed according to the order. They are not supplied as a fixed package with every shipment.
